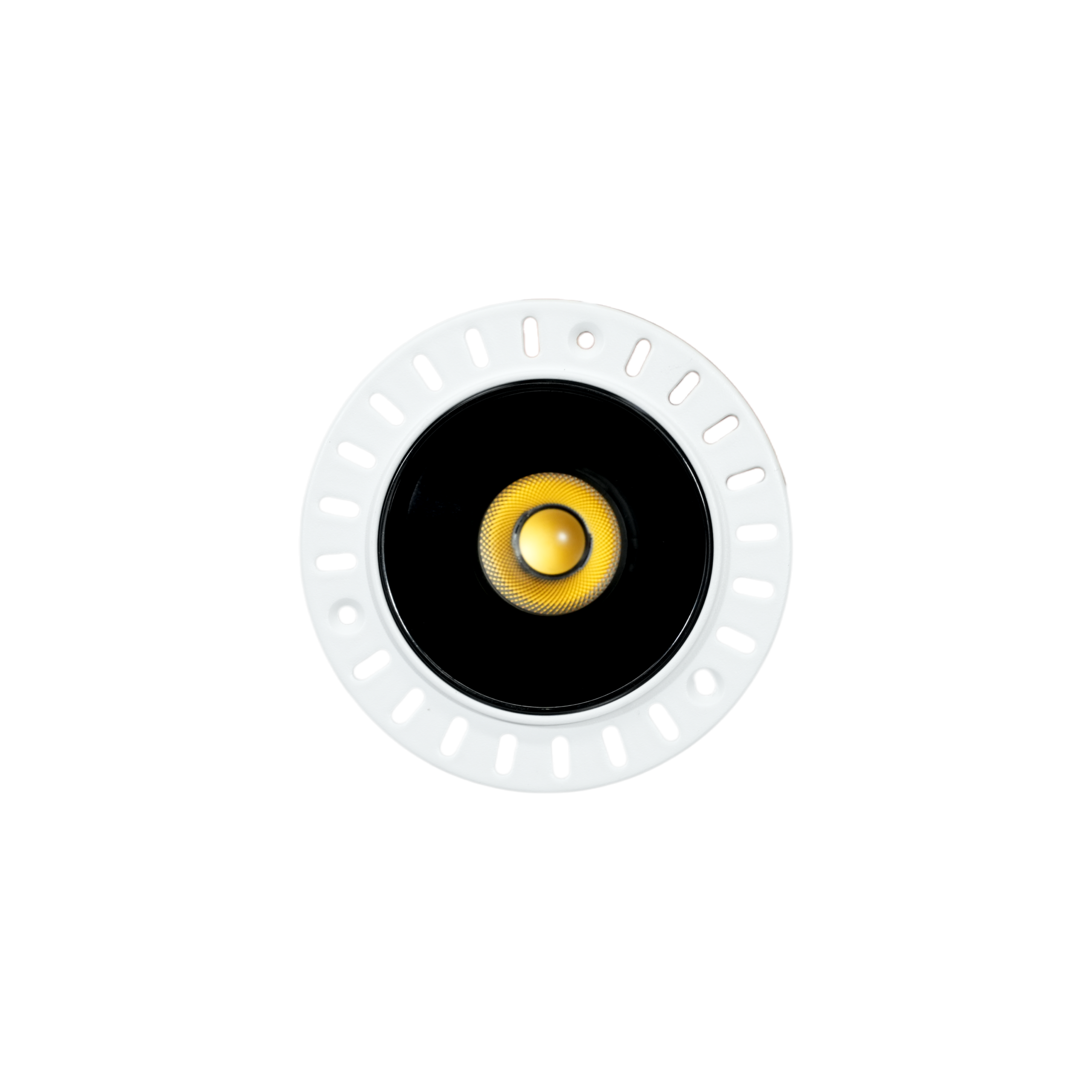

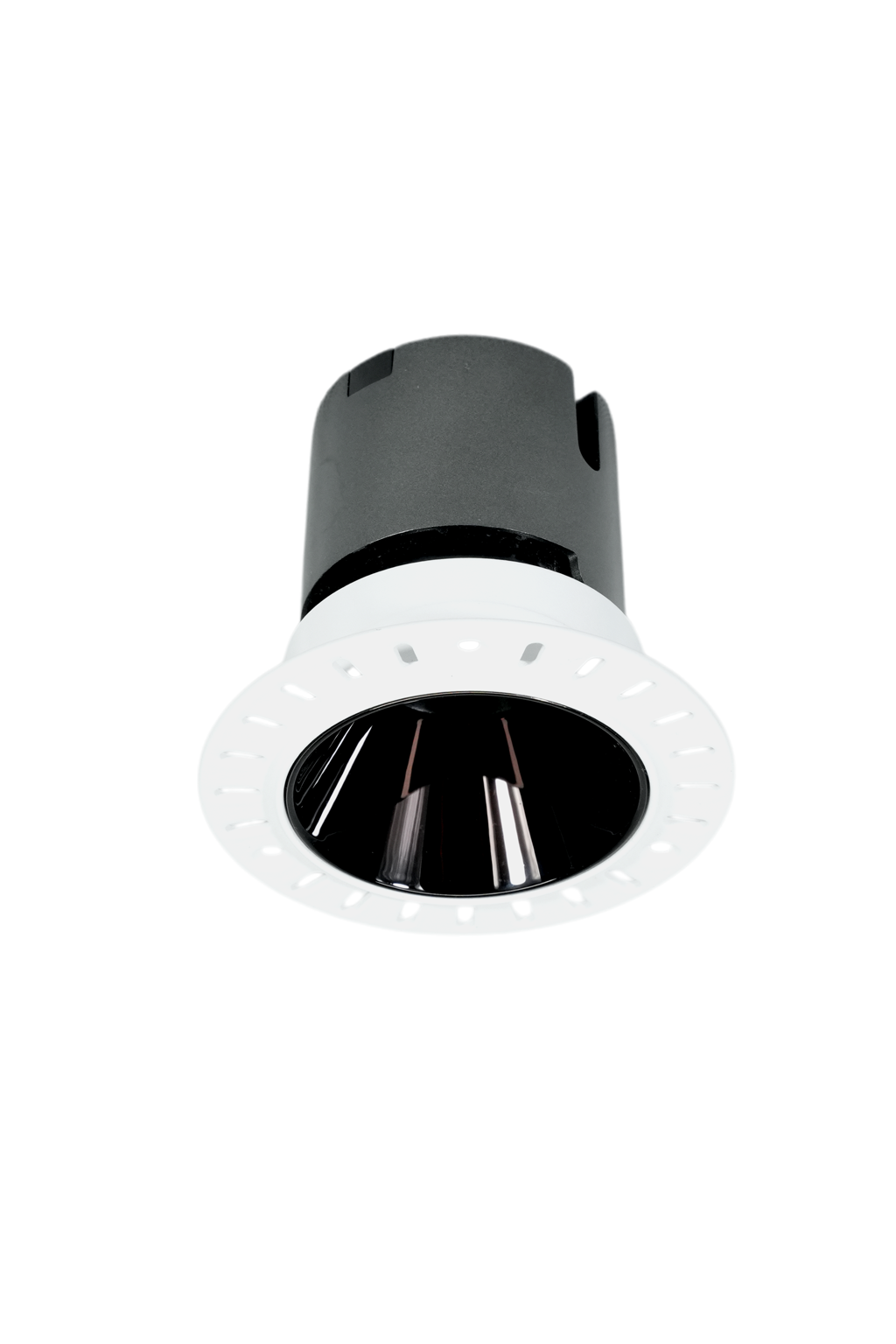

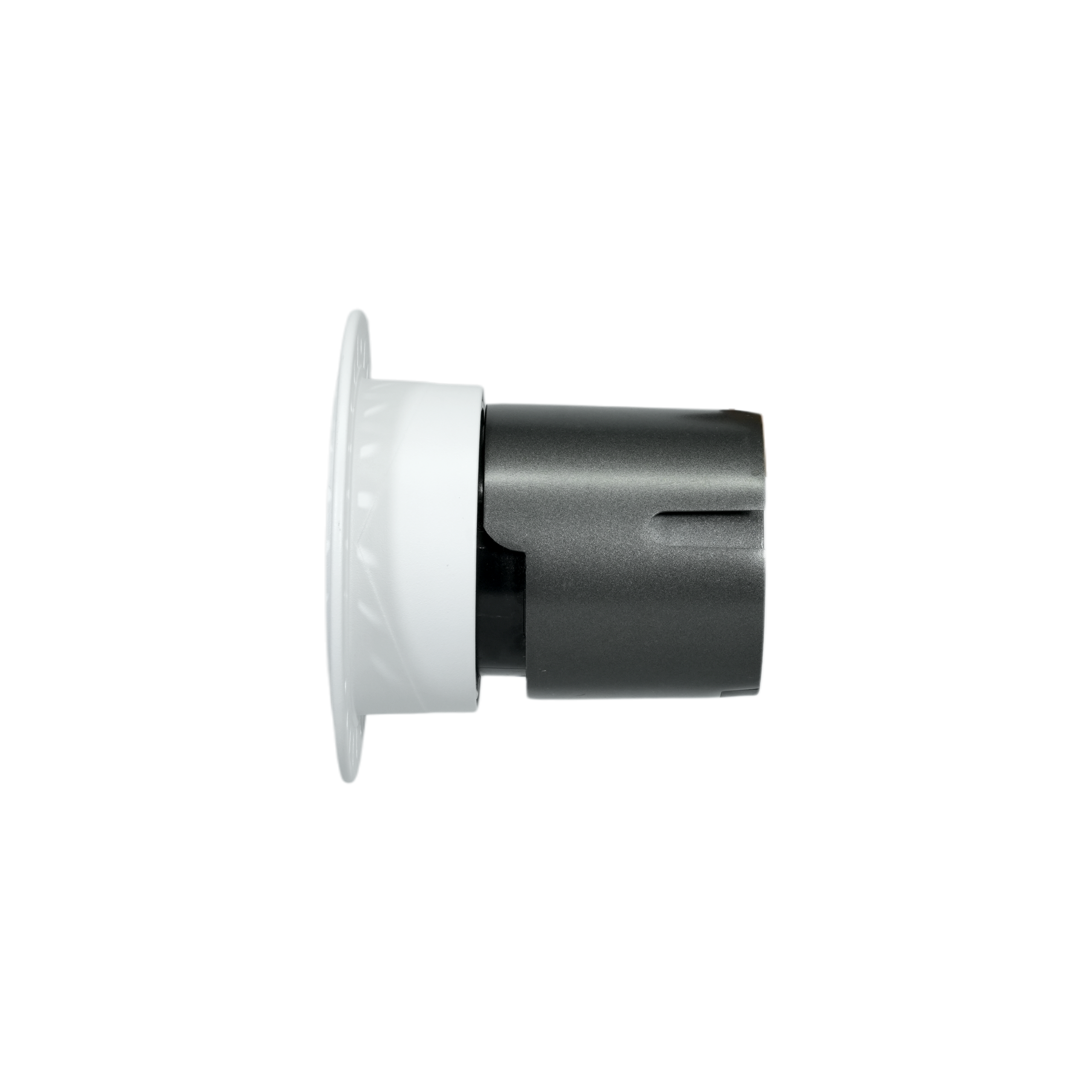

LUMINX TL
7W, 12W, 15W, 20W
LUMINX TL is a sleek and modern recessed spotlight designed to deliver focused and high-quality illumination. With its compact form and elegant finish, it blends seamlessly into ceilings, making it ideal for contemporary architectural and interior lighting applications.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 7W, 12W, 15W, 20W |
Suitable for :
- Residential Spaces
- Healthcare Spaces
- Lobbies
- Corridors & Hallways
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Directional adjustment for precise direction
- Seamless trim for frameless ceiling appearance
- Multiple reflector colour options
- Quick-release trim for easy maintenance
- Elegant ceiling look with slim trim
| Housing | Aluminium Die Cast with PC Lens | |
| Body Colour | White/Black | |
| Light Source | COB | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| LNX-TL-DL-07 | 7 | 700 | 3000 / 4000 / 6500 | โฅ80 | 28ยฐ | D:85, H:80, CUTOUT:55 | |||
| LNX-TL-DL-12 | 12 | 1200 | 3000 / 4000 / 6500 | โฅ80 | 27ยฐ | D:100, H:85, CUTOUT:75 | |||
| LNX-TL-DL-15 | 15 | 1500 | 3000 / 4000 / 6500 | โฅ80 | 30ยฐ | D:100, H:100, CUTOUT:75 | |||
| LNX-TL-DL-20 | 20 | 1,500 | 3000 / 4000 / 6500 | โฅ80 | 34ยฐ | D: 131, H:118, CUTOUT:95 | |||
| CDL-DC-20 | 20 | 2,000 | 3000 / 4000 / 6500 | โฅ80 | 109ยฐ | D:195, H:63, CUTOUT:162 | |||
| CDL-DC-30 | 30 | 3,000 | 3000 / 4000 / 6500 | โฅ80 | 111ยฐ | D:225, H:65, CUTOUT:190 |
*D=Diameter, W=Width, H=Height
