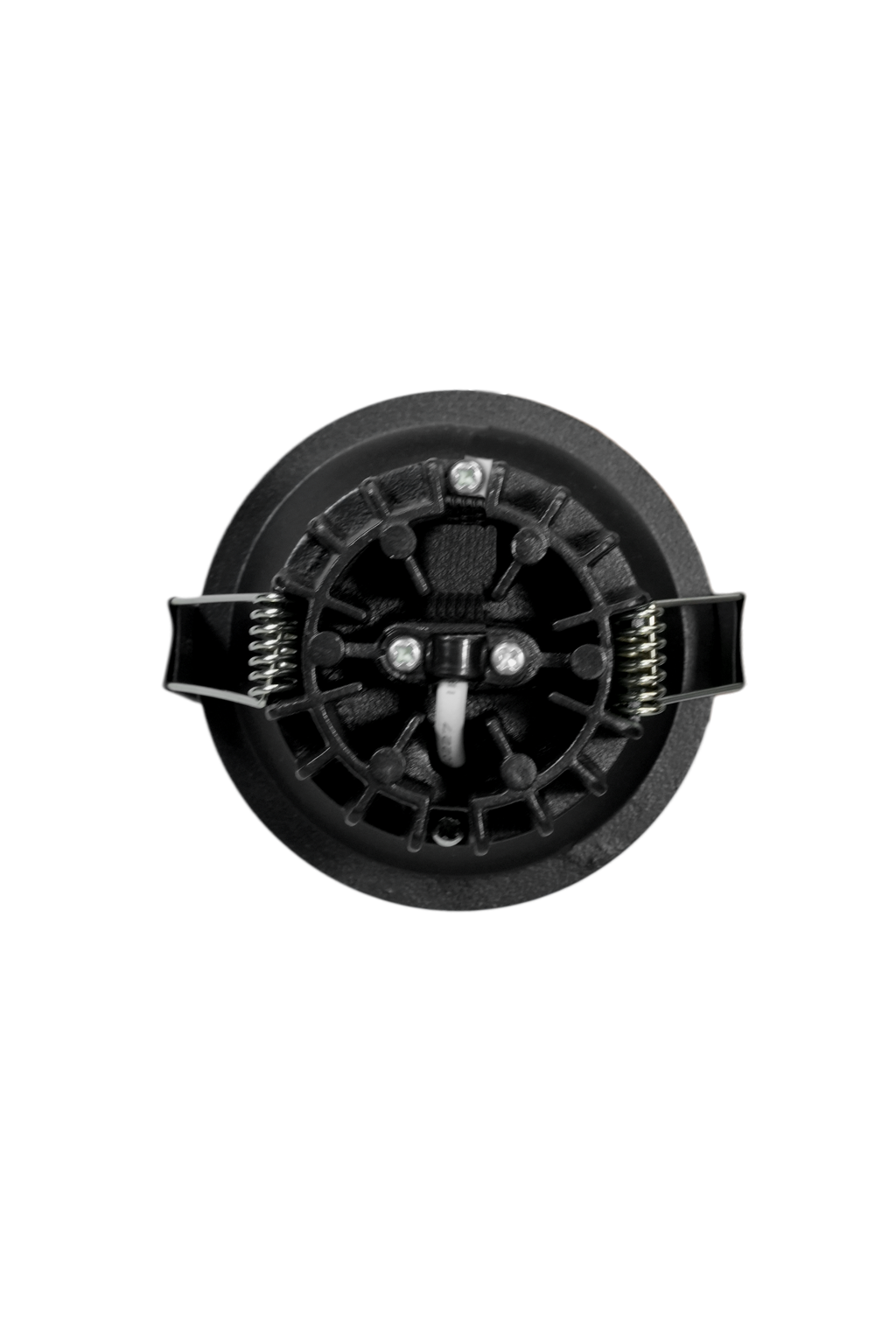

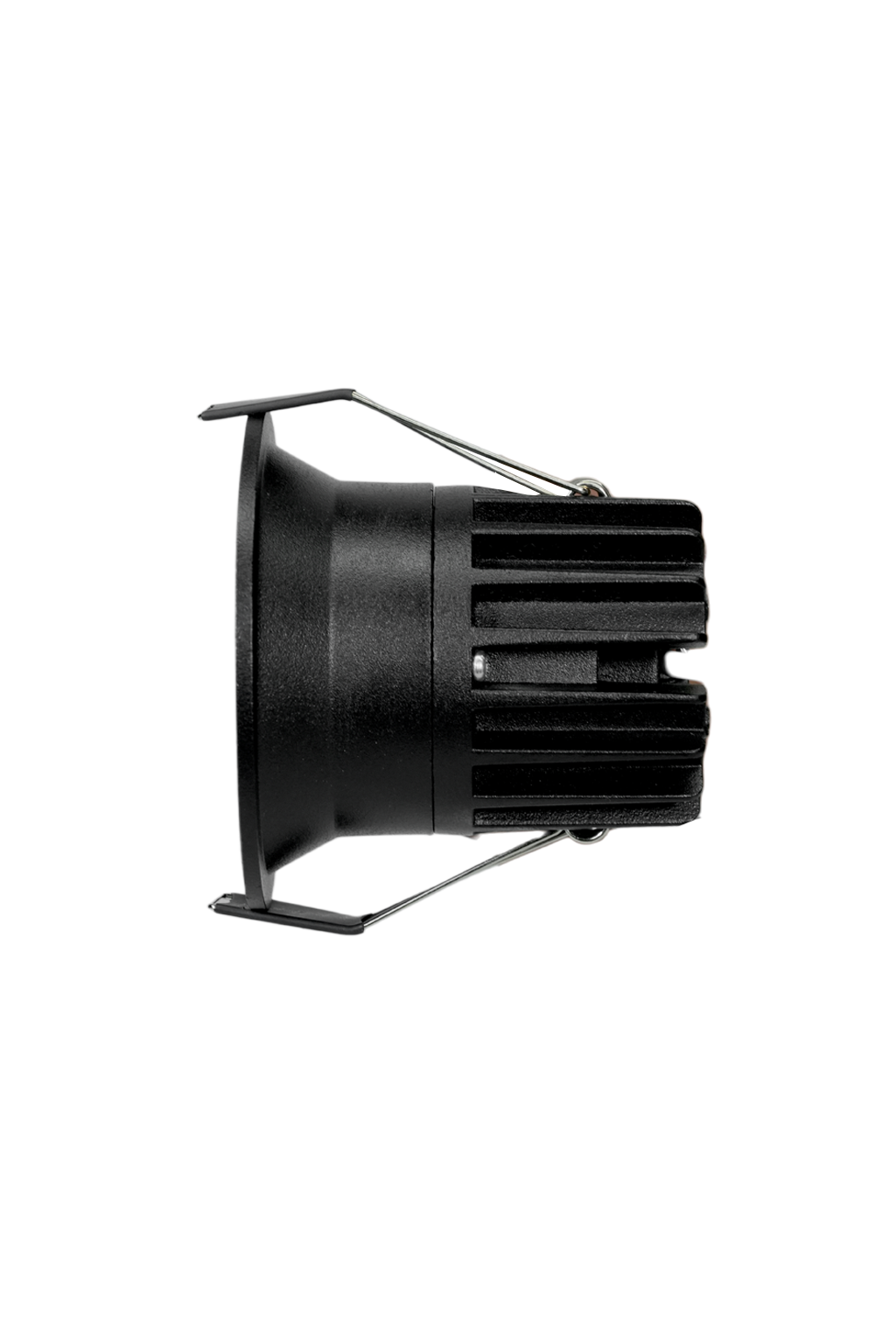

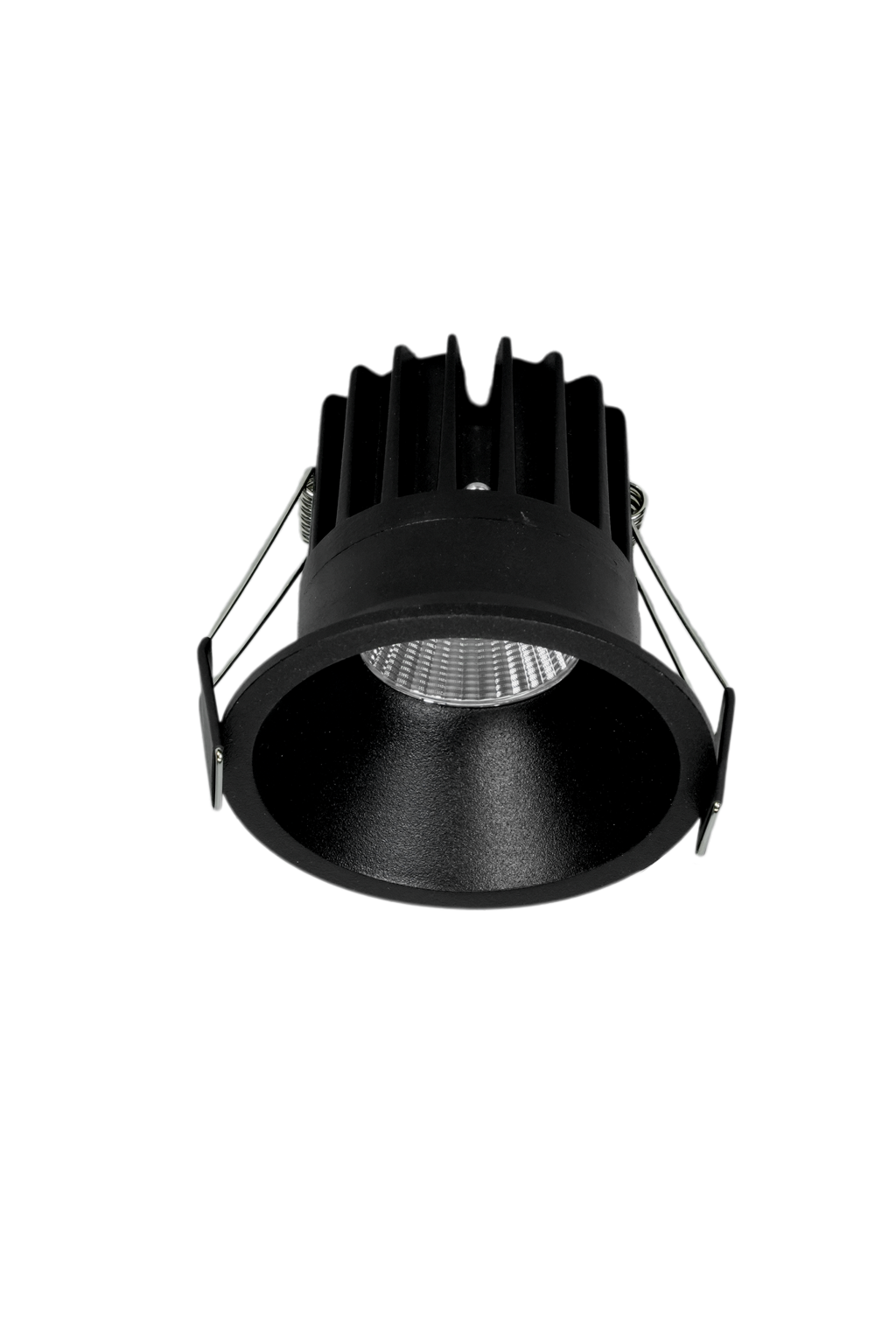

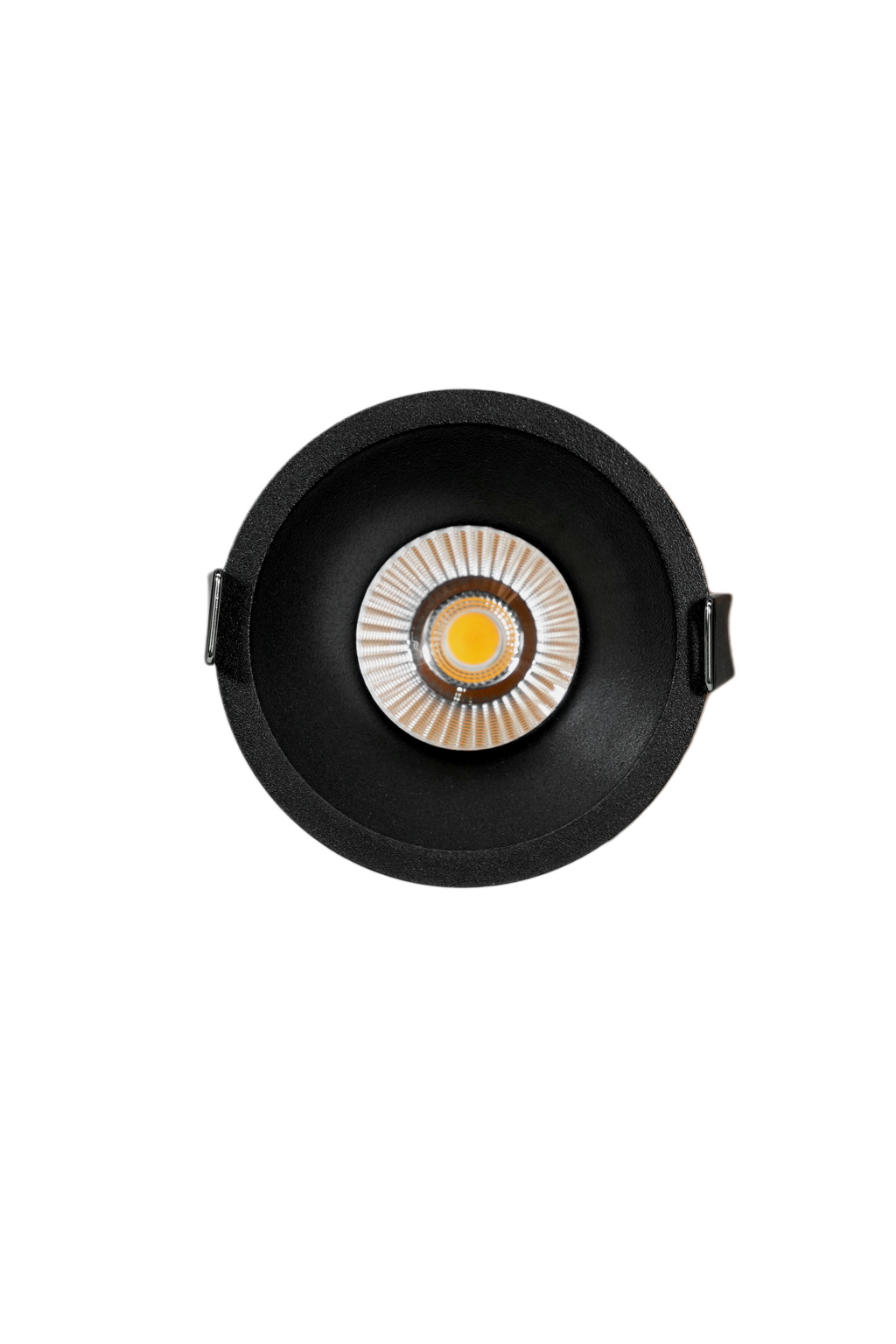

QUADRILA RD
6W, 12W, 18W
QUADRILA RD is a high-performance recessed spotlight designed for precise and glare-controlled illumination. Available in 6W, 12W, and 18W variants, it offers multiple beam angles and CCT options (3000K, 4000K, 6500K) to suit diverse architectural applications. With a compact form factor, deep-recessed design for reduced glare, and high CRI output, it is ideal for residential, commercial, and circulation spaces.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 12W, 18W, 6W |
Suitable for :
- Balconies
- Staircases
- Service & Basements Areas
- Outdoor Corridors
- Features
- Specifications
- Technical Data
- Downloads
- Low glare
- High luminous efficacy
- Quick and easy installation
- Curved trim aesthetic design
- Safe & eco-friendly
| Housing | Aluminium Die Cast with Clear Glass | |
| Body Colour | White/Black | |
| Light Source | COB | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| QD-RD-06 | 6 | 600 | 3000 / 4000 / 6500 | ≥80 | 41° | D:70, H:68, CUTOUT:58 | |||
| QD-RD-12 | 12 | 1,200 | 3000 / 4000 / 6500 | ≥80 | 39° | D:84, H:80, CUTOUT:72 | |||
| QD-RD-18 | 18 | 1,800 | 3000 / 4000 / 6500 | ≥80 | 40° | D:94, H:90, CUTOUT:82 |
*D=Diameter, W=Width, H=Height
