SILVER LINE
5W, 10W

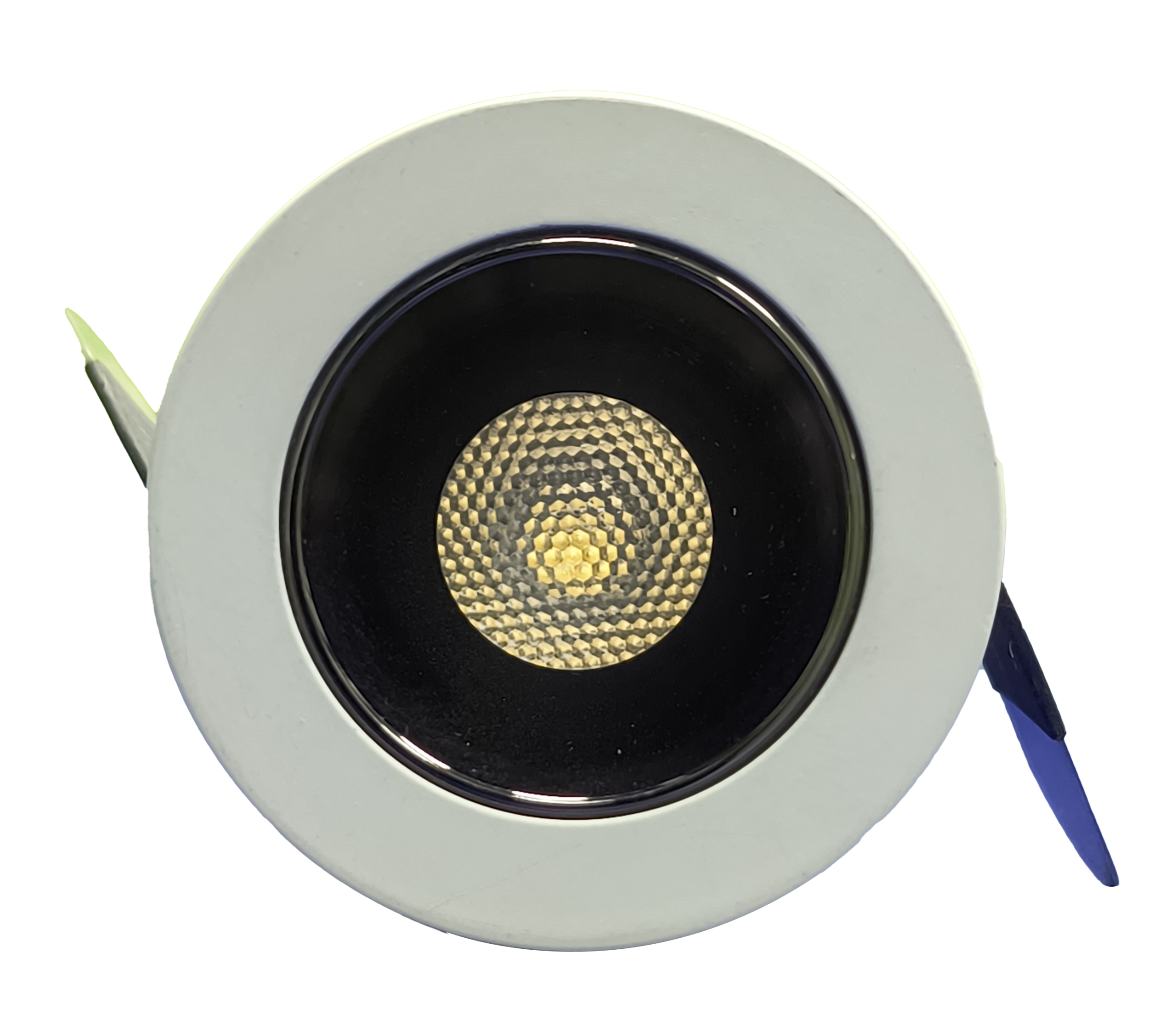

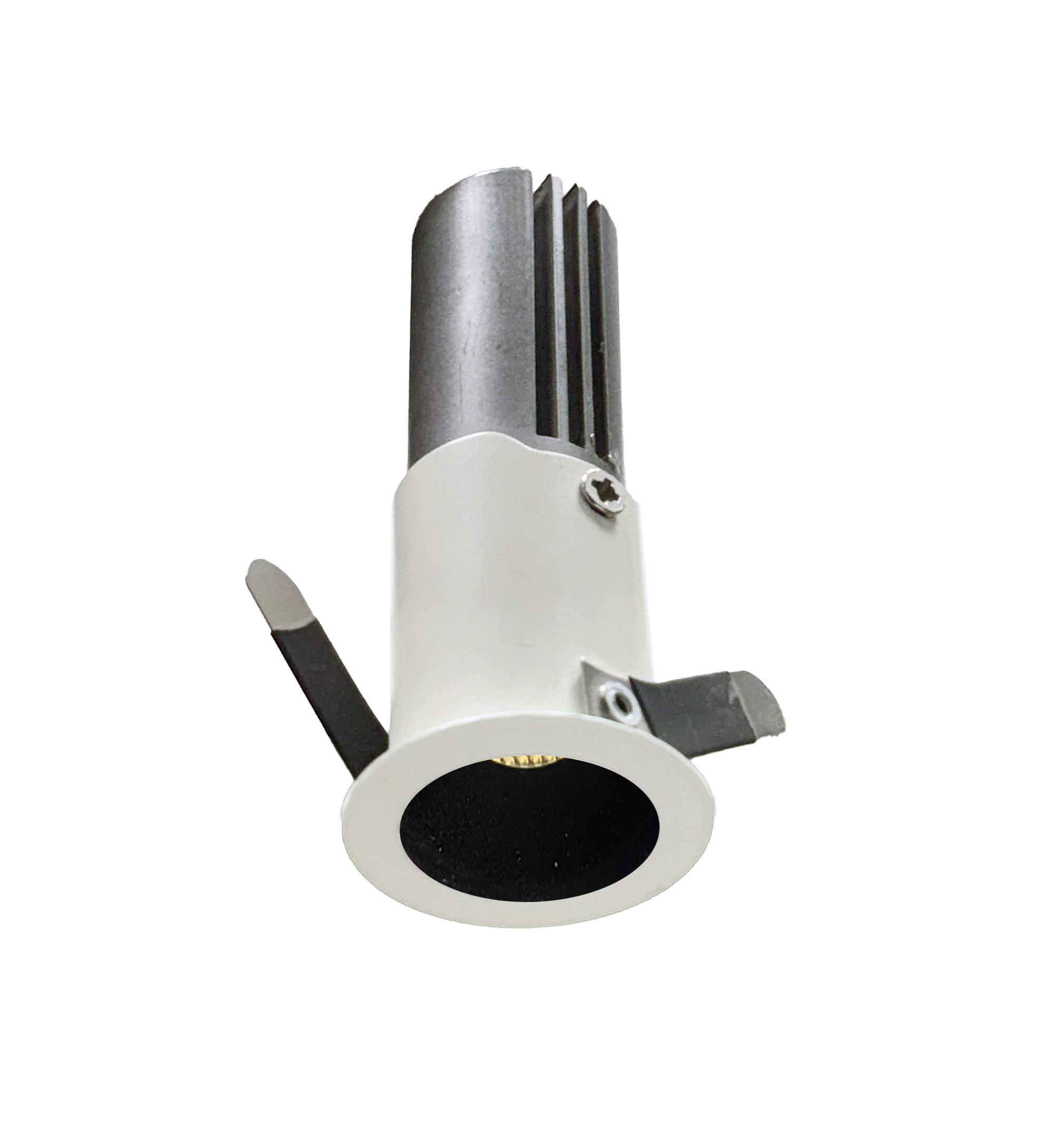

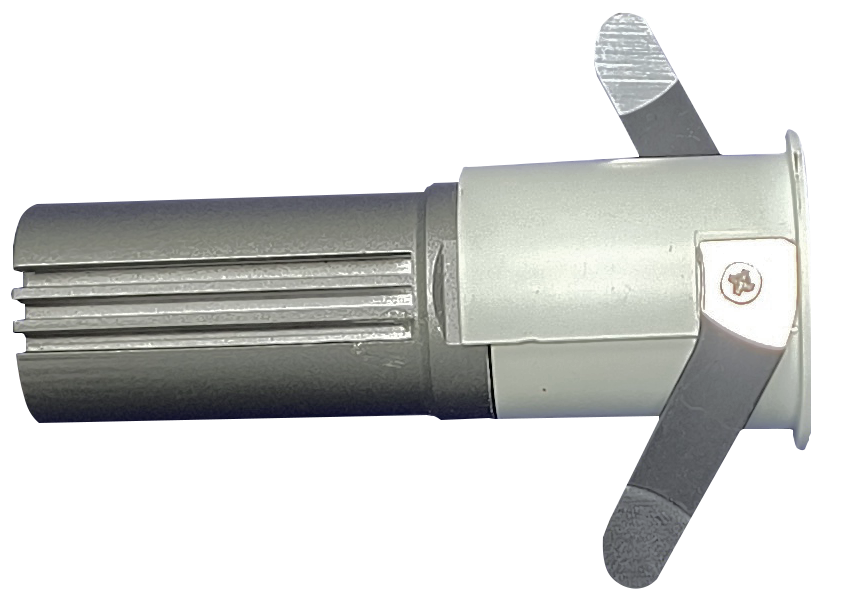

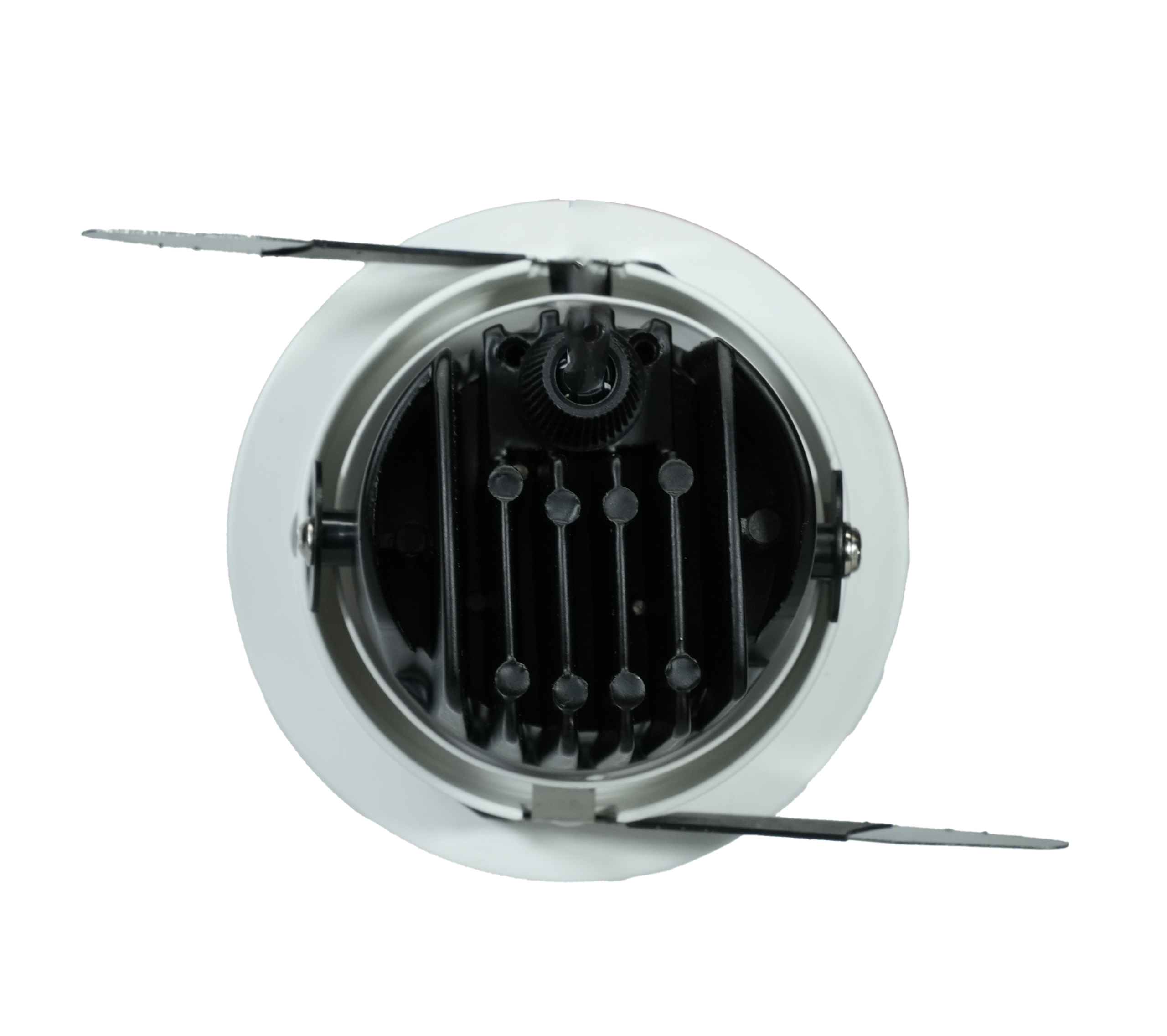

LUMINX TL is a sleek and modern recessed spotlight designed to deliver focused and high-quality illumination. With its compact form and elegant finish, it blends seamlessly into ceilings, making it ideal for contemporary architectural and interior lighting applications.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 7W, 12W, 15W, 20W |
Suitable for :
- Balconies
- Staircases
- Service & Basements Areas
- Outdoor Corridors
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Precision TIR optical system
- Compact housing design
- Low UGR output
- Excellent thermal management system
- High lumen output
| Housing | Aluminium Die Cast with TIR Lens | |
| Body Colour | White | |
| Light Source | SMD | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| PCL-DL-05 | 5 | 500 | 3000 / 4000 / 6500 | โฅ80 | 22ยฐ | D:34, H:80, CUTOUT:30 | |||
| PCL-DL-10 | 10 | 1,000 | 3000 / 4000 / 6500 | โฅ80 | 28ยฐ | D:44, H:90, CUTOUT:40 |
*D=Diameter, W=Width, H=Height
