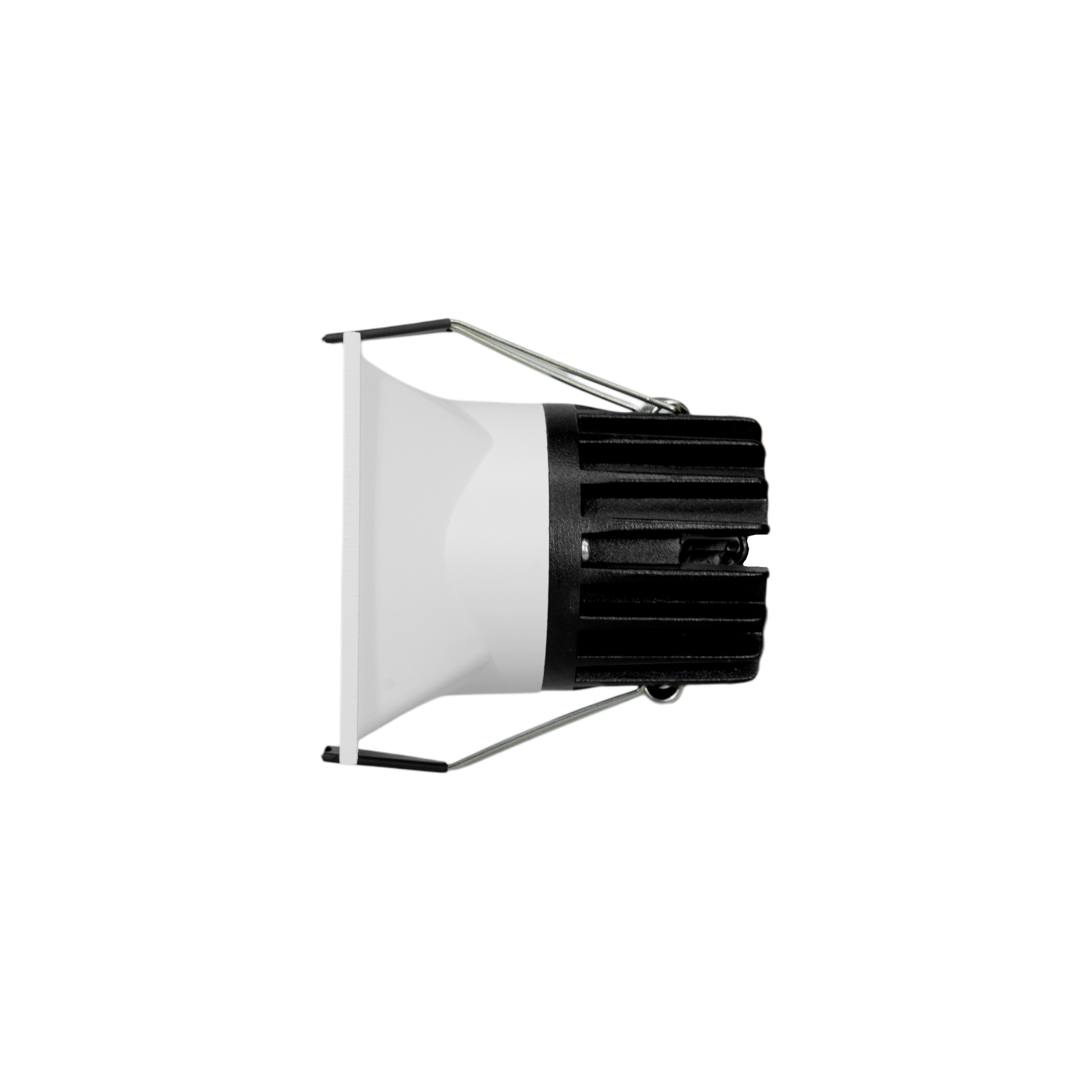

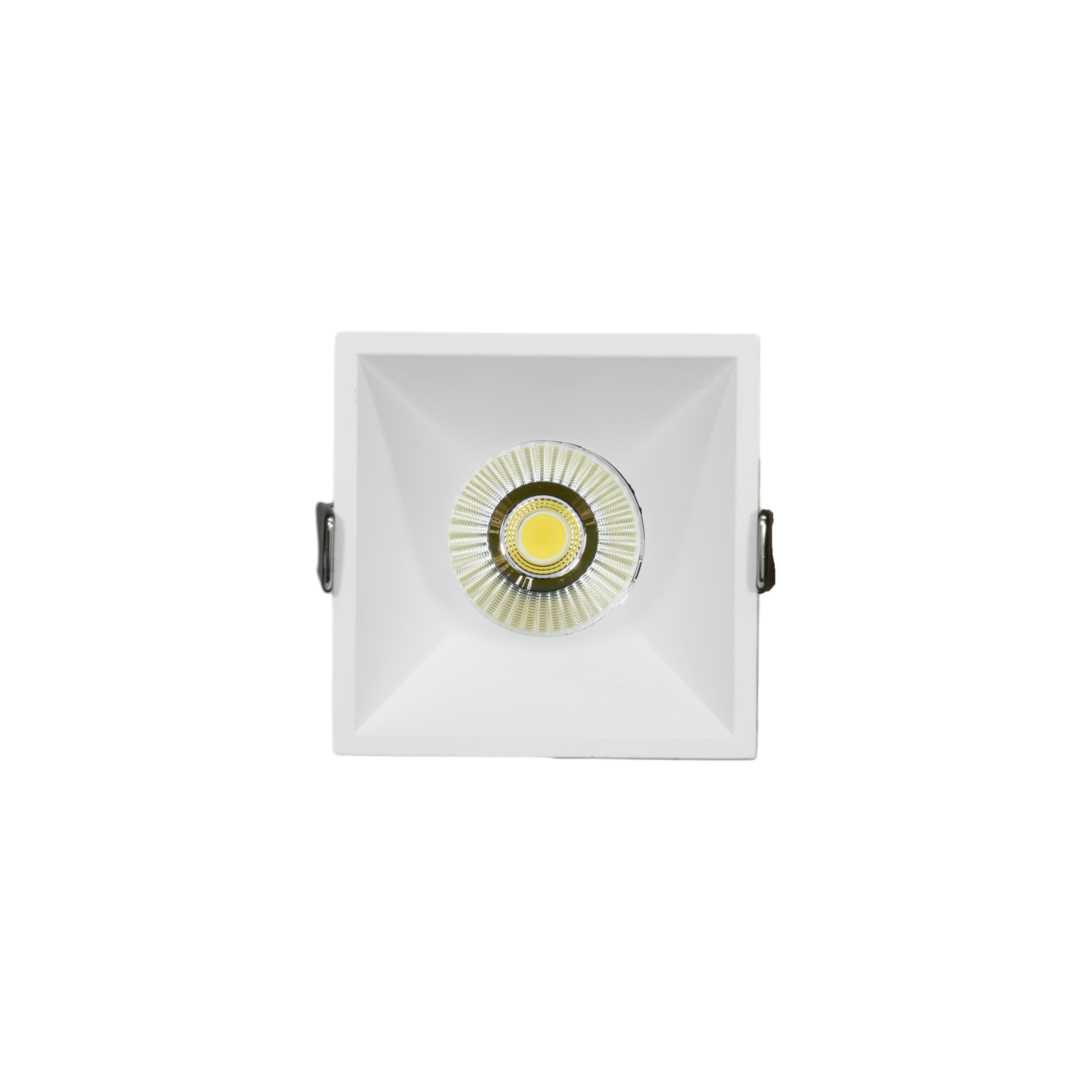

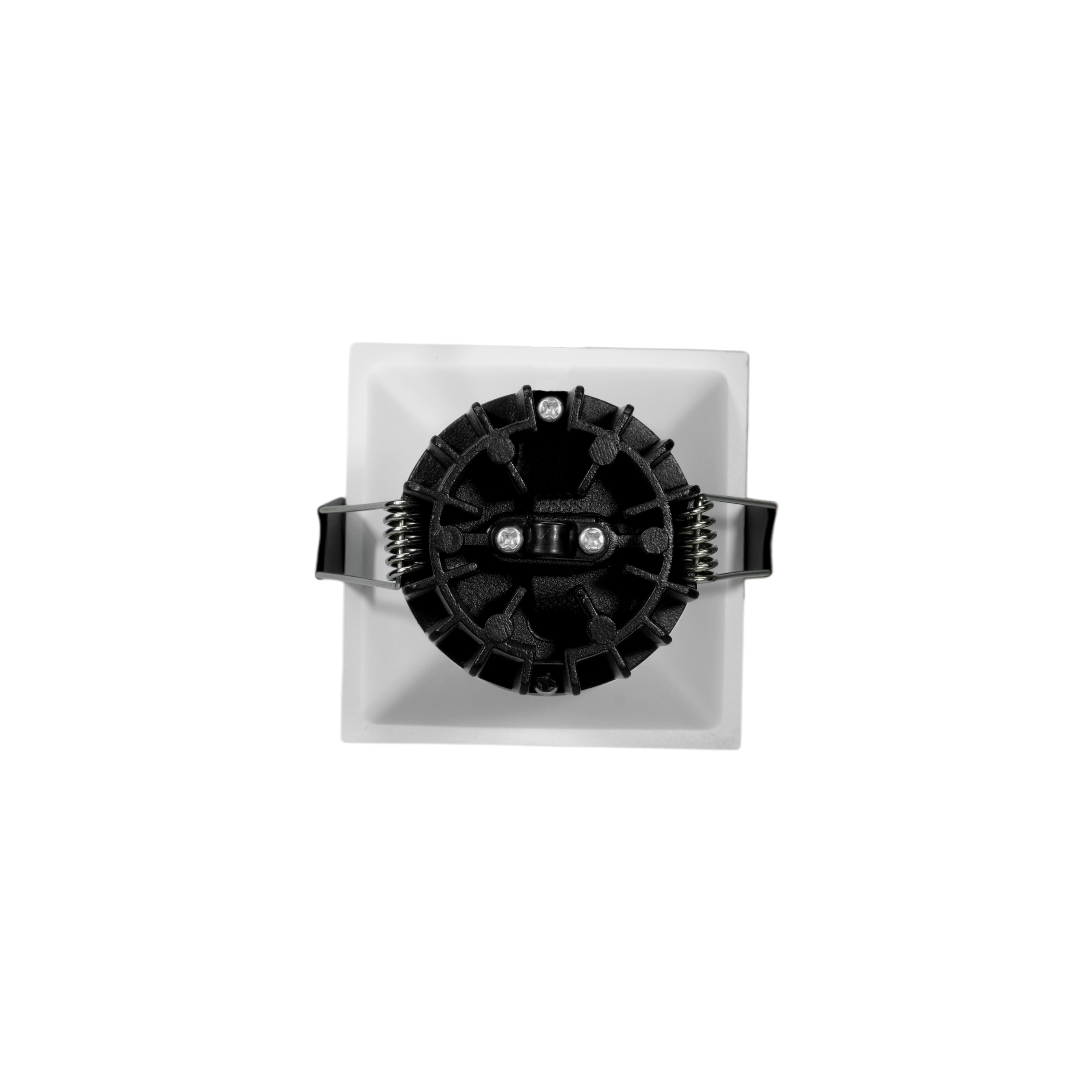

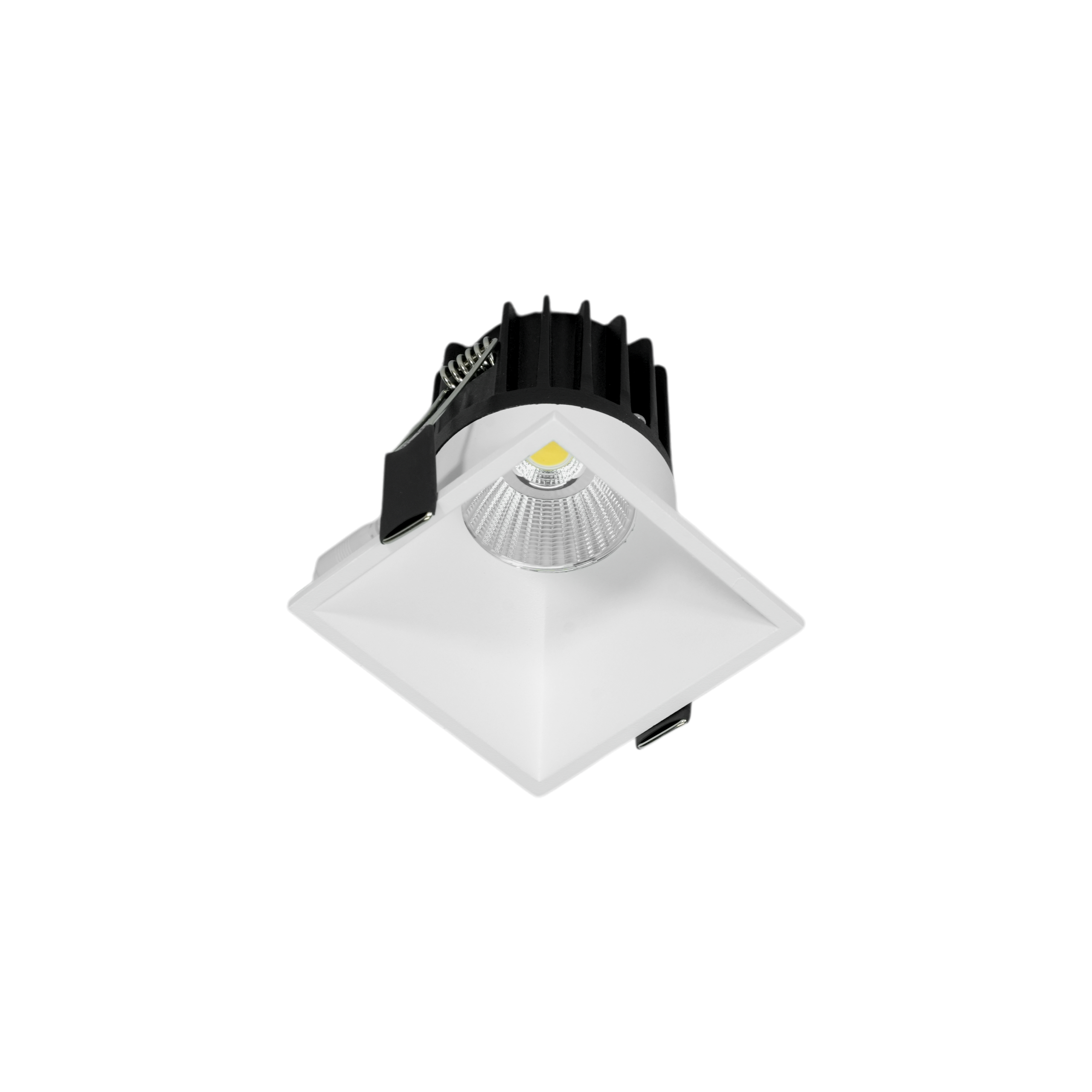

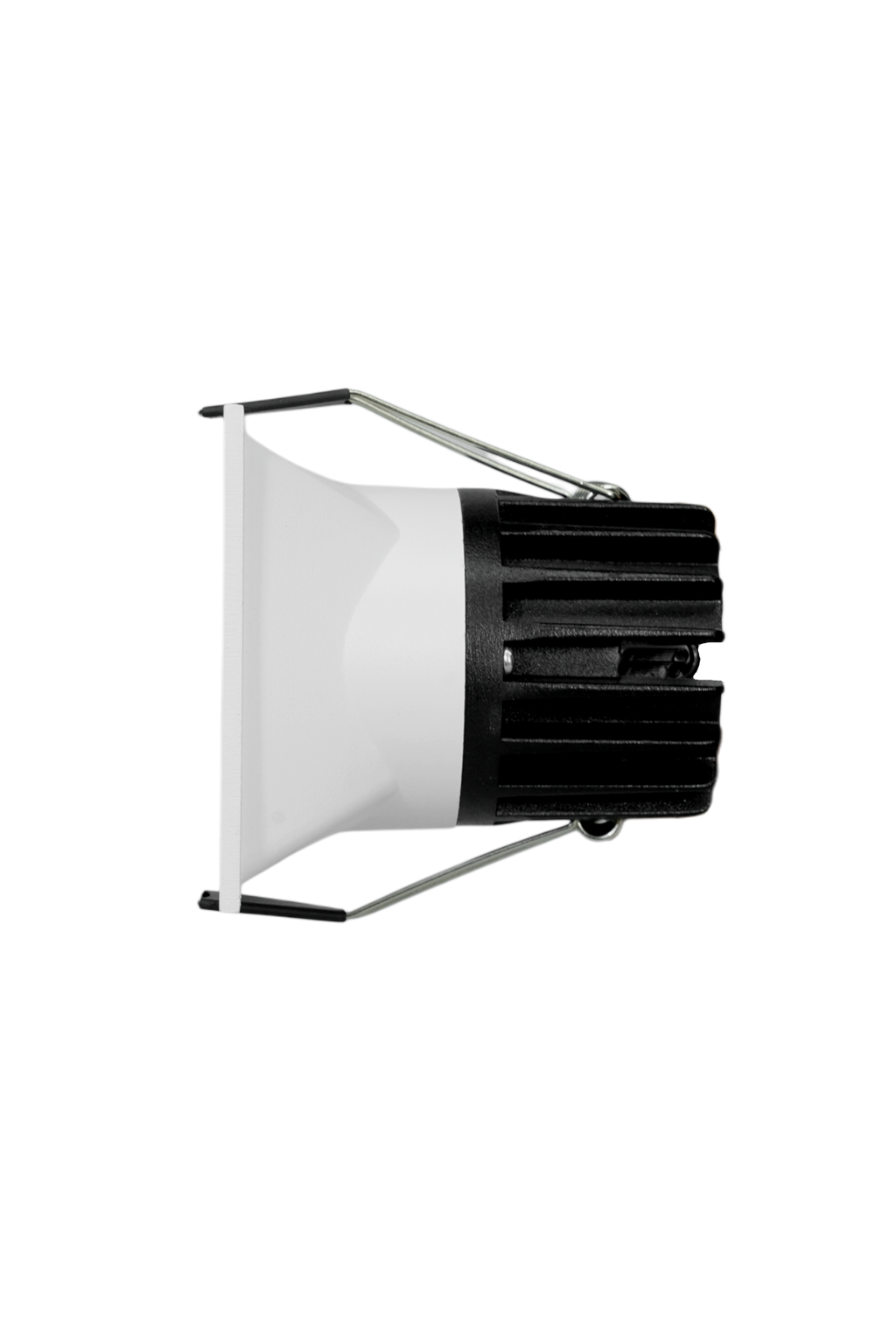

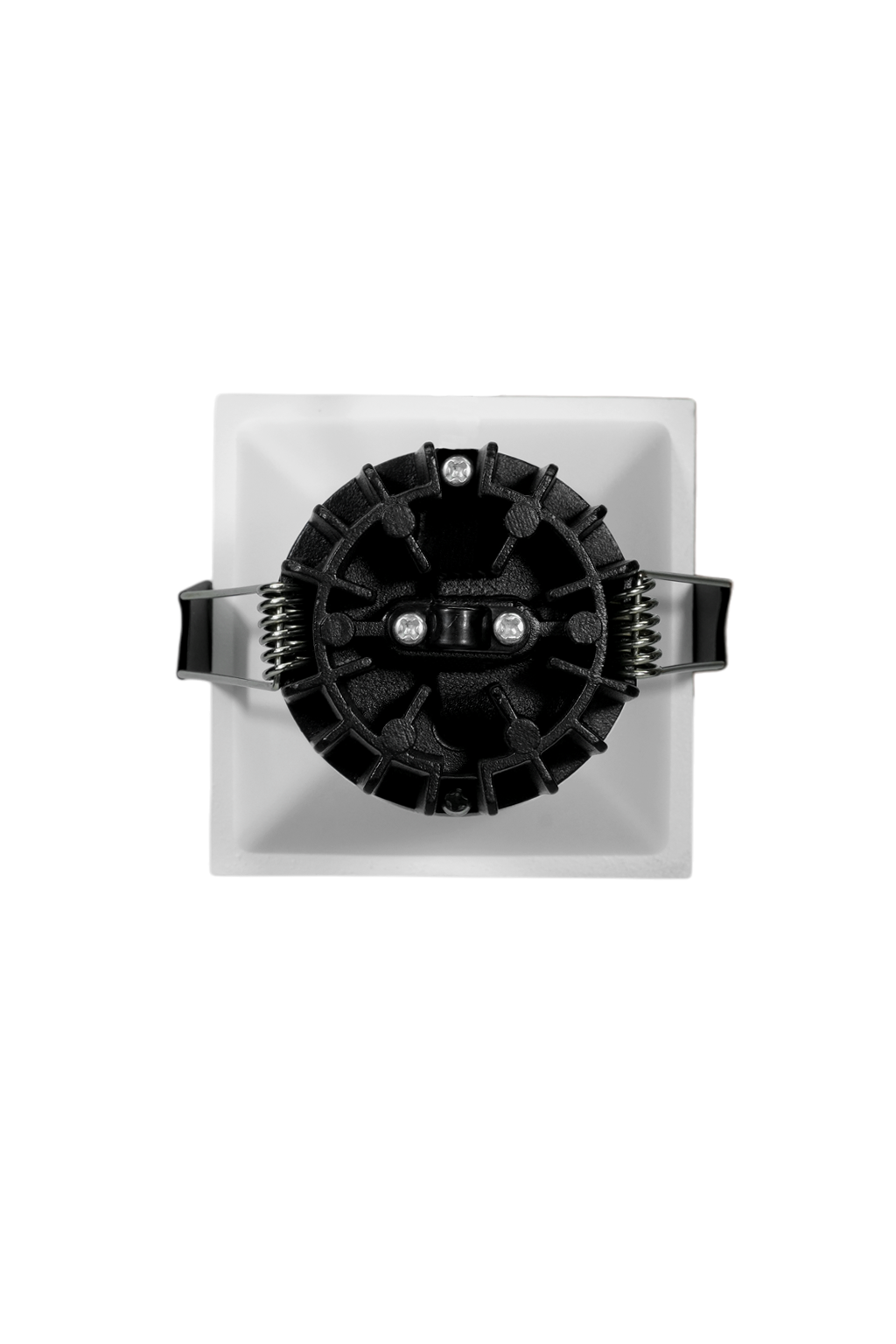

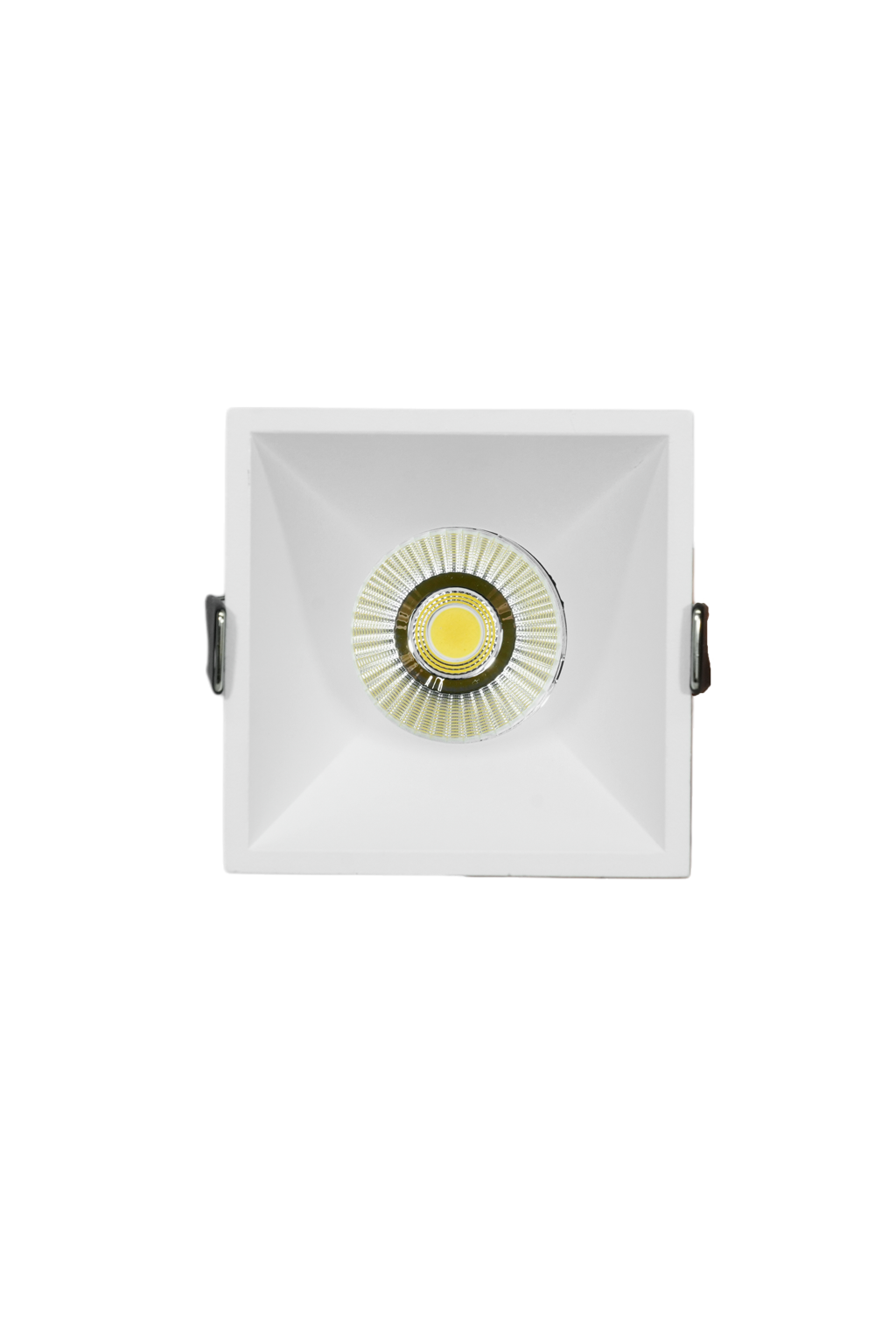

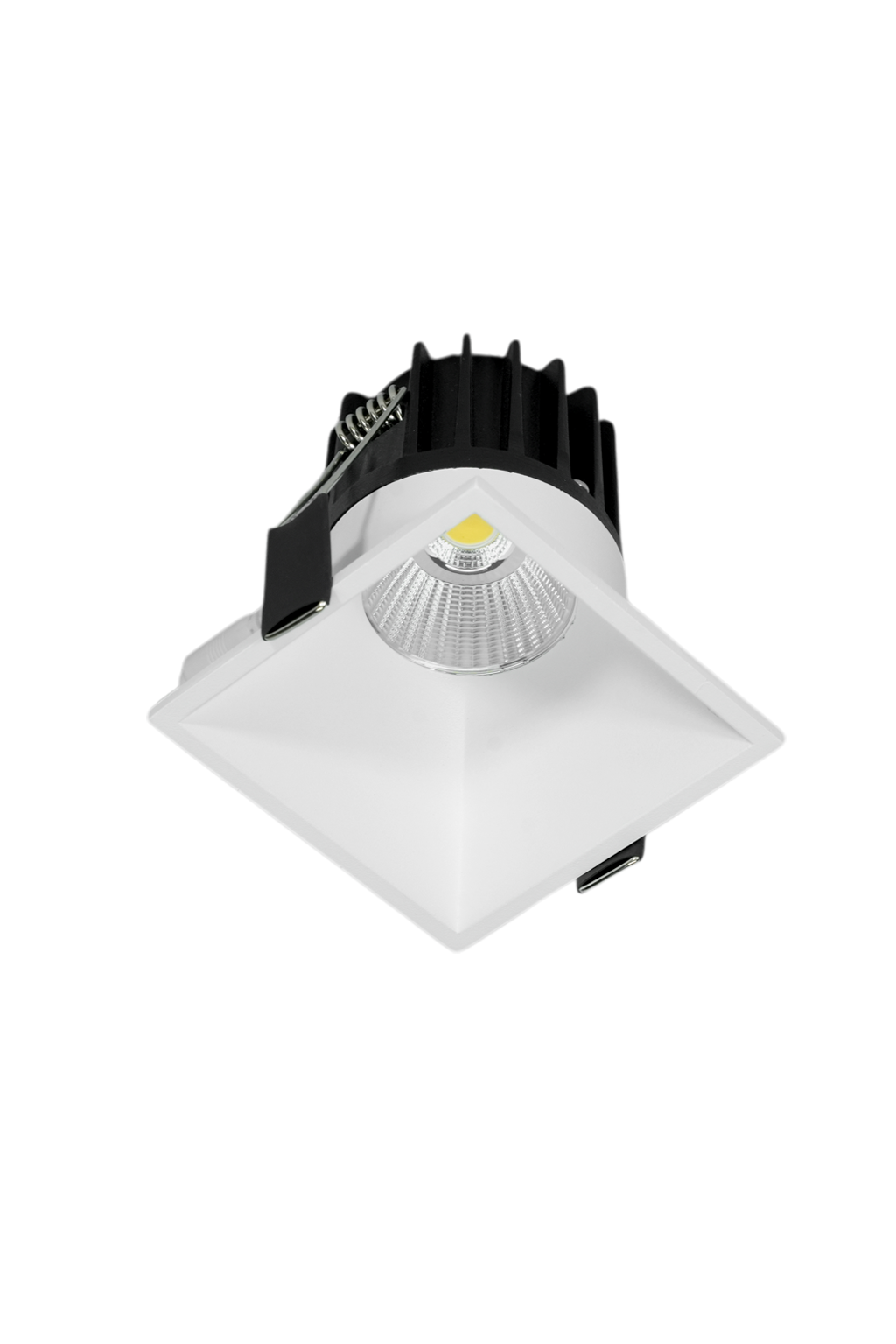

QUADRILA SQ
6W, 12W, 18W
QUADRILA SQ is a sleek and modern recessed spotlight designed to deliver focused and high-quality illumination. With its compact form and elegant finish, it blends seamlessly into ceilings, making it ideal for contemporary architectural and interior lighting applications.
| CCT | 3000K, 4000K |
|---|---|
| Wattage | 12W, 18W, 6W |
Suitable for :
- Balconies
- Staircases
- Service & Basements Areas
- Outdoor Corridors
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Curved trim aesthetic design
- High luminous efficacy
- Low-glare illumination
- Safe & eco-friendly
- Quick and easy installation
| Housing | Aluminium Die Cast with Clear Glass | |
| Body Colour | White/Black | |
| Light Source | COB | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| QD-SQ-06 | 6 | 600 | 3000 / 4000 / 6500 | โฅ80 | 40ยฐ | L:70, W:70, H70:, CUTOUT:58x58 | |||
| QD-SQ-12 | 12 | 1,200 | 3000 / 4000 / 6500 | โฅ80 | 41ยฐ | L:83, W:83, H:85, CUTOUT:75x75 | |||
| QD-SQ-18 | 18 | 1,800 | 3000 / 4000 / 6500 | โฅ80 | 38ยฐ | L:94, W:94, H:95, CUTOUT:86x86 |
*D=Diameter, W=Width, H=Height
