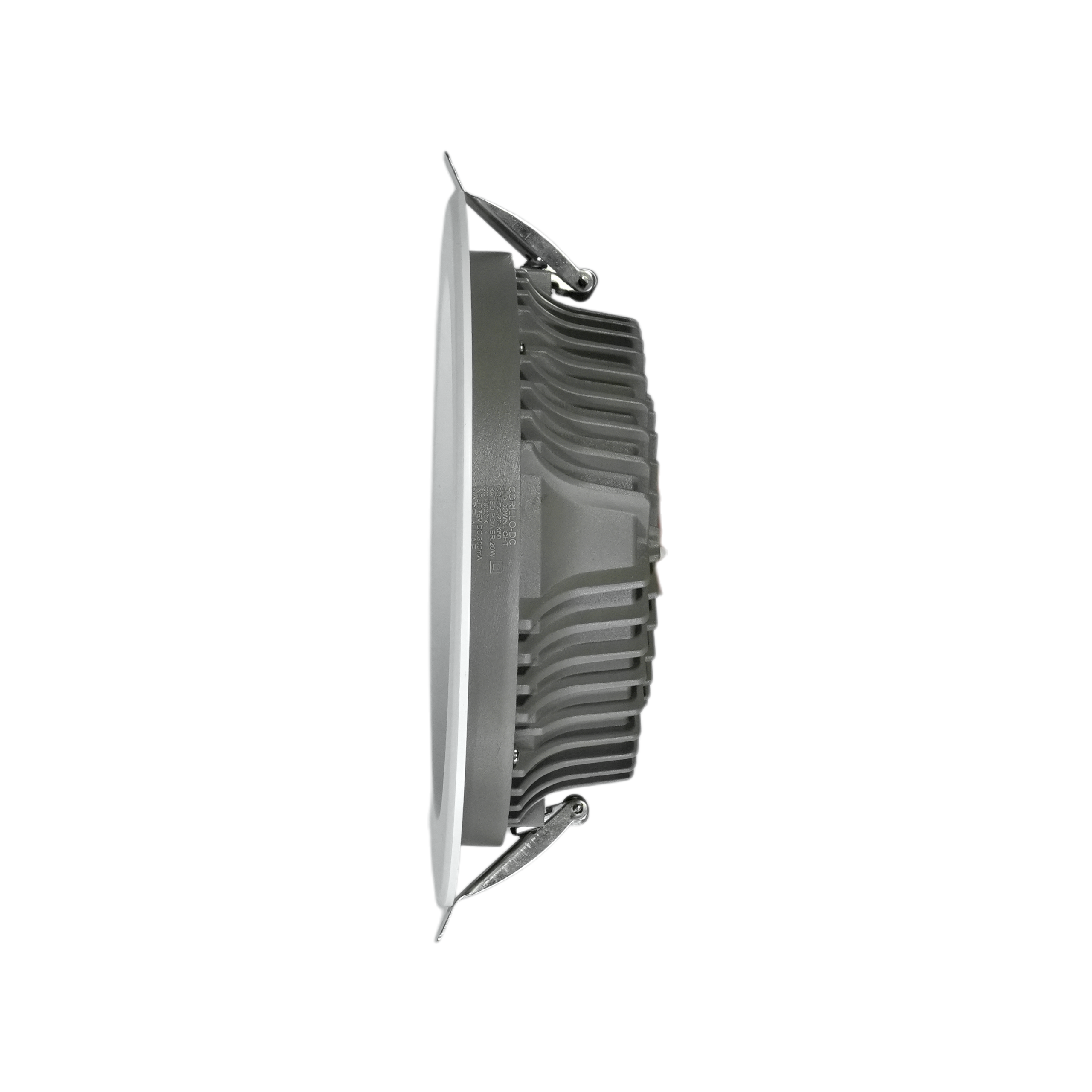

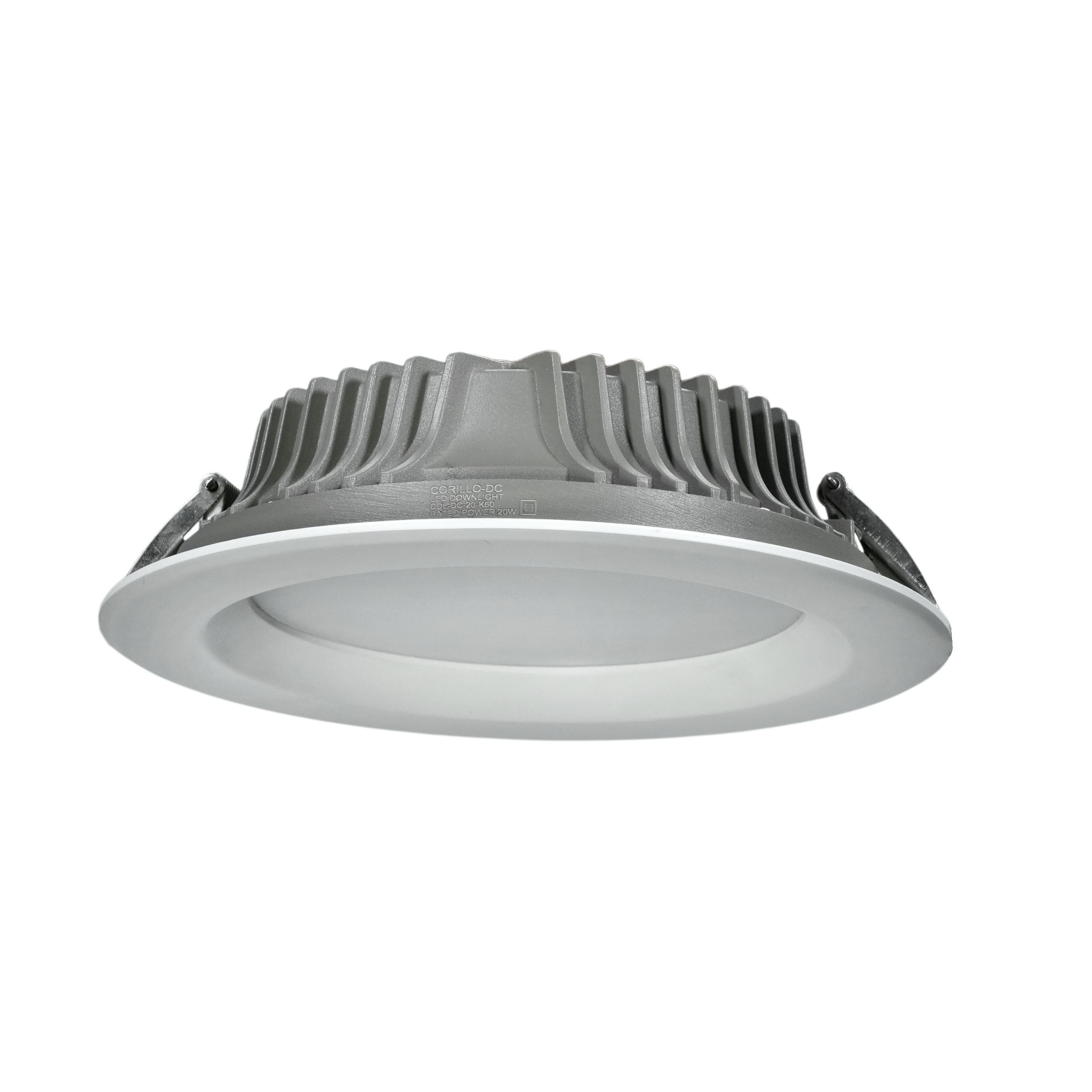

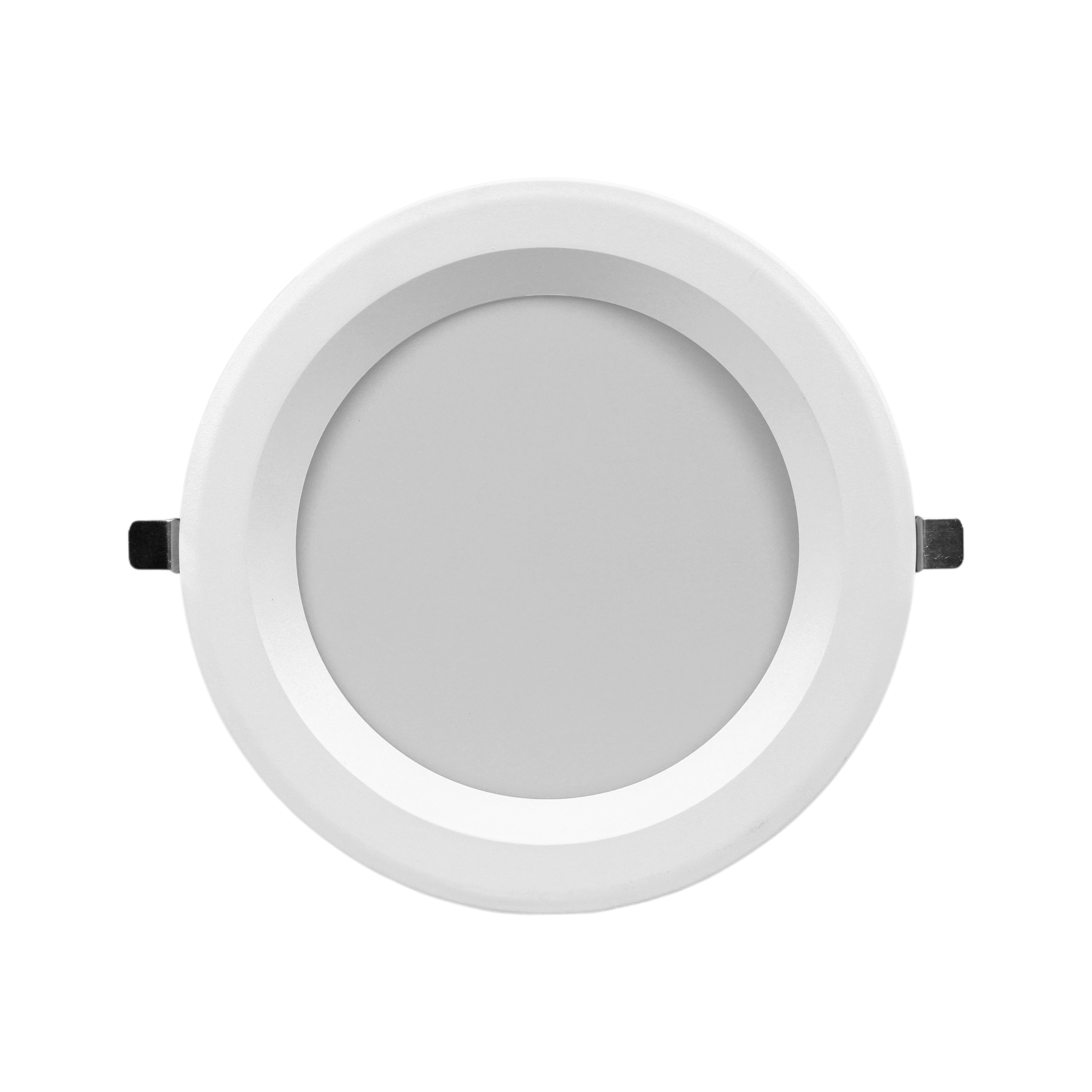

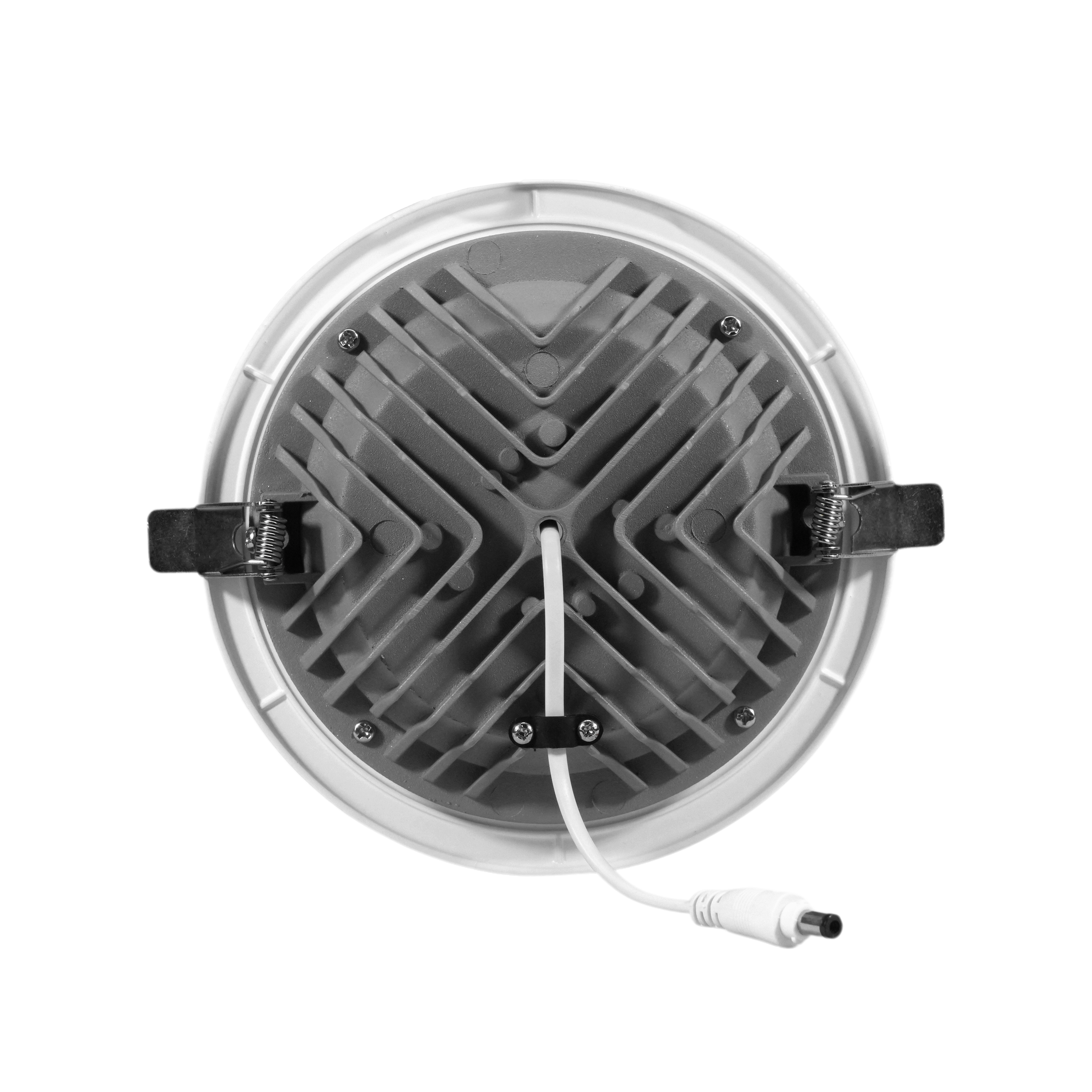

CORILLO DC
7W, 10W, 12W, 15W, 20W, 30W
CORILLO DC is a sleek indoor lighting solution that offers subtle, integrated illumination for contemporary spaces. Designed to sit flush within the ceiling, it provides precise, glare-free lighting while maintaining a clean, minimalist look.Built for efficiency and longevity, it ensures reliable performance with minimal maintenance, enhancing interiors with understated elegance.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 7W, 10W, 12W, 15W, 20W, 30W |
Suitable for :
- Residential Spaces
- Healthcare Spaces
- Lobbies
- Corridors & Hallways
-
Features
-
Specifications
-
Technical Data
-
Downloads
- PC diffuser for soft output
- High output illumination
- High luminous efficiency
- Quick and easy installation
- Reliable long-term performance
| Housing | Aluminium Die Cast with PC Diffuser | |
| Body Colour | White | |
| Light Source | SMD | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| CDL-DC-07 | 7 | 700 | 3000 / 4000 / 6500 | โฅ80 | 105ยฐ | D:90, H:45, CUTOUT:72 | |||
| CDL-DC-10 | 10 | 1,000 | 3000 / 4000 / 6500 | โฅ80 | 110ยฐ | D:105, H:50, CUTOUT:82 | |||
| CDL-DC-12 | 12 | 1,200 | 3000 / 4000 / 6500 | โฅ80 | 110ยฐ | D:130, H:57, CUTOUT:104 | |||
| CDL-DC-15 | 15 | 1,500 | 3000 / 4000 / 6500 | โฅ80 | 109ยฐ | D:165, H:55, CUTOUT:140 | |||
| CDL-DC-20 | 20 | 2,000 | 3000 / 4000 / 6500 | โฅ80 | 109ยฐ | D:195, H:63, CUTOUT:162 | |||
| CDL-DC-30 | 30 | 3,000 | 3000 / 4000 / 6500 | โฅ80 | 111ยฐ | D:225, H:65, CUTOUT:190 |
*L=Length, W=Width, H=Height
