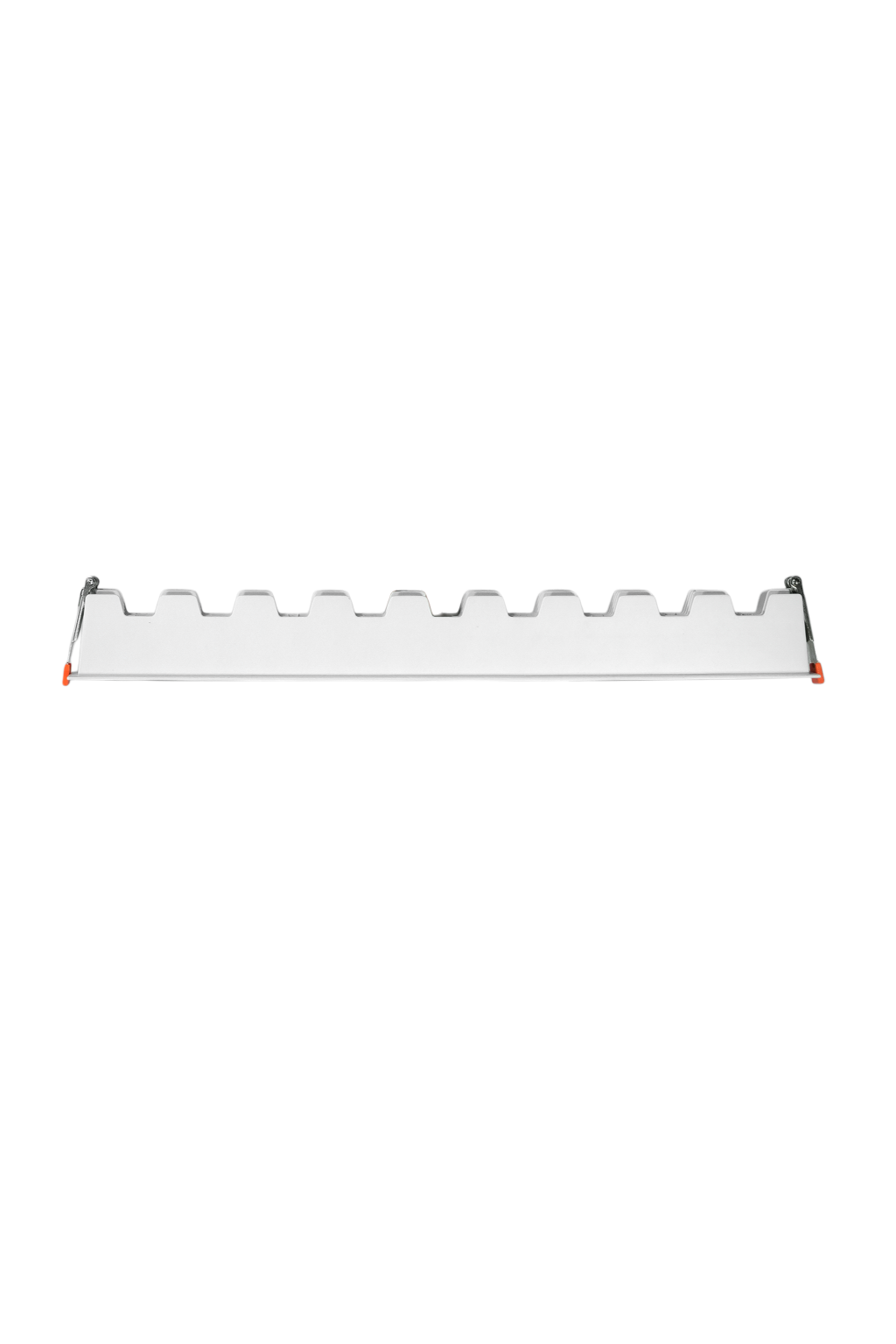

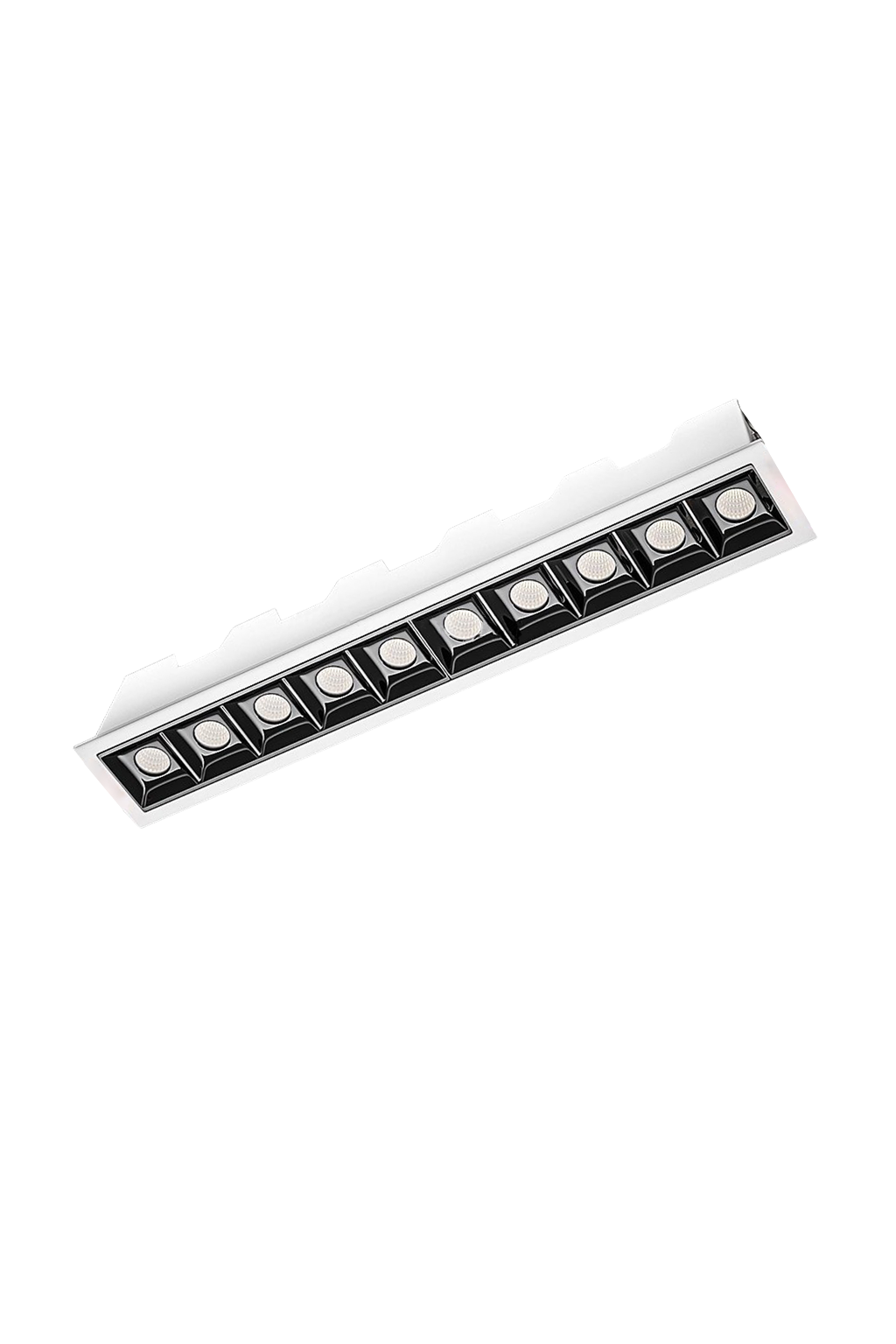

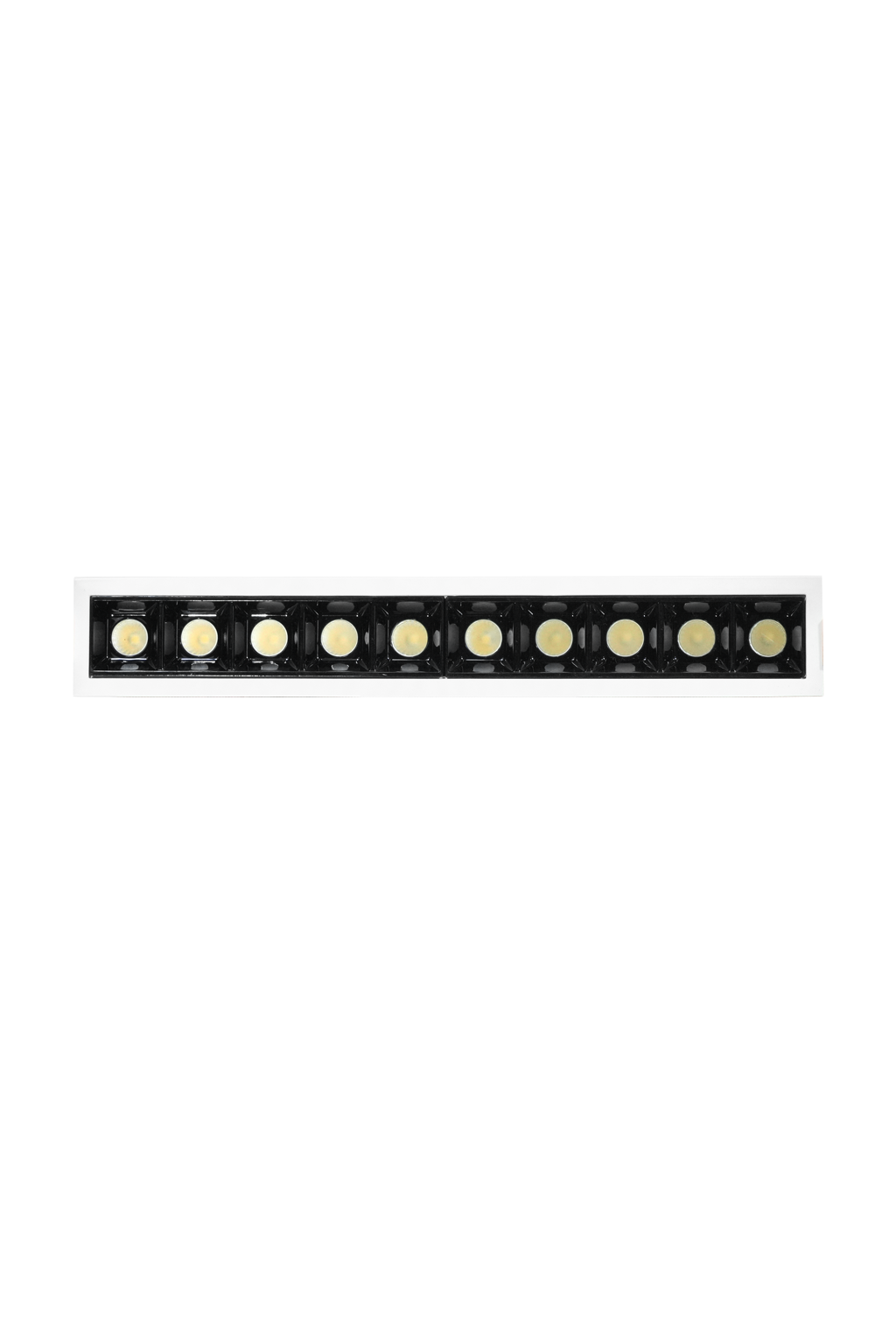

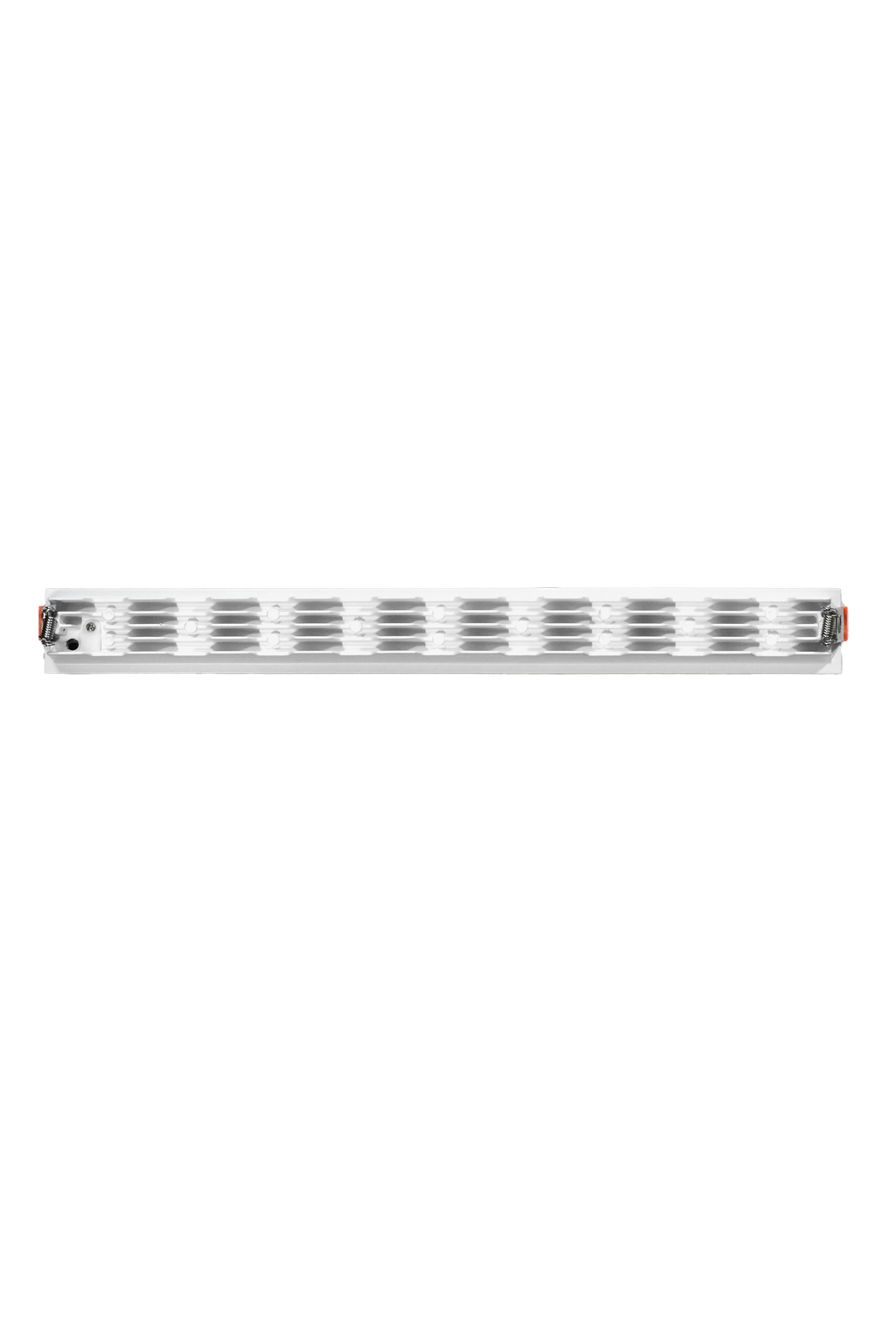

PEBBLE
2W, 4W, 6W, 10W, 12W, 20W, 30W
PEBBLE is a sleek and modern recessed spotlight designed to deliver focused and high-quality illumination. With its compact form and elegant finish, it blends seamlessly into ceilings, making it ideal for contemporary architectural and interior lighting applications.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 10W, 12W, 20W, 2W, 30W, 4W, 6W |
Suitable for :
- Balconies
- Staircases
- Service & Basements Areas
- Outdoor Corridors
- Features
- Specifications
- Technical Data
- Downloads
- Uniform and precise lighting distribution
- Slim and sleek design
- Robust die-cast aluminium housing
- Energy-efficient LED technology
- Easy installation
| Housing | Aluminium Die Cast with PC Lens and Reflector | |
| Body Colour | White | |
| Light Source | SMD | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| PBL-02 | 2 | 200 | 3000 / 4000 / 6500 | ≥80 | 31° | L:44, W:45, H:43, CUTOUT:35x35 | |||
| PBL-04 | 4 | 400 | 3000 / 4000 / 6500 | ≥80 | 29° | L:75, W:45, H:43, CUTOUT:65x35 | |||
| PBL-06 | 6 | 600 | 3000 / 4000 / 6500 | ≥80 | 29° | L:95, W:45, H:48, CUTOUT:85x35 | |||
| PBL-10 | 10 | 1000 | 3000 / 4000 / 6500 | ≥80 | 29° | L:146, W:45, H:48, CUTOUT:137x35 | |||
| PBL-12 | 12 | 1200 | 3000 / 4000 / 6500 | ≥80 | 39° | L:175, W:45, H:48, CUTOUT:165x35 | |||
| PBL-20 | 20 | 2000 | 3000 / 4000 / 6500 | ≥80 | 27° | L:280, W:45, H:48, CUTOUT:271x35 | |||
| PBL-30 | 30 | 3000 | 3000 / 4000 / 6500 | ≥80 | 33° | L:413, W:45, H:48, CUTOUT:404x35 |
*D=Diameter, W=Width, H=Height
