TRI-OPTICS
7/8W, 7/12W, 7/15W

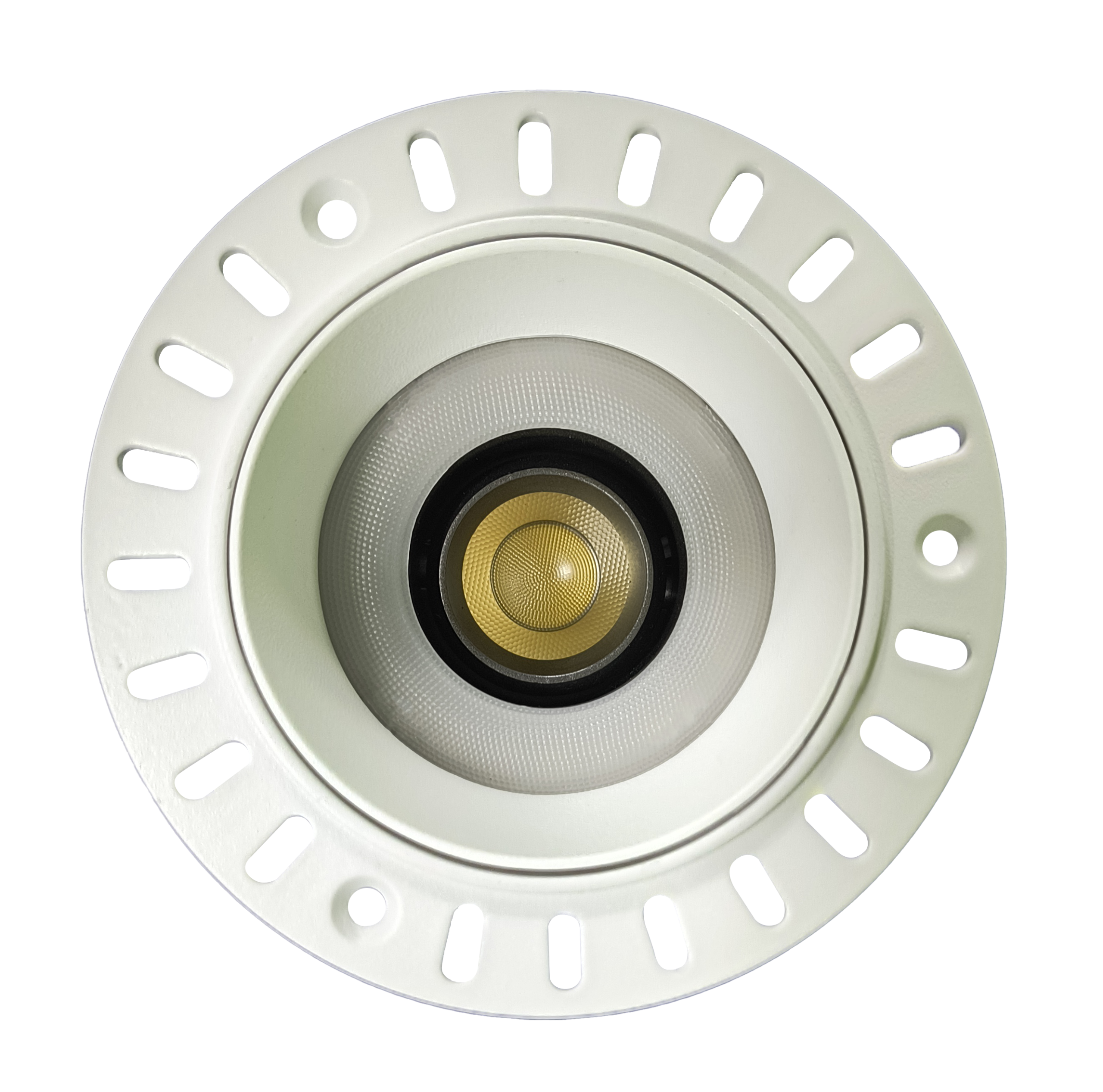

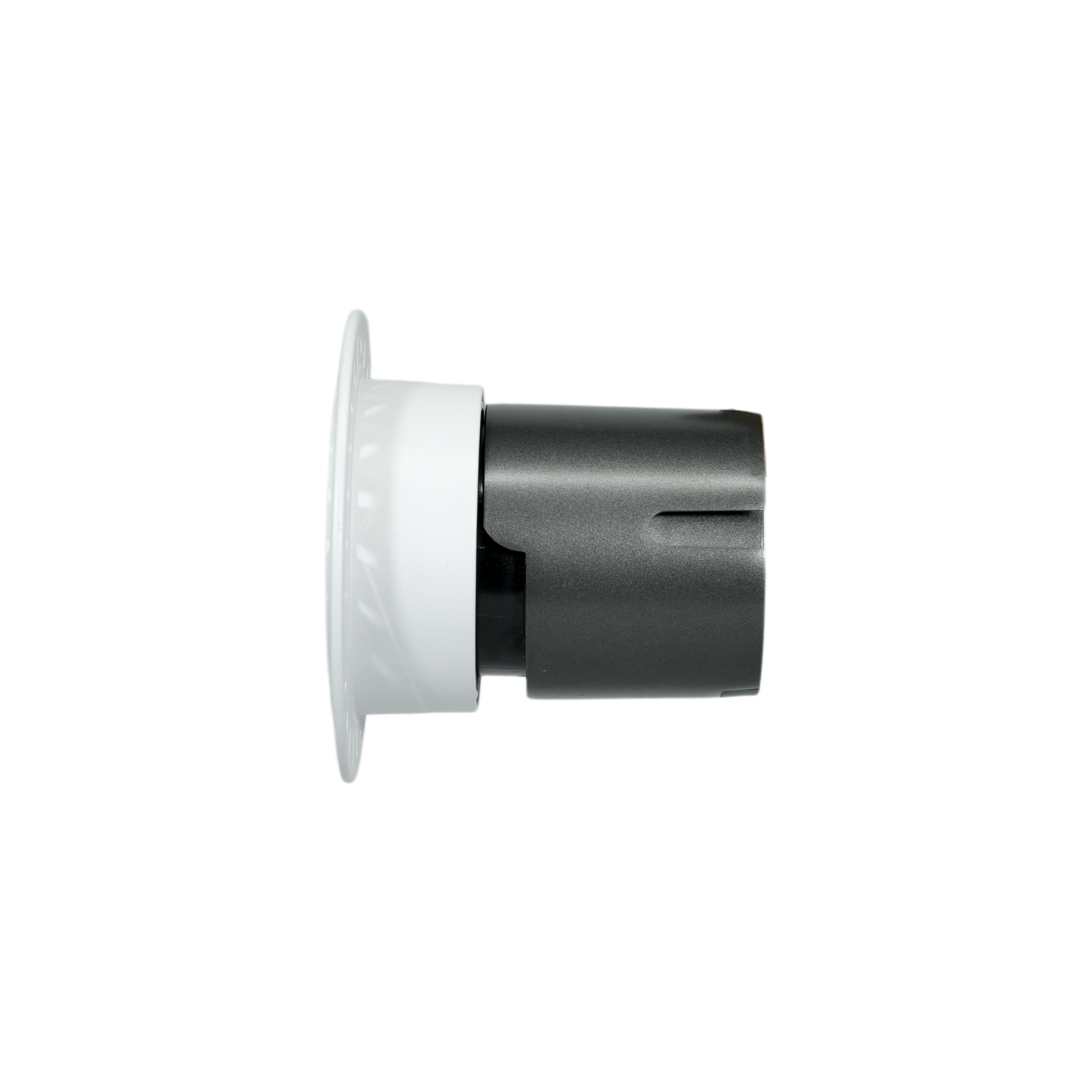

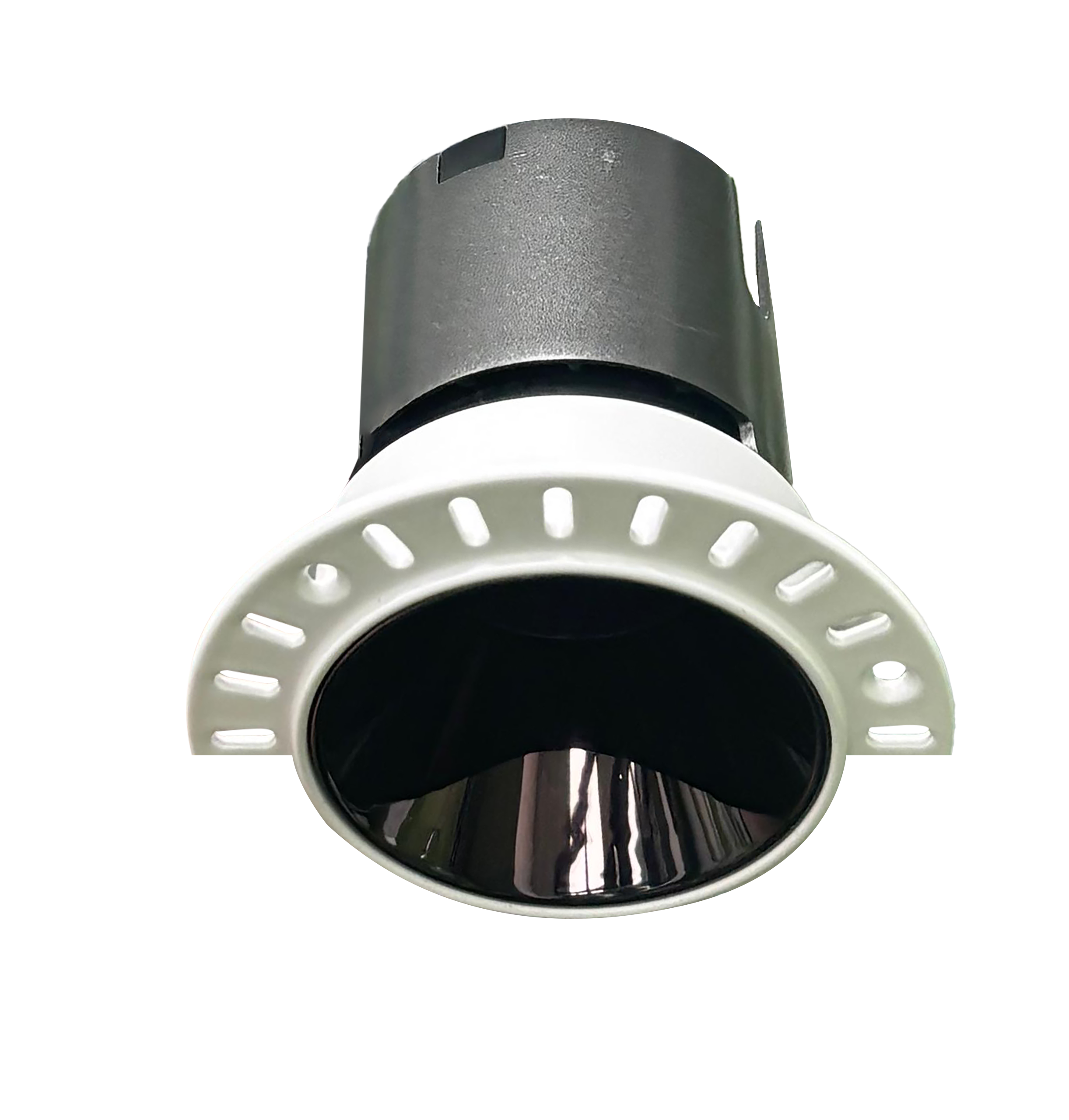

TRI-OPTICS is a sleek and modern recessed spotlight designed to deliver focused and high-quality illumination. With its compact form and elegant finish, it blends seamlessly into ceilings, making it ideal for contemporary architectural and interior lighting applications.
| CCT | 3000K, 4000K |
|---|---|
| Wattage | 7/12W, 7/15W, 7/8W |
Suitable for :
- Balconies
- Staircases
- Service & Basements Areas
- Outdoor Corridors
- Features
- Specifications
- Technical Data
- Downloads
- Dual-source hybrid lighting
- Compact form for tight spaces
- Three-mode smart switching
- Quick-release trim for easy maintenance
- Low Power Consumption
| Housing | Aluminium Die Cast with TIR Lens | |
| Body Colour | White/Black | |
| Light Source | SMD/COB | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| TRI-SPT-7/8 | 7/8 | 700/800 | 3000 / 4000 / 6500 | ≥80 | 15°/24°/36°/55° | D:85, H:75, CUTOUT:75 | |||
| TRI-SPT-7/12 | 7/12 | 700/1200 | 3000 / 4000 / 6500 | ≥80 | 15°/24°/36°/55° | D:85, H:95, CUTOUT:75 | |||
| TRI-SPT-7/15 | 7/15 | 700/1500 | 3000 / 4000 / 6500 | ≥80 | 15°/24°/36°/55° | D:85, H:95, CUTOUT:75 |
*D=Diameter, W=Width, H=Height
