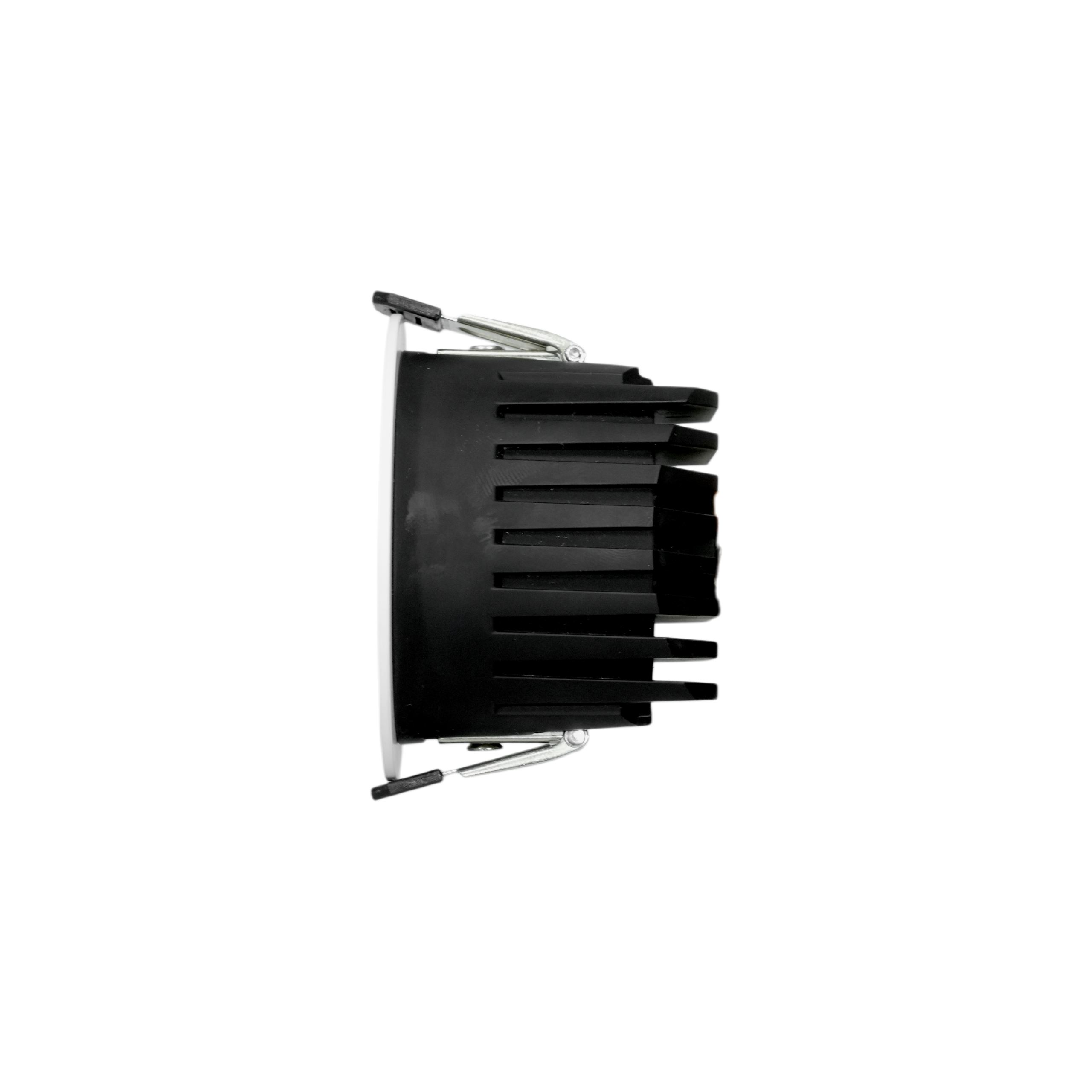

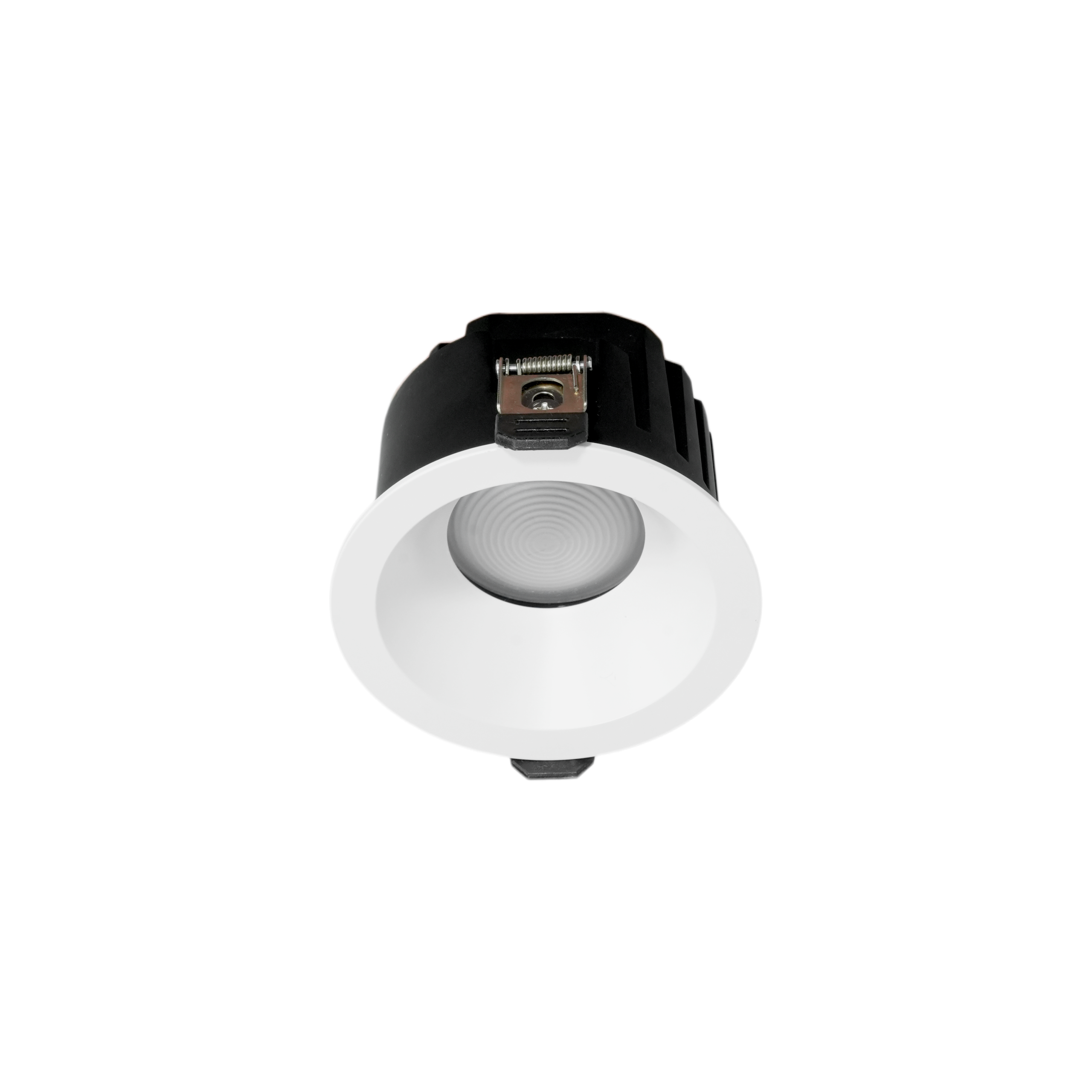

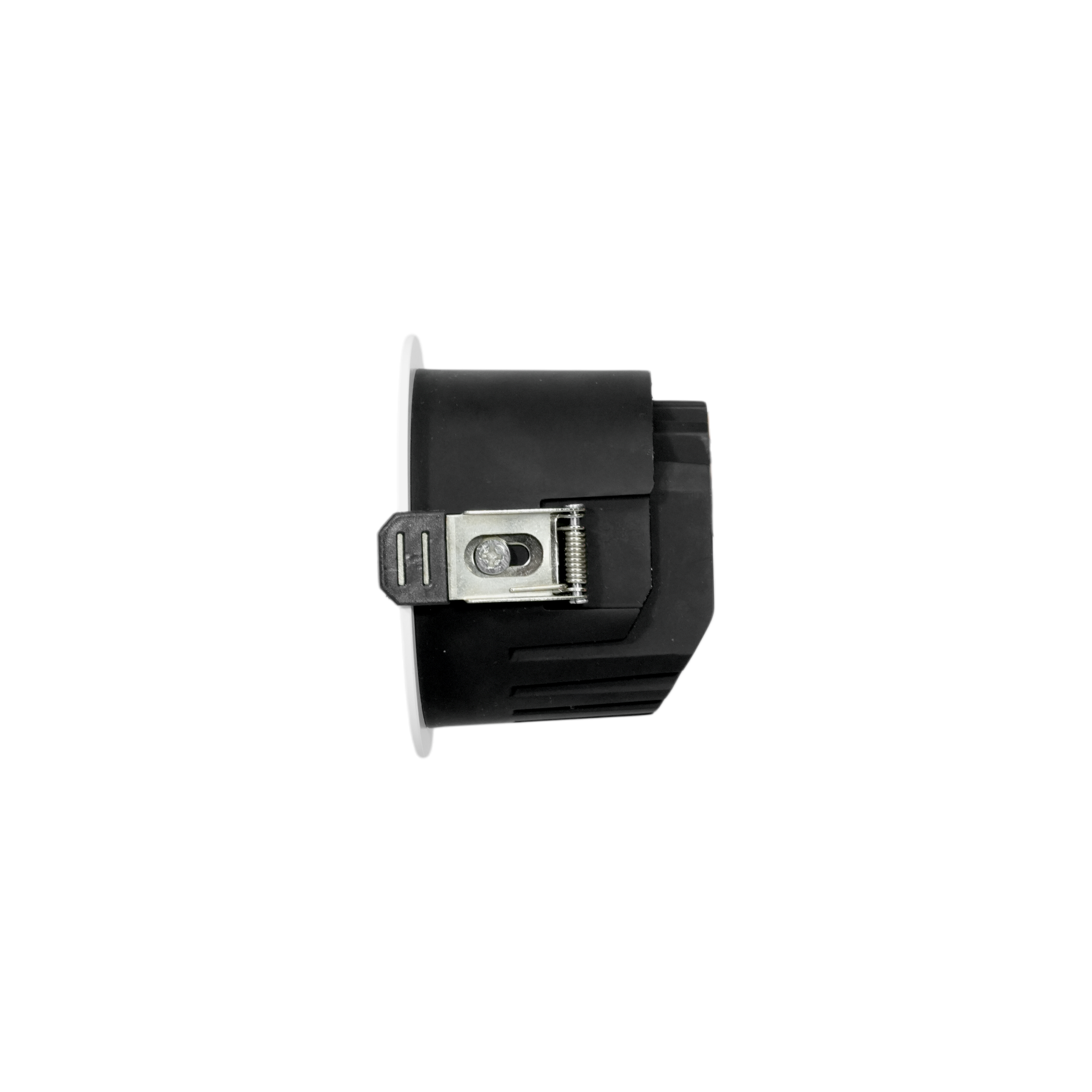

PETRA DC1
10W, 15W
The Petra DC1 Recessed Downlight is a high-performance lighting solution designed for durability and in modern applications. Featuring IP65 protection, it is resistant to dust and water, making it suitable for both indoor and semi-outdoor environments.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 10W, 15W |
Suitable for :
- Retail Spaces
- Office & Commercial Spaces
- Healthcare Spaces
- Lobbies
- Features
- Specifications
- Technical Data
- Downloads
- Rubberized powder-coated body
- Strong thermal heat dissipation
- Reliable SMD illumination
- IP65 dust-water protection
- Stable long-term performance
| Housing | Aluminium Die Cast with PC Lens | |
| Body Colour | White | |
| Light Source | SMD | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP65 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| PDC1-10 | 10 | 1,000 | 3000 / 4000 / 6500 | ≥80 | 72 | D:87, H:59, CUTOUT:72 | |||
| PDC1-15 | 15 | 1,500 | 3000 / 4000 / 6500 | ≥80 | 72 | D:104, H:71, CUTOUT:85 |
*D=Diameter; H=Height
