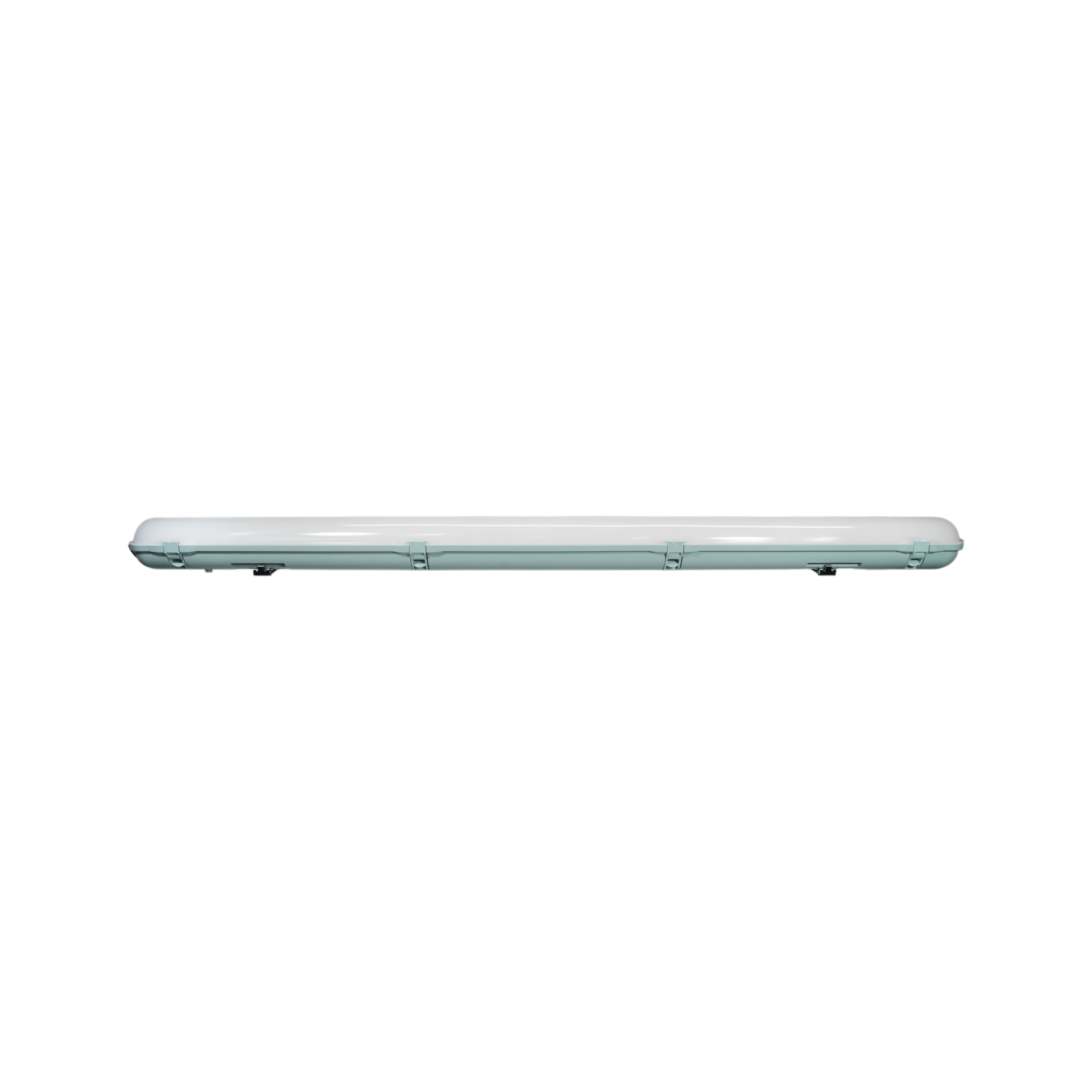

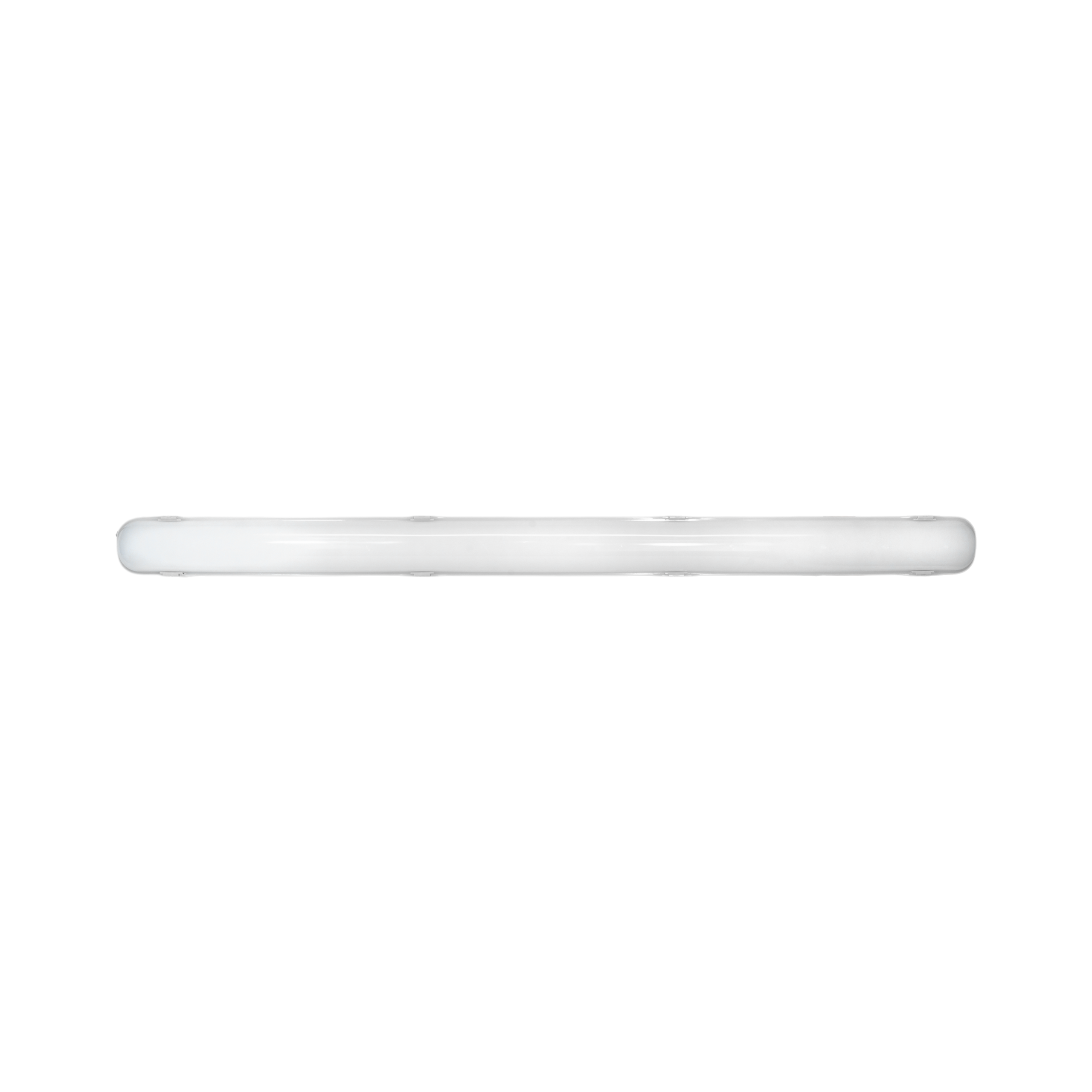

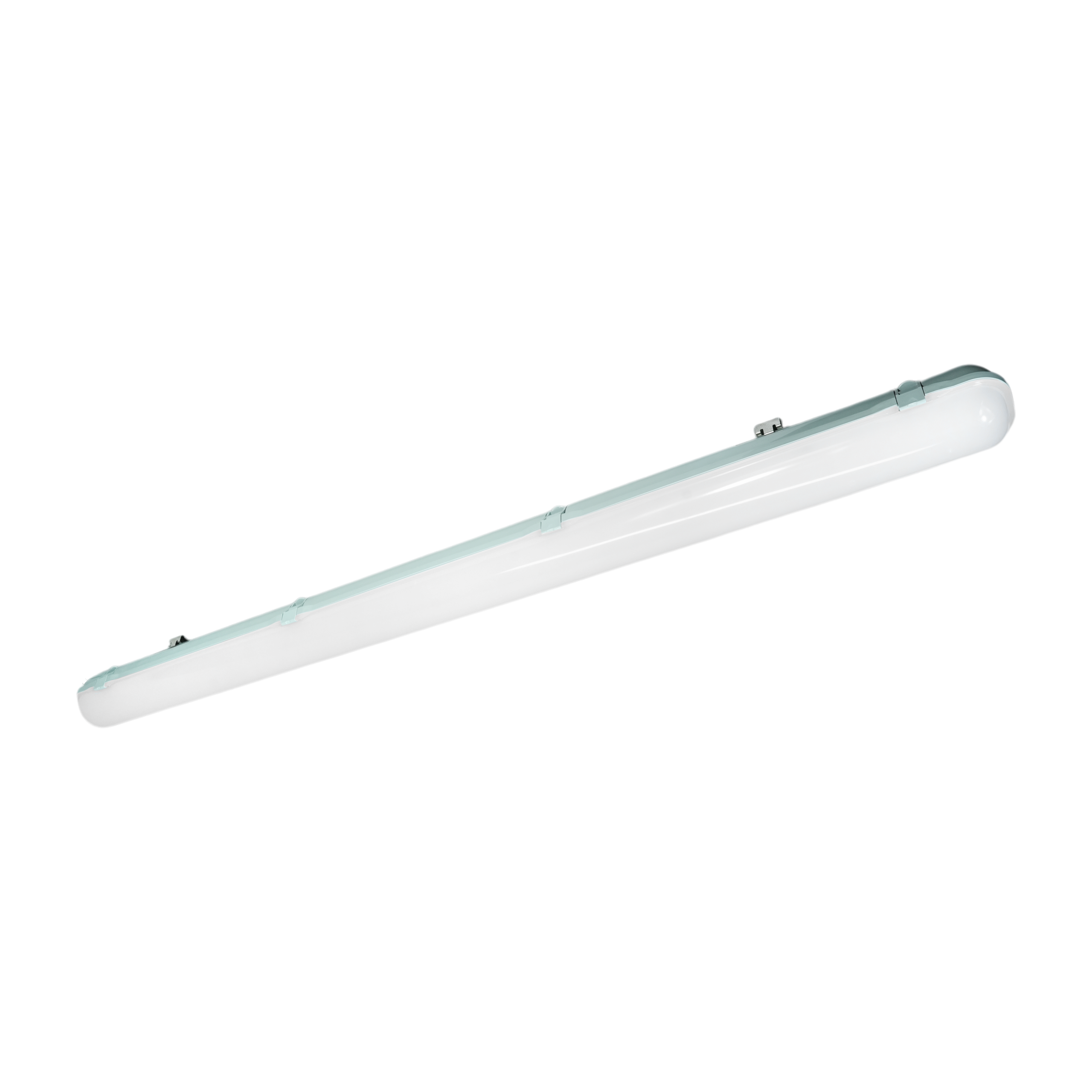

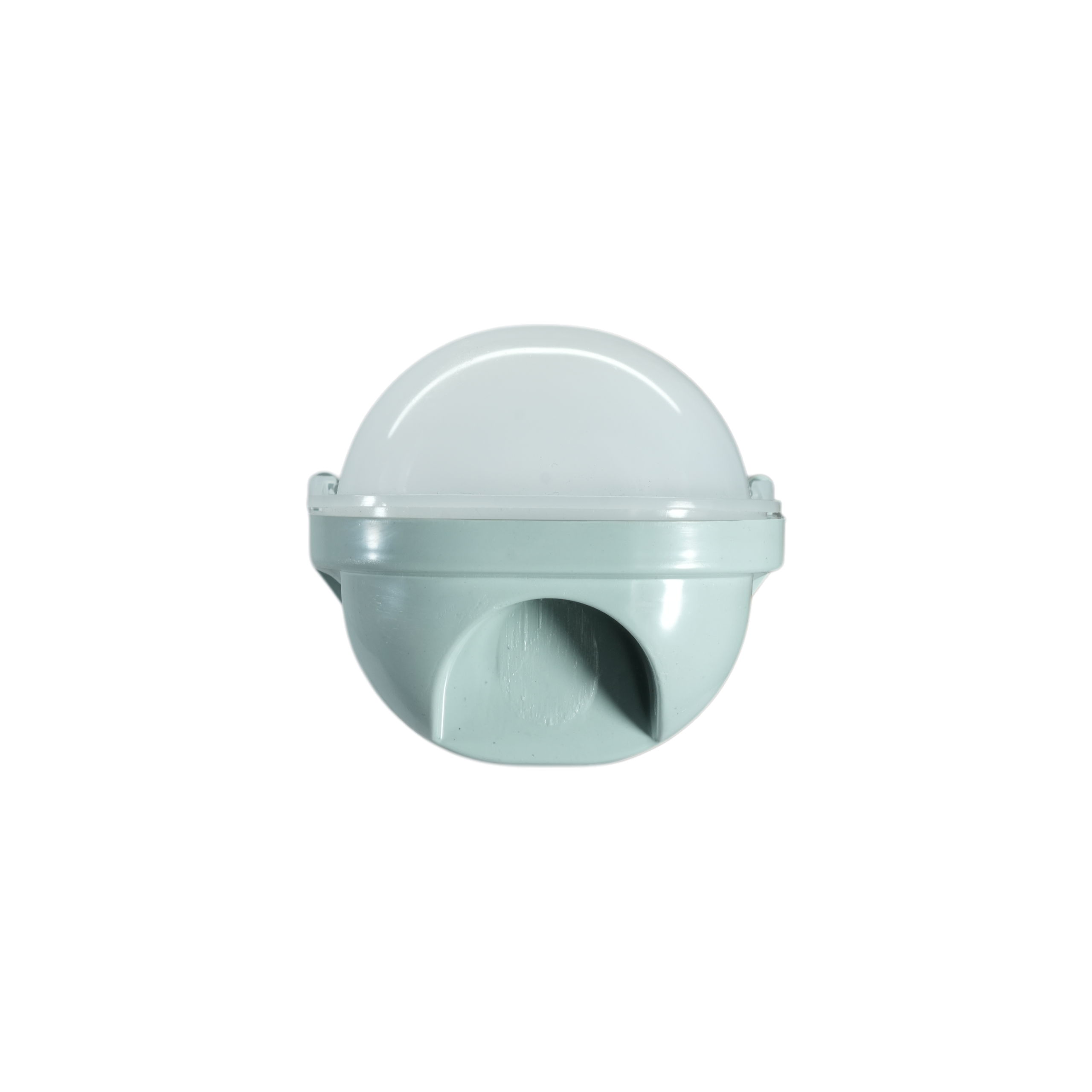

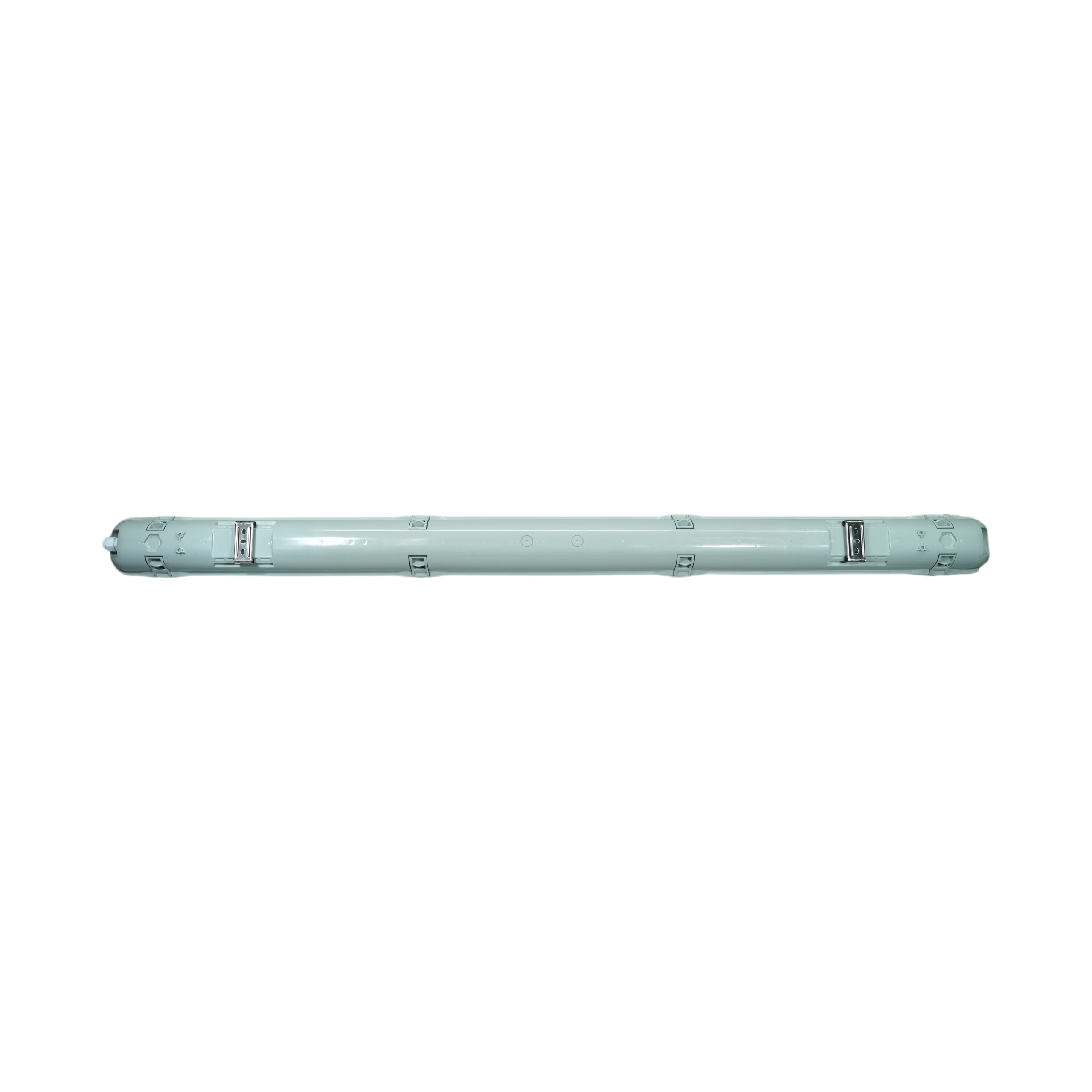

LUMIBROOK SLIM 4FT
10W, 15W, 20W, 30W, 36W, 40W, 50W, 60W
| The Lumibrook Slim 4F is a highly efficient, linear, and weatherproof industrial light suitable for extensive use both indoors and outdoors. This luminaire offers a wide selection of power and color temperatures, as well as functional options like motion detection, a timer, sleep mode, and twilight function. It’s a popular choice for many applications, including warehouses, manufacturing units, car parks, metro stations, and exhibition centers. |
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 10W, 15W, 20W, 30W, 36W, 40W, 50W, 60W |
Suitable for :
- Parking Areas
- Industrial & Infrastructure
- Transportation Areas
- Service Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Quick & easy installation
- Consistent output
- PC diffuser for long life
- Tool-free clips for effortless servicing
- Dust & moisture proof
| Housing | ABS Plastics with PC Diffuser | |
| Body Colour | Green Grey / Light Grey | |
| Light Source | SMD | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 120 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP65 | |
| IK Rating | IK09 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| LBK-SLM-4F-10 | 10 | 1,200 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 | |||
| LBK-SLM-4F-15 | 15 | 1,800 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 | |||
| LBK-SLM-4F-20 | 20 | 2,400 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 | |||
| LBK-SLM-4F-30 | 30 | 3,600 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 | |||
| LBK-SLM-4F-36 | 36 | 4,320 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 | |||
| LBK-SLM-4F-40 | 40 | 4,800 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 | |||
| LBK-SLM-4F-50 | 50 | 6,000 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 | |||
| LBK-SLM-4F-60 | 60 | 7,200 | 3000 / 4000 / 6500 | โฅ80 | 120 | L:1200, W: 82, H: 75 |
*L= Length ,W= Width, H= Height
