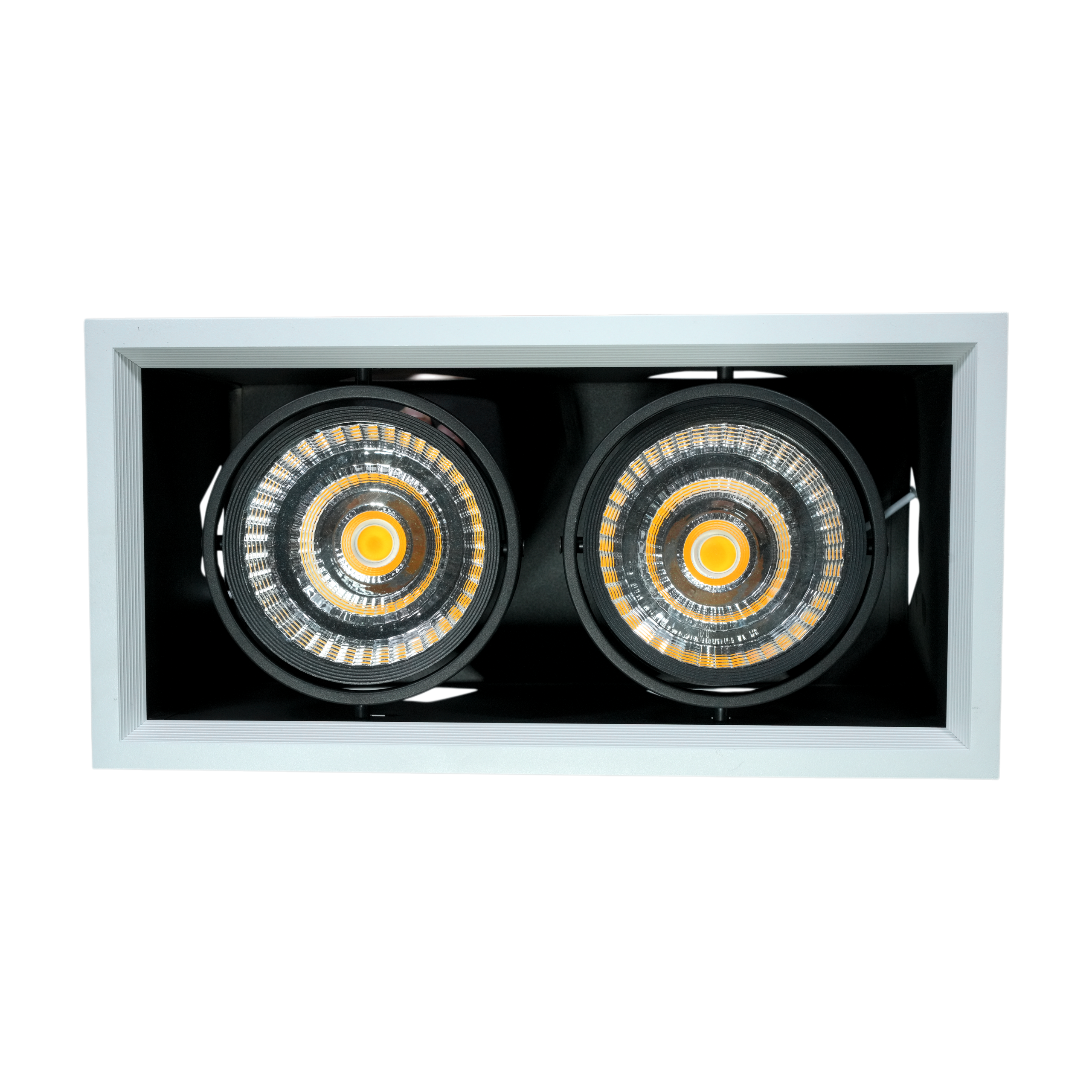

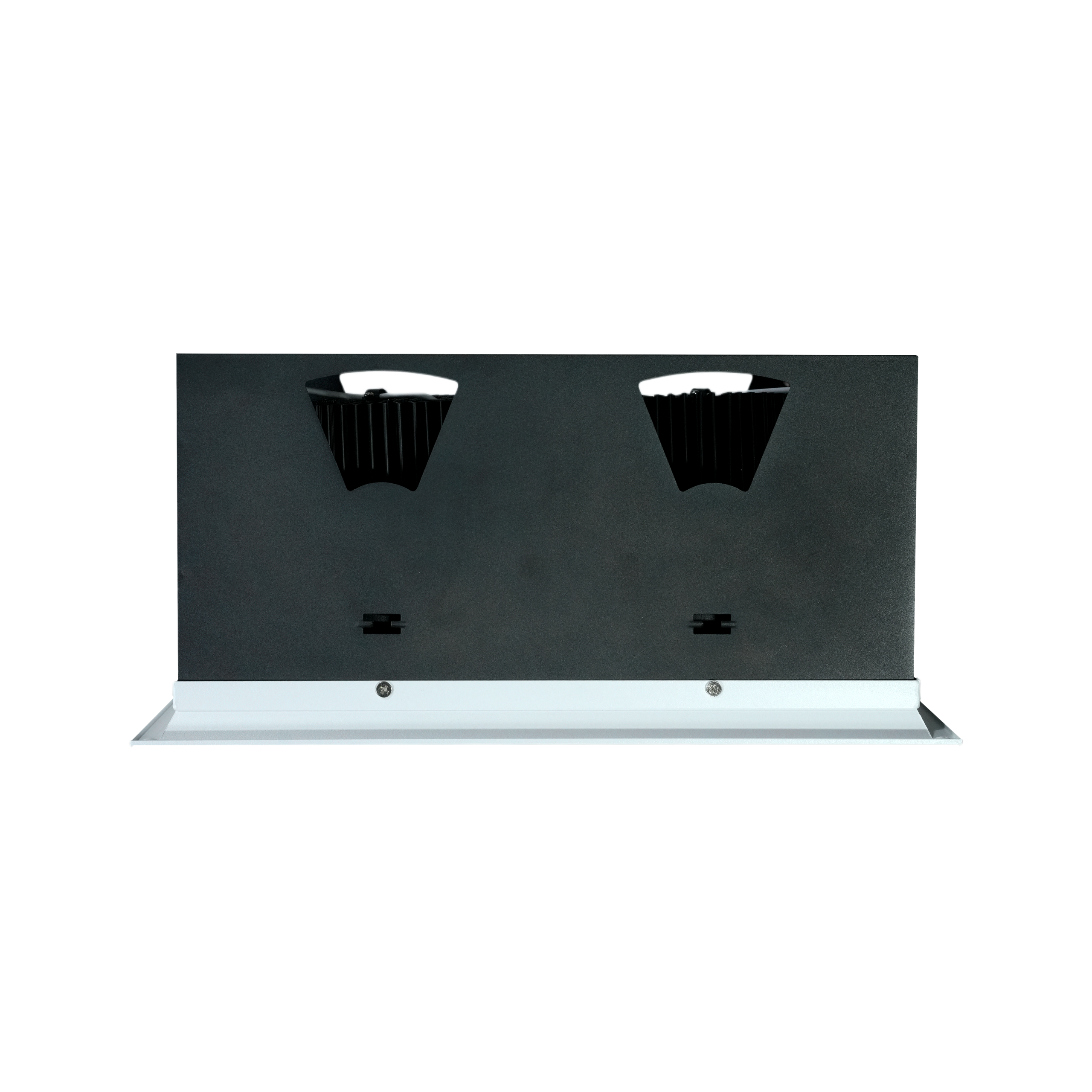

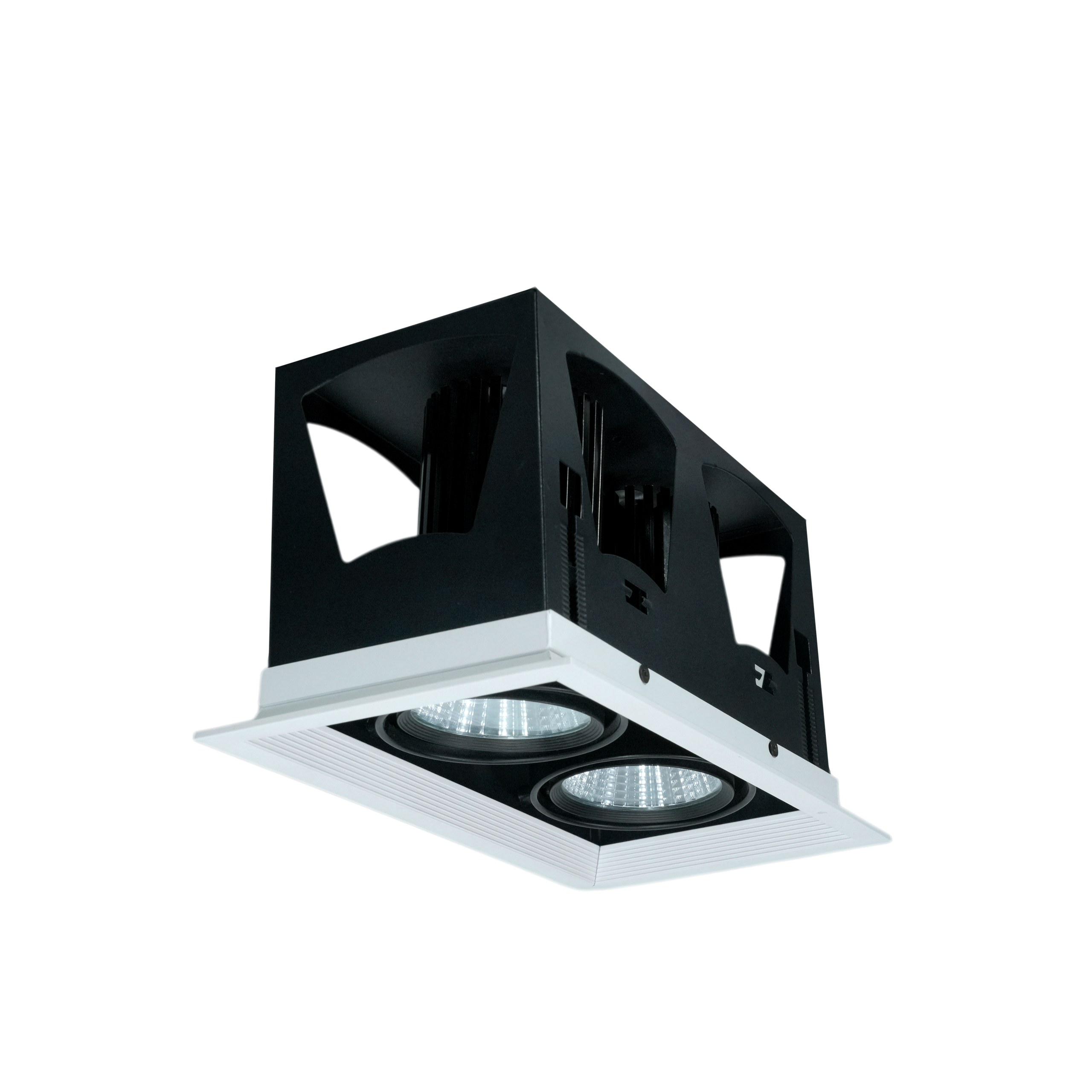

NEGOZIO BGX2
2X12W, 2X15W, 2X20W, 2X30W, 2X40W
LED Recessed Box Gimbal Lights with two Adjustable heads for retail lighting and accent lighting applications
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 24W, 30W, 40W, 60W, 80W |
Suitable for :
- Hotel
- Restaurant
- Retail
- Shops
- Educational Institutes
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Excellent finish, White/Black colour housing
- Adjustable Gimbal Lights with two heads for Accent Lighting
- Higher efficacy ensures better quality of lighting
- Dimming option available
- Saves energy up to 70% compared to metal halide lamps
- LED life more than 50,000 hours
- Constant current driver helps in safe operation
- Choice of different colour temperatures for different applications
- Zero maintenance, long-operating life
| Housing | Aluminium Die-Cast body with PC Reflector and Glass Diffuser | |
| Body Colour | White/Black | |
| Light Source | CREE | |
| Control Gear | Hansa Green | |
| Dimming | TRIAC, 0.-10V,DALI &VLC | |
| Rated Luminous Efficacy | 100-120 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 100-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP44 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| BG2-12 | 2X12 | 2400lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:275,W:145,H:135,C:265*135 mm | |||
| BG2-15 | 2X15 | 3000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:275,W:145,H:135,C:265*135 mm | |||
| BG2-20 | 2X20 | 4000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:305,W:165,H:135,C:295*155 mm | |||
| BG2-30 | 2X30 | 6000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:370,W:185,H:135,C:360*175 mm | |||
| BG2-40 | 2X40 | 8000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:370,W:185,H:175,C:360*175 mm |
*L= Length ,W= Width, H= Height, C= Cut-out
