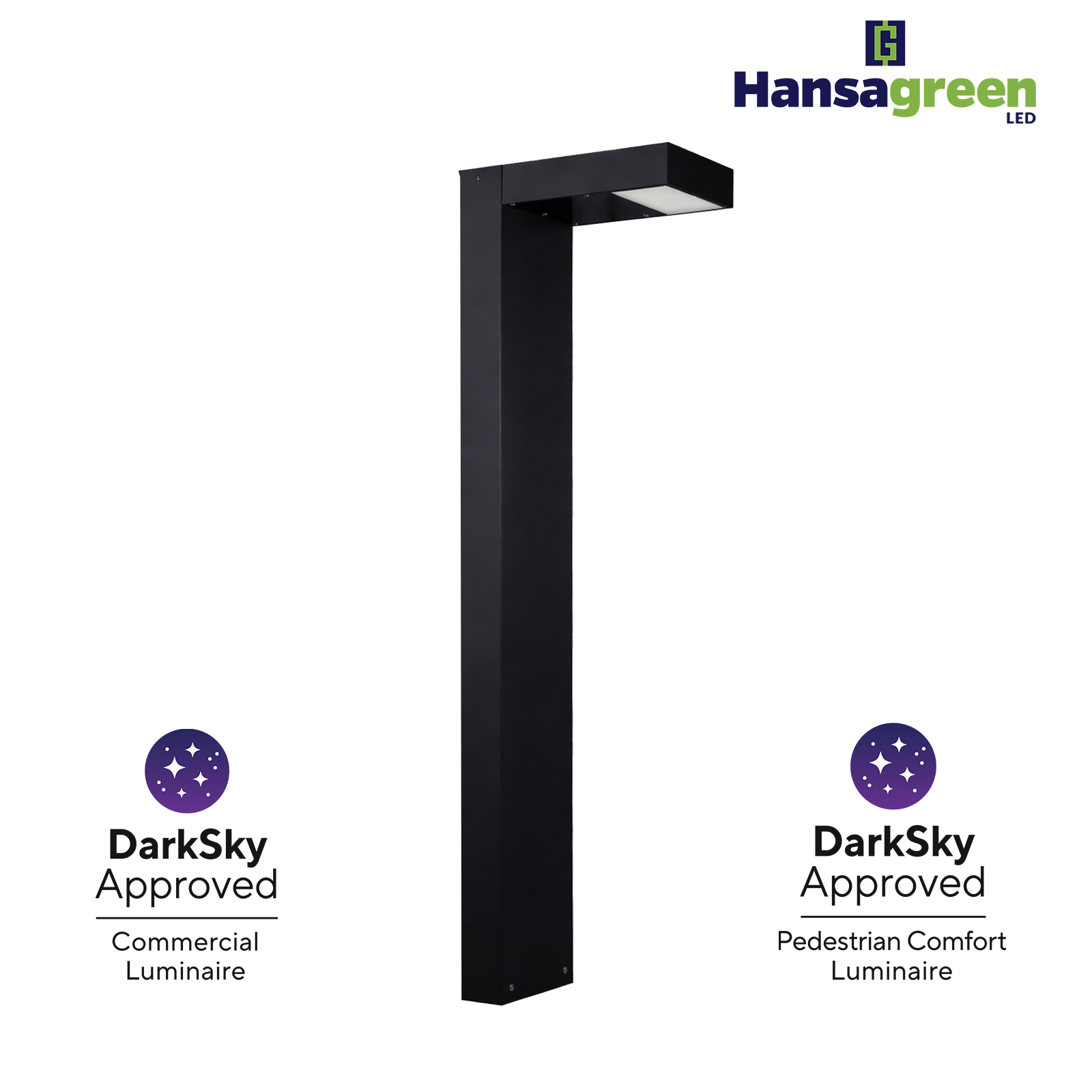

BOLLAX L
UP TO 20W
BOLLAX-L 20W is a durable outdoor LED lighting solution engineered to perform reliably in demanding environmental conditions. With its weather-resistant construction and sleek, modern design, it seamlessly combines strength with aesthetic appeal. Ideal for pathways, landscapes, and outdoor environments.
| CCT | 2700K, 3000K |
|---|---|
| Wattage | UP TO 20W |
Suitable for :
- Building Exteriors
- Landscaping
- Parks
- Pathways
- Features
- Specifications
- Technical Data
- Downloads
- ROBUST ALUMINIUM BODY: Constructed from high-grade aluminium.
- WEATHER RESISTANT CONSTRUCTION : Designed with a sealed top assembly.
- POWDER COATED FINISH : Finished with a premium outdoor powder coating.
- HEAVY DUTY BASE PLATE : Equipped with a reinforced mounting base plate.
| PRODUCT NAME | BOLLAX L | |
| PRODUCT TYPE | LED BOLLARD LIGHT | |
| PRODUCT CODE | BLXL-BLD-20W-XXXXK | |
| AVAILABLE CCT | 2700K | |
| BODY MATERIAL | CORROSION-RESISTANT ALUMINIUM DIE-CAST | |
| LENS | UV-STABILIZED POLYCARBONATE (PC) LENS | |
| OPTICS | ASYMMETRIC | |
| BODY COLOR | BLACK / GREY / SPECIAL | |
| CONTROL OPTIONS | DALI, 1–10V DIMMING | |
| RATED LUMINOUS EFFICACY | 104.54 lm/W | |
| BUG RATING | B1-U0-G1 | |
| IP RATING | IP66 | |
| IK RATING | IK09 | |
| AMBIENT TEMPERATURE (TA) | -20°C to +50°C | |
| HUMIDITY | RH 10–95% |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | ULOR(Upward Light Output Ratio) | Beam Angle (Deg°) | Dimensions (mm) | ||
| BLXL-BLD-20W-XXXXK | UP TO 20 | 1,865 | 2700 / 3000 | ≥80 | 0% (U0 – Zero Uplight) | 124.9 | L: 260, H:300, W:150 | ||
| BLXL-BLD-20W-XXXXK | UP TO 20 | 1,865 | 2700 / 3000 | ≥80 | 0% (U0 – Zero Uplight) | 124.9 | L: 260, H:500, W:150 | ||
| BLXL-BLD-20W-XXXXK | UP TO 20 | 1,865 | 2700 / 3000 | ≥80 | 0% (U0 – Zero Uplight) | 124.9 | L: 260, H:1000, W:150 |
*L=Length; H=Height; W=Width
