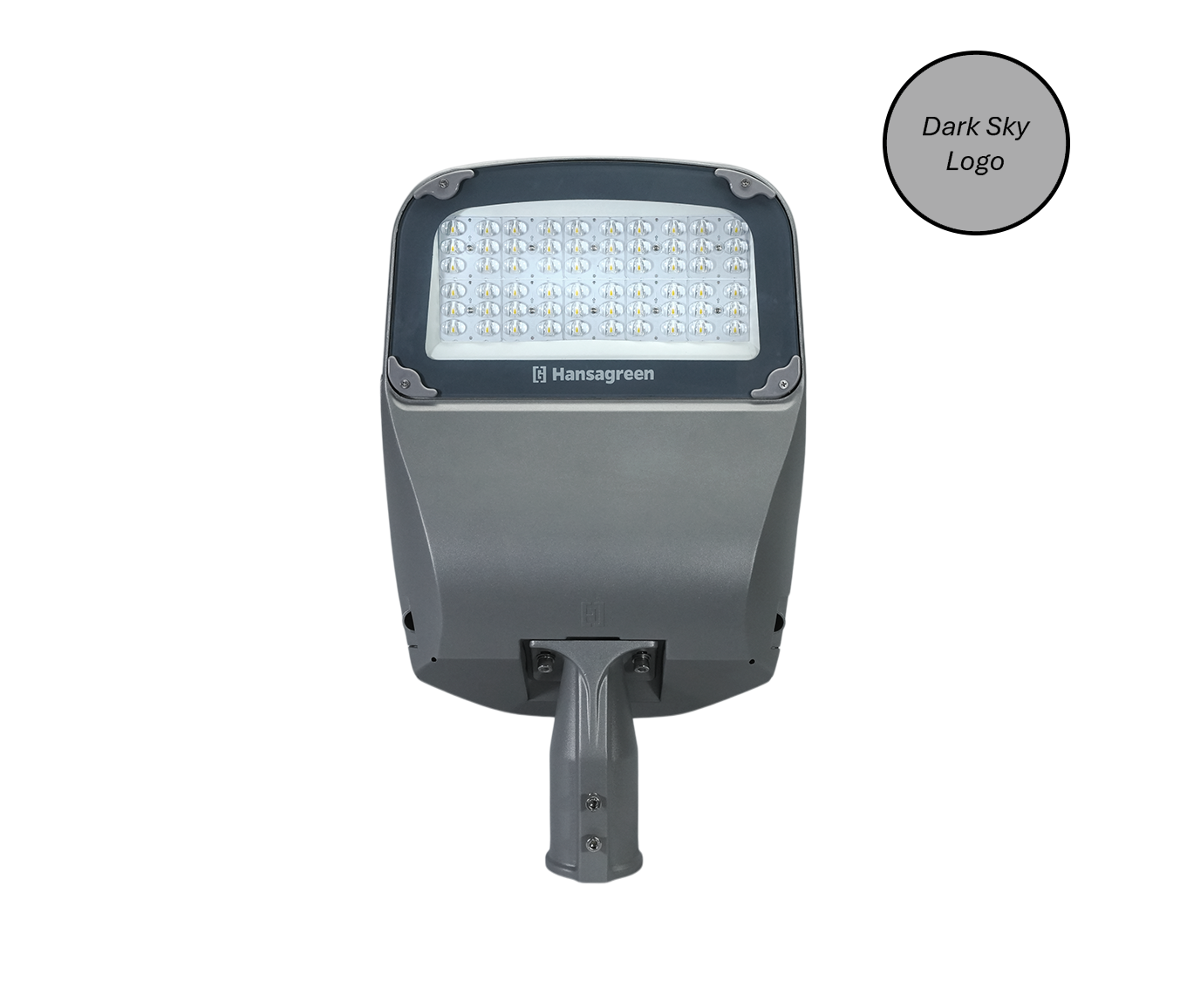

PELICAN D
UPTO 150W
Pelican D is a high-performance, energy-efficient street lighting solution designed to deliver uniform illumination for urban and industrial environments. With advanced optics and multiple configuration options, it ensures optimal lighting for applications such as roads, highways, parking areas, residential communities, and commercial spaces, while offering reliable performance and low maintenance.
| CCT | 3000K |
|---|---|
| Wattage | UPTO 150W |
Suitable for :
- Facade Lighting
- Highways
- Private Pathways
- Landscaping
- Pathways
- Features
- Specifications
- Technical Data
- CORROSION-RESISTANT ALUMINIUM-DIE CAST BODY
- WEATHER RESISTANT CONSTRUCTION
- POWDER COATED FINISH
- HIGH-IMPACT TEMPERED GLASS
- VARIOUS MOUNTING OPTIONS AVAILABLE
| PRODUCT NAME | PELICAN D | |
| PRODUCT TYPE | LED STREET LIGHT | |
| PRODUCT CODE | Pelican D-150-KXX | |
| AVAILABLE CCT | 2700K - 3000K | |
| BODY MATERIAL | CORROSION-RESISTANT ALUMINIUM DIE-CAST | |
| LENS | UV-STABILIZED POLYCARBONATE (PC) LENS | |
| BODY COLOR | GREY / WHITE / SPECIAL | |
| CONTROL OPTIONS | DALI, 1–10V DIMMING | |
| RATED LUMINOUS EFFICACY | 140.21 lm/W | |
| IP RATING | IP66 | |
| IK RATING | IK08 | |
| AMBIENT TEMPERATURE (TA) | -20°C to +50°C | |
| HUMIDITY | RH 10–95% |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | ULOR(Upward Light Output Ratio) | Beam Angle (Deg°) | Dimensions (mm) | ||
| Pelican D-150-KXX | UPTO 150 | 21043 | 3000 | ≥80 | 0% (U0 – Zero Uplight) | 126.2 | L: 581, W: 350, H: 112, PD: 63 |
*L=Length; W=Width; H=Height; PD=Pole Dia;
