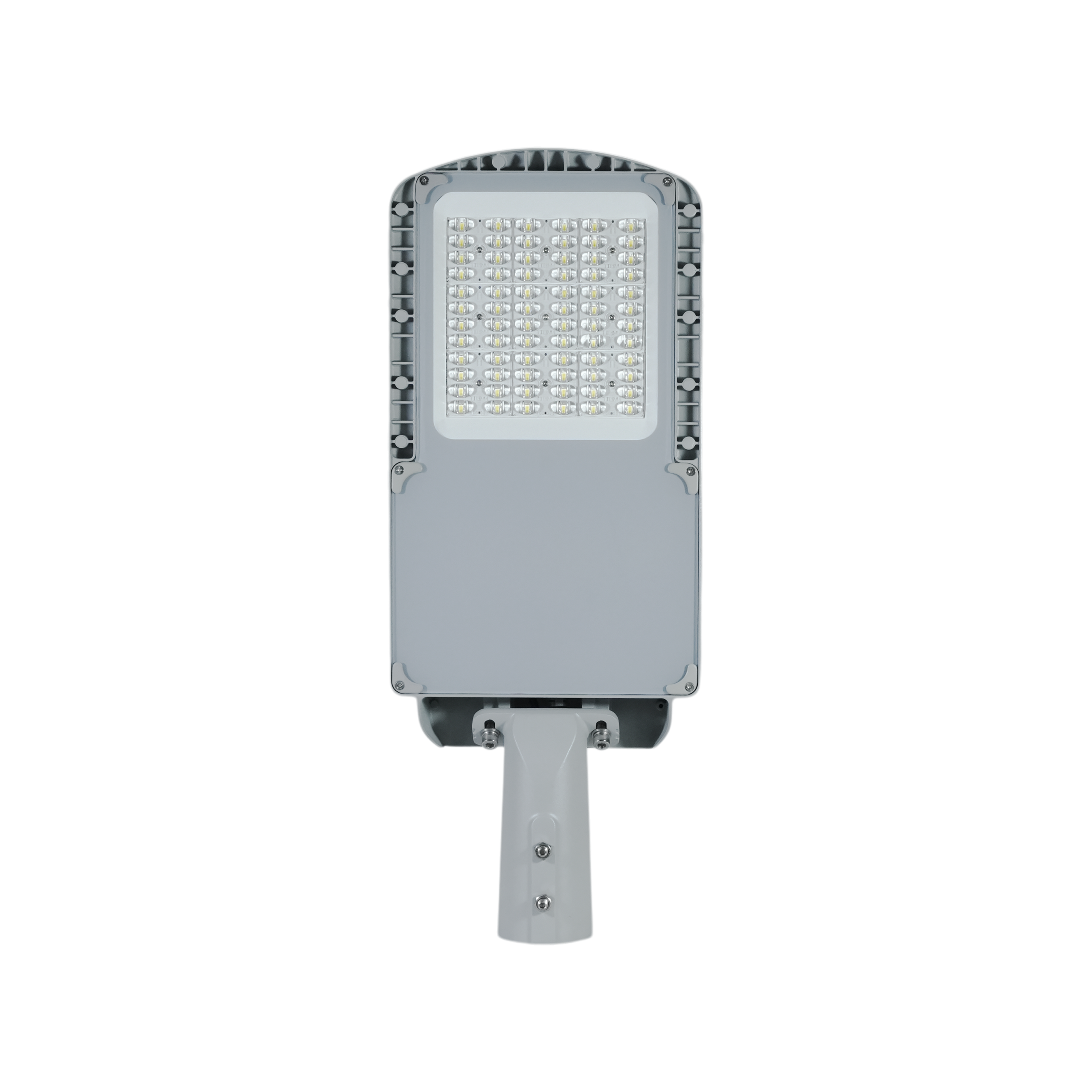

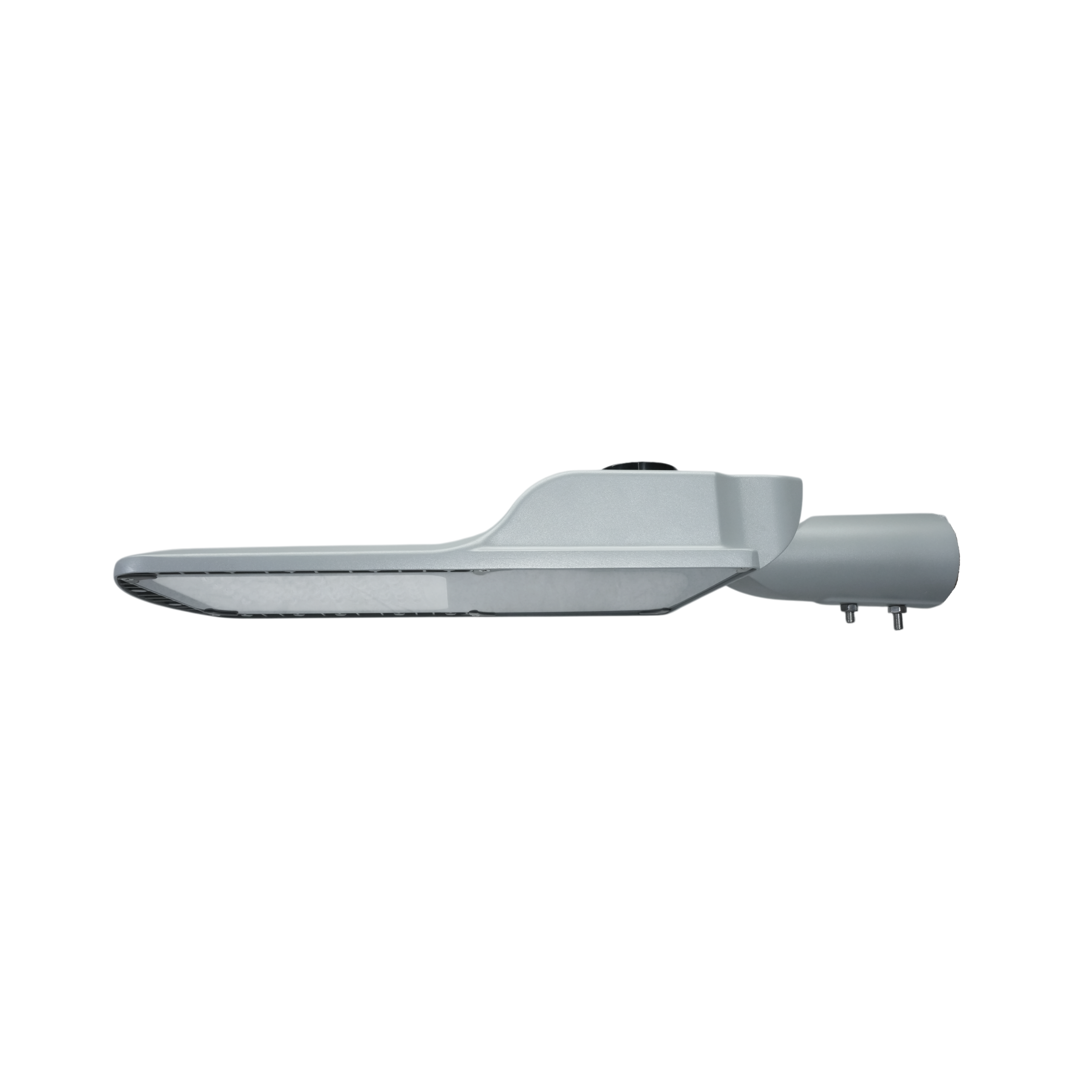

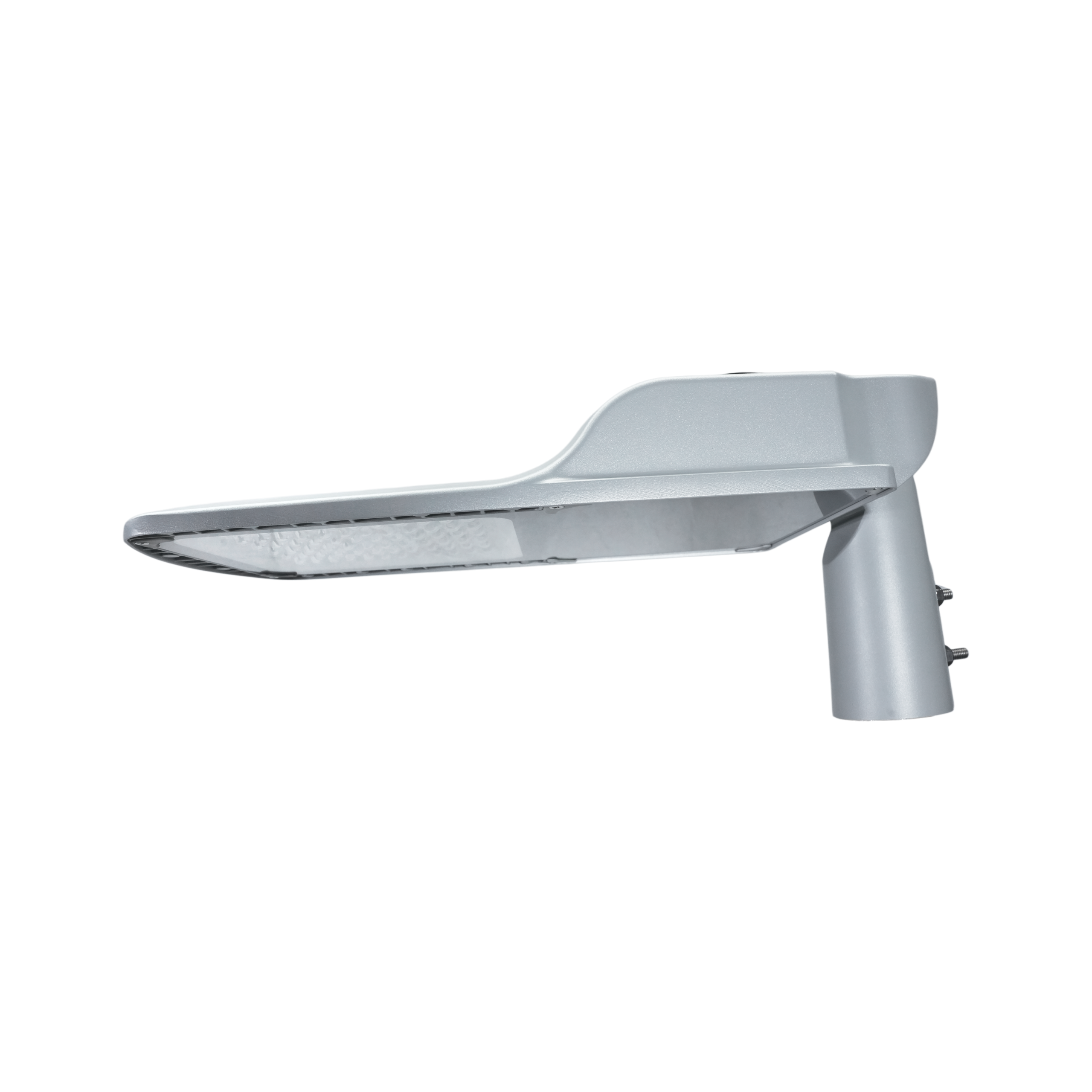

FALCON S
40W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, 240W
Falcon S is a high-performance and energy-efficient LED street light designed to meet the demands of modern outdoor lighting applications. Featuring an IP66-rated enclosure, it provides excellent protection against dust and water, ensuring reliable operation in harsh environmental conditions.
| CCT | 3000K, 4000K, 5700K |
|---|---|
| Wattage | 40W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, 240W |
Suitable for :
- Highways
- Urban&Residential
- Open Car parks
- Fuel Stations
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Efficient Heat Dissipation โ Die-cast aluminum housing
- Multiple Beam Choices โ adaptable for any space.
- Tool free - Easy maintenance
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Corrosion Resistant - Aluminium Die Cast with PC Lens and Clear Glass | |
| Body Colour | Grey/Black/White | |
| Light Source | SMD | |
| Control Option | On/Off, 1-10V, DALI | |
| Rated Luminous Efficacy | 160 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| Falcon S-40 | 40 | 6,400 | 3000 / 4000 / 6500 | โฅ70 | 119.9 | L:463, W:173, H:86, PD:68 | |||
| Falcon S-60 | 60 | 9,600 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:570, W:200, H:88, PD:68 | |||
| Falcon S-80 | 80 | 12,800 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:570, W:200, H:88, PD:68 | |||
| Falcon S-100 | 100 | 16,000 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:611, W:240, H:89, PD:68 | |||
| Falcon S-120 | 120 | 19,200 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:611, W:240, H:89, PD:68 | |||
| Falcon S-150 | 150 | 24,000 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:680, W:260, H:89, PD:68 | |||
| Falcon S-180 | 180 | 28,800 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:680, W:260, H:89, PD:68 | |||
| Falcon S-200 | 200 | 32,000 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:693, W:300, H:111, PD:68 | |||
| Falcon S-240 | 240 | 38,400 | 3000 / 4000 / 6500 | โฅ70 | 95.5 | L:693, W:300, H:111, PD:68 |
*L=Length; W=Width; H=Height; PD=Pole Dia
