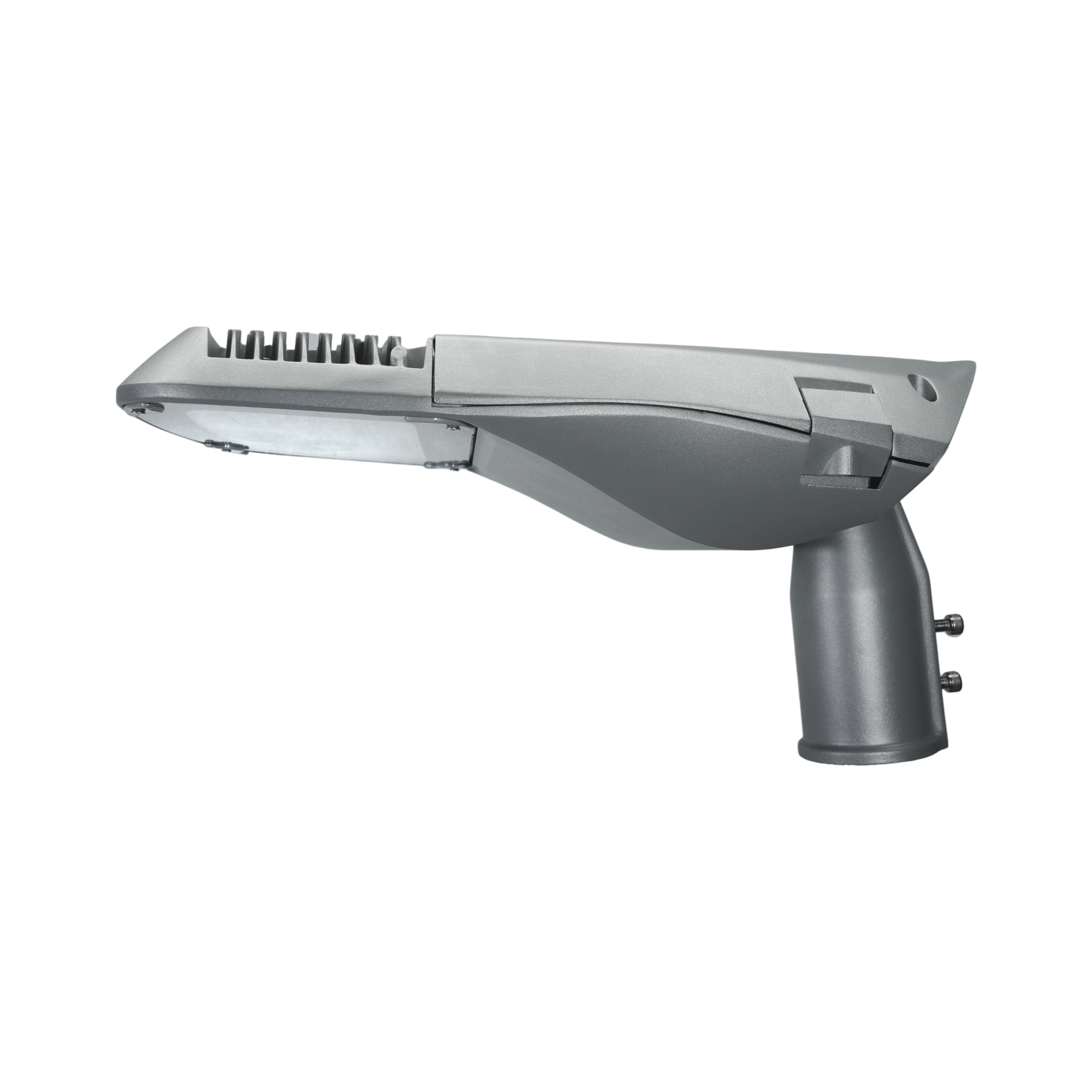

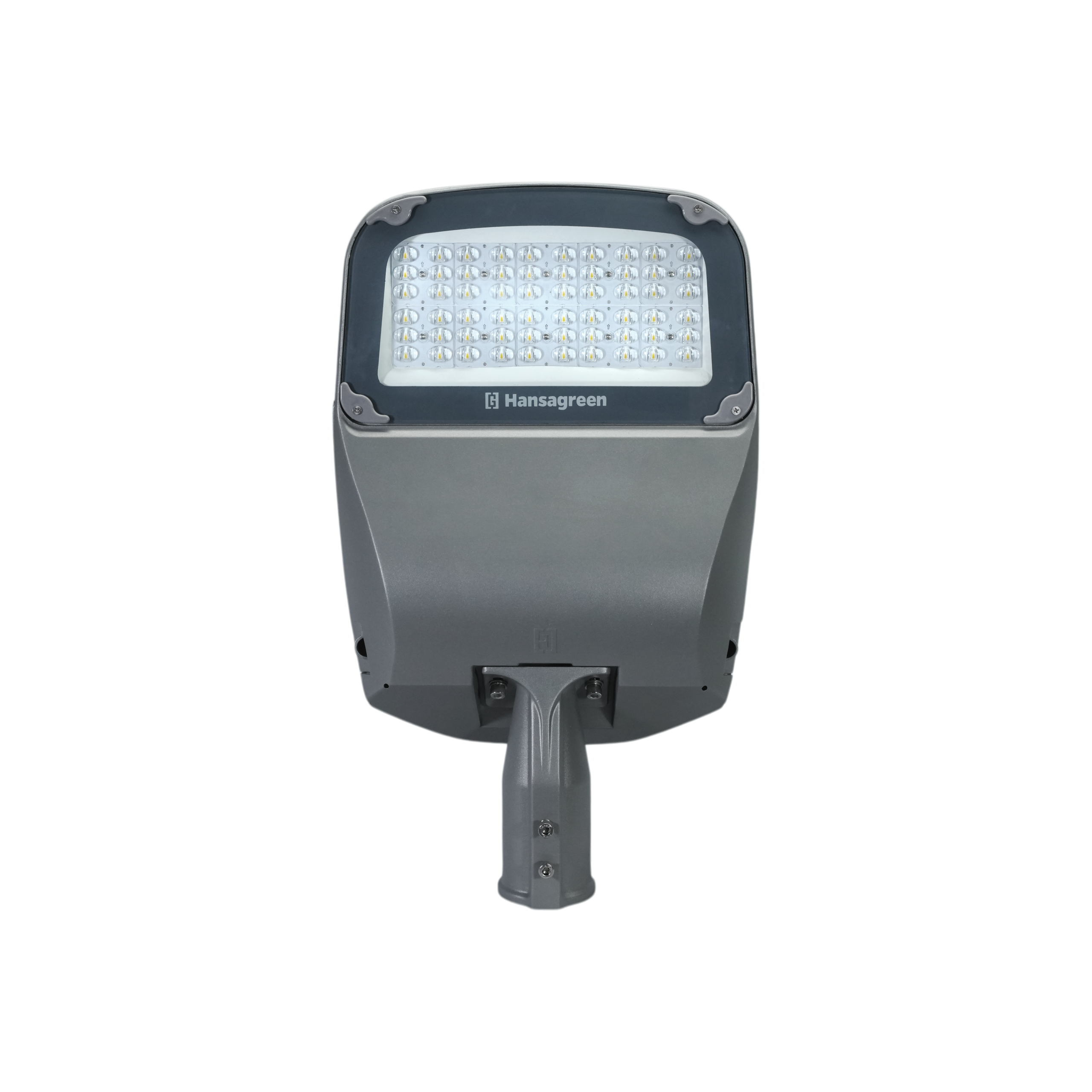

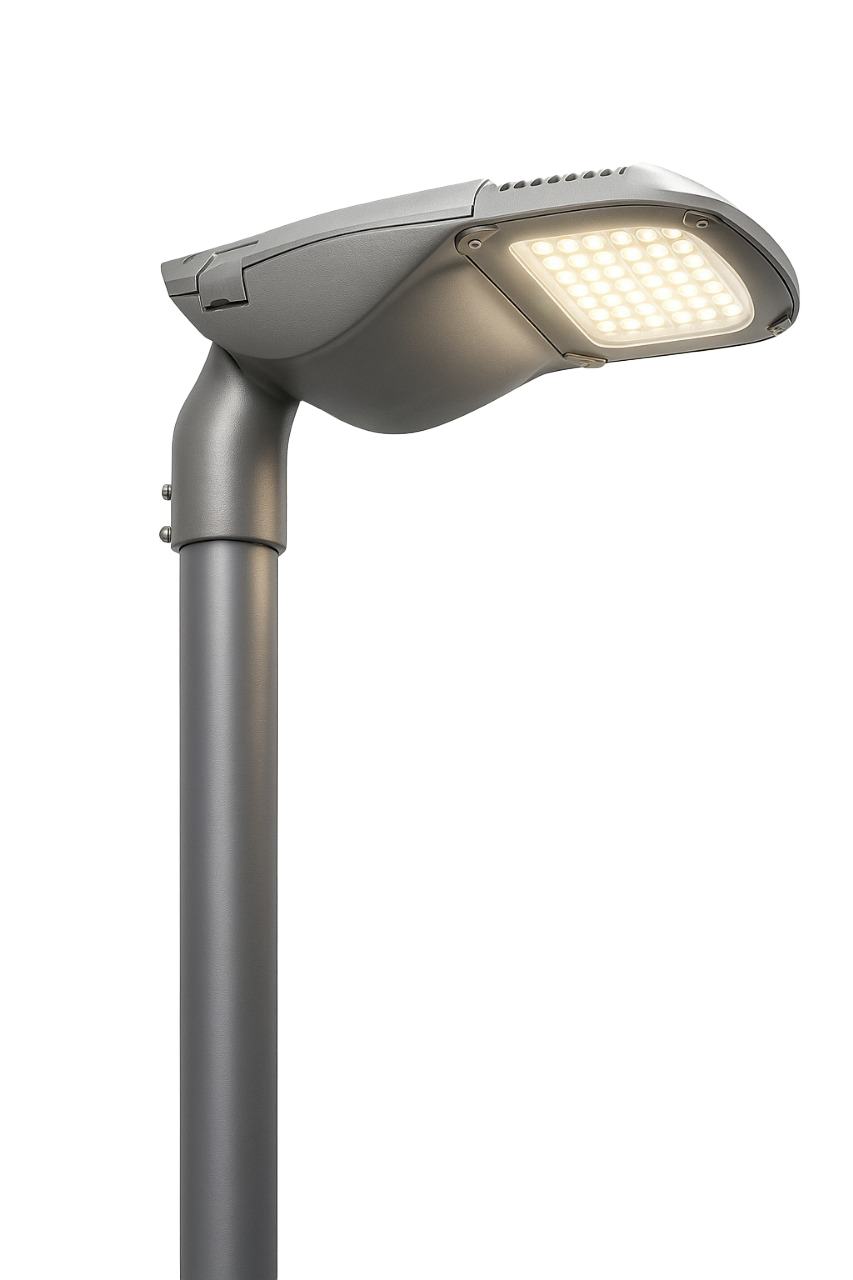

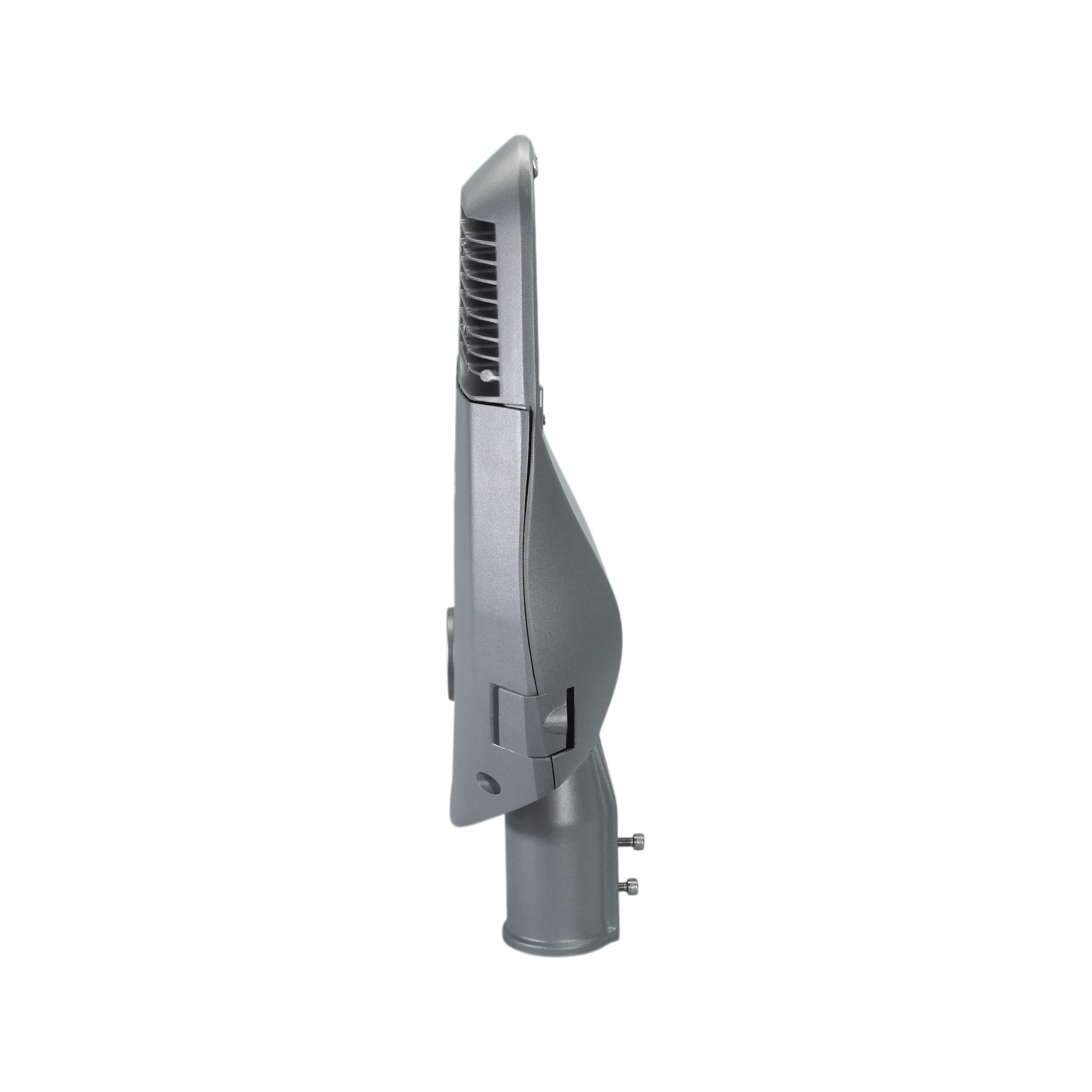

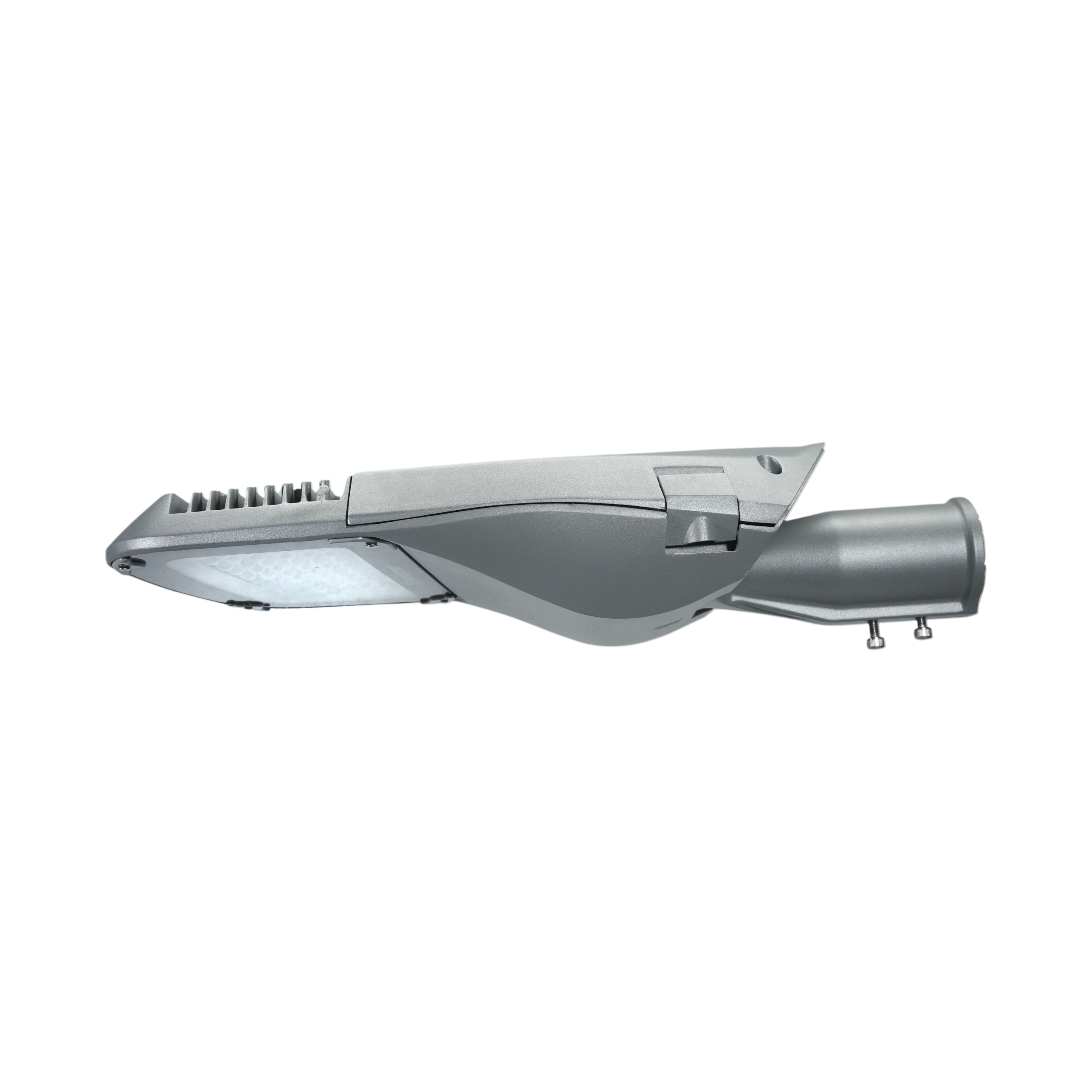

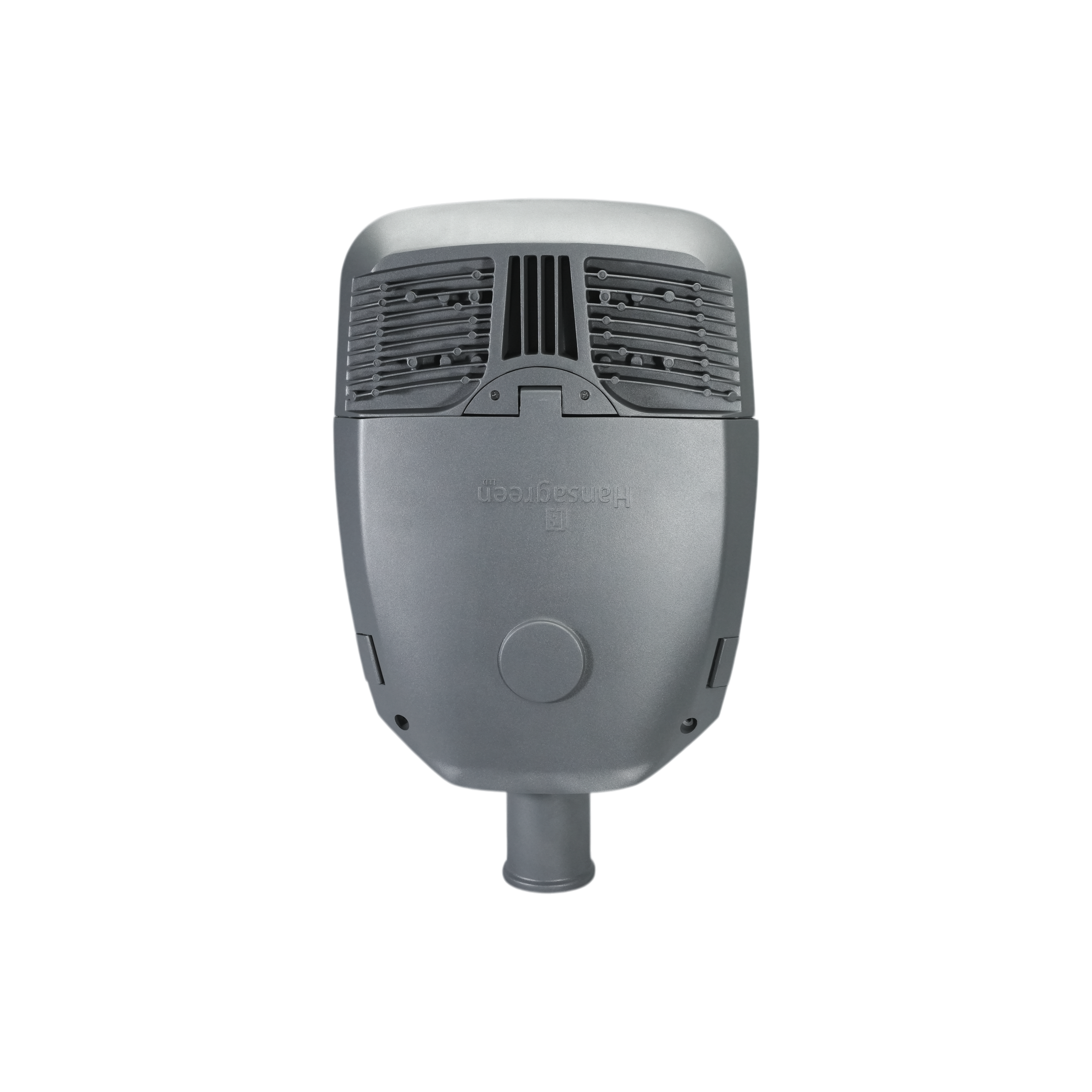

PELICAN D
40W, 60W, 80W, 100W, 120W, 150W
| CCT | 3000K, 4000K, 5700K |
|---|---|
| Wattage | 40W, 60W, 80W, 100W, 120W, 150W |
Suitable for :
- Highways
- Urban&Residential
- Open Car parks
- Fuel Stations
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Efficient Heat Dissipation โ Die-cast aluminum housing
- Multiple Beam Choices โ adaptable for any space.
- Tool free - Easy maintenance
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die Cast with PC Lens and Clear Glass | |
| Body Colour | Grey/Black/White | |
| Light Source | SMD | |
| Control Option | On/Off, 1-10V, DALI | |
| Rated Luminous Efficacy | 140 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| Pelican D-40 | 40 | 5,600 | 3000 / 4000 / 6500 | โฅ70 | 113.3 | L:581, H:348, H:112, PD:68 | |||
| Pelican D-60 | 60 | 8,400 | 3000 / 4000 / 6500 | โฅ70 | 113.3 | L:581, H:348, H:112, PD:68 | |||
| Pelican D-80 | 80 | 11,200 | 3000 / 4000 / 6500 | โฅ70 | 113.3 | L:581, H:348, H:112, PD:68 | |||
| Pelican D-100 | 100 | 14,000 | 3000 / 4000 / 6500 | โฅ70 | 113.3 | L/D:581, H:348, H:112, PD:68 | |||
| Pelican D-120 | 120 | 16,800 | 3000 / 4000 / 6500 | โฅ70 | 113.3 | L/D:581, H:348, H:112, PD:68 | |||
| Pelican D-150 | 150 | 21,000 | 3000 / 4000 / 6500 | โฅ70 | 113.3 | L/D:581, H:348, H:112, PD:68 |
*D=Diameter; H=Height
