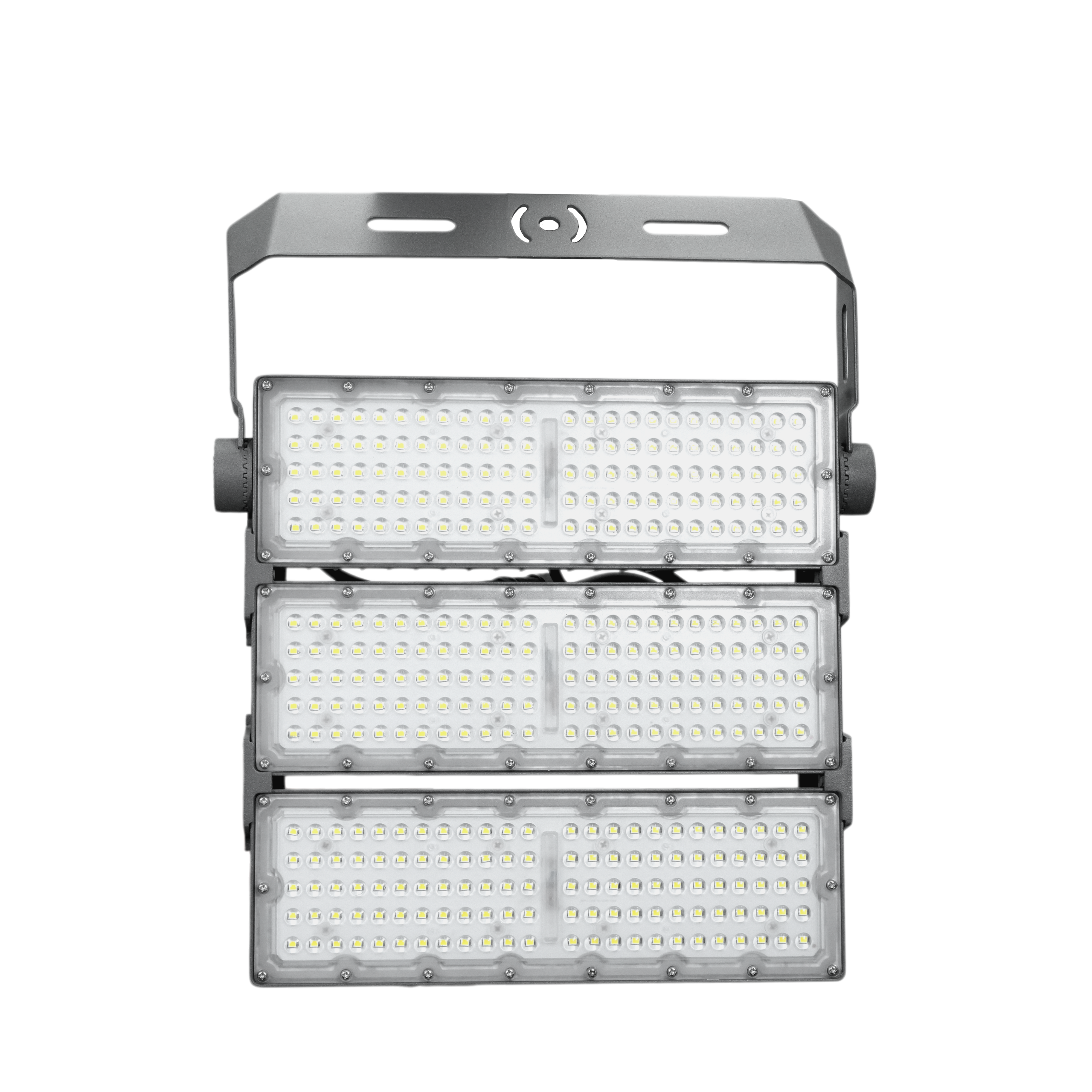

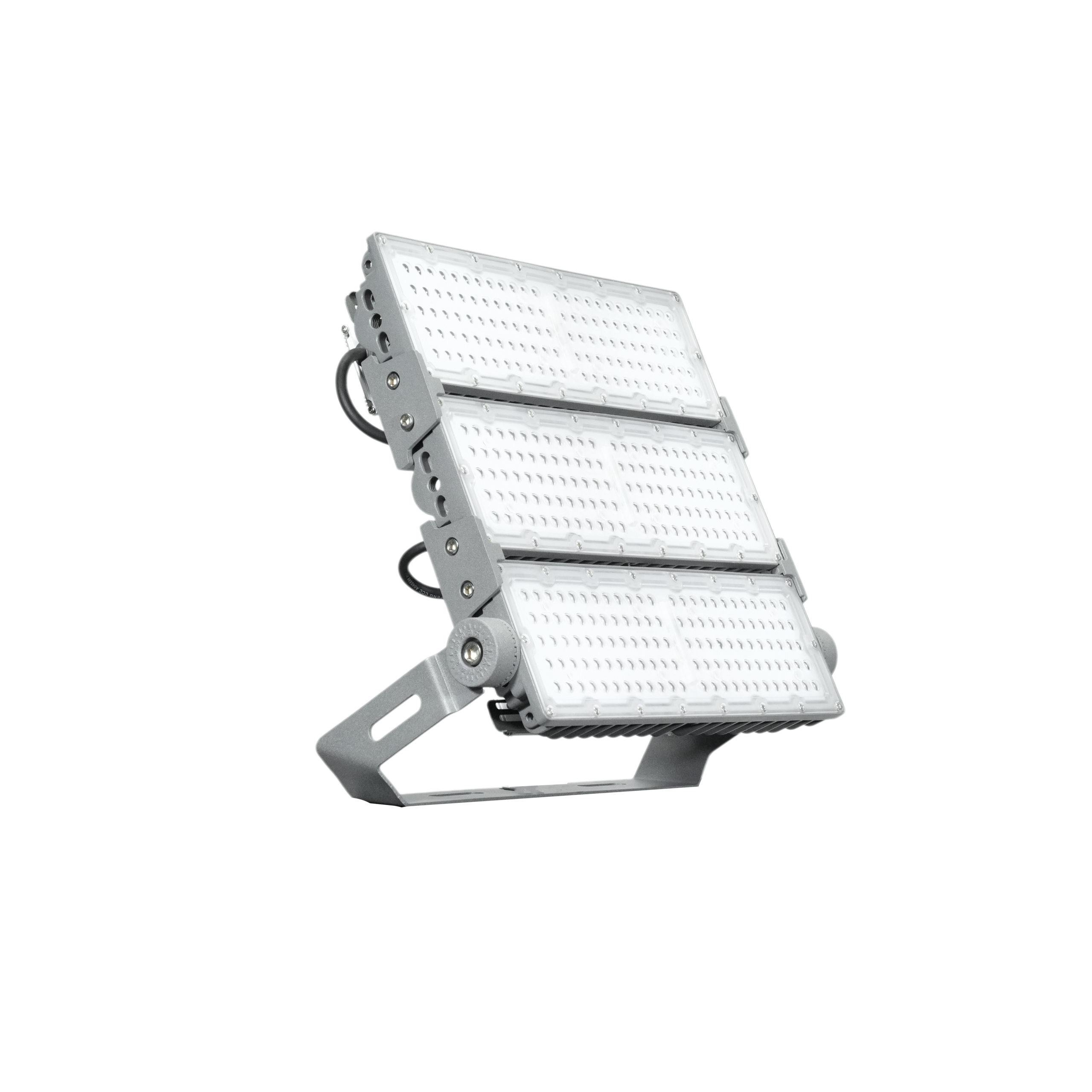

CIVIC T
100W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W
| Civic T is a high-performance IP66 façade and sports light engineered for robust outdoor use. It delivers powerful illumination with durable construction, ensuring consistent performance in all weather conditions. |
| CCT | 3000K, 4000K, 5700K |
|---|---|
| Wattage | 100W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W |
Suitable for :
- Sports & Recreational Area
- Industrial & Infrastructure
- Outdooor & Area lightting
- Transportation & Utility
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy -More light output
- Efficient Heat Dissipation – Die-cast aluminum housing
- Long life: 50,000+ hrs - Minimal maintenance
- Adjustable Bracket – Easy installation & aiming
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die Cast with PC Lens | |
| Body Colour | Grey | |
| Light Source | SMD | |
| Control Option | On/Off, 1-10V, DALI | |
| Rated Luminous Efficacy | 120 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP66 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| CVT-FLD-100 | 100 | 12,000 | 3000 / 4000 / 6500 | ≥80 | 71.3 | L:340, W:100, H:160 | |||
| CVT-FLD-200 | 200 | 24,000 | 3000 / 4000 / 6500 | ≥80 | 54.9 | L:340, W:200, H:160 | |||
| CVT-FLD-300 | 300 | 36,000 | 3000 / 4000 / 6500 | ≥80 | 54.7 | L:340, W:305, H:160 | |||
| CVT-FLD-400 | 400 | 48,000 | 3000 / 4000 / 6500 | ≥80 | 55.1 | L:340, W:415, H:160 | |||
| CVT-FLD-500 | 500 | 60,000 | 3000 / 4000 / 6500 | ≥80 | 54 | L:340, W:520, H:160 | |||
| CVT-FLD-600 | 600 | 72,000 | 3000 / 4000 / 6500 | ≥80 | 54.8 | L:650, W:310, H:200 | |||
| CVT-FLD-800 | 800 | 96,000 | 3000 / 4000 / 6500 | ≥80 | 55.3 | L:650, W:415, H:160 | |||
| CVT-FLD-1000 | 1000 | 120,000 | 3000 / 4000 / 6500 | ≥80 | 55.1 | L:650, W:415, H:160 |
*L=Length; W=Width; H=Height
