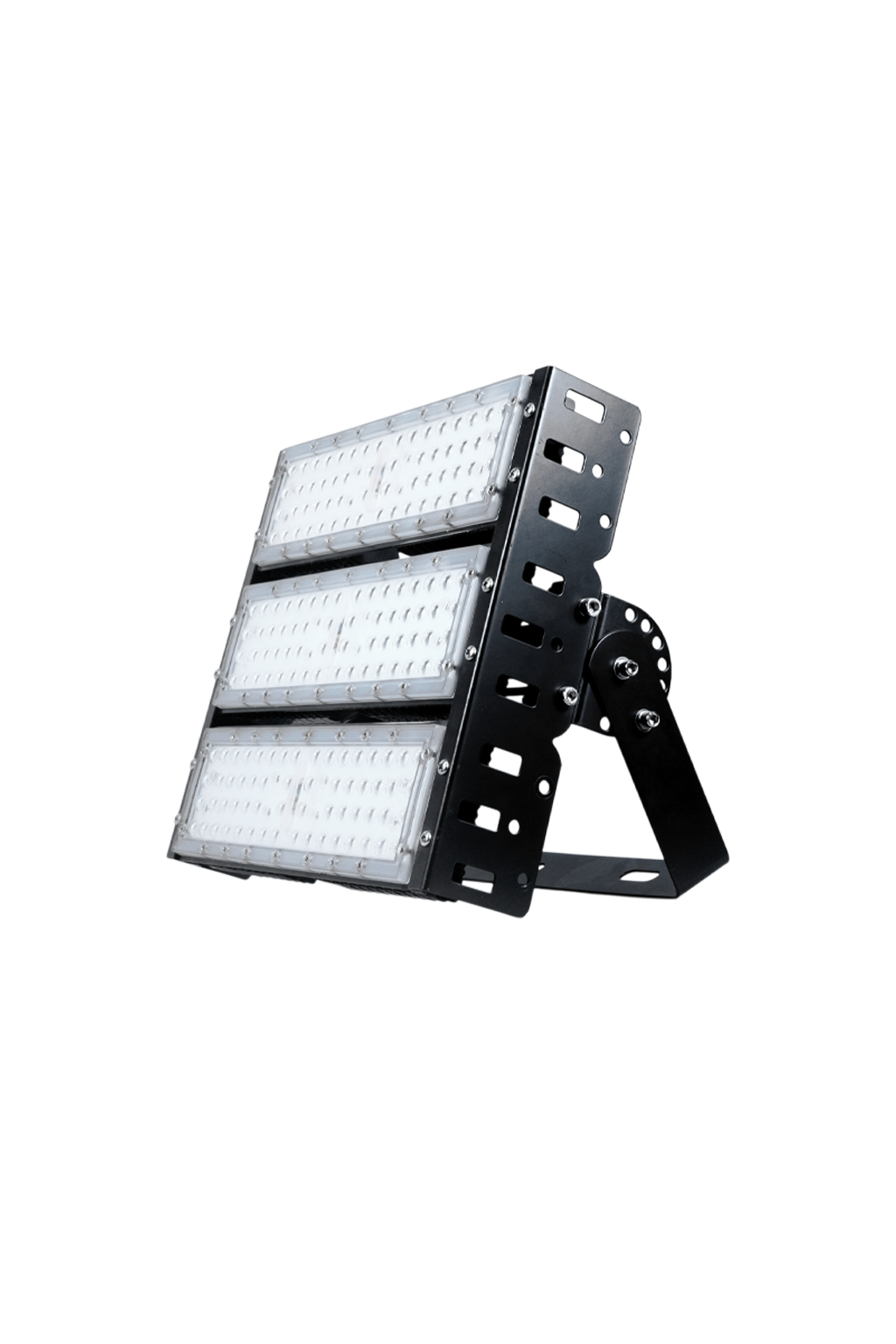

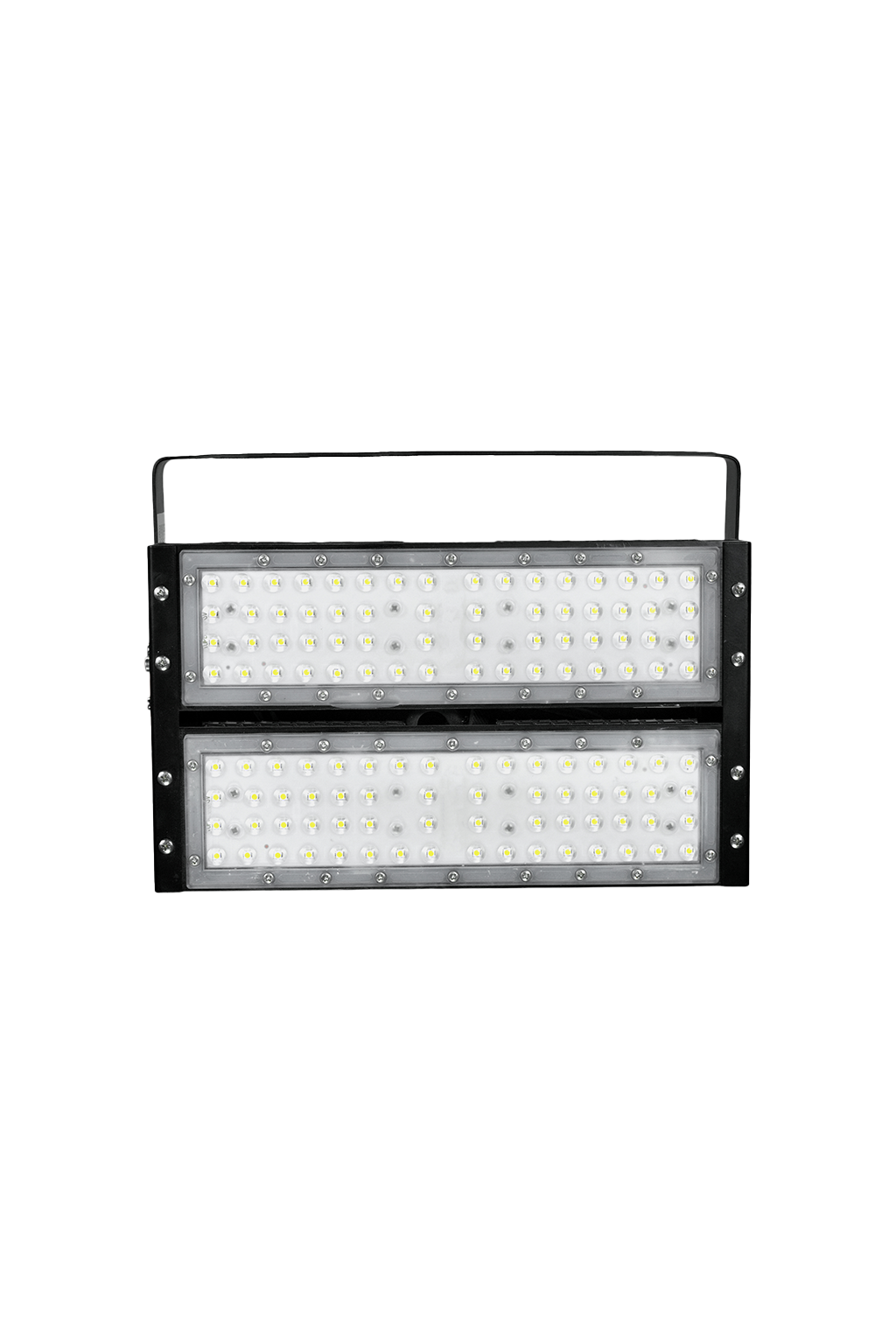

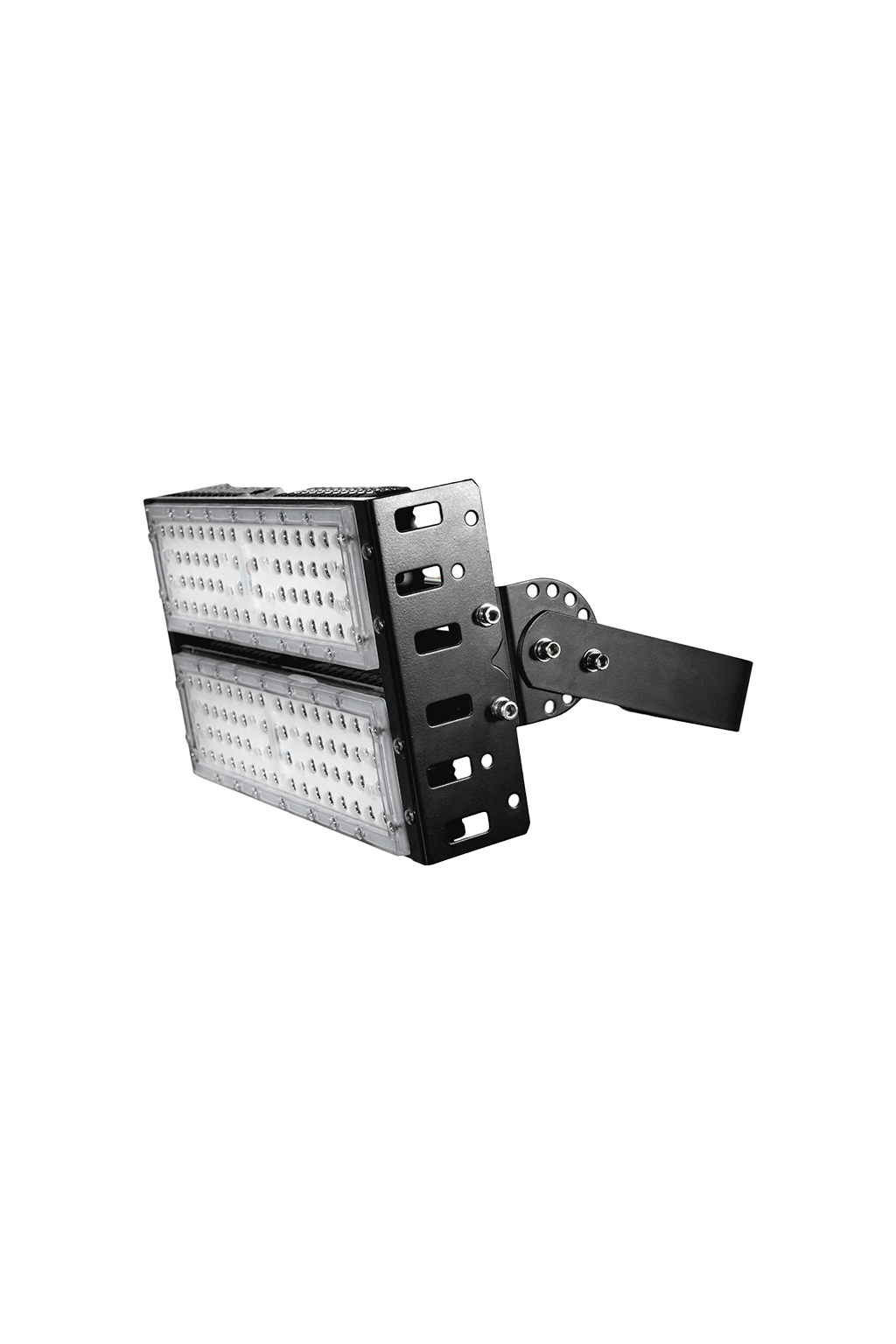

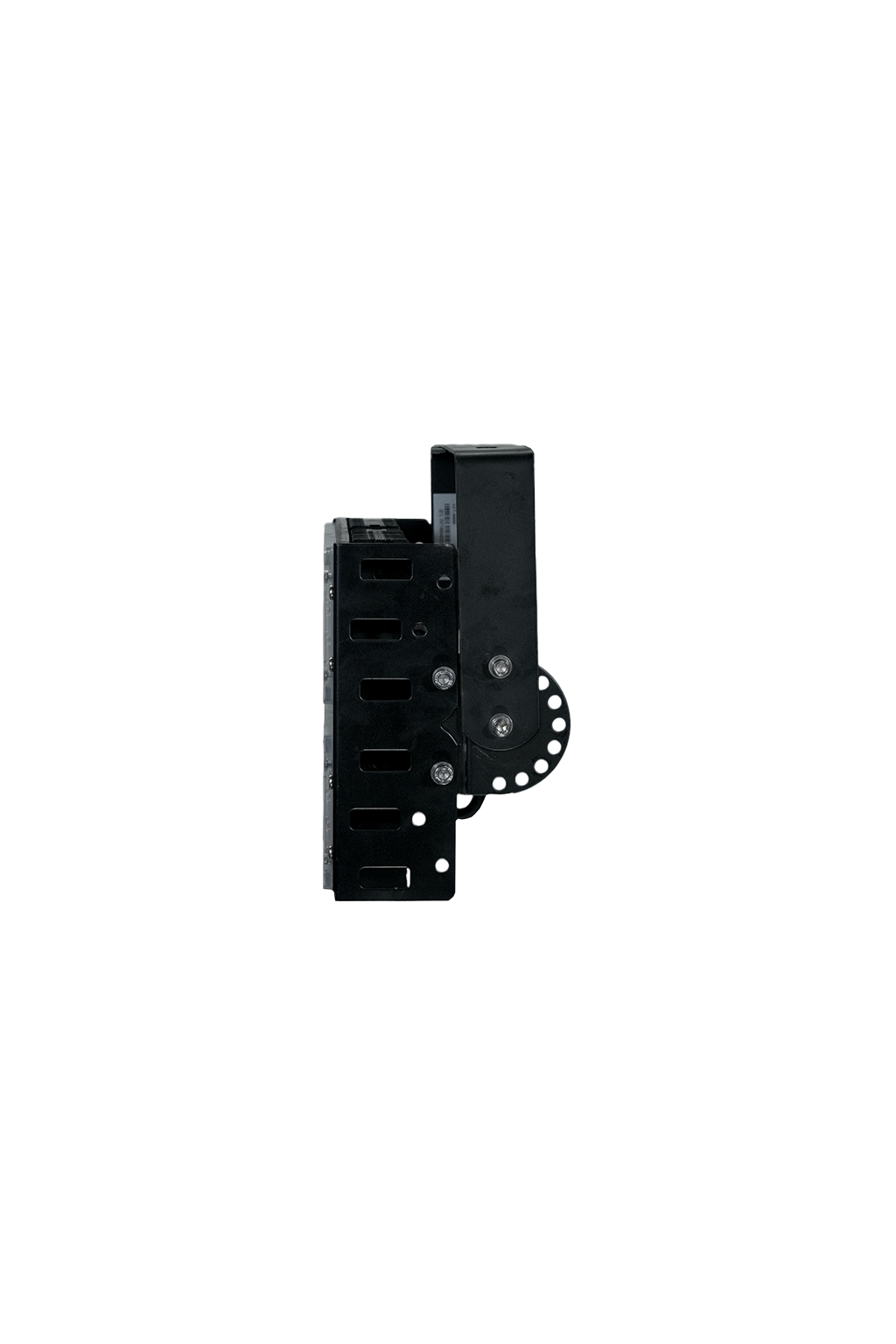

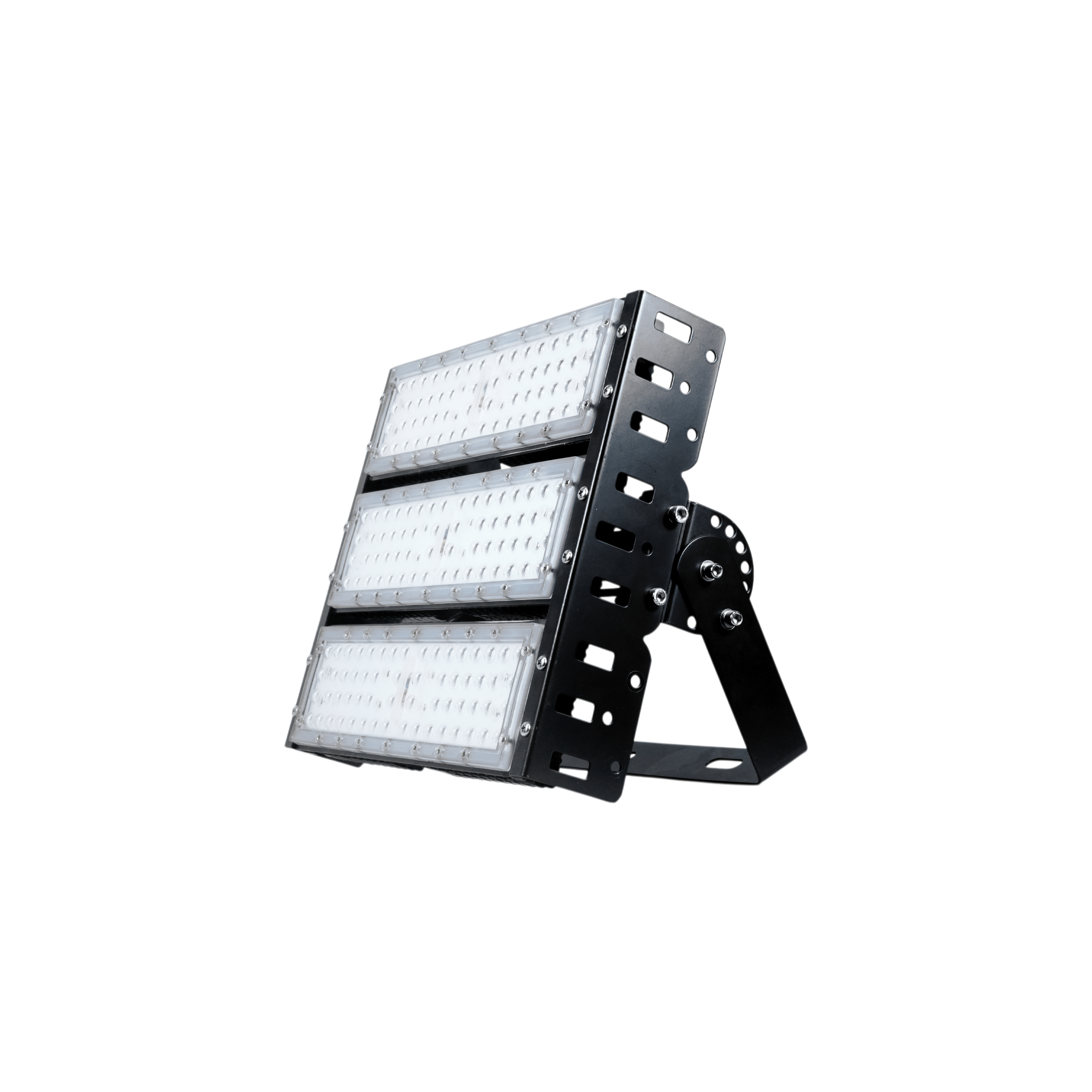

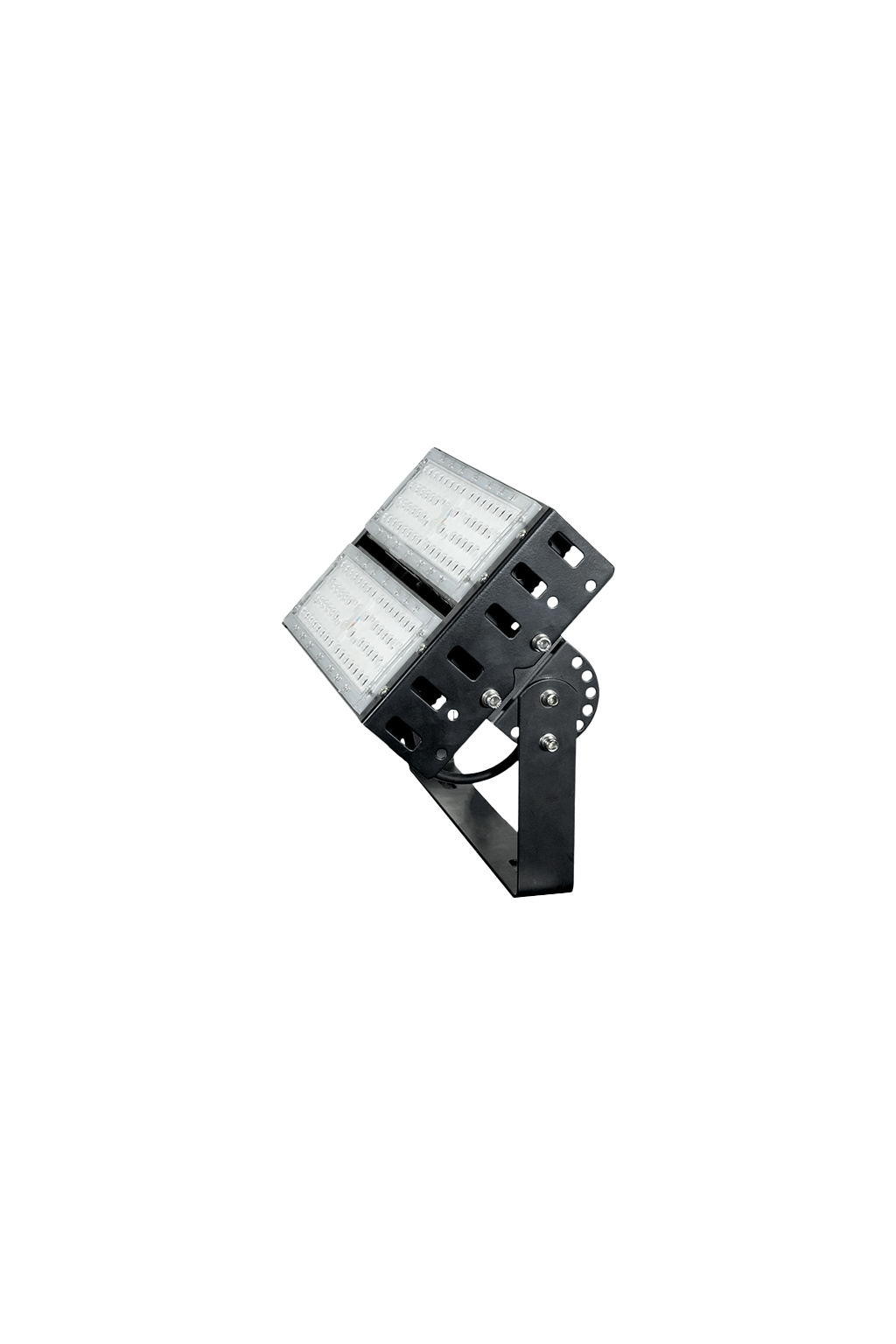

CIVIC F
50W, 100W, 150W, 200W, 250W, 300W
High efficiency, Rugged and IP65-rated LED Flood Lights for general outdoor applications
| Wattage | 100W, 150W, 200W, 250W, 300W, 50W |
|---|---|
| Colour | Cool White, Natural White, Warm White |
Suitable for :
- Courtyards
- Indoor stadiums
- Outdoor stadiums
- Residential areas
- Industrial premises
-
Features
-
Specifications
-
Technical Data
- Classic and sturdy design with better heat dissipation
- Rugged Aluminium Housing
- High Luminous Efficacy
- Energy-efficient LED Flood Lights
- Choice of different colour temperatures, to highlight spaces effectively
- Compact design with IP65 protection
- Available in different dimensions and powers
- High lumen output with 120-140 Lumens/Watt gives bright light
- Instant Start and Flicker-free
- Dimming option available
- LED Life more than 50,000 hours
- Easy Installation, No Maintenance
| Material | Die cast Aluminium Body with PC Lens | |
| Body Color | Black | |
| Light Source | CREE | |
| Control Gear | MEANWELL/NVENTRONICS | |
| Rated Luminous Efficacy | 120-140 lm/W | |
| LED Life Time | >50000 Hrs | |
| Input Voltage | AC 220-240V | |
| Input Frequency | 50-60 Hz | |
| Efficiency | 90% | |
| IP Rating | IP65 |
| Model No. | Power (W) | Lumens | CCT (K) | CRI | Beam Angle | Dimension (mm) | |||
| CVF-FLD-050 | 50W | 6000lms±10% | 3000K/4000K/6500K | >70 | 90°,120° | L:87,W:315.H:212 | |||
| CVF-FLD-100 | 100W | 12000lms±10% | 3000K/4000K/6500K | >70 | 90°,120° | L:177,W:315.H:212 | |||
| CVF-FLD-150 | 150W | 18000lms±10% | 3000K/4000K/6500K | >70 | 90°,120° | L:267,W:315.H:212 | |||
| CVF-FLD-200 | 200W | 24000lms±10% | 3000K/4000K/6500K | >70 | 90°,120° | L:357,W:315.H:212 | |||
| CVF-FLD-250 | 250W | 30000lms±10% | 3000K/4000K/6500K | >70 | 90°,120° | L:447,W:315.H:212 | |||
| CVF-FLD-300 | 300W | 30000lms±10% | 3000K/4000K/6500K | >70 | 90°,120° | L:537,W:315.H:212 |
*L=Length; W=Width; H=Height
