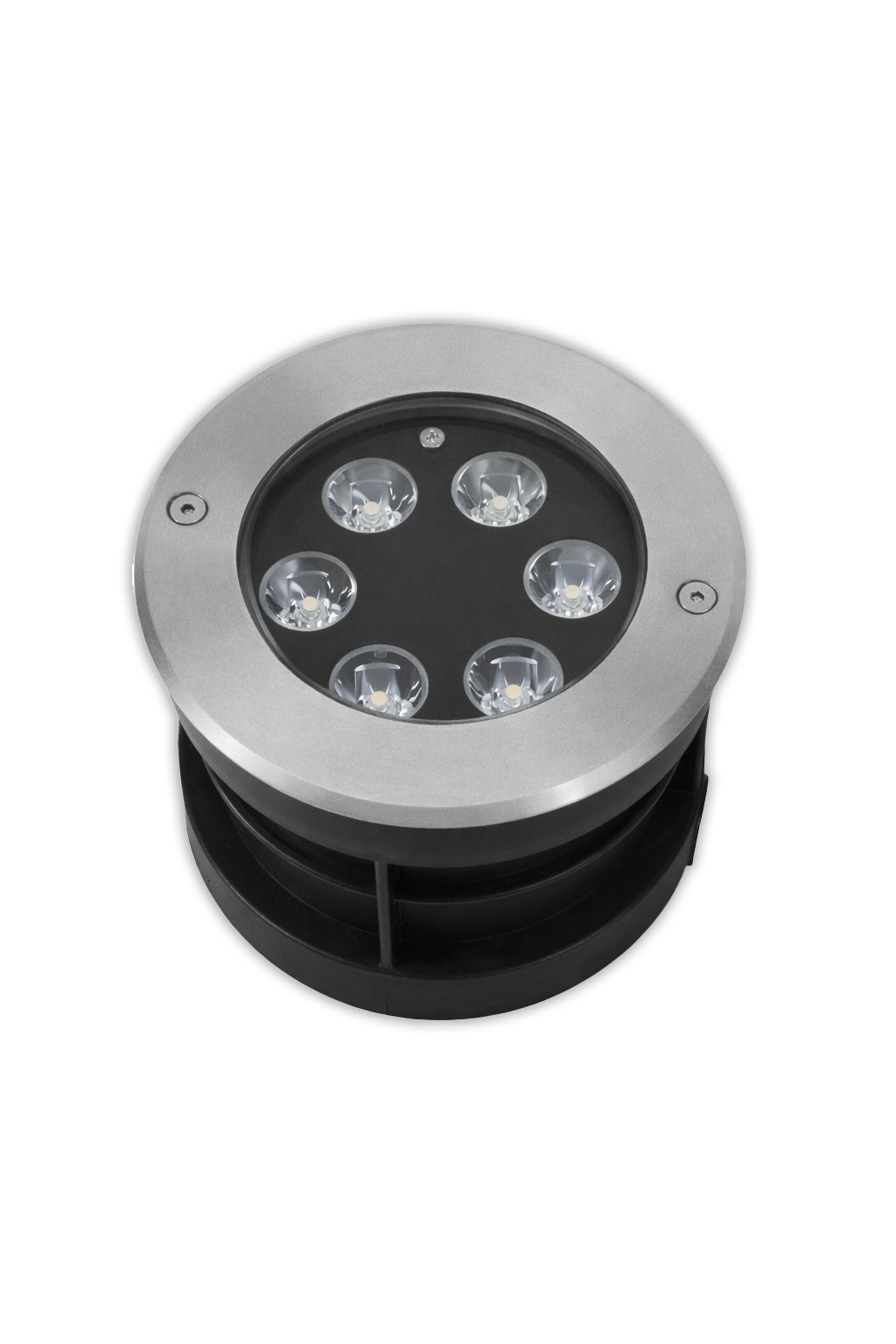

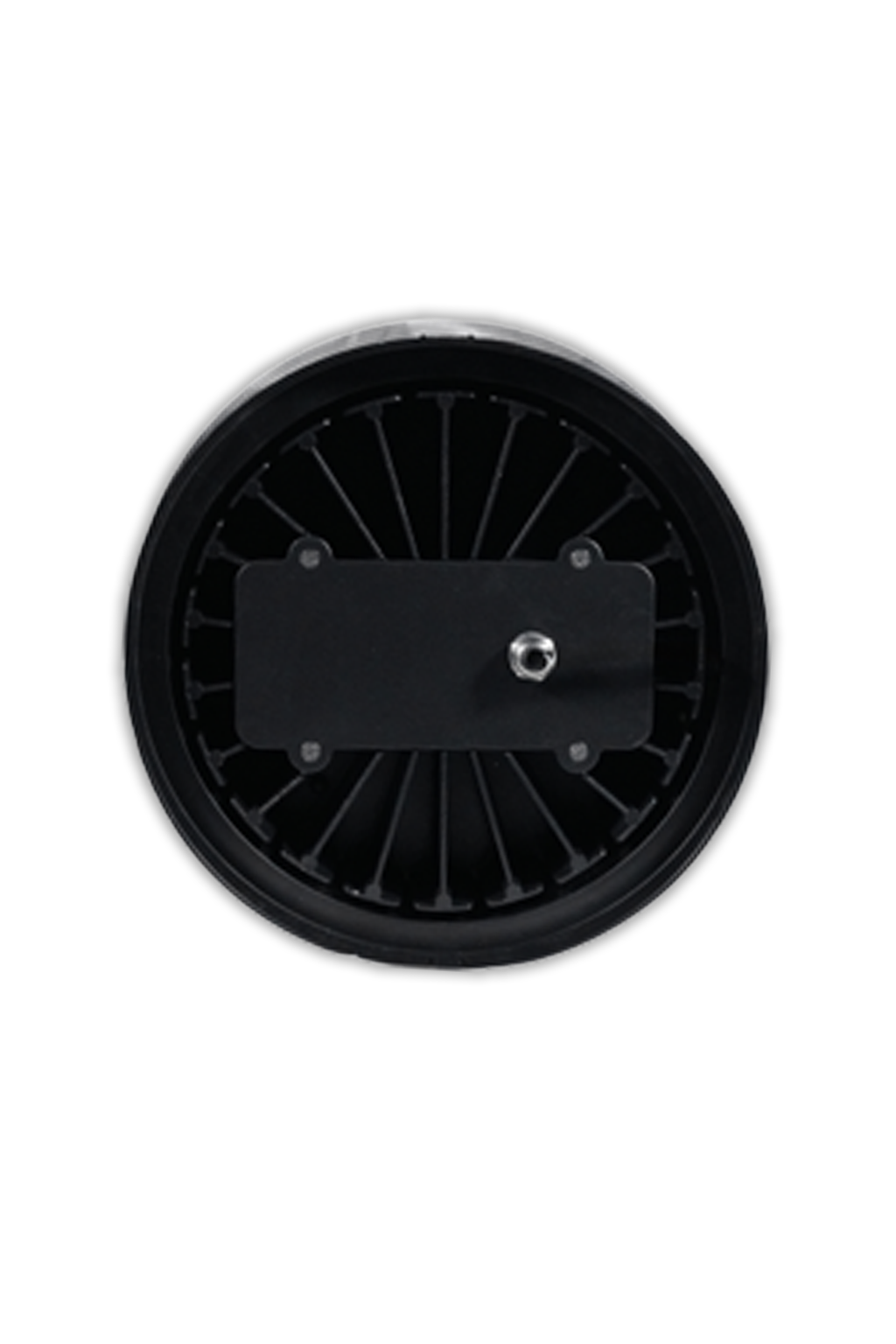

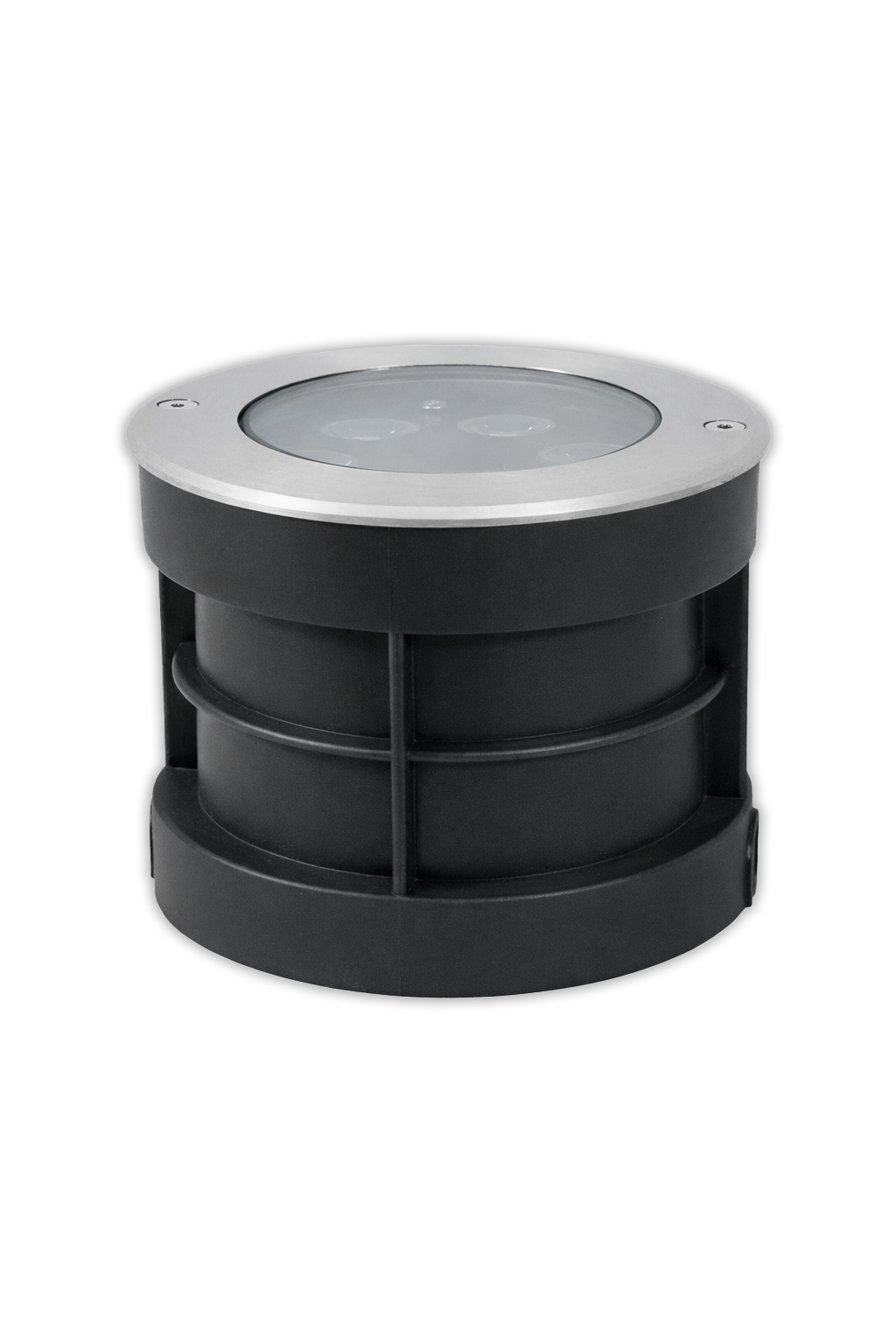

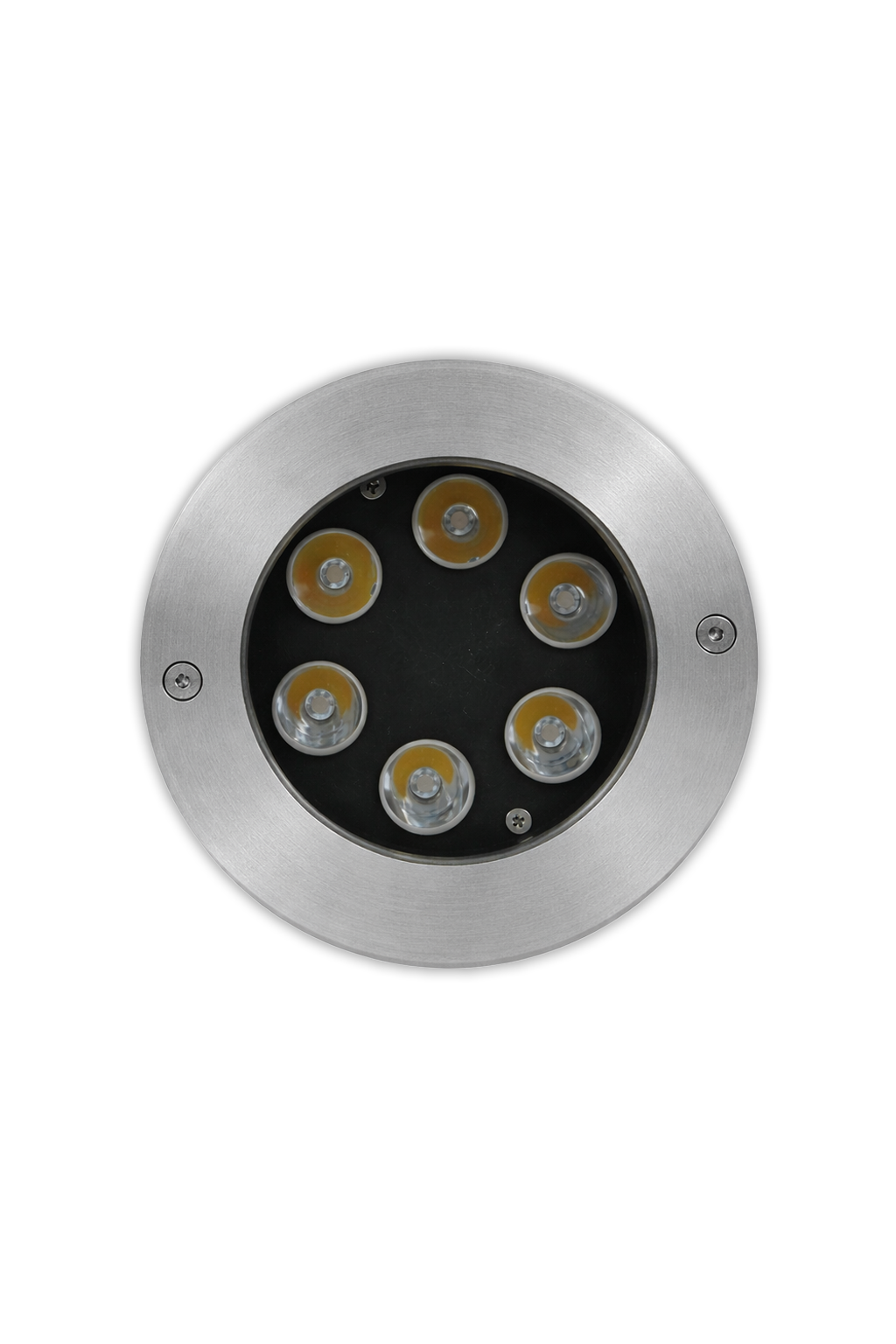

Splash RD
3W, 6W, 9W, 18W, 24W, 36W, 54W
Splash RD In-Ground Landscape Lights are a premium, high-performance lighting solution engineered for seamless integration and stunning illumination of your landscape, walkways, and architectural features. Designed with exceptional durability and dynamic color control, these fixtures transform any outdoor space.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 3W, 6W, 9W, 18W, 24W, 36W, 54W |
Suitable for :
- Parks
- Landscape
- Building Façade
- Architectural Spaces
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Drive-OverRated –Safe for vehicle and foot traffic.
- SS 316 Trim –corrosion-resistant and durable.
- Consistent Performance & Quality -Delivers stable brightness.
- HighLuminousefficacy -More light output.
- Long Life: 50,000+ hrs–Minimal maintenance
| Housing | Aluminium Die Cast Body With Toughened Glass | |
| Body Colour | Black | |
| Light Source | Bridgelux | |
| Control Options | ON/OFF, PHASE DIMMING, 0-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP67 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| BL-03-RD | 3 | 300 | 3000K/4000K/6500K | >80 | 31.6° | L/D:100,W:NA,H:80,Cutout:95 mm | |||
| BL-06-RD | 6 | 600 | 3000K/4000K/6500K | >80 | 31.6° | L/D:120,W:NA,H:100,Cutout:115 mm | |||
| BL-09-RD | 9 | 900 | 3000K/4000K/6500K | >80 | 29 | L/D:150,W:NA,H:100,Cutout:135 mm | |||
| BL-18-RD | 18 | 1800 | 3000K/4000K/6500K | >80 | 29 | L/D:180,W:NA,H:100,Cutout:158 mm | |||
| BL-24-RD | 24 | 2400 | 3000K/4000K/6500K | >80 | 29 | L/D:200,W:NA,H:100,Cutout:187 mm | |||
| BL-36-RD | 36 | 3600 | 3000K/4000K/6500K | >80 | 29 | L/D:250,W:NA,H:100,Cutout:240 mm | |||
| BL-54-RD | 54 | 5400 | 3000K/4000K/6500K3000K/4000K/6500K | >80 | 29 | L/D:320,W:NA,H:100,Cutout:295 mm |
*D=Diameter; H=Height
