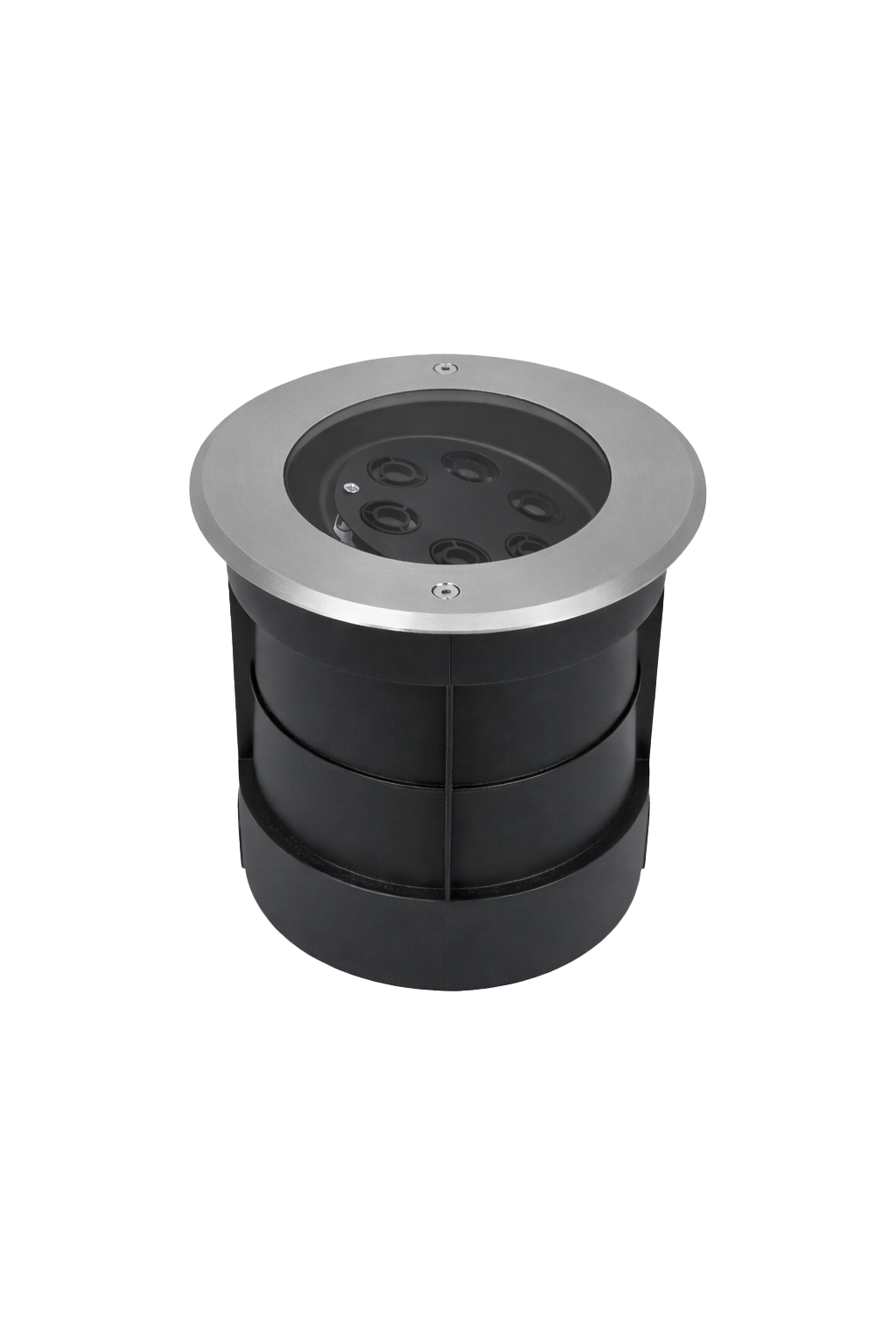

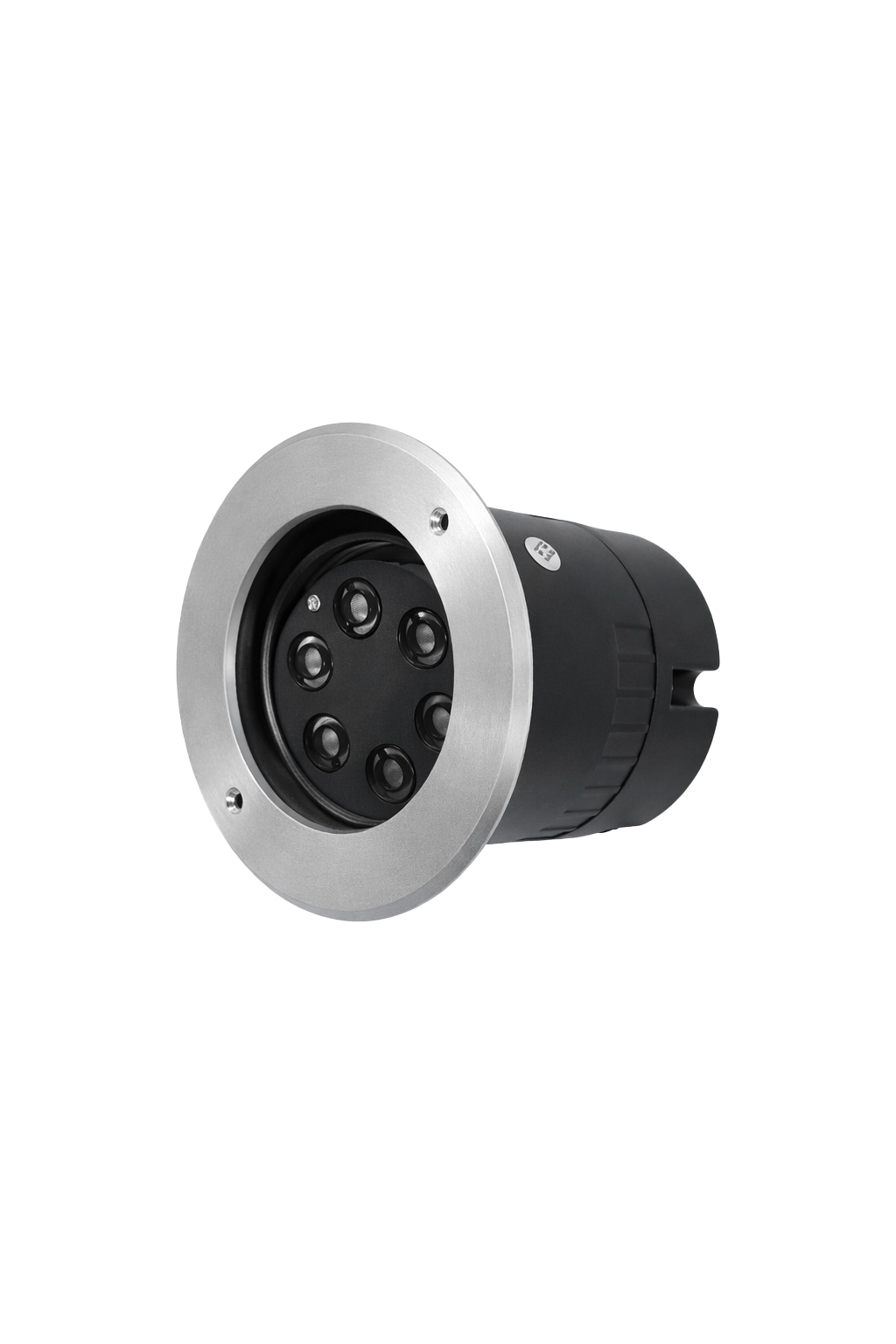

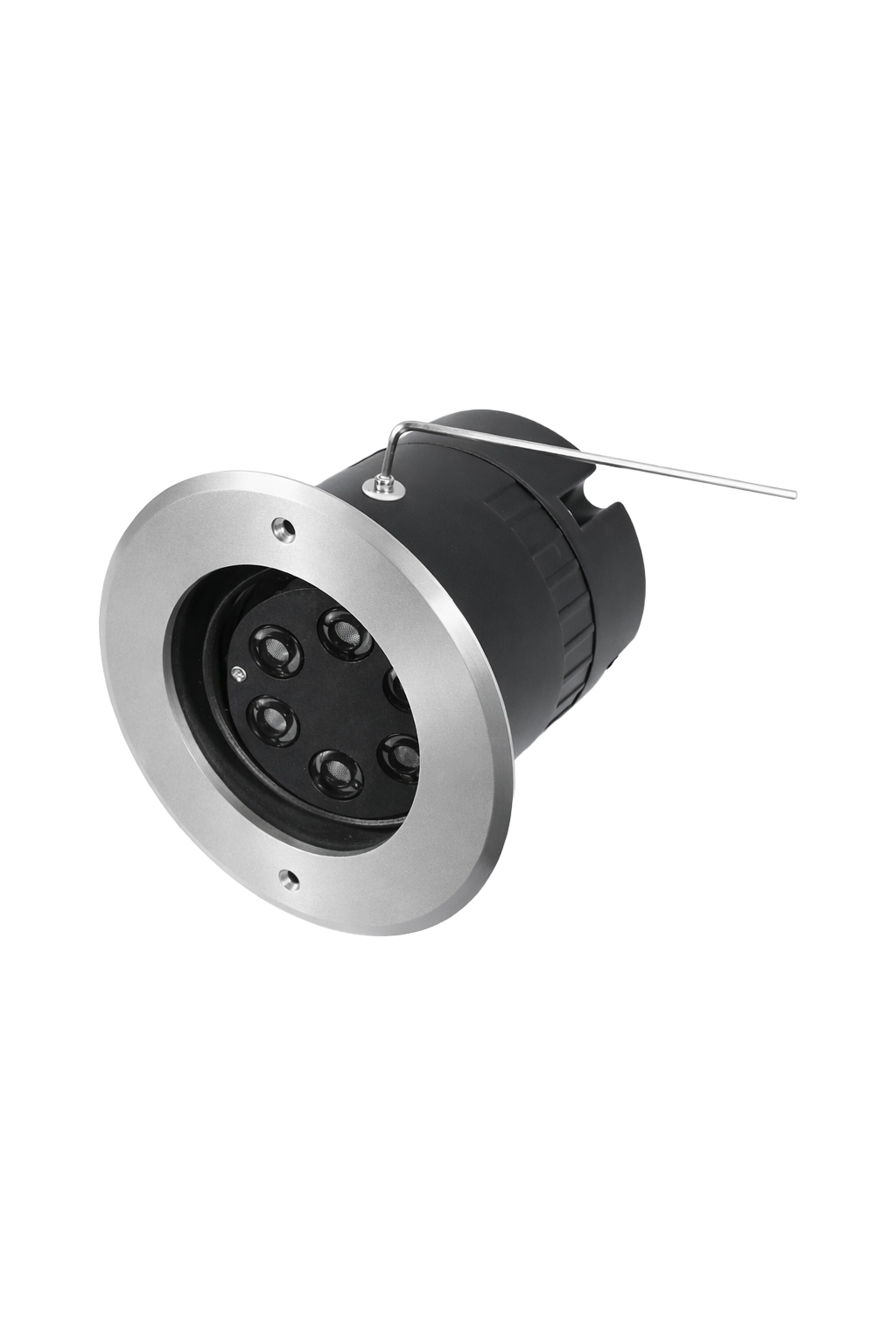

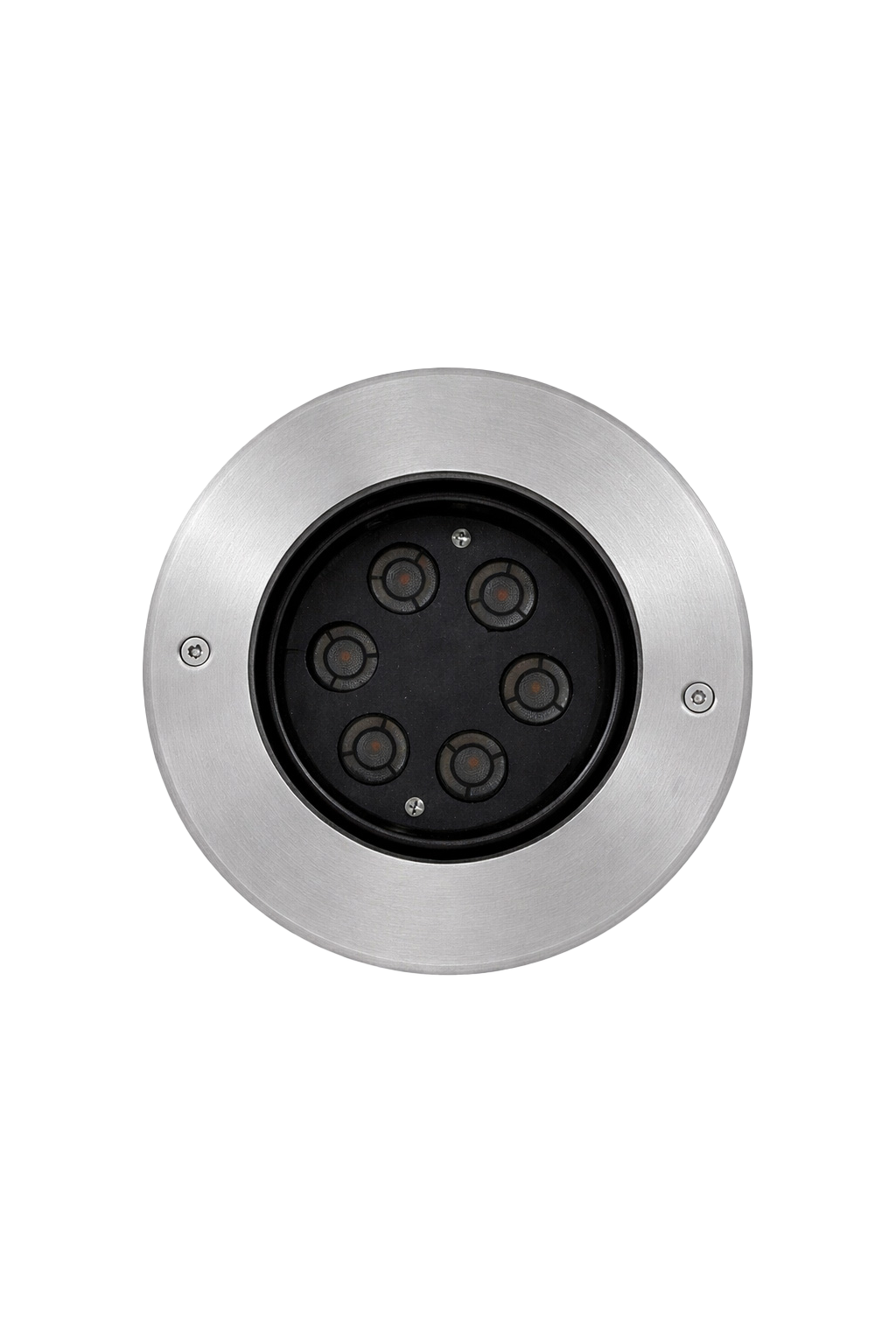

Splash RD Tiltable
9W, 18W, 36W
Splash Tiltable In-Ground Landscape Lights are a premium, high-performance lighting solution engineered for seamless integration and stunning illumination of your landscape, walkways, and architectural features. Designed with exceptional durability and dynamic color control, these fixtures transform any outdoor space.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 3W, 9W, 18W, 36W |
Suitable for :
- Parks
- Landscape
- Building Façade
- Architectural Spaces
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Long Life: 50,000+ hrs – Minimal maintenance
- Drive-Over Rated – Safe for vehicle and foot traffic
- Consistent Performance & Quality - Delivers stable brightness
- SS 316 Trim – corrosion-resistant and durable.
| Housing | Aluminium Die Cast Body With Stainless Steel Trim & Toughened Glass | |
| Body Colour | Black | |
| Light Source | SMD | |
| Control Options | ON/OFF, PHASE DIMMING, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP67 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| SPHRDT-ING-09W-XXXXK | 9 | 1017 | 3000K/4000K/6500K | ≥80 | 9°/25°/40°/10x60° | L/D:160,W:NA,H:155 mm | |||
| SPHRDT-ING-20W-XXXXK | 20 | 2060 | 3000K/4000K/6500K | ≥80 | 9°/25°/40°/10x60° | L/D:200,W:NA,H:170 mm | |||
| SPHRDT-ING-36W-XXXXK | 36 | 4085 | 3000K/4000K/6500K | ≥80 | 9°/25°/40°/10x60° | L/D:260,W:NA,H:195 mm |
*D=Diameter; H=Height
