CROSSBOW LINE
100W, 200W, 300W, 400W

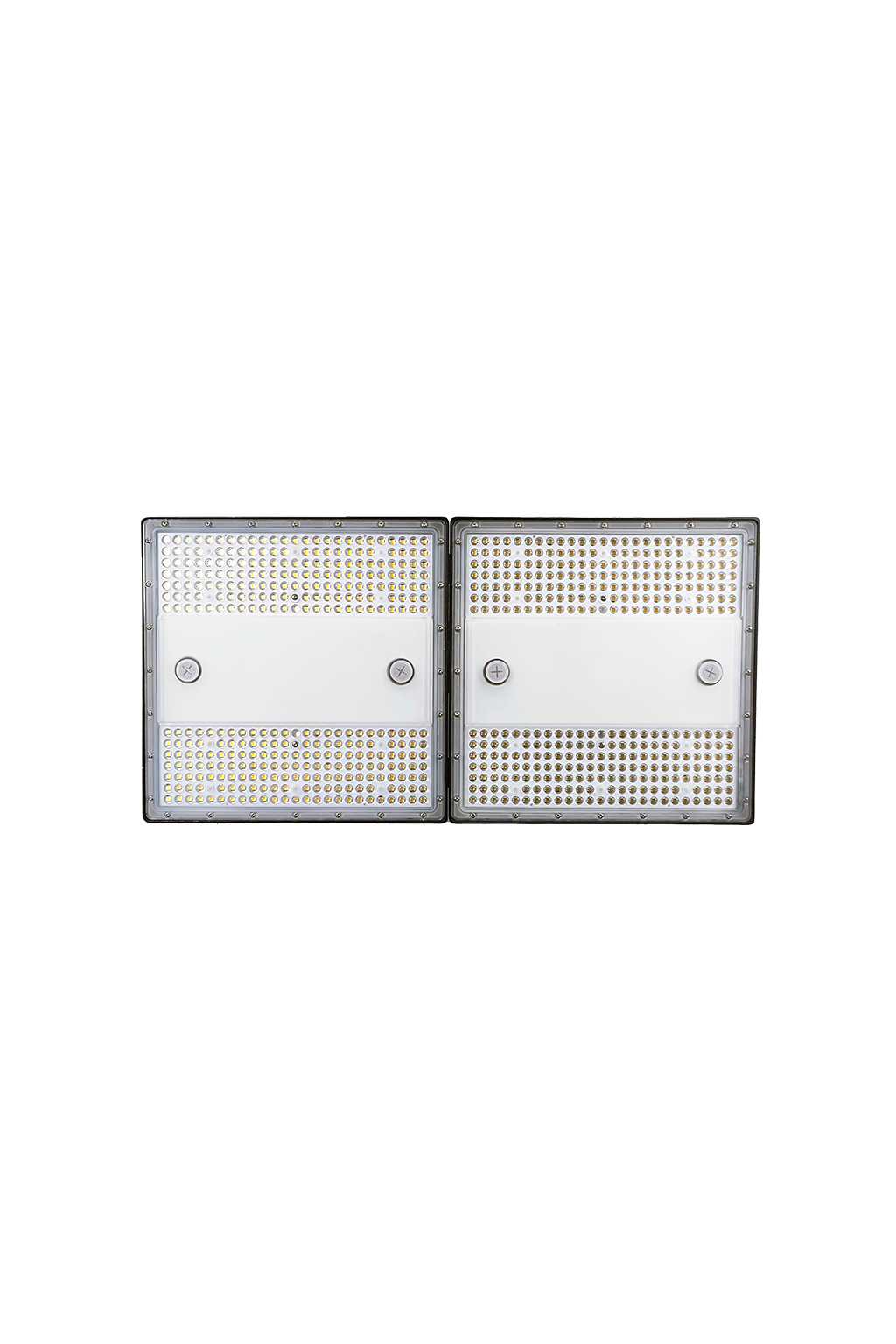

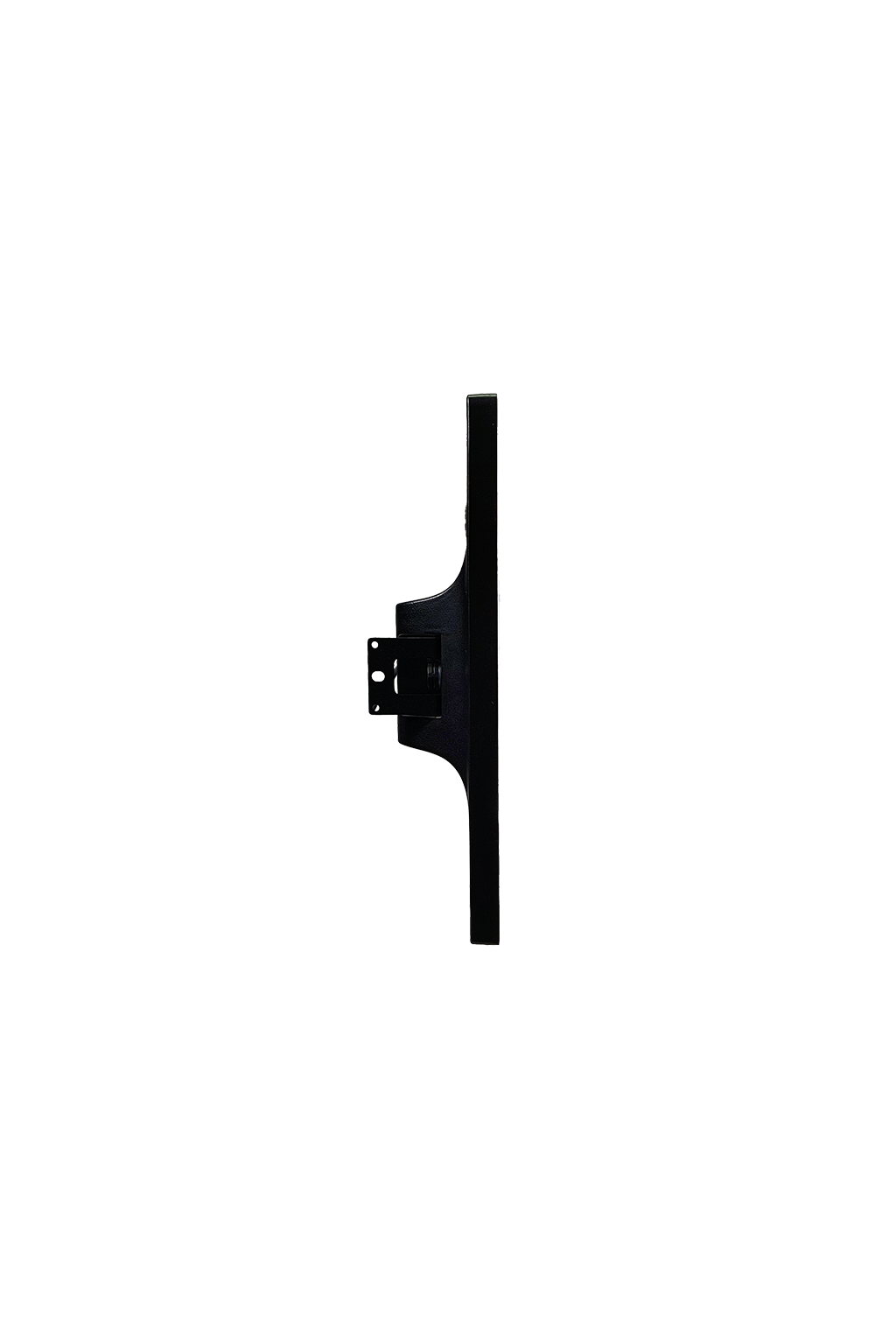

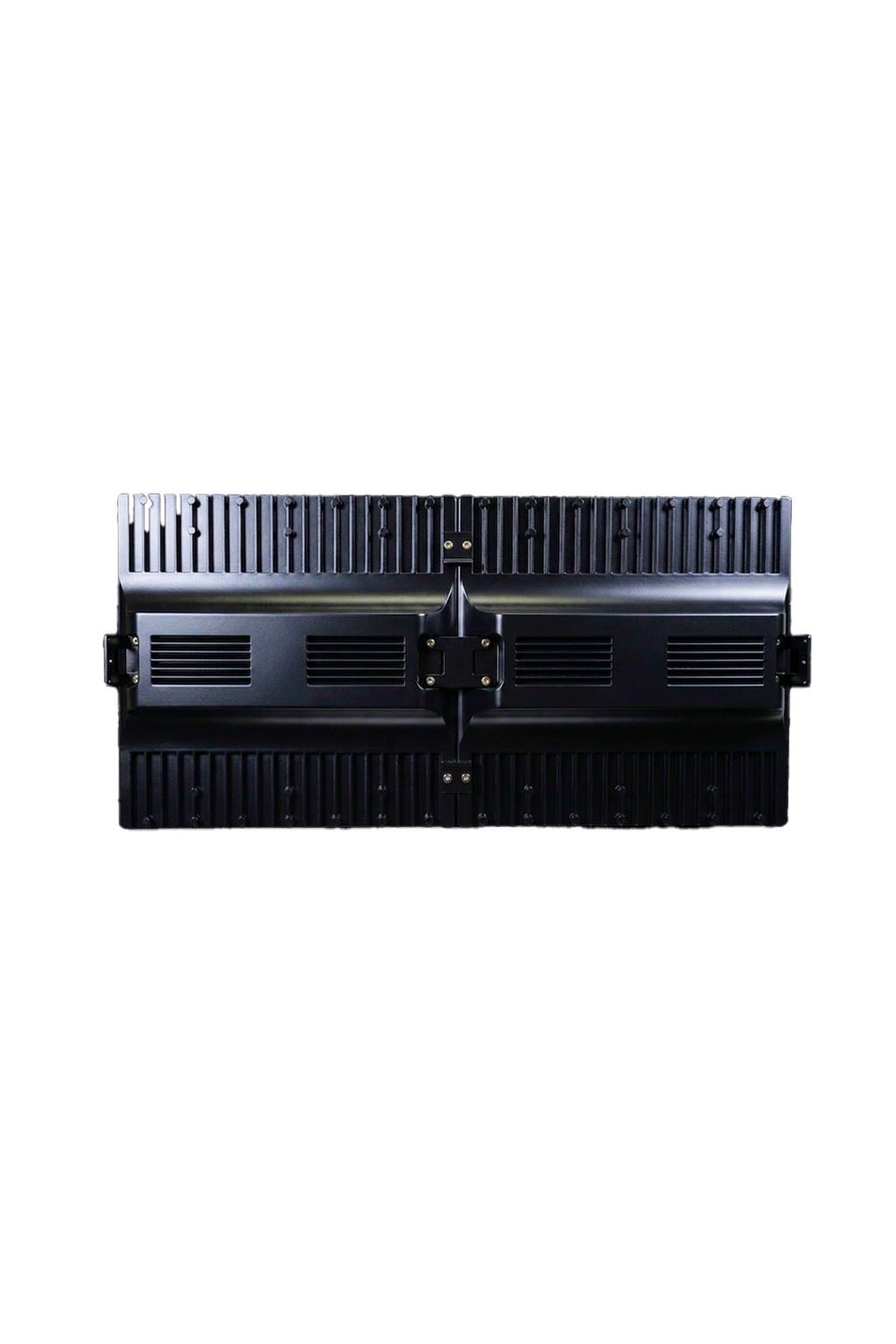

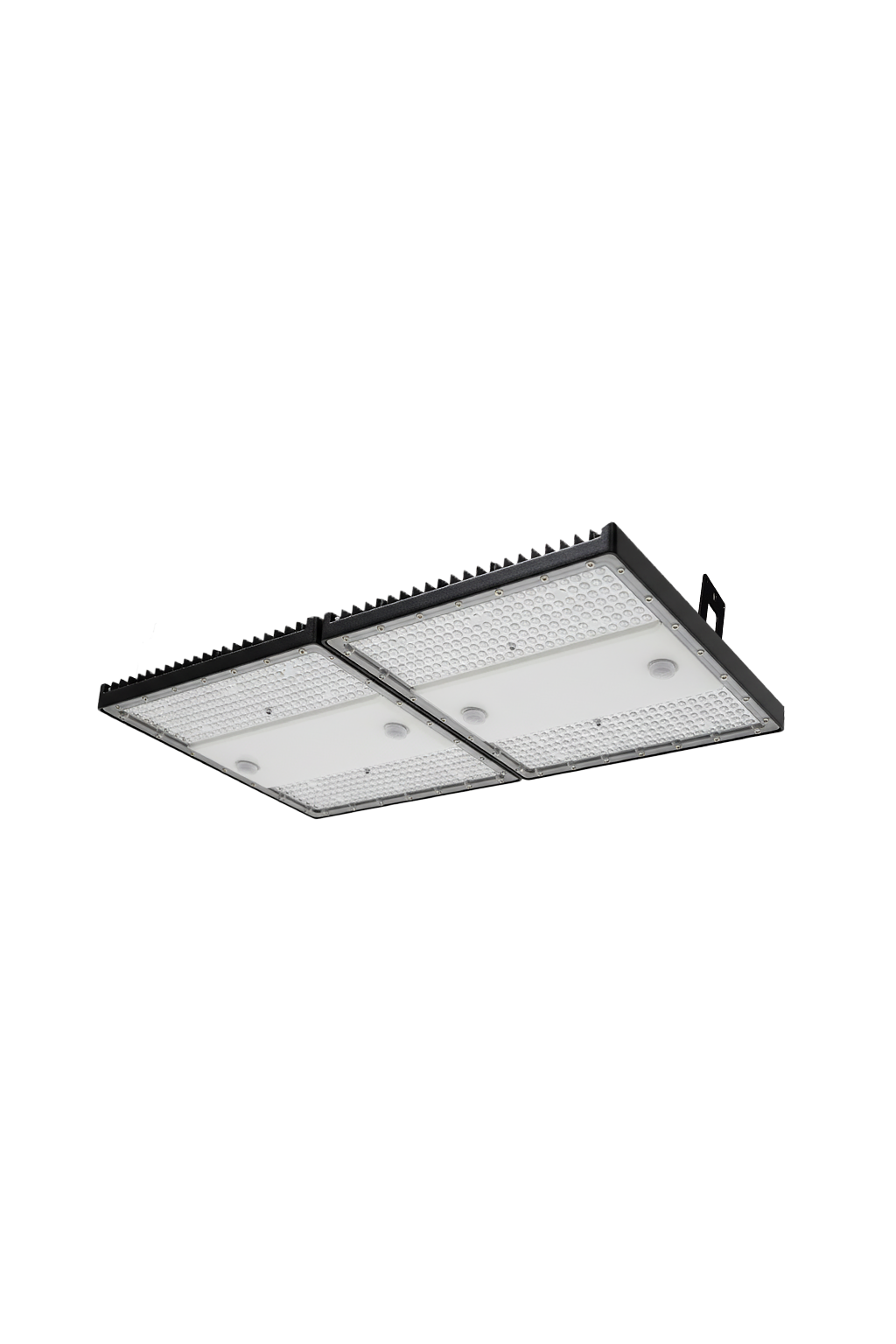

CROSSBOW LINE is a high-performance highbay light designed for industrial and commercial applications. It delivers powerful and uniform illumination with high efficiency, making it ideal for warehouses, factories, and large indoor spaces.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 100W, 200W, 300W, 400W |
Suitable for :
- Industrial & Infrastructure
- Warehouses
- Transportation Areas
- Storage Areas
- Features
- Specifications
- Technical Data
- Downloads
- High heat dissipation
- Dust & moisture proof
- Tool-Free Hanging
- High impact resistant body
- Quick and easy installation
| Housing | Aluminium Die Cast with PC Lens | |
| Body Colour | Black | |
| Light Source | SMD | |
| Control Option | On/Off, 1-10V, DALI | |
| Rated Luminous Efficacy | 140 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| HBL-CBL-100 | 100 | 14,000 | 3000 / 4000 / 6500 | ≥80 | 78 | L:300, W:300, H:57 | |||
| HBL-CBL-200 | 200 | 28,000 | 3000 / 4000 / 6500 | ≥80 | 78 | L:300, W:300, H:57 | |||
| HBL-CBL-300 | 300 | 42,000 | 3000 / 4000 / 6500 | ≥80 | 78 | L:300, W:300, H:57 | |||
| HBL-CBL-400 | 400 | 56,000 | 3000 / 4000 / 6500 | ≥80 | 78 | L:300, W:300, H:57 |
*L= Length ,W= Width, H= Height
