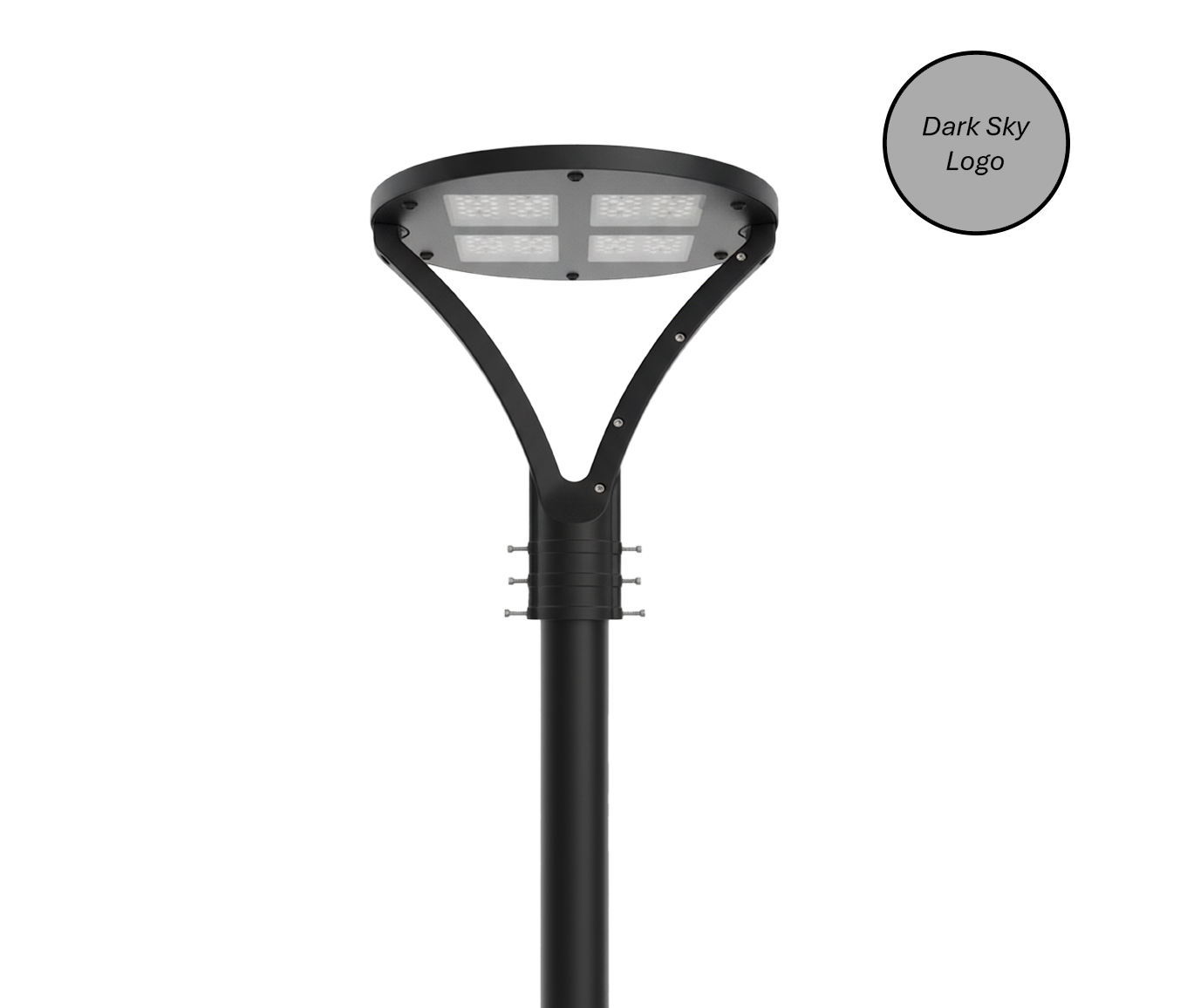

ARC NEXA
UP TO 80W
ARC NEXA is an LED pole-top light designed to deliver powerful and uniform illumination, enhancing visibility in outdoor environments. It offers a wide range of wattages and color temperatures, making it suitable for applications such as parks and gardens, pedestrian pathways, parking areas, residential communities, and recreational spaces, where consistent and efficient lighting is essential
| CCT | 2700K – 3000K |
|---|---|
| Wattage | UP TO 80W |
Suitable for :
- Commercial complexes
- Parks
- Urban & Residential
- Streets
- Features
- Specifications
- Technical Data
- Downloads
- ROBUST ALUMINIUM BODY Constructed from high-grade aluminium
- WEATHER-RESISTANT CONSTRUCTION Corrosion-resistant construction for long-lasting outdoor performance
- POWDER-COATED FINISH Finished with a premium outdoor powder coating
- PRECISION DIE-CASTING ENSURES UNIFORM QUALITY AND SMOOTH FINISH Minimizes surface defects and improves durability
| PRODUCT NAME | ARC NEXA | |
| PRODUCT TYPE | LED POLE TOP LIGHT | |
| PRODUCT CODE | ARCN-PTS-80W-XXXXK | |
| AVAILABLE CCT | 2700K - 3000K | |
| BODY MATERIAL | CORROSION-RESISTANT ALUMINIUM DIE-CAST | |
| LENS | TOUGHENED GLASS | |
| BODY COLOR | BLACK/SPECIAL | |
| CONTROL OPTIONS | DALI, 1–10V DIMMING | |
| RATED LUMINOUS EFFICACY | 103.11 lm/W | |
| IP RATING | IP66 | |
| IK RATING | IK08 | |
| AMBIENT TEMPERATURE (TA) | -20°C to +50°C | |
| HUMIDITY | RH 10–95% |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | ULOR(Upward Light Output Ratio) | Beam Angle (Deg°) | Dimensions (mm) | Weight (Kg) | |
| ARCN-PTS-80W-XXXXK | UPTO 80 | 7915 | 2700/3000 | ≥80 | 0% (U0 – Zero Uplight) | 94.7 | H: 613, D: 420, PD: 76 | 3.82 |
*H=Height; D=Dia; PD=Pole Dia;
