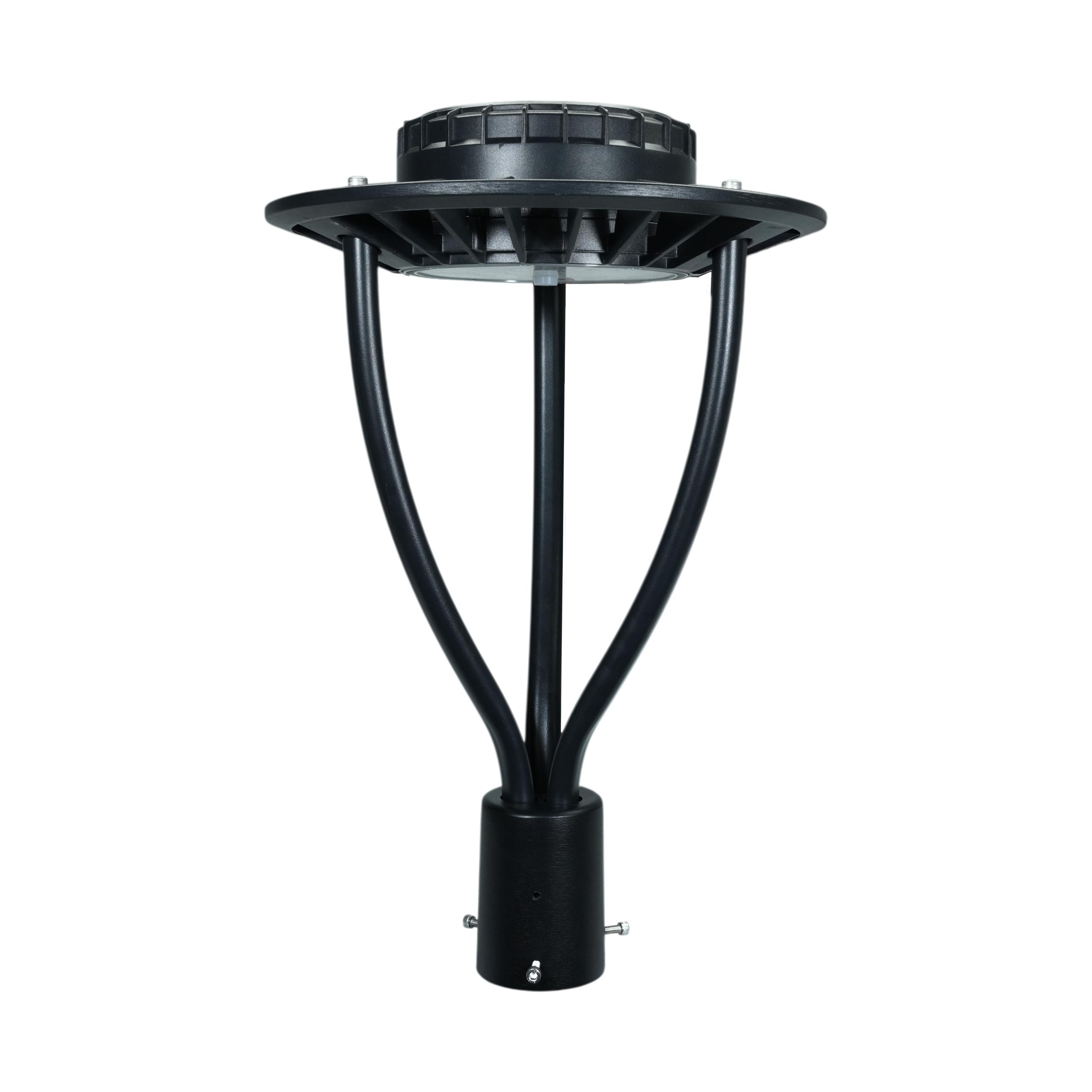

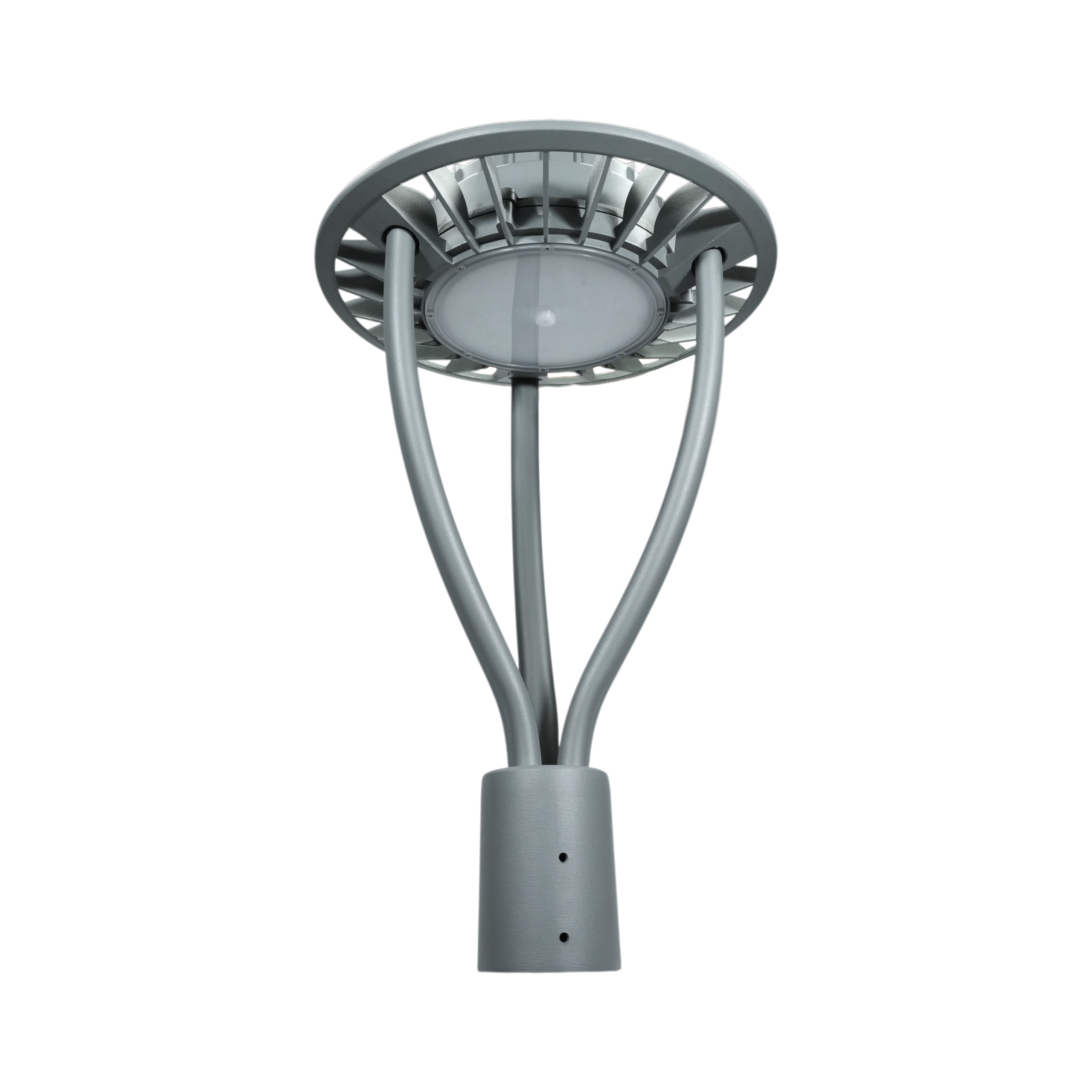

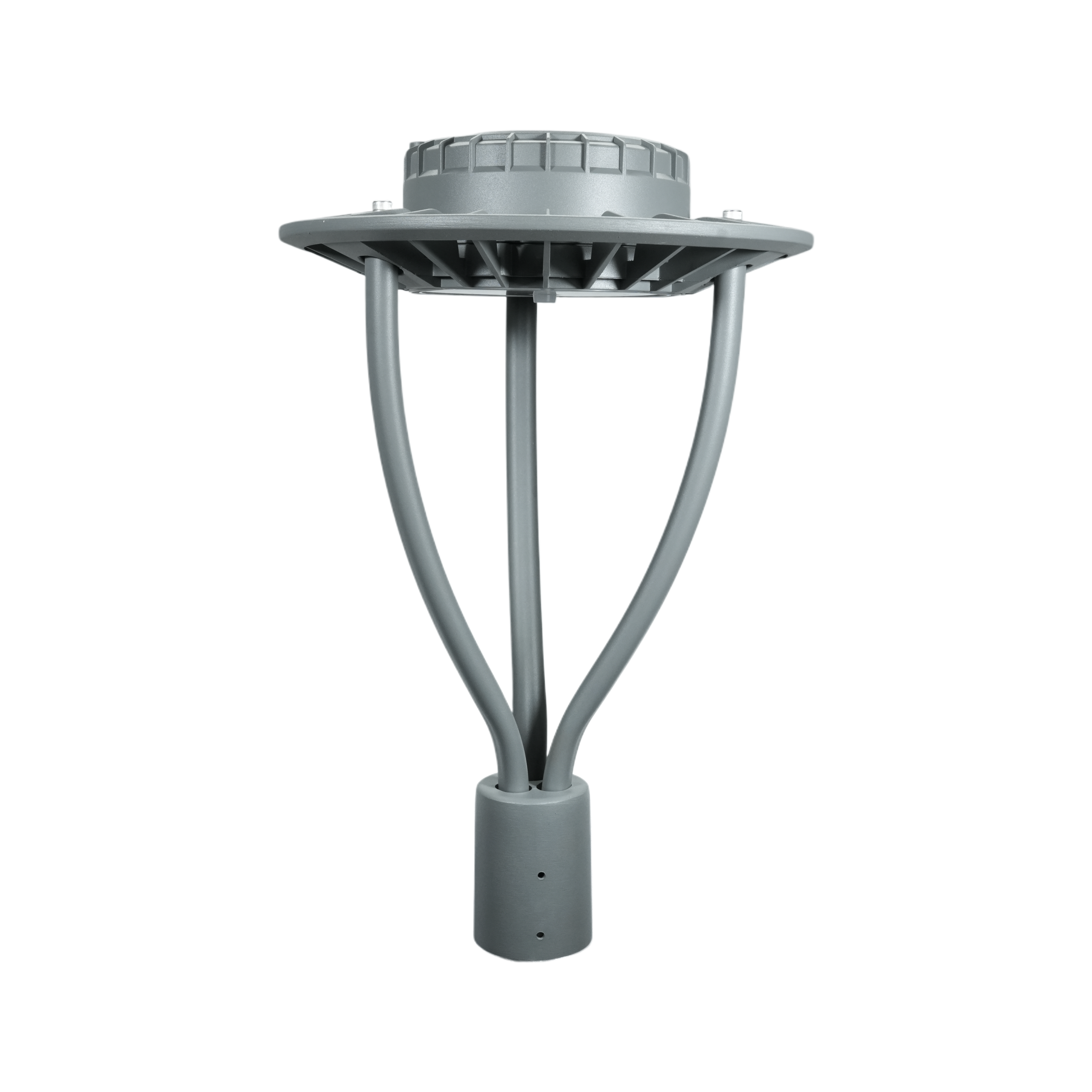

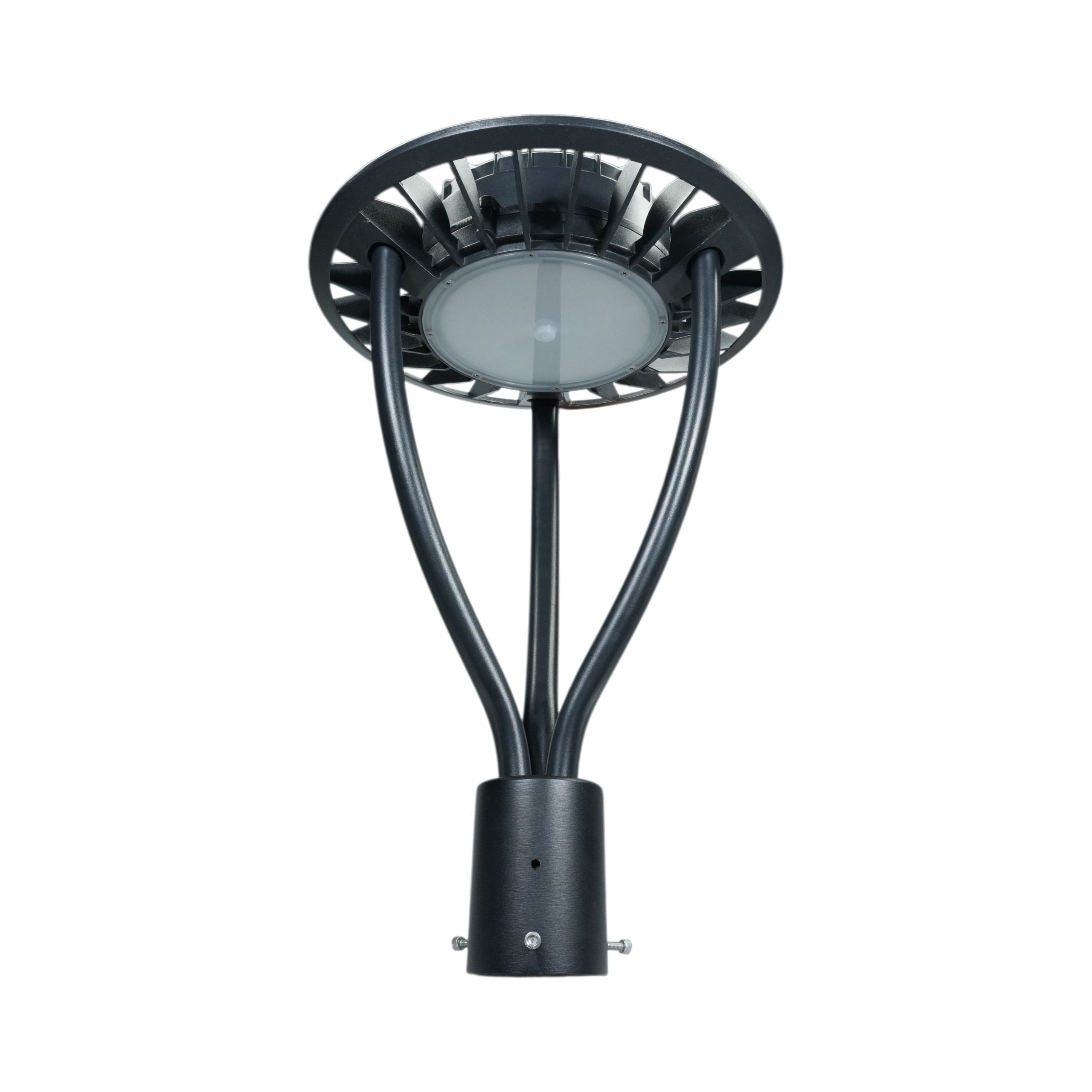

ARC DOME
40W, 60W, 80W
ARC DOME is a high-performance pole top LED light engineered for energy-efficient outdoor lighting. With its durable design and uniform light distribution, it ensures reliable performance in urban and landscape applications.
| CCT | 3000K, 4000K, 5700K |
|---|---|
| Wattage | 40W, 60W, 80W |
Suitable for :
- Commercial complexes
- Parks
- Urban&Residential
- Streets
- Features
- Specifications
- Technical Data
- Downloads
- High Luminous efficacy -More light output

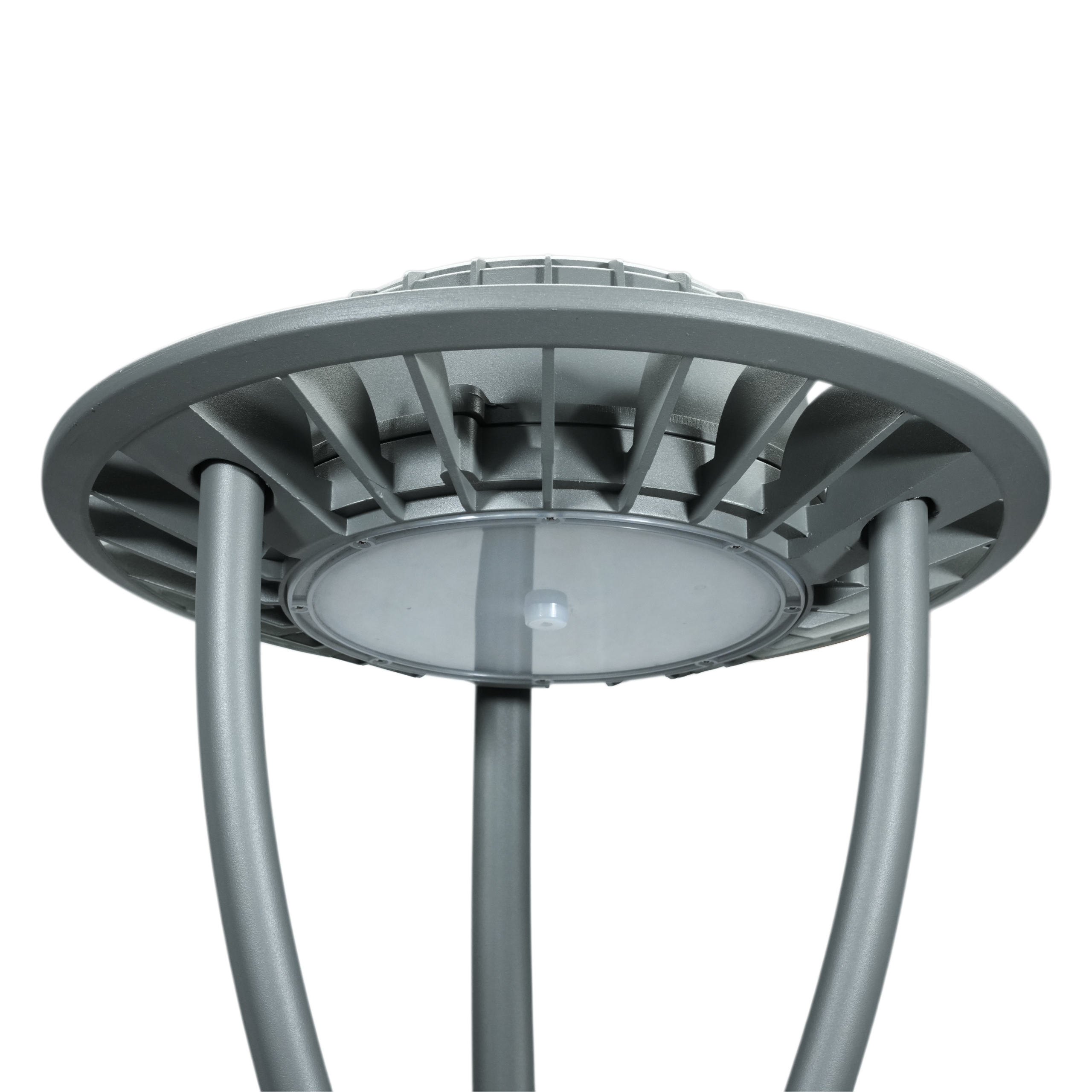

- Efficient Heat Dissipation – Die-cast aluminum housing
- Long life: 50,000+ hrs - Minimal maintenance
- Modern design – Enhances urban and landscape aesthetics
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die Cast with Diffuser | |
| Body Colour | Black/Grey | |
| Light Source | SMD | |
| Control Option | On/Off, 1-10V, DALI | |
| Rated Luminous Efficacy | 120 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| ARCD-PTS-40 | 40 | 4,800 | 3000 / 4000 / 6500 | ≥80 | 109.3 | D:385, H:580, PD:76 | |||
| ARCD-PTS-60 | 60 | 7,200 | 3000 / 4000 / 6500 | ≥80 | 109.3 | D:385, H:580, PD:76 | |||
| ARCD-PTS-80 | 80 | 9,600 | 3000 / 4000 / 6500 | ≥80 | 109.3 | D:385, H:580, PD:76 |
*D=Diameter; H=Height; PD=Pole Dia
