SUPREMO ECO EY

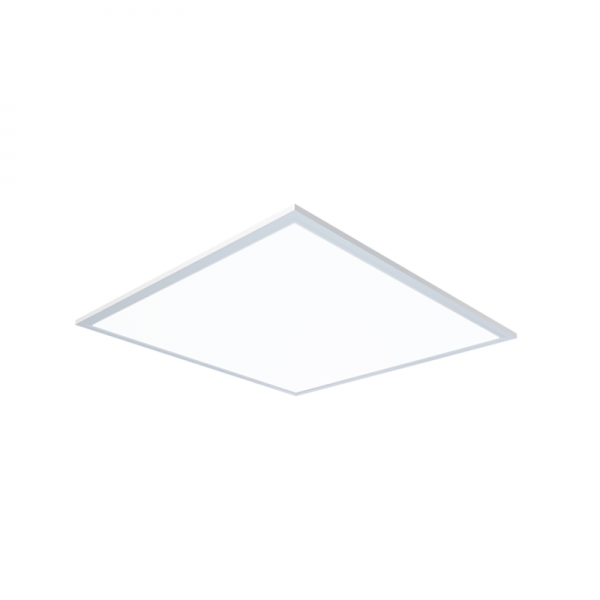

36W, 48W, 54W Edgelit Panel Light
Affordable LED panel light with high degree of durability and finish, assembled with widely used edge light optics method with the help of high precision Light guiding path(LGP).
Colour | Cool White, Natural White, Warm White |
---|---|
Wattage | 36W, 48W, 54W |
Suitable for :
- Living Room
- Corridor
- Hospital
- Hotel
- Restaurant
- Offices
- Retail
- Shops








-
Features
-
Specifications
-
Technical Data
- Slim and sleek design for the point of purpose
- Edgelit optics with LGP panel
- Recessed, Surface and suspension mounting options
- Choice for different color light output
- Simple, light-weight product for better handling
- Fast and straight forward installation
Material | Aluminium with PC diffuser | |
Body Color | White | |
Light Source | Everlight | |
Rated Luminous Efficacy | 100 Lm/w | |
LED Life Time | >50000 Hrs | |
Input Voltage | AC 220-240V | |
Input Frequency | 50-60 Hz | |
Efficiency | 90% | |
IP Rating | IP20 |
Model No. | Power (W) | Lumens | CCT (K) | CRI | Beam Angle | Dimension (mm) | |||
LPL-6060-EY-36-K30 | 36W | 3600lm±10% | 3000K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-36-K40 | 36W | 3600lm±10% | 4000K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-36-K65 | 36W | 3600lm±10% | 6500K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-48-K30 | 48W | 3600lm±10% | 3000K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-48-K40 | 48W | 4800lm±10% | 4000K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-48-K65 | 48W | 4800lm±10% | 6500K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-54-K30 | 54W | 5400lm±10% | 3000K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-54-K40 | 54W | 5400lm±10% | 4000K | >80 | 110º | L:597, W:597, H:9 | |||
LPL-6060-EY-54-K65 | 54W | 5400lm±10% | 6500K | >80 | 110º | L:597, W:597, H:9 |
*D=Diameter; H=Height
