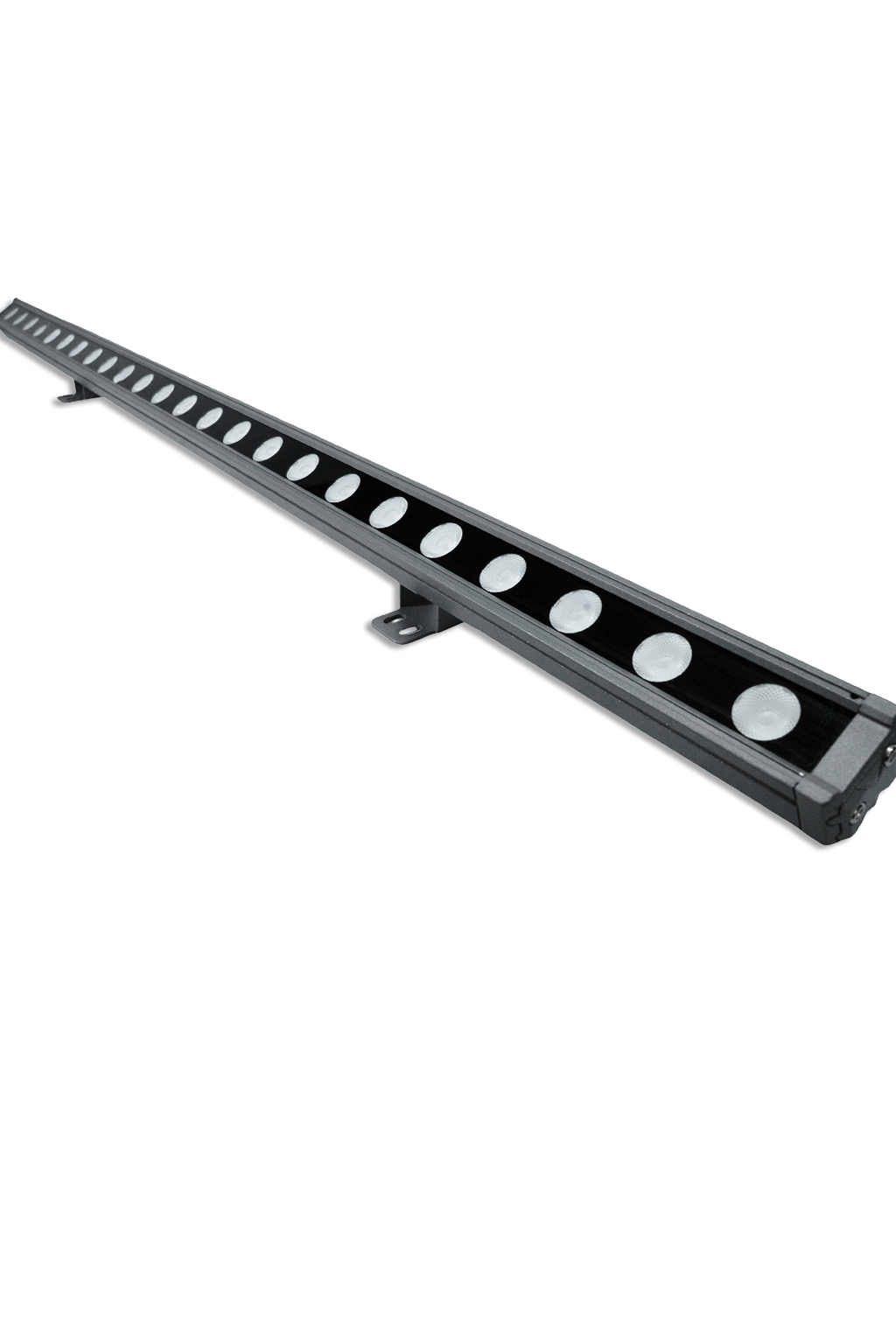

PICASSO SLICK
12W, 15W, 18W, 24W, 36W
This is a professional-grade, high-performance Linear LED Facade Light engineered for dynamic and uniform illumination of building exteriors. Its sleek, low-profile design ensures seamless integration with any architectural style, providing spectacular illumination while remaining unobtrusive during the day.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 12W, 15W, 18W, 24W, 36W |
Suitable for :
- Parks
- Landscape
- Building Façade
- Architectural Spaces
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Long life: 50,000+ hrs - Minimal maintenance
- Adjustable Beam Angles – provides flexible light distribution.
- Consistent Performance & Quality - Delivers stable brightness
- IP65 Rated – protects against dust and water.
| Housing | Aluminium Extrusion with PC Lens and Toughened Glass | |
| Body Colour | Grey | |
| Light Source | Bridgelux | |
| Control Gear | Inventronics/Tridonic | |
| Control Option | ON/OFF, PHASE DIMMING, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP66 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| PSL-SNG-1.0-12 | 12 | 1200 | 3000K/4000K/6500K | ≥80 | 19.9° | L/D:1000,W:38,H:27 mm | |||
| PSL-SNG-0.5-12 | 12 | 1200 | 3000K/4000K/6500K | ≥80 | 19.9° | L/D:500,W:38,H:27 mm | |||
| PSL-SNG-1.0-15 | 15 | 1500 | 3000K/4000K/6500K | ≥80 | 19.9° | L/D:1000,W:38,H:27 mm | |||
| PSL-SNG-1.0-15 | 18 | 1800 | 3000K/4000K/6500K | ≥80 | 19.9° | L/D:1000,W:38,H:27 mm | |||
| PSL-SNG-1.0-24 | 24 | 2400 | 3000K/4000K/6500K | ≥80 | 19.9° | L/D:1000,W:38,H:27 mm | |||
| PSL-SNG-1.0-24 | 36 | 3600 | 3000K/4000K/6500K | ≥80 | 19.9° | L/D:1000,W:38,H:27 mm |
*D=Diameter; H=Height
