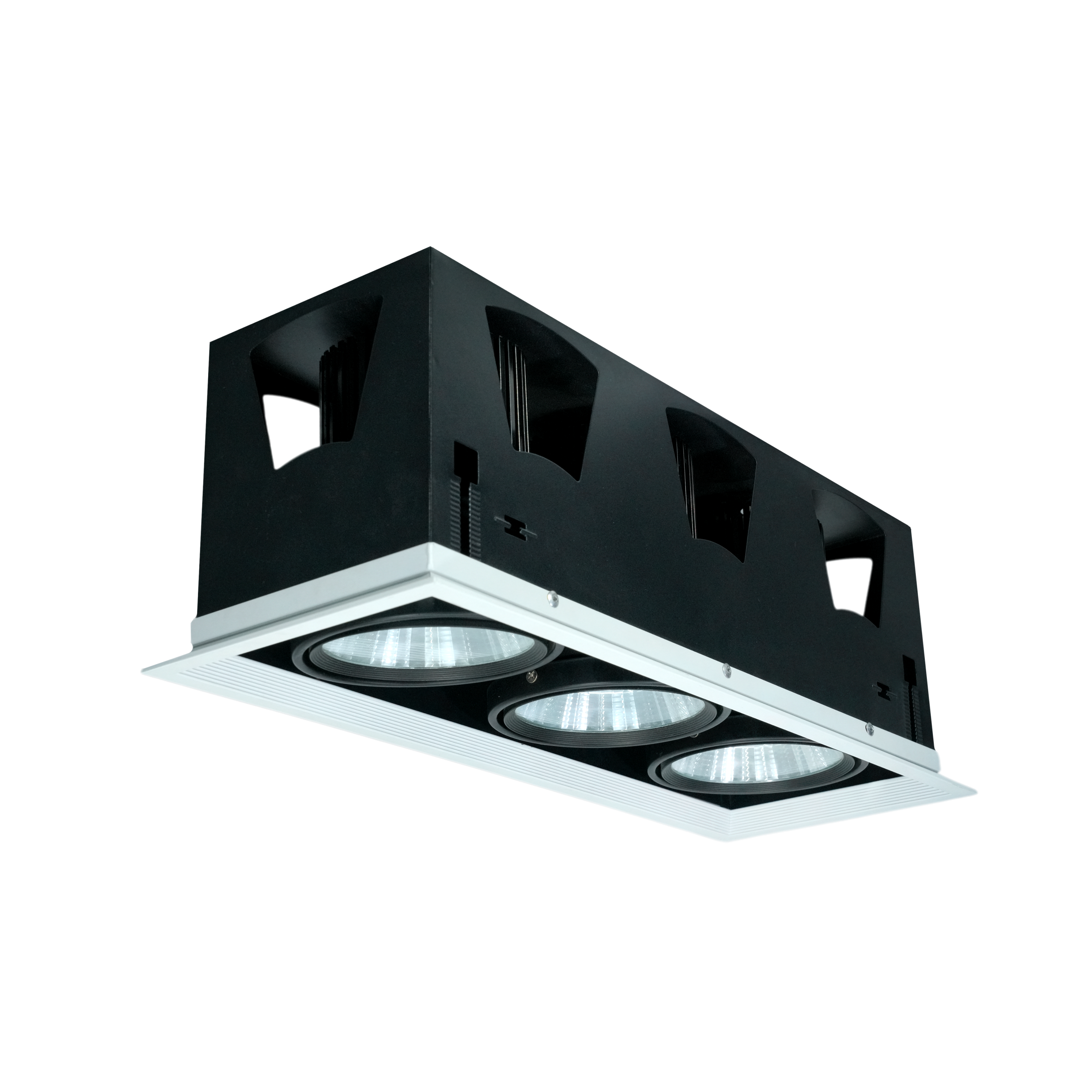

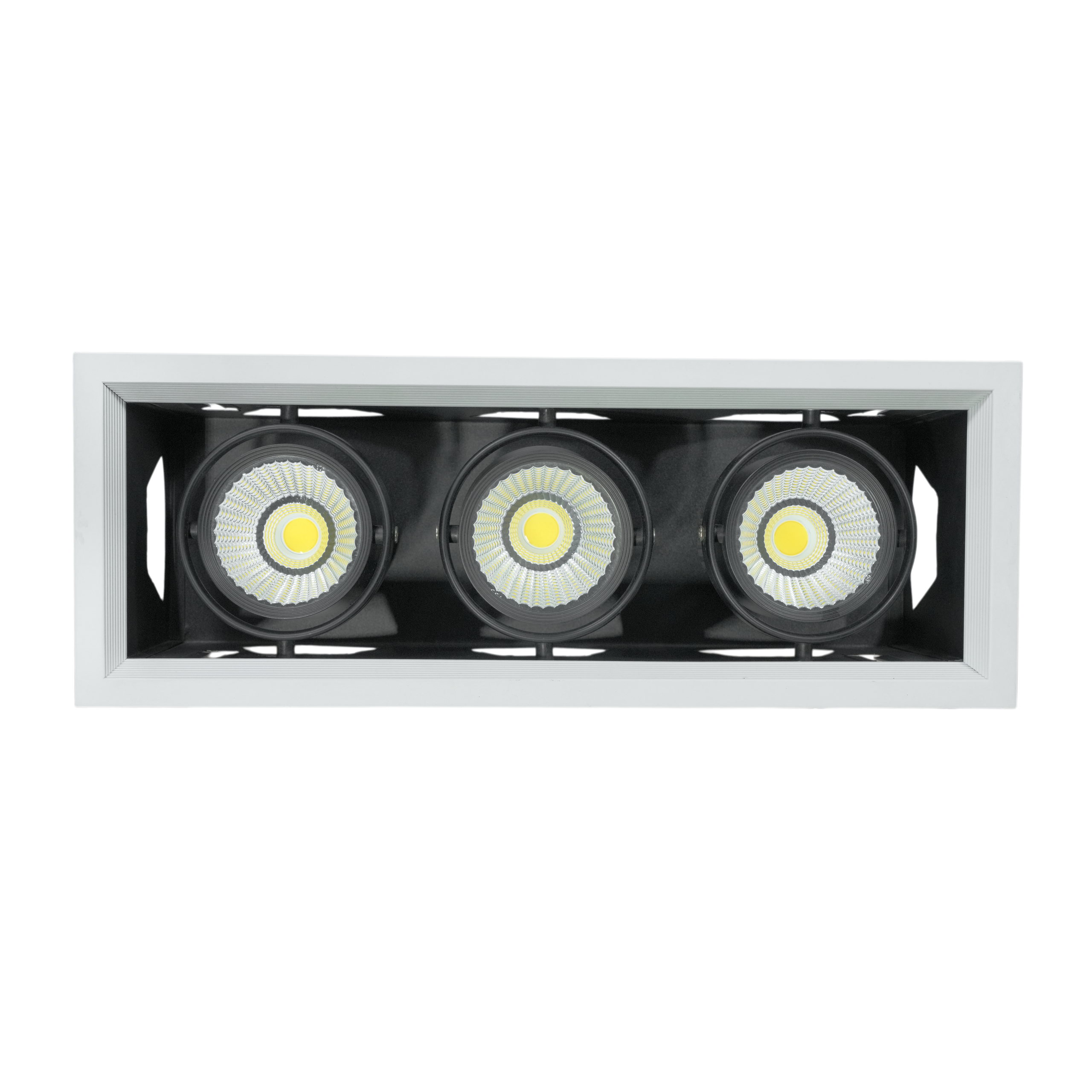

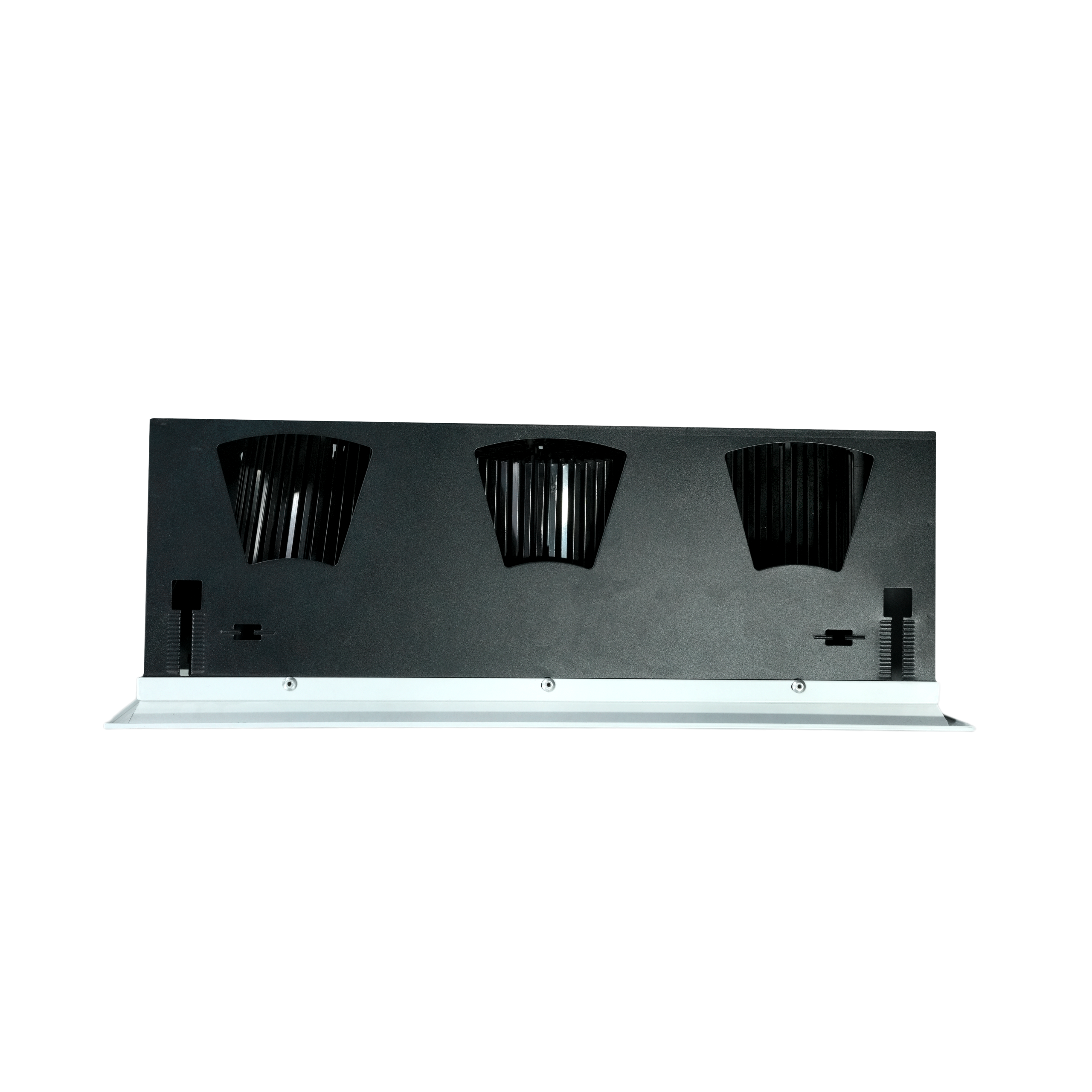

NEGOZIO BGX3
3X12W, 3X15W, 3X20W, 3X30W, 3X40W
LED Recessed Box Gimbal Lights with three Adjustable heads for retail lighting and accent lighting applications
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 120W, 36W, 45W, 60W, 90W |
Suitable for :
- Hotel
- Restaurant
- Retail
- Shops
- Educational Institutes
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Excellent finish, White/Black colour housing
- Adjustable Gimbal Lights with three heads for Accent Lighting
- Higher efficacy ensures better quality of lighting
- Dimming option available
- Saves energy up to 70% compared to metal halide lamps
- Energy efficient
- LED life more than 50,000 hours
- Constant current driver helps in safe operation
- Choice of different colour temperatures for different applications
- Zero maintenance, long-operating life
| Housing | Aluminium Die-Cast body with PC Reflector and Glass Diffuser | |
| Body Colour | White/Black | |
| Light Source | CREE | |
| Control Gear | Hansa Green | |
| Dimming | TRIAC, 0.-10V,DALI &VLC | |
| Rated Luminous Efficacy | 100-120 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 100-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP44 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| BG3-12 | 3X12 | 3600lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:395,W:145,H:135,C:385*135 mm | |||
| BG3-15 | 3X15 | 4500lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:395,W:145,H:135,C:385*135 mm | |||
| BG3-20 | 3X20 | 6000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:415,W:165,H:135,C:405*155 mm | |||
| BG3-30 | 3X30 | 9000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:500,W:185,H:135,C:490*175 mm | |||
| BG3-40 | 3X40 | 12000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:500,W:185,H:175,C:490*175 mm |
*L= Length ,W= Width, H= Height, C= Cut-out
