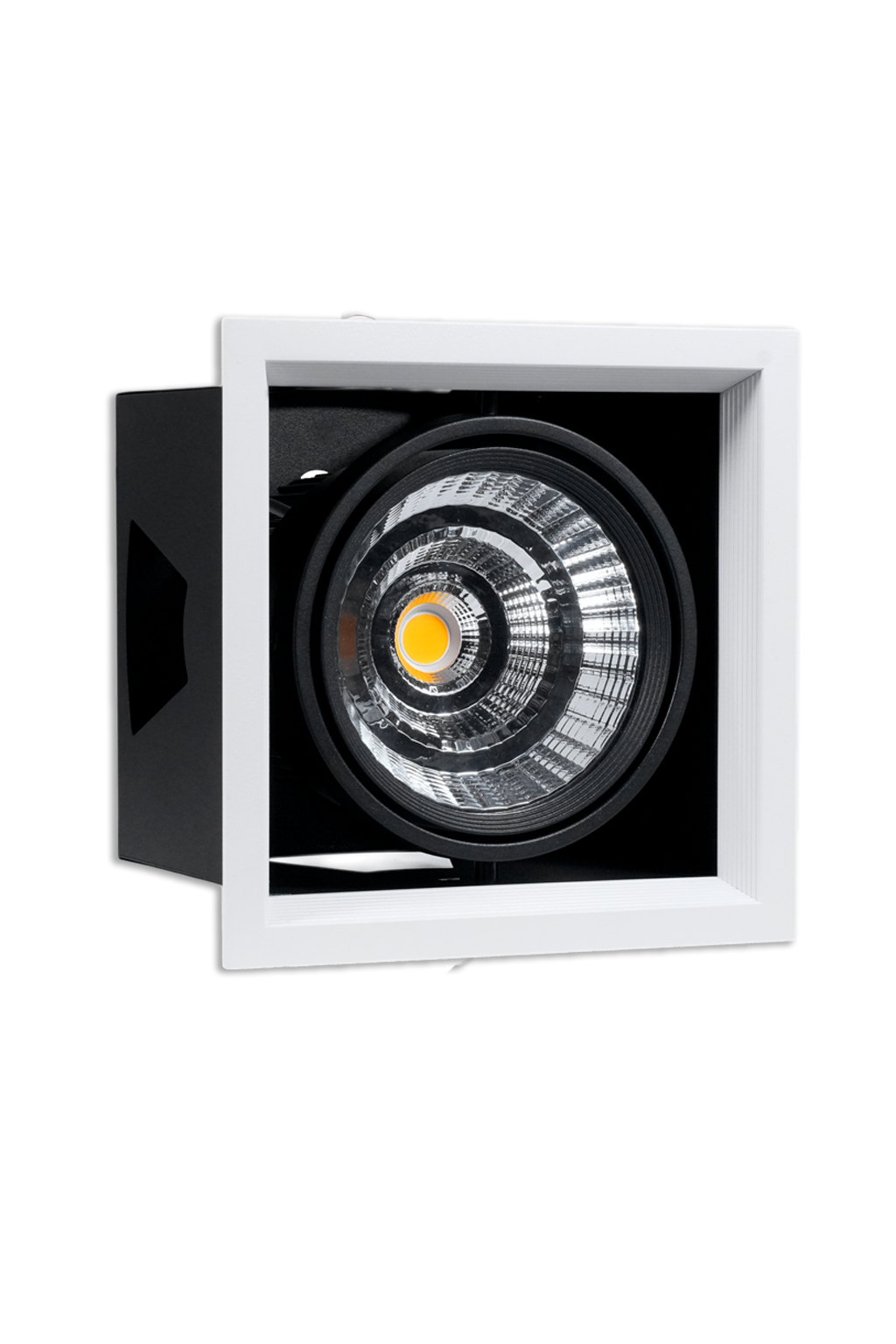

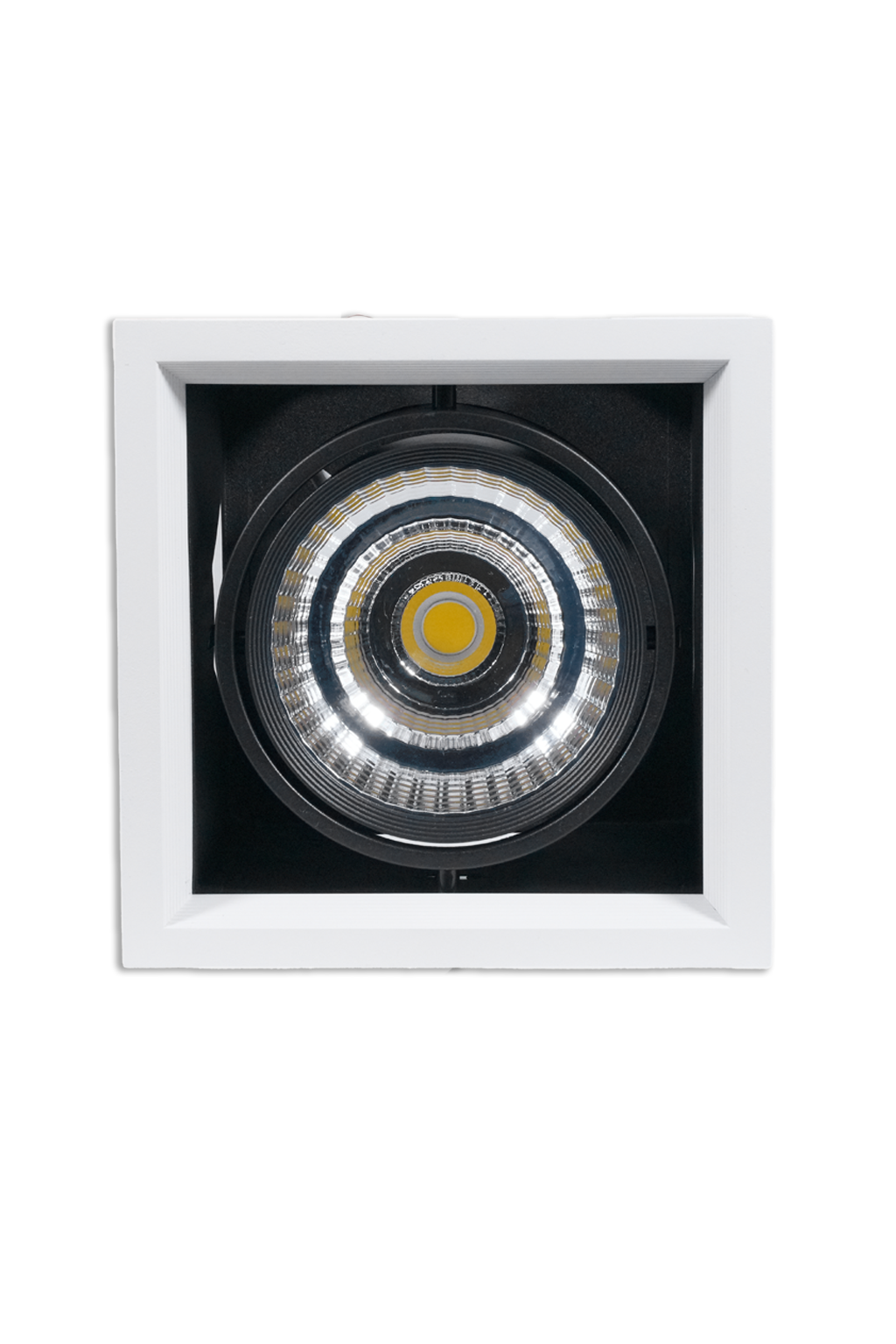

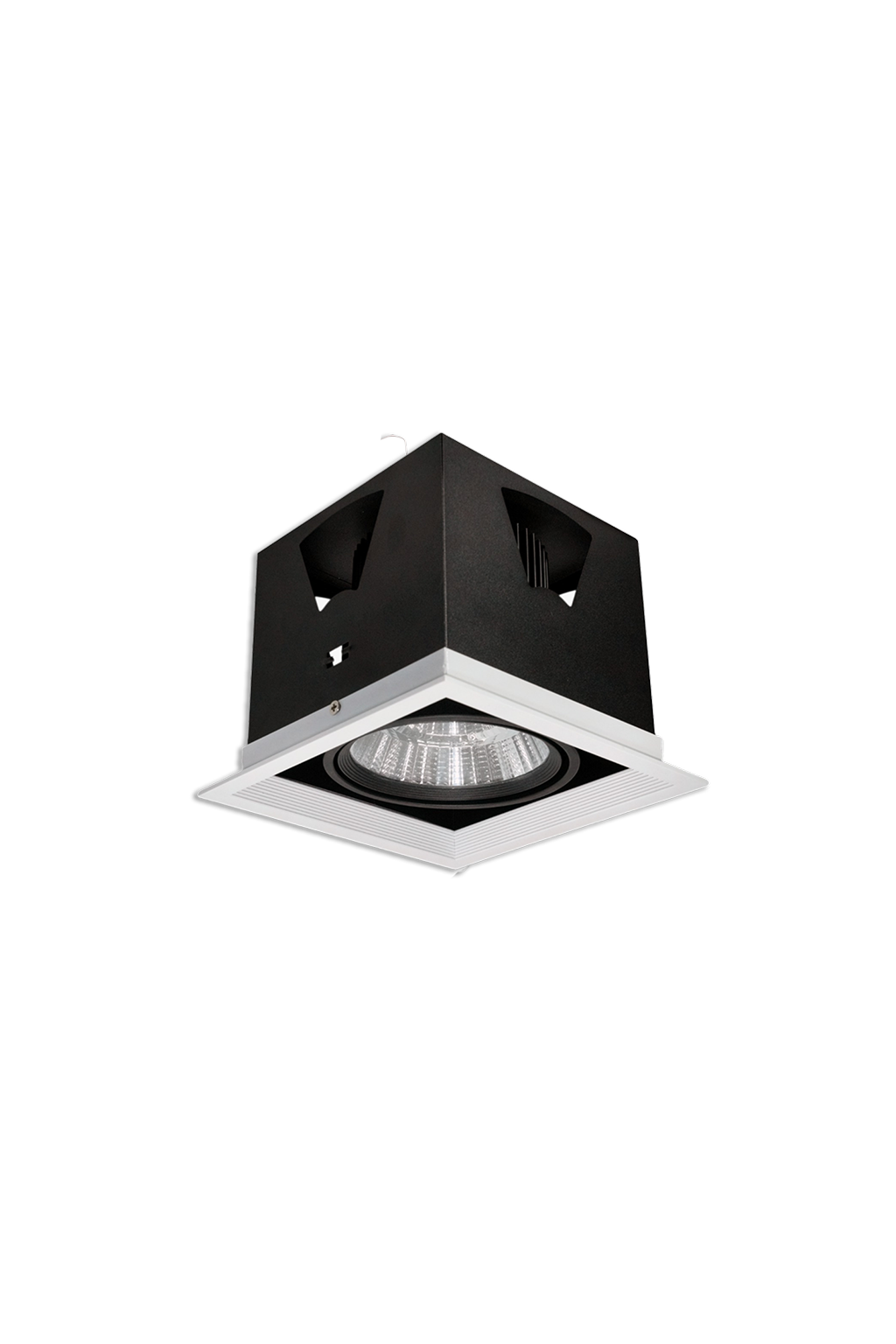

NEGOZIO BGX1
12W, 15W, 20W, 30W, 40W
Adjustable LED Recessed Box Gimbal Lights for retail lighting and accent lighting applications
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 12W, 15W, 20W, 30W, 40W |
Suitable for :
- Hotel
- Restaurant
- Retail
- Shops
- Educational Institutes
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Superior finish, White/Black colour housing
- Adjustable Gimbal Lights for Accent Lighting
- Higher efficacy ensures better quality of lighting
- Dimming option available
- Saves energy up to 70% compared to metal halide lamps
- Energy efficient
- LED life more than 50,000 hours
- Constant current driver helps in safe operation
- Choice of different colour temperatures for different applications
- Zero maintenance, long-operating life
| Housing | Aluminium Die-Cast body with PC Reflector and Glass Diffuser | |
| Body Colour | White/Black | |
| Light Source | CREE | |
| Control Gear | Hansa Green | |
| Dimming | TRIAC, 0.-10V,DALI &VLC | |
| Rated Luminous Efficacy | 100-120 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 100-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP44 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (MM) | |||
| BG1-12 | 12 | 1200lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:145,W:145,H:135,C:135*135 mm | |||
| BG1-15 | 15 | 1500lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:145,W:145,H:135,C:135*135 mm | |||
| BG1-20 | 20 | 2000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:165,W:165,H:135,C:155*155 mm | |||
| BG1-30 | 30 | 3000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:185,W:185,H:135,C:175*175 mm | |||
| BG1-40 | 40 | 4000lms±10% | 3000K/4000K/6500K | >80 | 20°,45°,60° | L:185,W:185,H:175,C:175*175 mm |
*L= Length ,W= Width, H= Height, C= Cut-out
