MERIT
07W, 10W

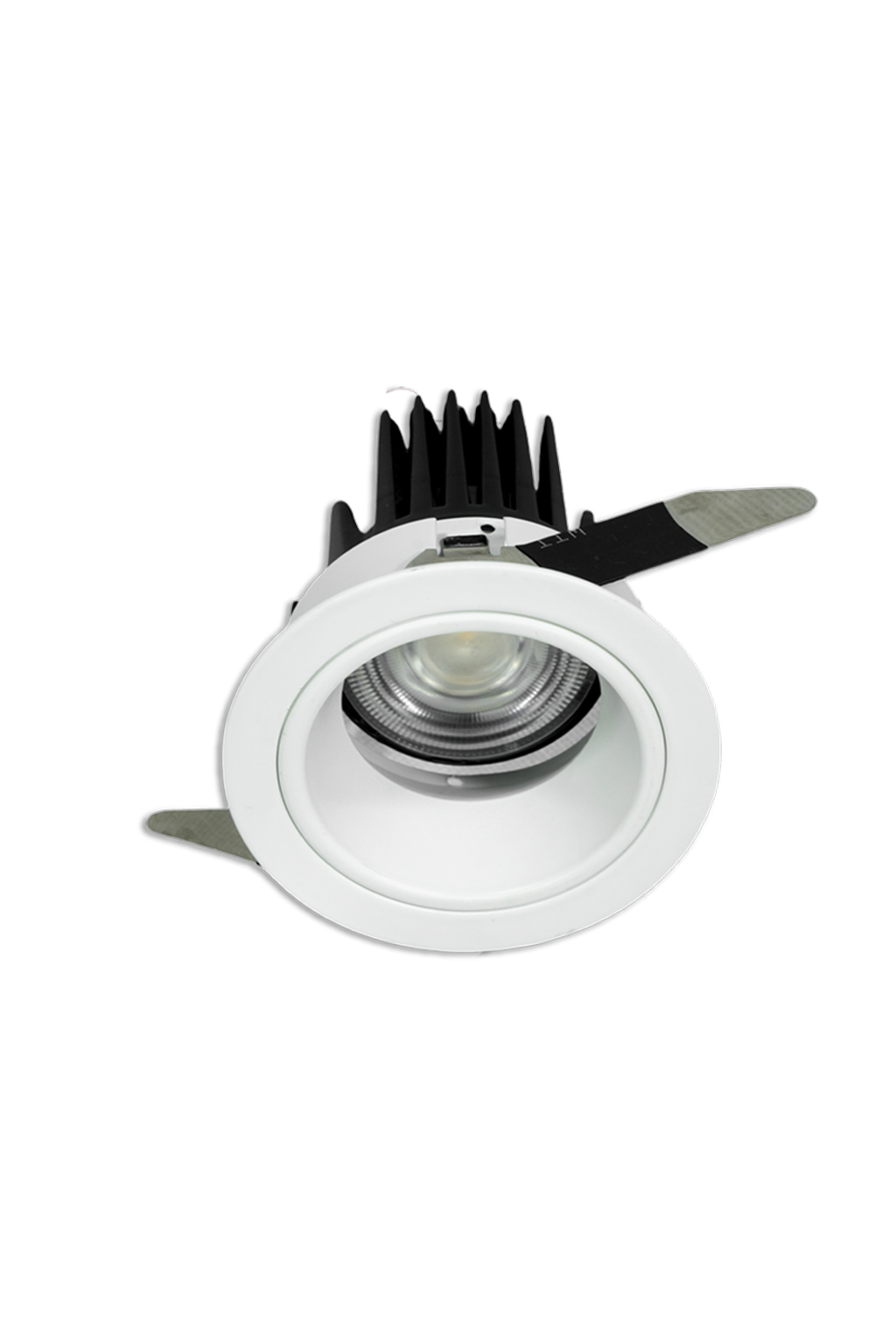

Premium, high efficiency LED spotlights to enhance commercial interiors and accent lighting
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 07W, 10W |
Suitable for :
- Home
- Corridor
- Hospital
- Hotel
- Restaurant
- Offices
- Rest Rooms
- Retail
- Shops
- Store Rooms
- Wardrobes
- Courtyards
- Banks
- Educational Institutes
- Reception Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Sleek design with classy finish
- TIR lens offers better uniformity of light
- Different trim options
- Adjustable head to direct light where needed
- Easy installation, convenient to use
- Spot emission
- Energy-efficient, eco-friendly alternative
- Dimming option available
- Constant current driver helps in safe operation
- Instant start and frequent switching makes it user-friendly
- Zero maintenance
| Housing | Aluminium Die Cast Body With Reflector And TIR Lens | |
| Body Colour | White/Black | |
| Light Source | CREE | |
| Control Gear | HANSA GREEN | |
| Dimming | TRIAC, 0.-10V,DALI &VLC | |
| RATED LUMINOUS EFFICACY | 100-120 lm/w | |
| LED LIFE TIME | >50,000 hours | |
| INPUT VOLTAGE | 100-240 Vac | |
| INPUT FREQUENCY | 50-60 Hz | |
| EFFICIENCY | >90% | |
| IP RATING | IP 44 |
| Model | Power | Lumens | CCT | CRI | Beam Angle | Dimensions (MM) | |||
| MT-STL-07 | 07 | 700 lms ± 10 % | 3000K/4000K/6500K | >80 | 30° | D:90,H:90,C:75 mm | |||
| MT-STL-10 | 10 | 1000 lms ± 10 % | 3000K/4000K/6500K | >80 | 30° | D:90,H:90,C:75 mm |
*D= Diameter; H= Height; C= Cut-Out
