Magline S
18W

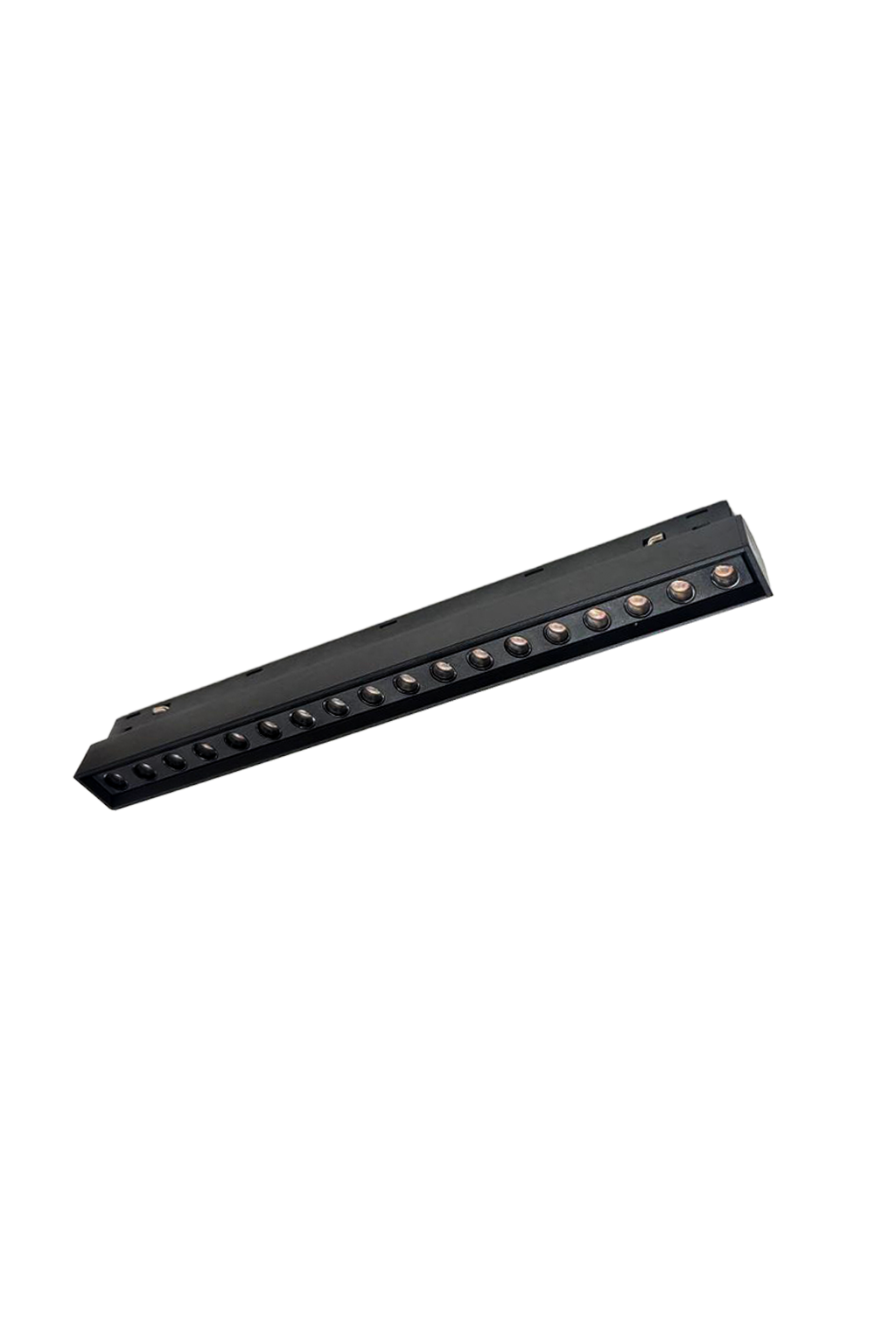

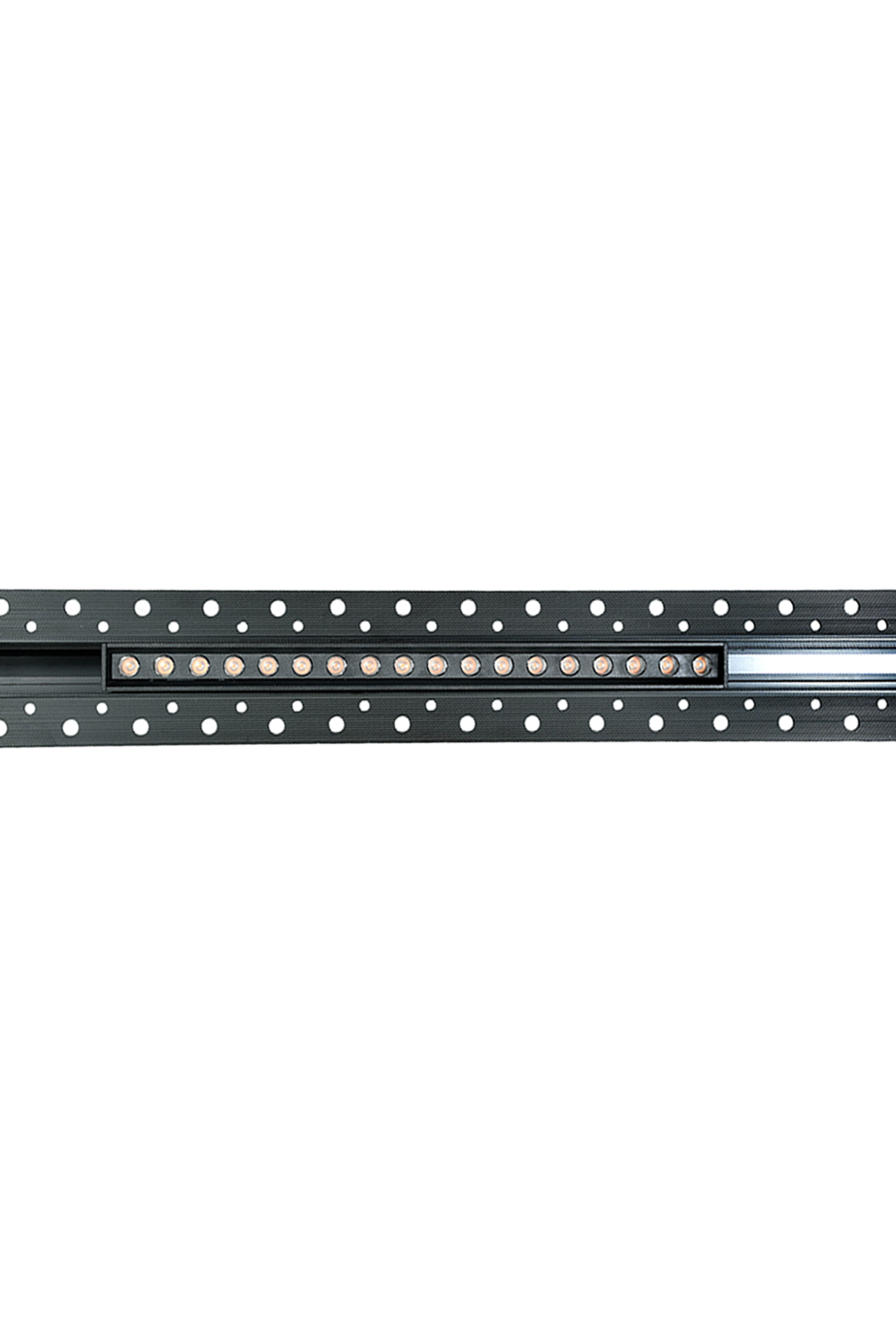

Focused Linear Magnetic Track Light, a sleek and powerful lighting solution designed for precise illumination in modern spaces. As seen in the image, this fixture features a distinctive linear array of individual LED lenses, each engineered to deliver a concentrated beam of light. Its innovative magnetic base ensures effortless attachment and repositioning along a low-voltage magnetic track, offering unparalleled flexibility to adapt your lighting to changing needs. Ideal for architectural accents, retail displays, or creating dramatic washes of light.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 18W |
Suitable for :
- Residential Spaces
- Retail Spaces
- Showrooms & Display Areas
- Exhibition Spaces
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Focused Illumination โ Precise directional lighting
- Long life: 50,000+ hrs - Minimal maintenance
- Easy Installation โ Quick, tool-free mounting
- Optimized Brightness โ PC lens enhances light output
| Housing | Aluminium Die Cast Body With PC Lens | |
| Body Colour | White/Black | |
| Light Source | Bridgelux | |
| Control Gear | Tridonic/Philips | |
| Control Options | ON/OFF, PHASE DIMMING, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 48 VDC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP20 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| MAG-S-MLN-18 | 18 | 1800 | 3000K/4000K/6500K | โฅ80 | 24.8ยฐ | L/D: 324,W:22,H:25 mm |
*D=Diameter; H=Height
