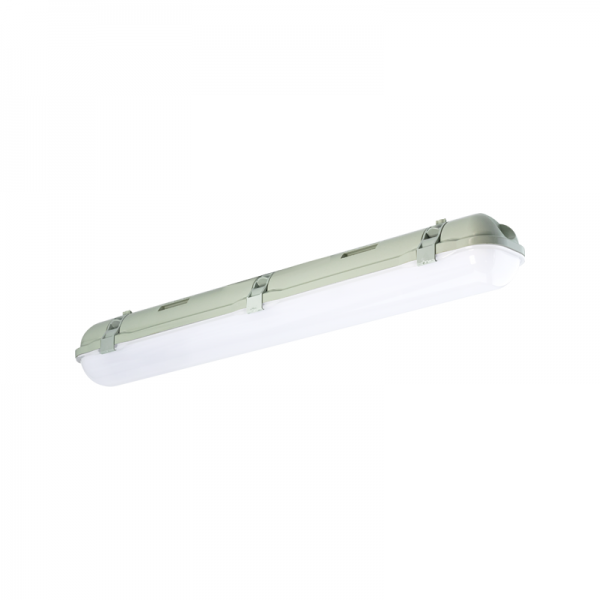

LUMIBROOK SLIM-EY
20W, 40W, 60W
Durable, High quality, LED Linear Weather-Proof Lights for varied applications
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 20W, 40W, 60W |
Suitable for :
- Store Rooms
- Warehouses
- Machinery workshops
- Indoor stadiums
- Industrial premises
- Parking Areas
-
Features
-
Specifications
-
Technical Data
- Superior quality and durable construction
- Energy-efficient LED Linear Weather-Proof Lights
- High luminous efficacy ensures more brightness
- High lumen output with 120-140 Lm/Watt
- Eco-friendly alternative to conventional lights
- Dimming option available
- Constant current driver helps in safe operation
- Instant start and frequent switching makes it user-friendly
- Zero Maintenance, Long Operating Life
- Surface/Suspension mounting
| Housing | ABS Plastic Housing with PC diffuser | |
| Body Colour | Grey | |
| Light Source | EVERLIGHT | |
| Control Gear | HANSA GREEN / TRIDONIC | |
| DIMMING | TRIAC, 0.-10V, DALI & VLC | |
| RATED LUMINOUS EFFICACY | 120-140 lm/w | |
| LED LIFE TIME | >50,000 hours | |
| INPUT VOLTAGE | 100-240 VAC | |
| INPUT FREQUENCY | 50-60 Hz | |
| Efficiency | >90% | |
| IP RATING | IP 66 |
| Model No. | Power | Lumens | CCT | CRI | Beam Angle | Dimensions (MM) | |||
| LBK-SLM-EY-P20 | 20W | 2400 lms ± 10 % | 3000K/4000K/6500K | >80 | 120° | L:600,W:82,H:75 mm | |||
| LBK-SLM-EY-P40 | 40W | 4800 lms ± 10 % | 3000K/4000K/6500K | >80 | 120° | L:1200,W:82,H:75 mm | |||
| LBK-SLM-EY-P60 | 60W | 7200 lms ± 10 % | 3000K/4000K/6500K | >80 | 120° | L:1200,W:82,H:75 mm |
*L=Length, W=Width, H=Height
