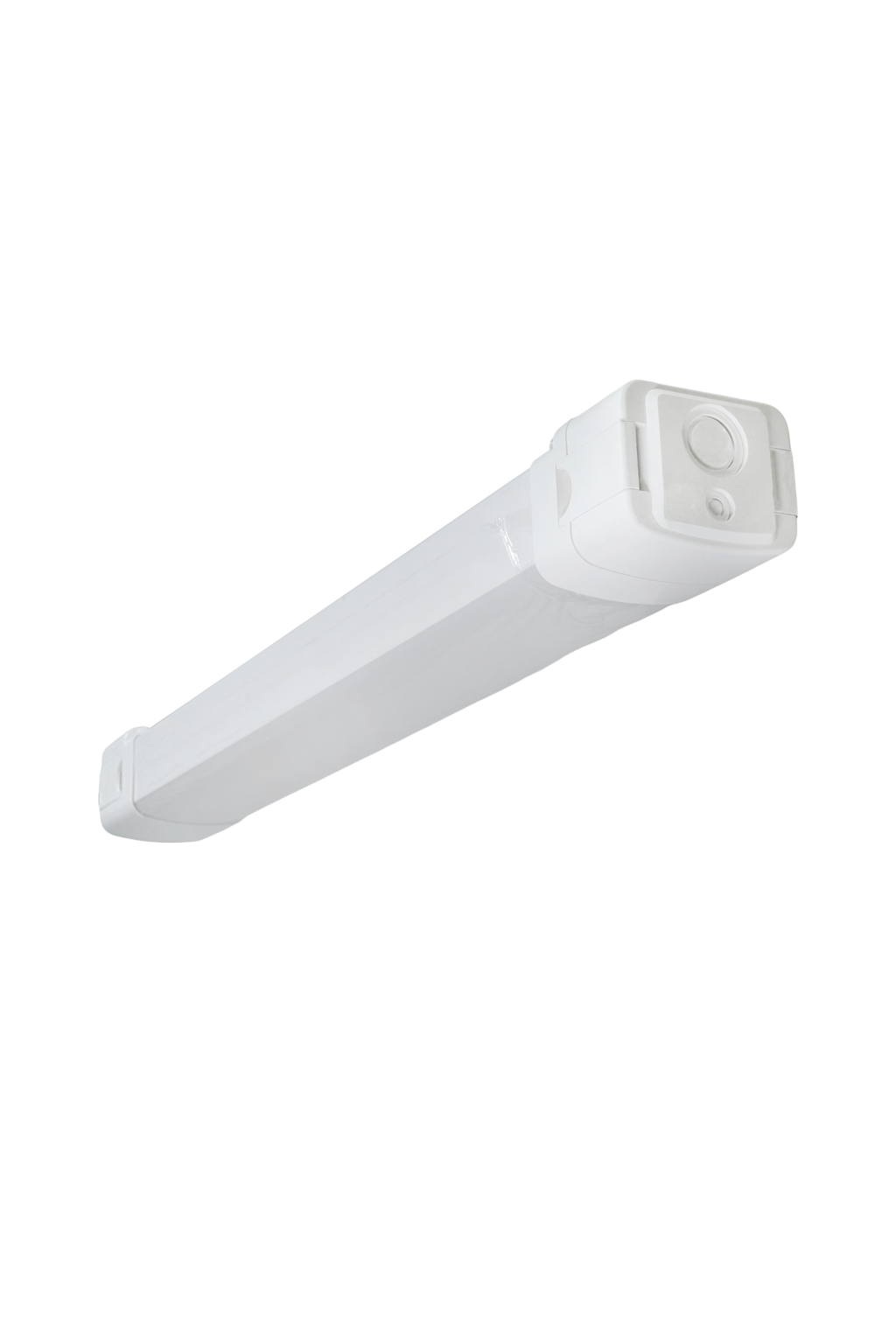

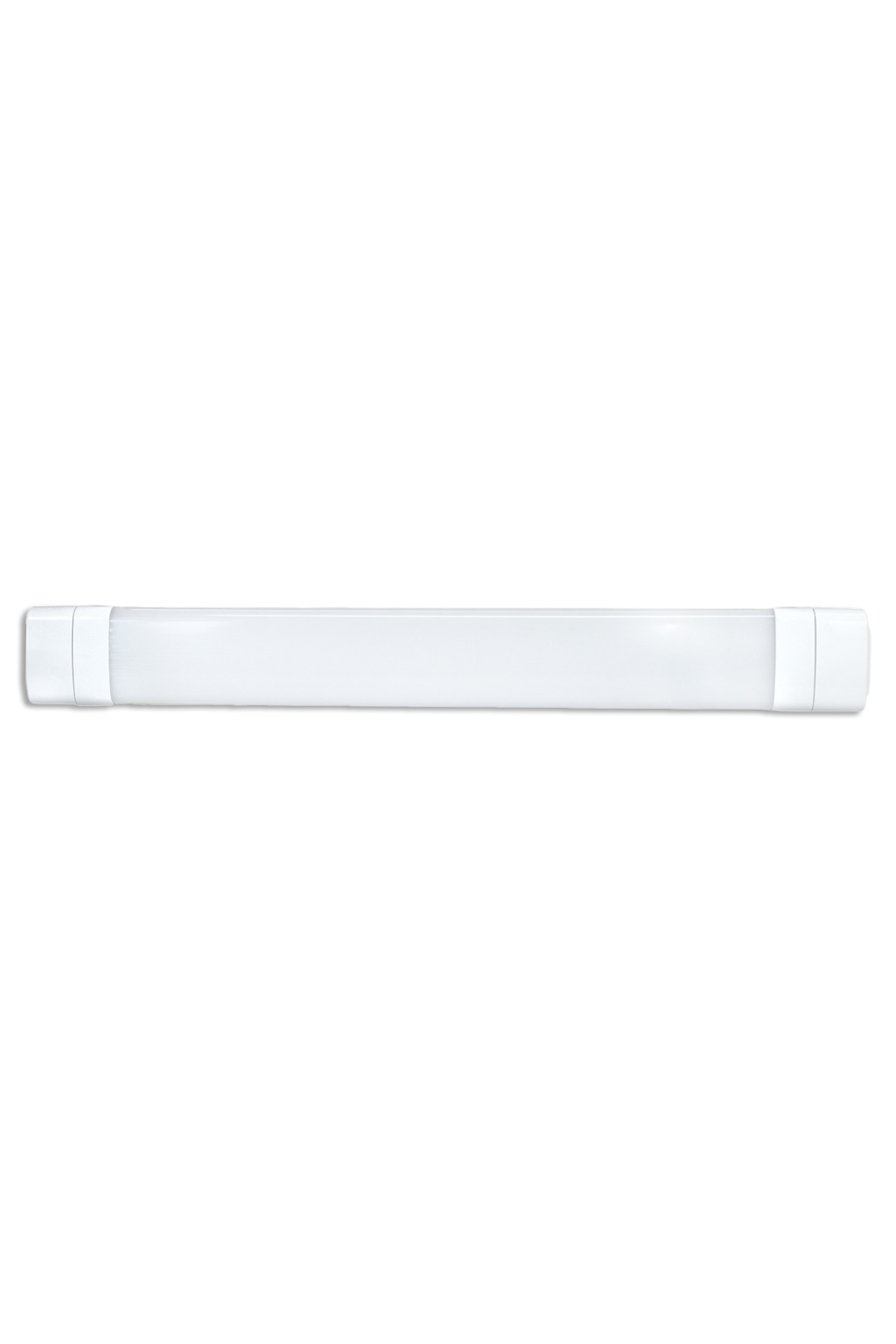

LUMIBROOK CON 2F
10W, 15W, 20W
The Lumibrook Con 2F is a highly efficient, linear, and weatherproof industrial light suitable for extensive use both indoors and outdoors. This luminaire offers a wide selection of power and color temperatures, as well as functional options like motion detection, a timer, sleep mode, and twilight function. It’s a popular choice for many applications, including warehouses, manufacturing units, car parks, metro stations, and exhibition centers.
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 10W, 15W, 20W |
Suitable for :
- Corridor
- Warehouses
- Industrial kitchen areas
- Parking Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Connectable Modular Design – Linking multiple fixtures seamlessly.
- Longlife: 50,000+ hrs- Minimal maintenance.
- High Luminous Efficacy -More light output.
- Consistent Performance & Quality - Delivers stable brightness
- IP65 Rated – Protects against dust and water.
| Housing | Polycarbonate Body with PC Diffuser | |
| Body Colour | White | |
| Light Source | Bridgelux | |
| Dimming | ON-OFF,TRIAC, 0.-10V,DALI | |
| Rated Luminous Efficacy | 120 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP65 | |
| IK Rating | IK09 |
| Model No. | Power (W) | Lumens | Lumens | CRI | Beam Angle | Dimensions (mm) | |||
| LBK-CON-2F-10 | 10 | 1200 | 3000K/4000K/6500K | >80 | 113.3° | L/D:600,W:74,H:69 mm | |||
| LBK-CON-2F-15 | 15 | 1800 | 3000K/4000K/6500K | >80 | 113.3° | L/D:600,W:74,H:69 mm | |||
| LBK-CON-2F-20 | 20 | 2400 | 3000K/4000K/6500K | >80 | 113.3° | L/D:600,W:74,H:69 mm |
*D=Diameter; H=Height
