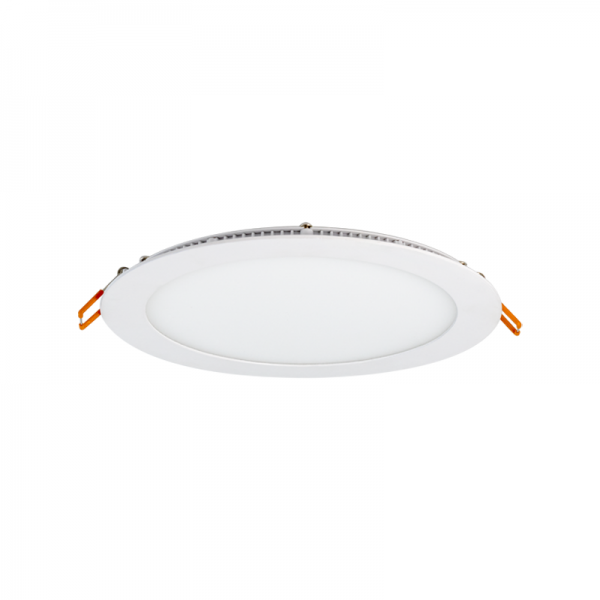

EXCELLENTO GRANDEUR-R
03W, 06W, 12W, 18W, 24W, 30W
Recessed Mounted LED Domestic Panel Lights offers elegant, sleek design and better lighting
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 03W, 06W, 12W, 18W, 24W, 30W |
Suitable for :
- Home
- Hospital
- Hotel
- Restaurant
- Offices
- Retail
- Shops
- Courtyards
- Banks
- Educational Institutes
-
Features
-
Specifications
-
Technical Data
- Elegant, sleek design for superior aesthetics
- Higher luminous efficacy ensures better lighting
- Bright and energy saving
- Dimming option available
- Choice of different colour temperatures
- Constant current driver helps in safe operation
- Instant start and frequent switching makes it user-friendly
- Long life
- Zero maintenance
- Mounting by retaining clips
| Housing | Aluminium Die Cast Body With PMMA LGP AND PC Diffuser | |
| Body Colour | White | |
| Light Source | Everlight | |
| Control Gear | HANSA GREEN | |
| Dimming | TRIAC, 0.-10V,DALI &VLC | |
| RATED LUMINOUS EFFICACY | 100-120 lm/w | |
| LED LIFE TIME | >50,000 hours | |
| INPUT VOLTAGE | 100-240 Vac | |
| INPUT FREQUENCY | 50-60 Hz | |
| EFFICIENCY | >90% | |
| IP RATING | IP 44 |
| Model | Power | Lumens | CCT | CRI | Beam Angle | Dimensions (MM) | |||
| SPL-SL-03-SQ | 03 | 300 lms ± 10 % | 3000K/4000K/6500K | >80 | 110° | L:85,W:85,H:23,C:75*75 mm | |||
| SPL-SL-06-SQ | 06 | 600 lms ± 10 % | 3000K/4000K/6500K | >80 | 110° | L:120,W:120,H:23,C:105*105 mm | |||
| SPL-SL-12-SQ | 12 | 1200 lms ± 10 % | 3000K/4000K/6500K | >80 | 110° | L:170,W:170,H:23,C:158*158 mm | |||
| SPL-SL-18-SQ | 18 | 1800 lms ± 10 % | 3000K/4000K/6500K | >80 | 110° | L:225,W:225,H:23,C:210*210 mm | |||
| SPL-SL-24-SQ | 24 | 2400 lms ± 10 % | 3000K/4000K/6500K | >80 | 110° | L:295,W:295,H:23,C:285*285 mm | |||
| SPL-SL-30-SQ | 30 | 2400 lms ± 10 % | 3000K/4000K/6500K | >80 | 110° | L:295,W:295,H:23,C:285*285 mm |
*L= Length; W= Width; H=Height; C= Cut-Out
