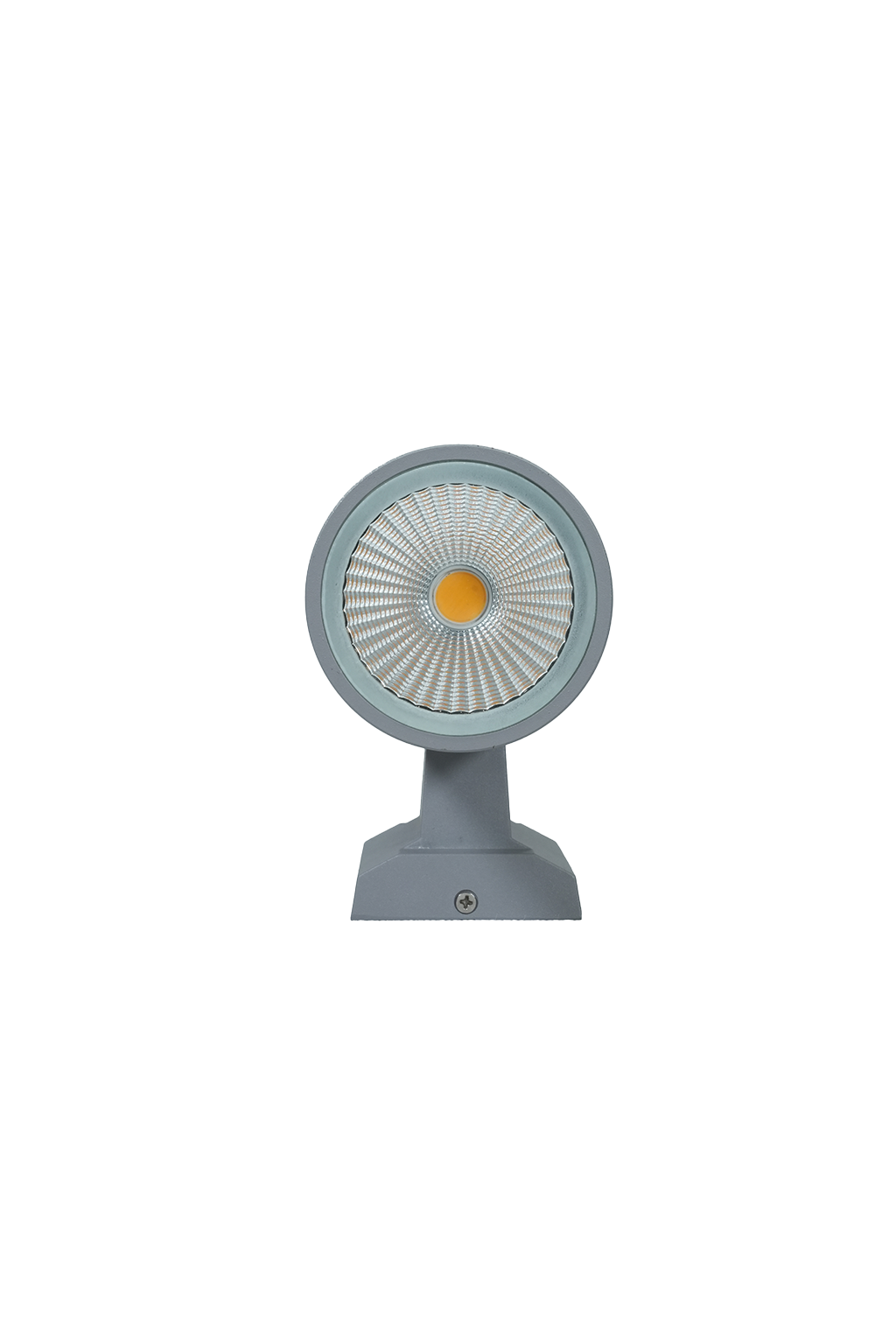

DUPLE CARV
2X8W
This modern cylindrical IP65-rated wall-mounted luminaire is designed for durability and performance in outdoor environments. Constructed from high-quality die-cast aluminum, it offers excellent resistance to dust and water, making it ideal for facade lighting, exterior walls, and architectural enhancement. With bi-directional light emission (up and down), this fitting creates a stylish and visually appealing lighting effect, enhancing the aesthetics of any exterior space.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 2X8W |
Suitable for :
- Building Faรงade
- Residential Spaces
- Balconies
- Walkways
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous Efficacy - More light output
- Long Life: 50,000 hrs - Minimal maintenance
- Consistent Performance & Quality - Delivers stable brightness
- Upward & Downward Illumination โ Provides ambient wall lighting.
- IP65 Rated โ Protection against dust and water.
| Housing | Aluminium Die Cast Body With Clear Glass | |
| Body Colour | Grey/Black | |
| Light Source | Bridgelux | |
| Control Gear | Tridonic | |
| Control Options | ON/OFF, PHASE DIMMING, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP65 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| DP-UP-CEV-2x8 | 2X8 | 1600 | 3000K/4000K/6500K | โฅ80 | 351.3ยฐ | L/D:100,W:155,H:250 |
*D=Diameter; H=Height
