ARC HEMI
30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W

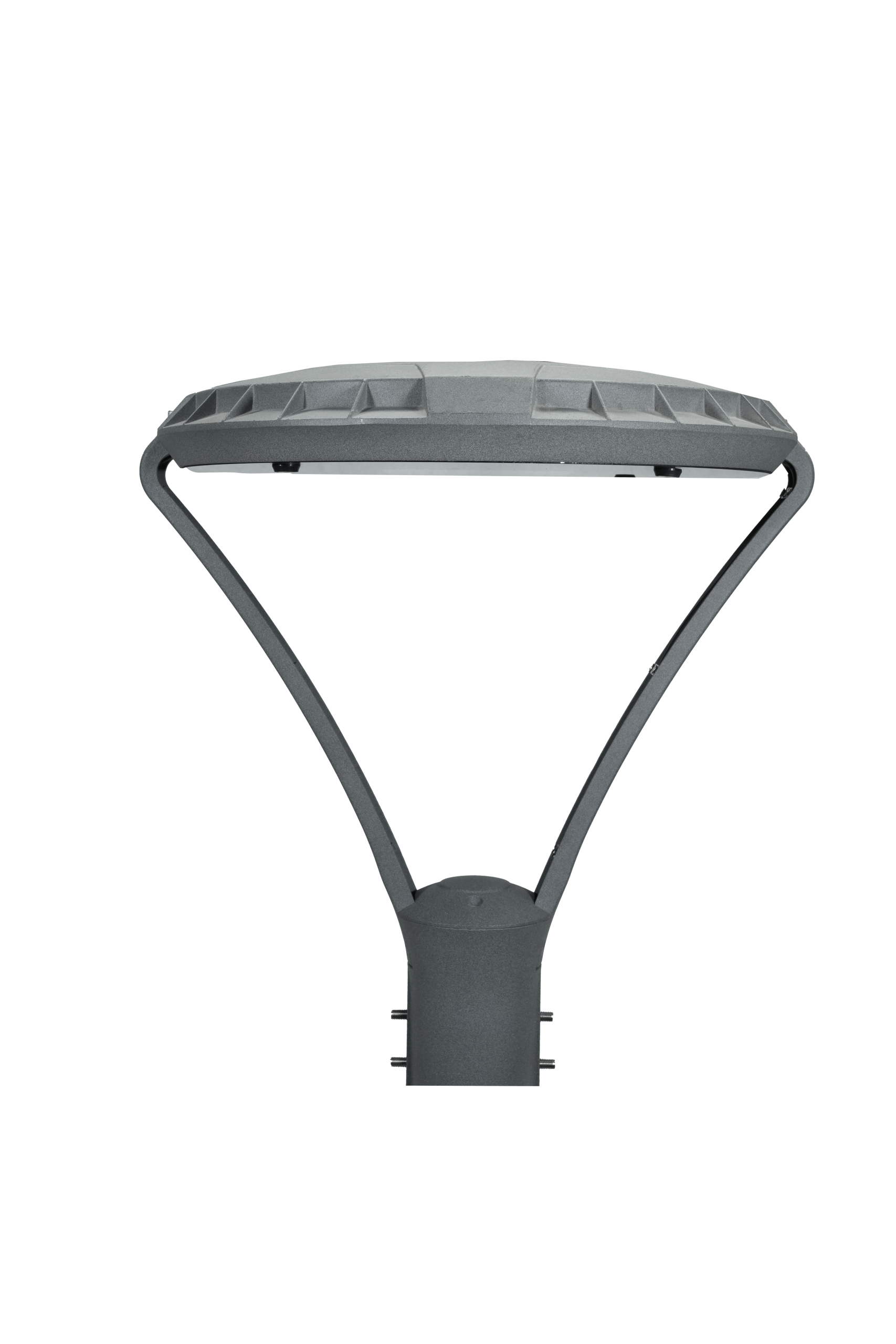

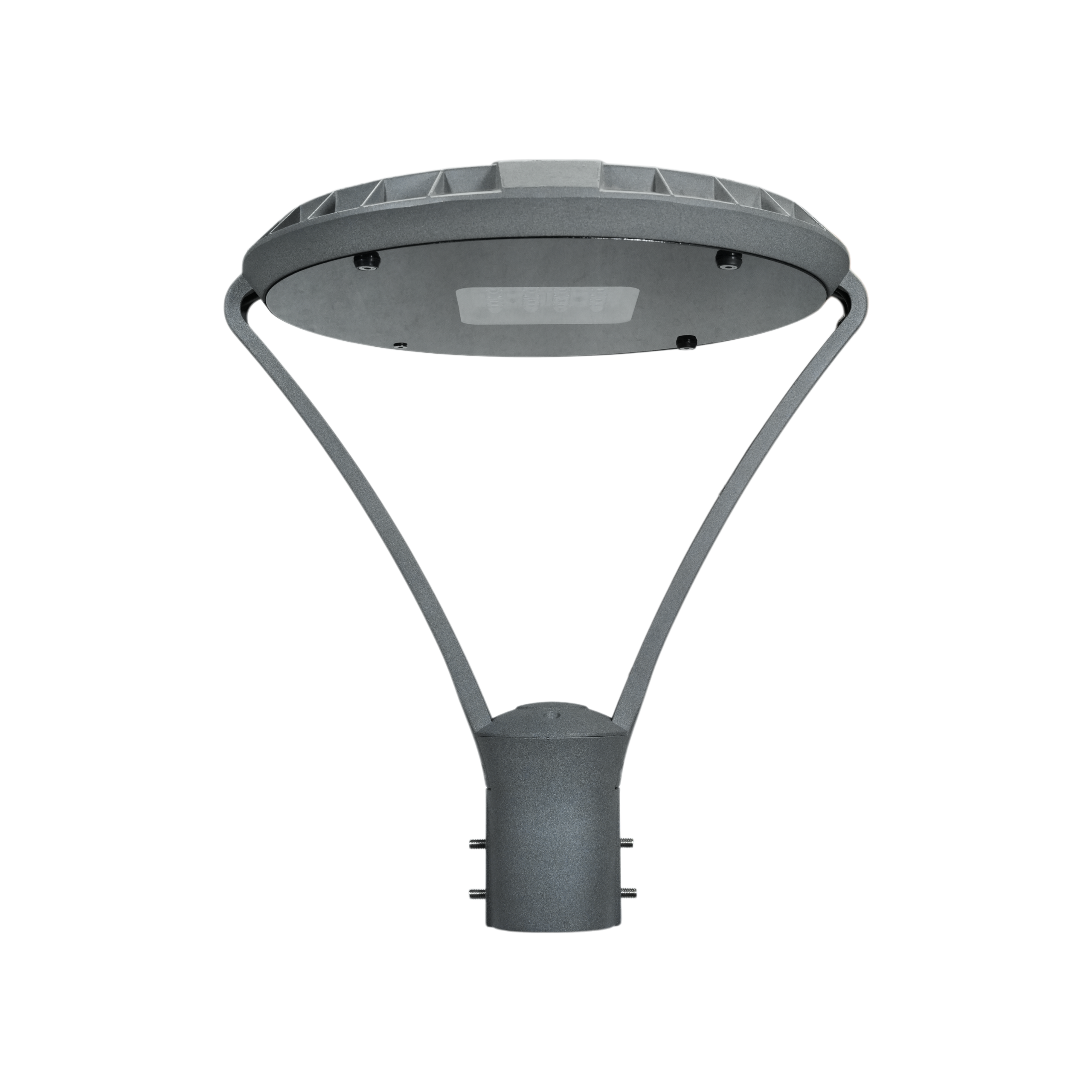

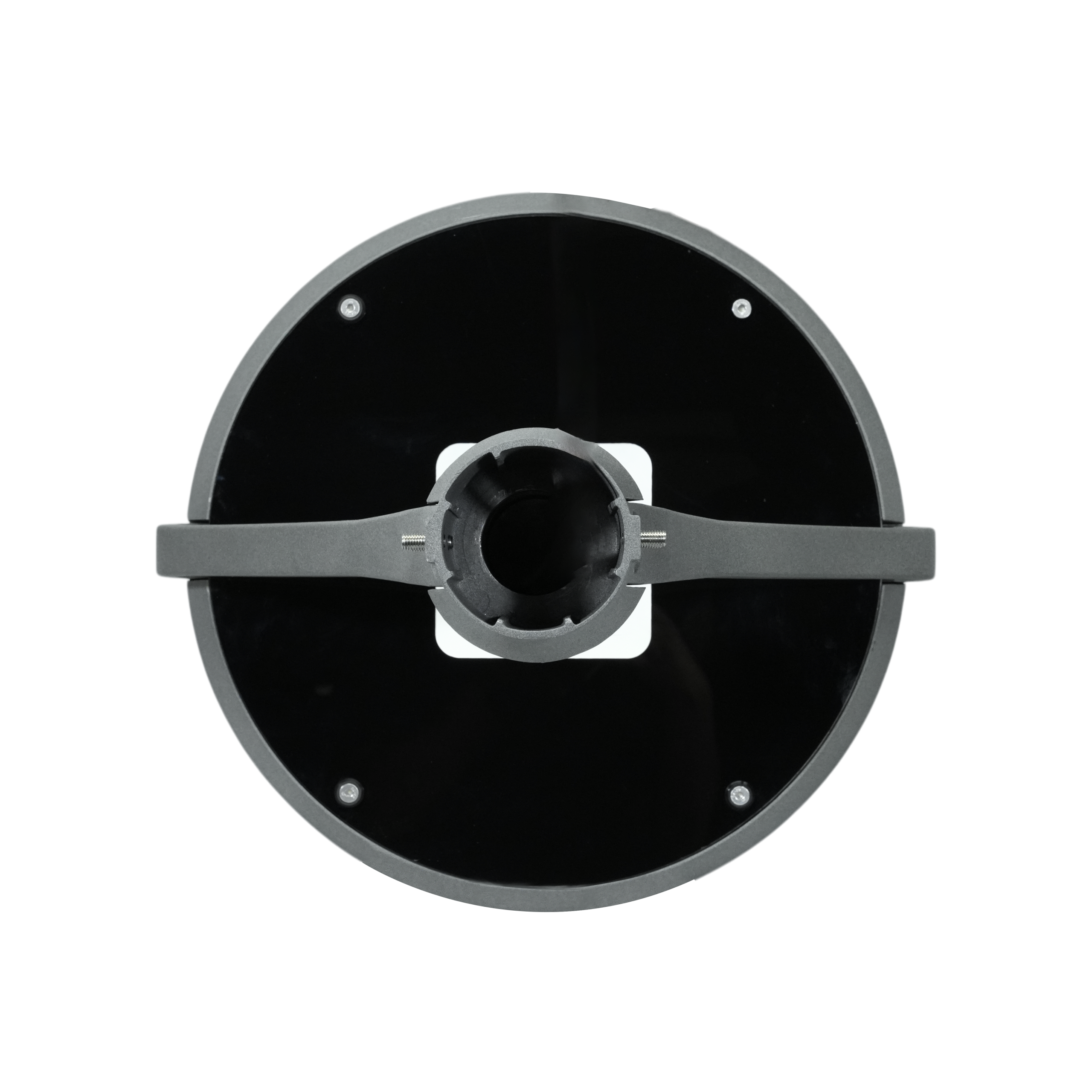

ARC HEMI is a high-performance pole top LED light designed for streets, pathways, and outdoor public areas. Engineered for reliability and energy , it delivers uniform illumination while enhancing safety and visibility.
| CCT | 3000K, 4000K, 5700K |
|---|---|
| Wattage | 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W |
Suitable for :
- Commercial complexes
- Parks
- Urban&Residential
- Streets
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy -More light output
- Efficient Heat Dissipation โ Die-cast aluminum housing
- Long life: 50,000+ hrs - Minimal maintenance
- Modern design โ Enhances urban and landscape aesthetics
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die Cast with PC Lens & Glass | |
| Body Colour | Black/Grey | |
| Light Source | SMD | |
| Control Option | On/Off, 1-10V, DALI | |
| Rated Luminous Efficacy | 120 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | โฅ0.9 | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Degยฐ) | Dimensions (mm) | |||
| ARH-PT-30 | 30 | 3,600 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 | |||
| ARH-PT-40 | 40 | 4,800 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 | |||
| ARH-PT-50 | 50 | 6,000 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 | |||
| ARH-PT-60 | 60 | 7,200 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 | |||
| ARH-PT-80 | 80 | 9,600 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 | |||
| ARH-PT-100 | 100 | 12,000 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 | |||
| ARH-PT-120 | 120 | 14,400 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 | |||
| ARH-PT-150 | 150 | 18,000 | 3000 / 4000 / 6500 | โฅ80 | 109.3 | L:440, W:145, H:160 |
*L=Length; W=Width; H=Height
