Arc 7
30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W

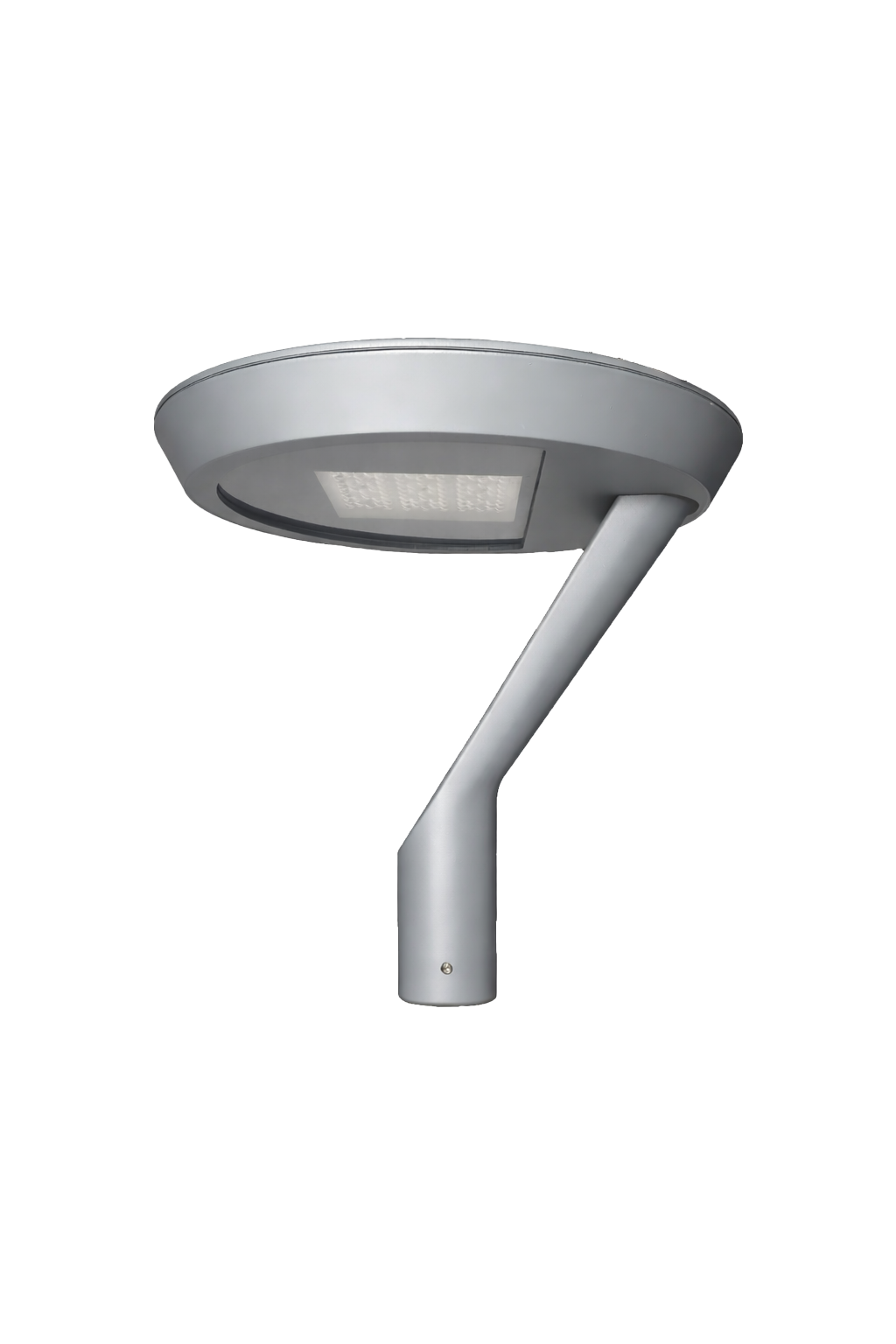

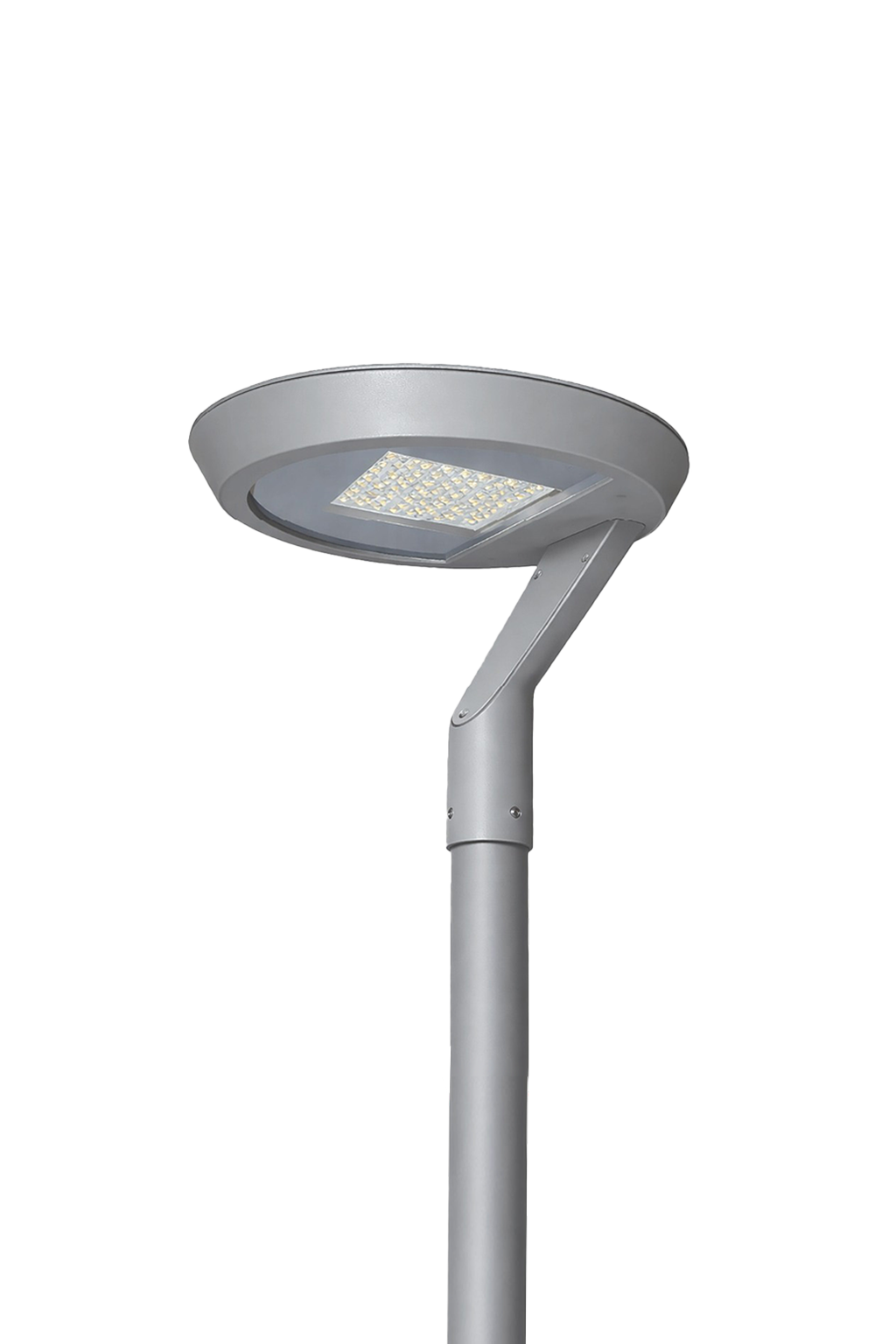

ARC7 is an LED Pole Top Light designed to deliver a powerful and uniform illumination to enhance the visibility of any outdoor setting. The luminaire offers a broad range of power and color temperatures. This range of products is popular for a wide range of applications, such as public parks and gardens, pedestrian walkways and pathways, and outdoor parking areas, residential communities, commercial complexes, and recreational facilities
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W |
Suitable for :
- Parks
- Commercial complexes
- Urban&Residential
- Streets
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Efficient Heat Dissipation – Die-cast aluminum housing
- Long life: 50,000+ hrs - Minimal maintenance
- Modern design – Enhances urban and landscape aesthetics
- Consistent Performance & Quality - Delivers stable brightness
| Housing | Aluminium Die Cast Body With Clear Glass | |
| Body Colour | Grey | |
| Light Source | Bridgelux | |
| Control Gear | Inventronics | |
| Control Options | ON/OFF, 1-10V, DALI | |
| Rated Luminous Efficacy | 130 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP66 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| AR7-PT-30 | 30 | 3900 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm | |||
| AR7-PT-40 | 40 | 5200 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm | |||
| AR7-PT-50 | 50 | 6500 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm | |||
| AR7-PT-60 | 60 | 7800 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm | |||
| AR7-PT-80 | 80 | 10400 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm | |||
| AR7-PT-100 | 100 | 14000 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm | |||
| AR7-PT-120 | 120 | 15600 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm | |||
| AR7-PT-150 | 150 | 19500 | 3000K/4000K/6500K | ≥80 | 99.4° | L/D:700,W:462,H:NA, ARM DIA:76 mm |
*D=Diameter; H=Height
