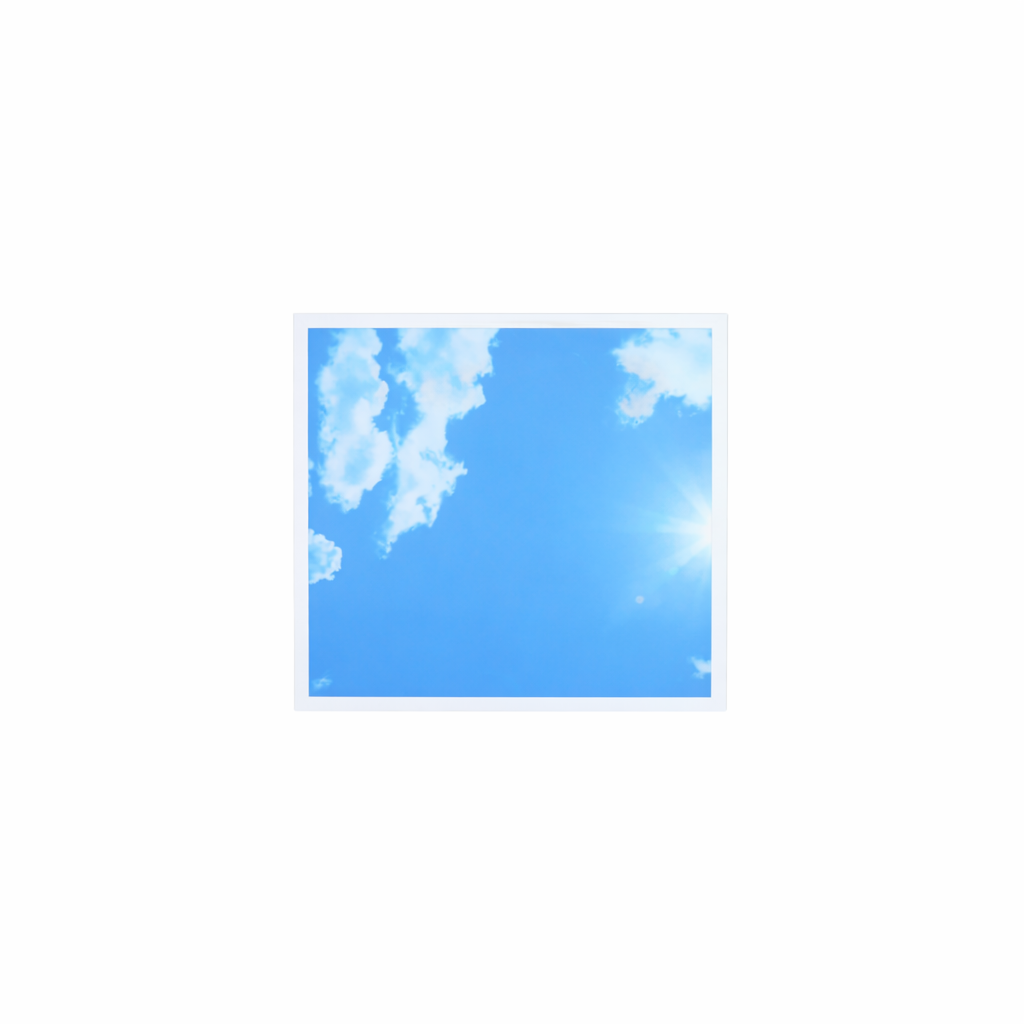

AAKASH
30X120-40W , 60X60- 40W, 60X120-80W
AAKASH Panel Light is a premium architectural lighting solution designed to recreate the soothing ambiance of a natural blue sky indoors. Featuring a realistic sky and cloud pattern, it transforms any ceiling into a calming, daylight-inspired environment, ideal for offices, hospitals, schools, and exhibition halls.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 40W, 80W |
Suitable for :
- Office & Commercial Spaces
- Healthcare Spaces
- Educational Institutions
- Waiting Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Long Life: 50,000+ hrs – Minimal maintenance
- Easy installation - Tool‑free spring‑clip installation.
- Consistent Performance & Quality - Delivers stable brightness
- Diffused Illumination – Soft, glare-free light with uniform distribution
| Housing | Metal Alloy with PC Diffuser | |
| Body Colour | White | |
| Light Source | Bridgelux | |
| Control Gear | Tridonic | |
| Control Options | ON/OFF, PHASE DIMMING, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP44 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| AKA-SKY-1x4-40 | 40 | 4000 | 3000K/4000K/6500K | ≥80 | 113° | L/D:1197,W:297,H:35 mm | |||
| AKA-SKY-2x2-40 | 40 | 4000 | 3000K/4000K/6500K | ≥80 | 113° | L/D:597,W:597,H:35 mm | |||
| AKA-SKY-2x4-80 | 80 | 8000 | 3000K/4000K/6500K | ≥80 | 113° | L/D:1197,W:597,H:35 mm |
*D=Diameter; H=Height
