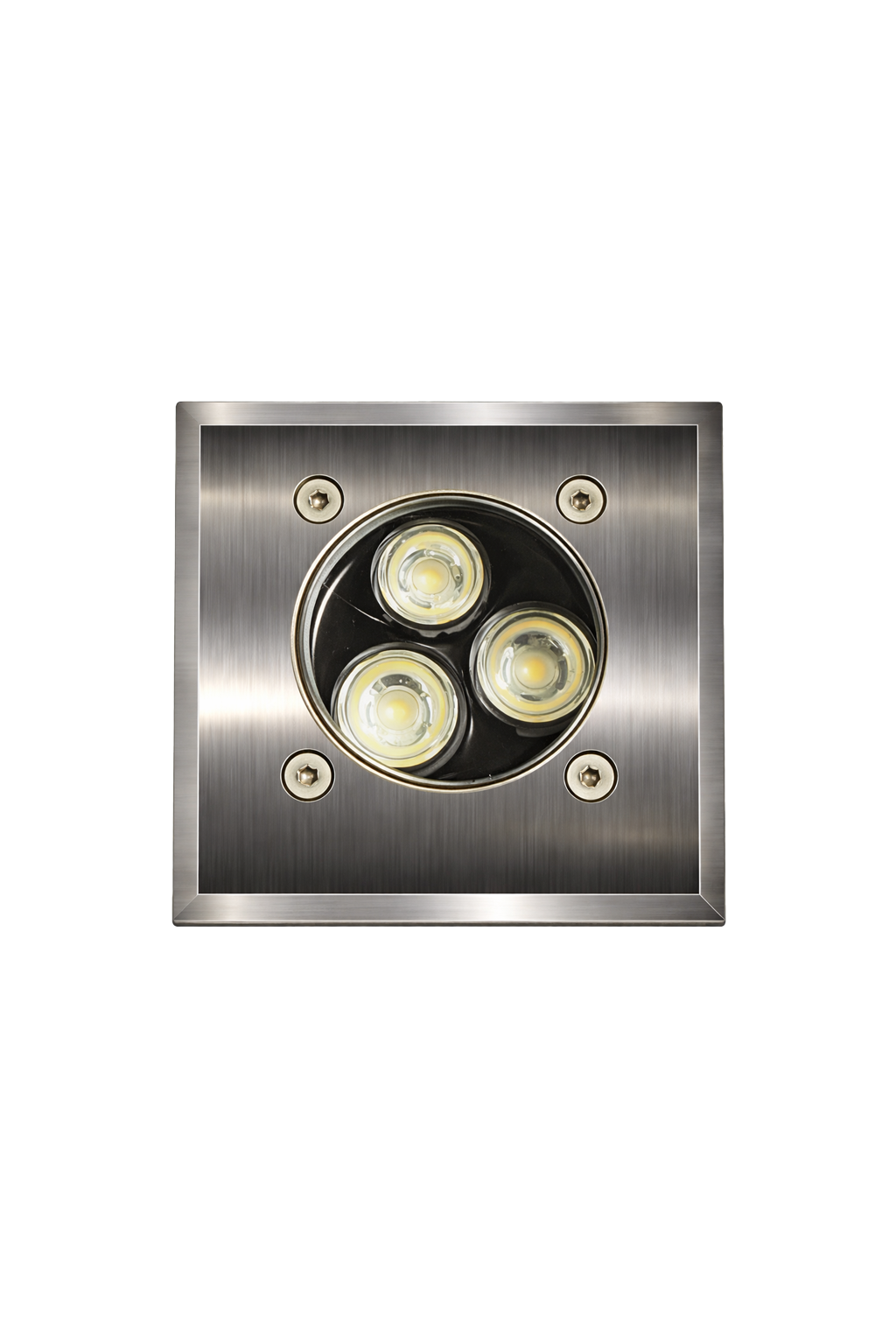

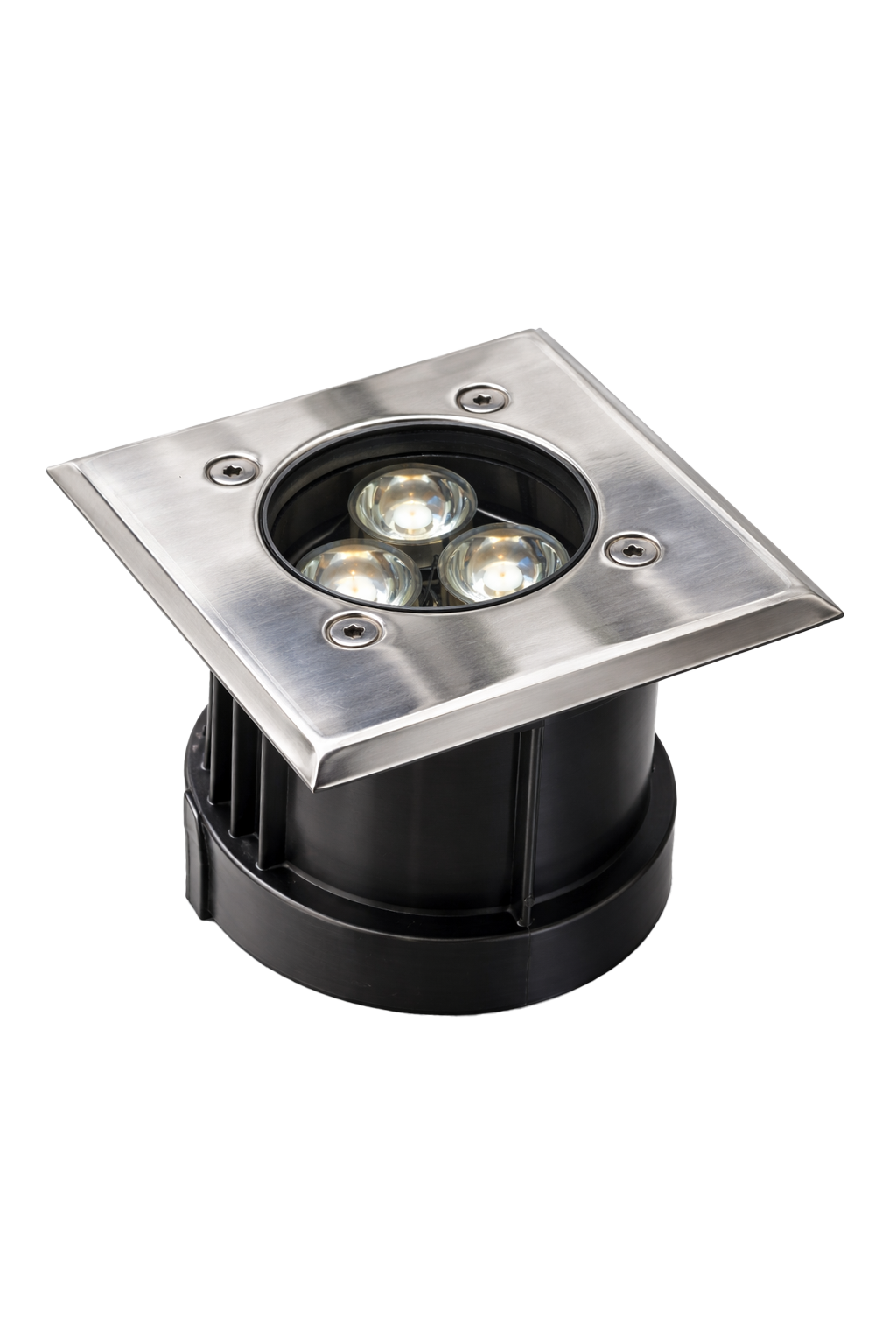

SPLASH SQ
3W, 6W, 9W, 12W, 18W, 24W, 36W
SPLASH SQ is our in-ground recessed light, designed for outdoor applications. It offers durable construction, excellent illumination, and is ideal for pathways, landscapes, and architectural highlighting. Its robust design ensures reliable performance even in harsh weather conditions.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 3W, 6W, 9W, 12W, 18W, 24W, 36W |
Suitable for :
- Parks
- Landscape
- Building Façade
- Architectural Spaces
- Features
- Specifications
- Technical Data
- IP67 strong water resistance
- Stainless steel trim corrosion protection
- IK10 drive-over durability
- Seamless inground installation, no obstacles
- Durable toughened glass for safety
| Housing | Aluminium Die Cast and Stainless Steel Trim with Toughened Glass | |
| Body Colour | Black | |
| Light Source | SMD | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP67 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| BL-03-SQ | 3 | 300 | 3000 / 4000 / 6500 | ≥80 | 9/25/40 | L:100, W:100, H:100 Cutout:95 | |||
| BL-06-SQ | 6 | 600 | 3000 / 4000 / 6500 | ≥80 | 9/25/40 | L:120, W:120, H:100 Cutout:115 | |||
| BL-09-SQ | 9 | 900 | 3000 / 4000 / 6500 | ≥80 | 9/25/40 | L:150, W:150, H:100 Cutout:135 | |||
| BL-12-SQ | 12 | 1200 | 3000 / 4000 / 6500 | ≥80 | 9/25/40 | L:180, W:180, H:100 Cutout:148 | |||
| BL-18-SQ | 18 | 1800 | 3000 / 4000 / 6500 | ≥80 | 9/25/40 | L:200, W:200, H:100 Cutout:158 | |||
| BL-24-SQ | 24 | 2400 | 3000 / 4000 / 6500 | ≥80 | 9/25/40 | L:250, W:250, H:100 Cutout:187 | |||
| BL-36-SQ | 36 | 3600 | 3000 / 4000 / 6500 | ≥80 | 9/25/40 | L:320, W:320, H:100 Cutout:240 |
*L=Length; W=Width; H=Height
