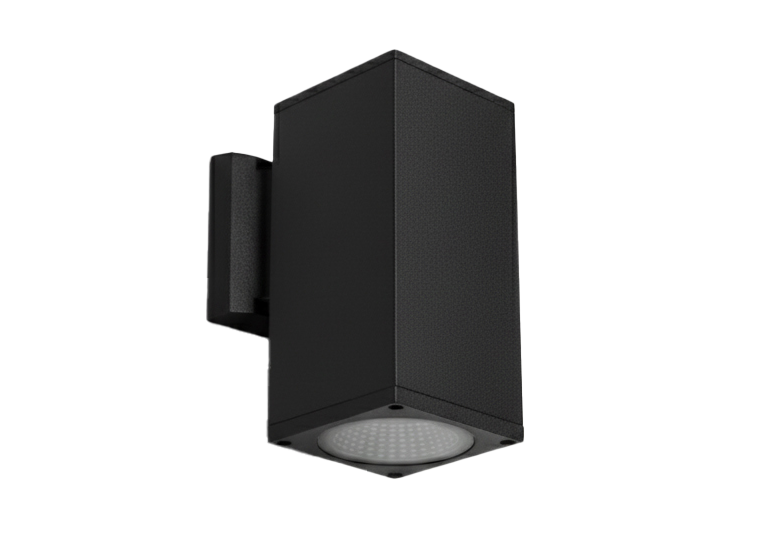

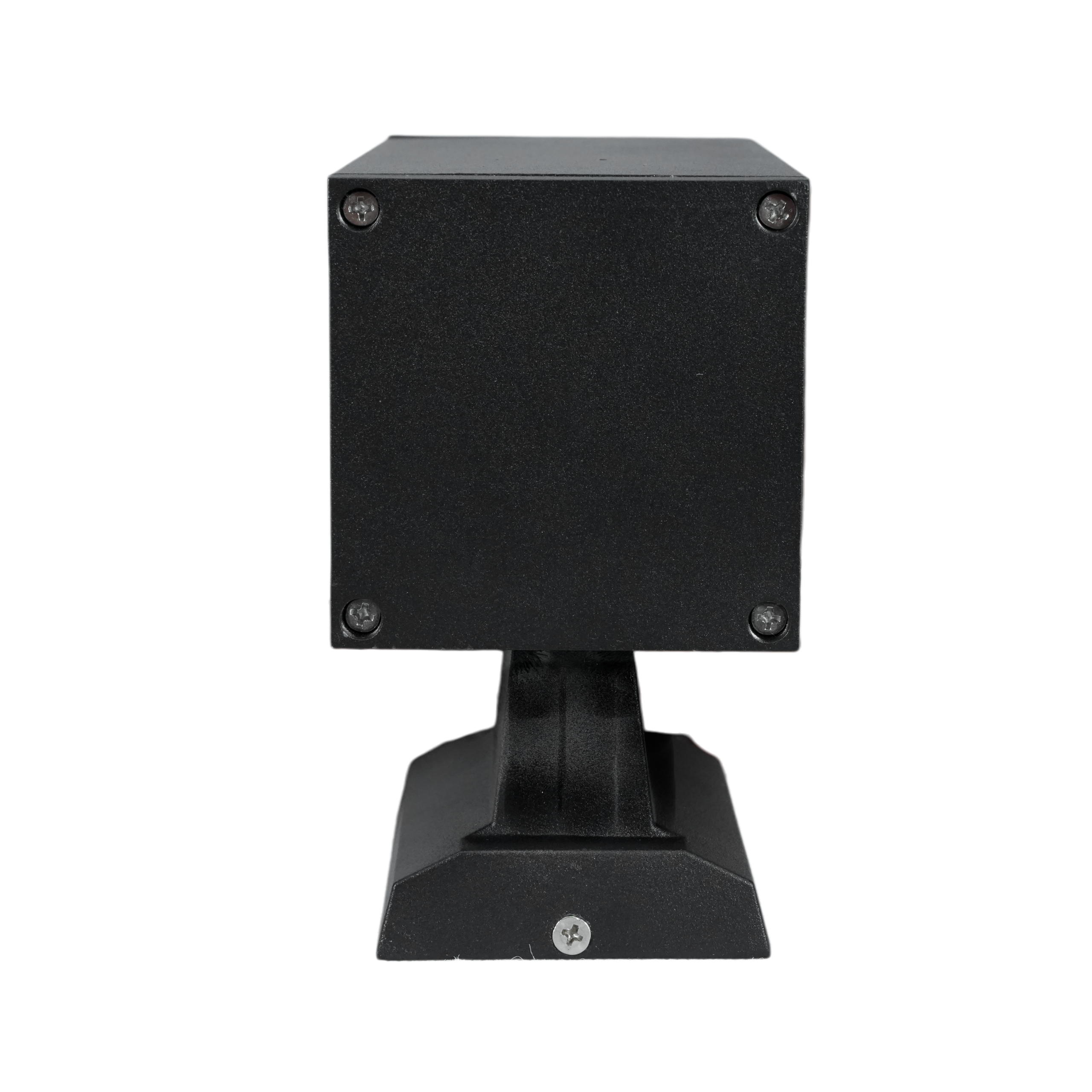

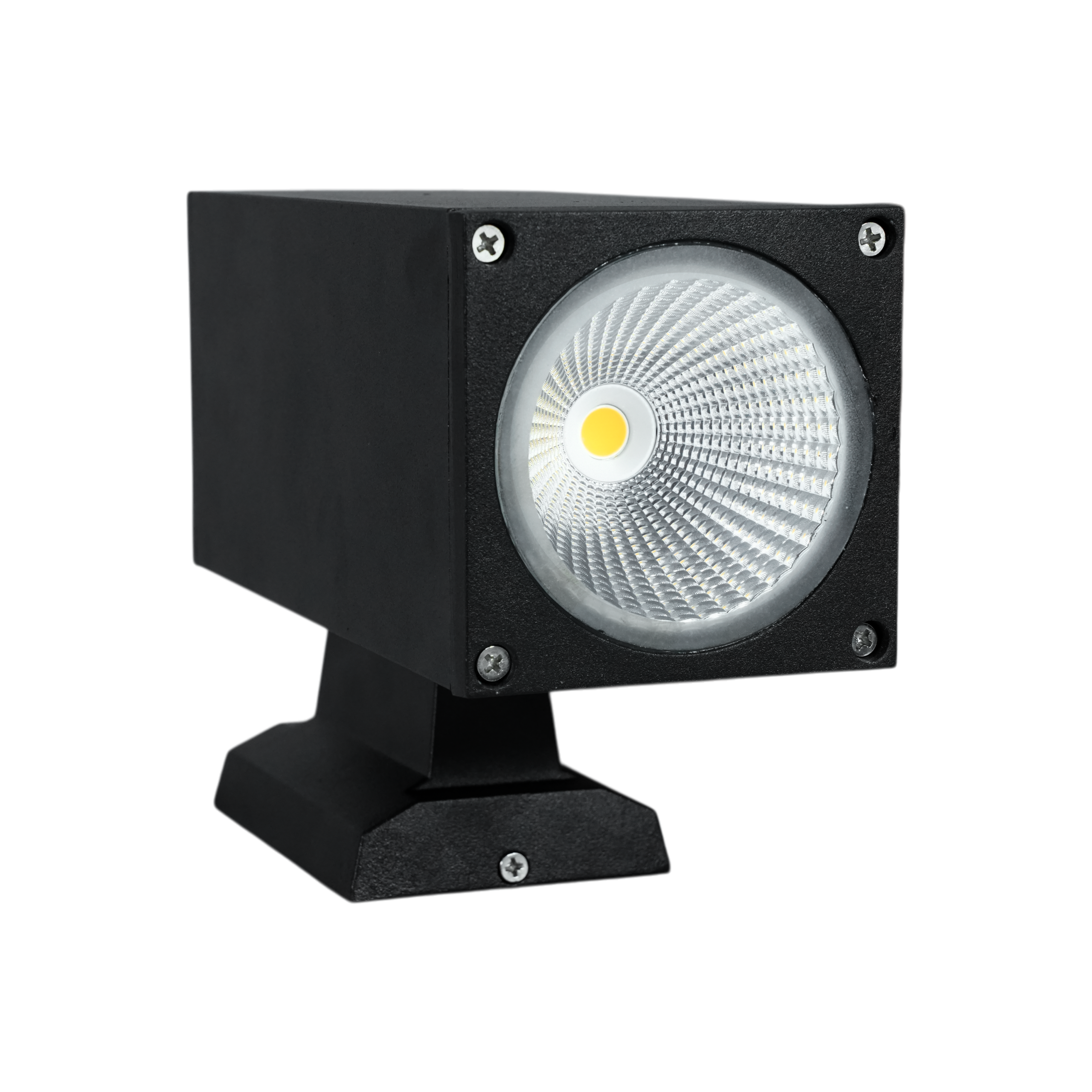

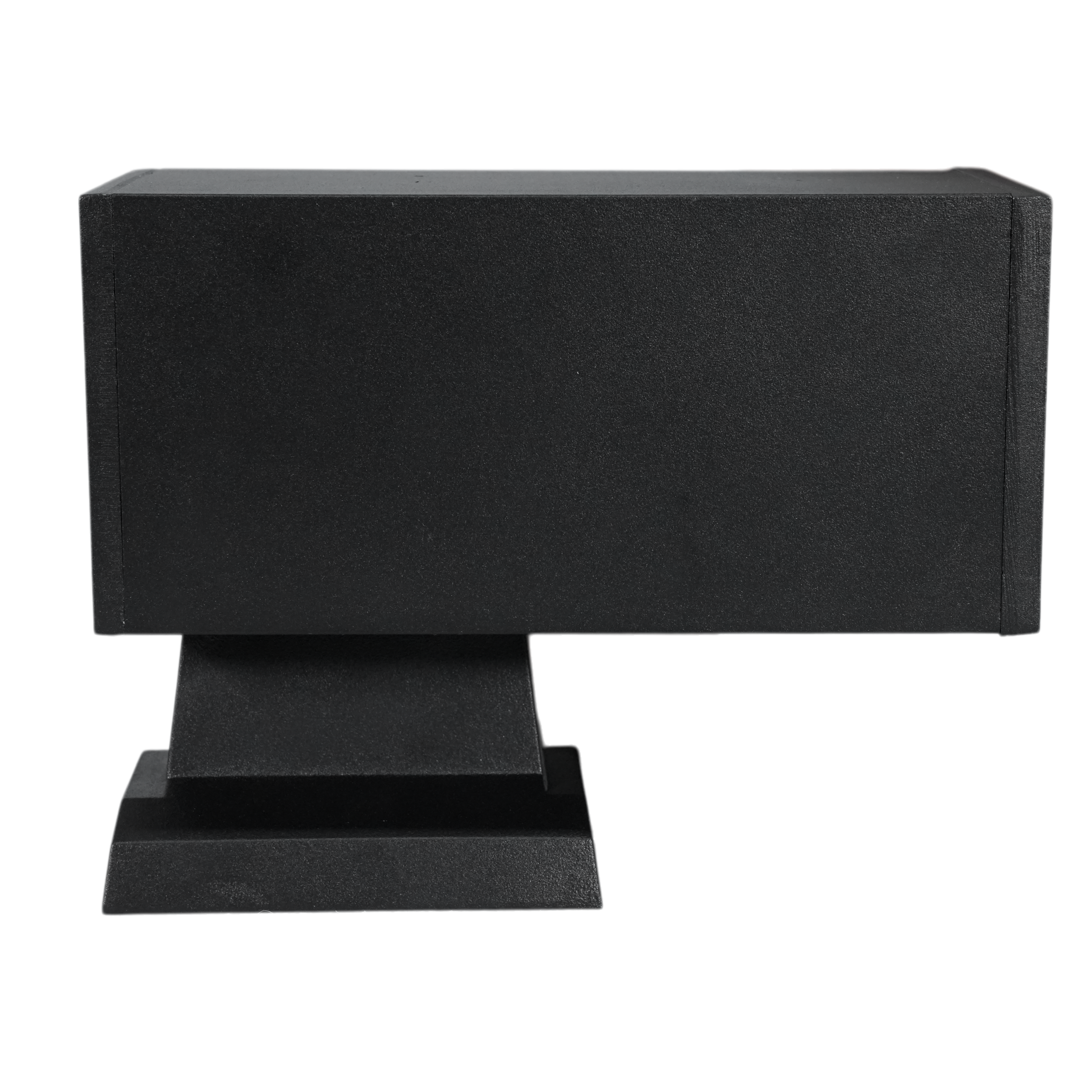

PATIO CUBE
1x15W
PATIO CUBE is a sleek outdoor lighting fixture designed to elevate façades, balconies, and walkways with subtle sophistication. Featuring a high-impact resistant build and dust & moisture-proof protection, it ensures lasting performance with minimal upkeep where durability meets modern design.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 1x15W |
Suitable for :
- Residential area
- Building Façade
- Balconies
- Walkways
- Features
- Specifications
- Technical Data
- Downloads
- High impact resistant body
- Easy installation
- Low maintenance
- Durable construction
- Dust & moisture proof
| Housing | Aluminium Die Cast with Clear Glass | |
| Body Colour | Grey/Black | |
| Light Source | COB | |
| Control Option | On/Off, Phase Dimming, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Power Factor | ≥0.9 | |
| IP Rating | IP65 | |
| IK Rating | IK08 |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | Beam Angle (Deg°) | Dimensions (mm) | |||
| CU-WDL-1x15 | 1x15 | 1,500 | 3000 / 4000 / 6500 | ≥80 | 23° | W1:150, W2:90, H:195 |
*W1=Width1, W2=Width2, H=Height
