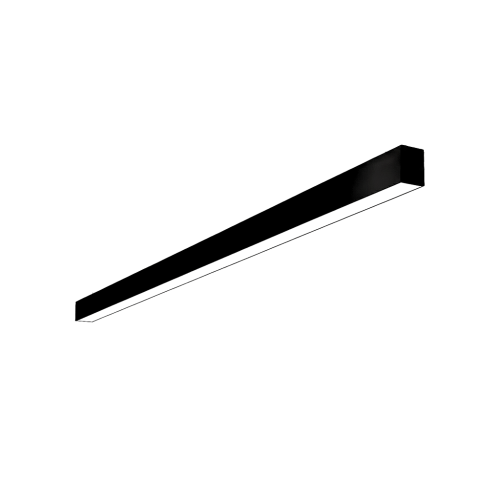

Cameo F 5070
18W, 20W, 30W, 40W
Cameo F 5070 is a linear LED light, which could either be mounted or hung from a ceiling surface. It has a wide range of applications in retail showrooms, galleries, exhibition halls, shopping malls, and other indoor spaces. Cameo F 5070 is available in a broad range of power and color temperatures
| CCT | 3000K, 4000K, 6500K |
|---|
Suitable for :
- Residential Spaces
- Office & Commercial Spaces
- Showrooms & Display Areas
- Educational Institutions
- Features
- Specifications
- Technical Data
- Downloads
- High Luminous Efficacy - More light output
- Long Life: 50,000 hrs - Minimal maintenance
- Consistent Performance & Quality - Delivers stable brightness
- Diffused Illumination – Soft, uniform, glare-free light.
- IP65 Rated – Protection against dust and water
| Housing | Aluminium Extrusion PC Diffuser | |
| Body Colour | Black/White | |
| Light Source | SMD | |
| Control Options | ON/OFF, PHASE DIMMING, 1-10V, DALI | |
| Rated Luminous Efficacy | 100 lm/W | |
| LED Life Time | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP20/65 | |
| IK Rating | IK02 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| CLL-5070-18 | 18 | 1800 | 3000K/4000K/6500K | ≥80 | 104.0° | L/D: 1000,W:50,H:70 mm | |||
| CLL-5070-20 | 20 | 2000 | 3000K/4000K/6500K | ≥80 | 104.0° | L/D: 1000,W:50,H:70 mm | |||
| CLL-5070-30 | 30 | 3000 | 3000K/4000K/6500K | ≥80 | 104.9° | L/D: 1000,W:50,H:70 mm | |||
| CLL-5070-40 | 40 | 4000 | 3000K/4000K/6500K | ≥80 | 112.6° | L/D: 1000,W:50,H:70 mm | |||
| CLL-65-5070-40WM | 40 | 4000 | 3000K/4000K/6500K | ≥80 | 114.2° | L/D: 1000,W:50,H:70 mm |
*D=Diameter; H=Height
