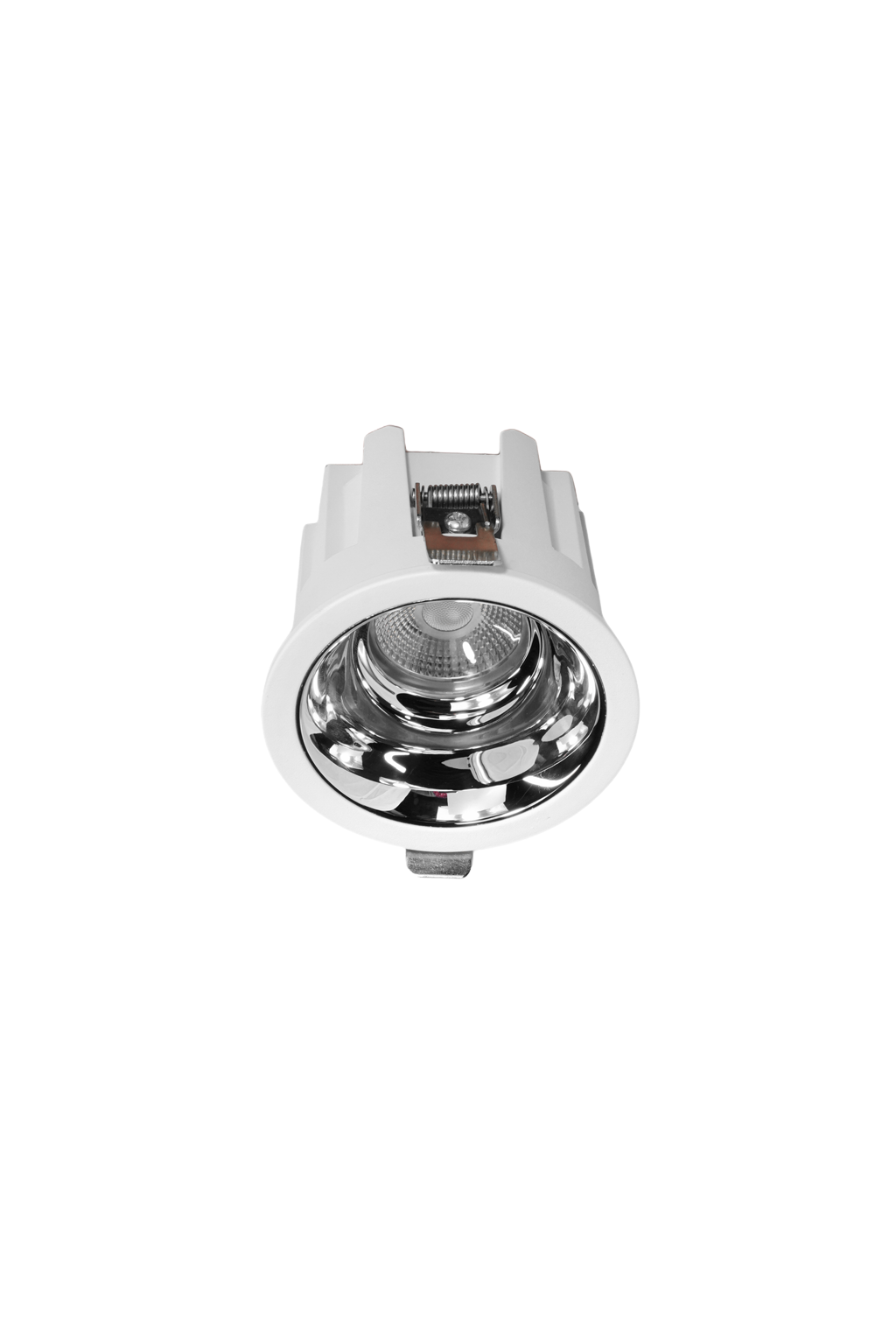

PETRA CB
10W, 15W, 25W, 40W, 55W
Recessed LED downlights that offer instant energy savings and durability, suitable for varied indoor lighting applications
| Colour | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 10W, 15W, 25W, 40W, 55W |
Suitable for :
- Home
- Living Room
- Corridor
- Hospital
- Hotel
- Restaurant
- Offices
- Retail
- Shops
- Store Rooms
- Machinery workshops
- Industrial kitchen areas
- Courtyards
- Reception Areas
-
Features
-
Specifications
-
Technical Data
-
Downloads
- Compact, aesthetic design for versatile indoor applications
- Special housing design ensures durability and better light output
- High luminous efficacy ensures better brightness
- Energy-efficient downlights with long life
- High lumen output with 100-120 Lm/Watt ensures more brightness
- Constant current driver helps in safe operation
- Instant start and frequent switching makes it user-friendly
- Choice of different colour temperatures, to highlight spaces effectively
- Zero maintenance
- Mounting by retaining clips
| Housing | Aluminium Diecast Body With Frosted Glass Diffuser | |
| Body Colour | White | |
| Light Source | CREE | |
| Control Gear | Hansa Green | |
| DIMMING | TRIAC, 0.-10V, DALI & VLC | |
| RATED LUMINOUS EFFICACY | 100-120 lm/w | |
| LED LIFE TIME | >50,000 hours | |
| INPUT VOLTAGE | 100-240 Vac | |
| INPUT FREQUENCY | 50-60 Hz | |
| EFFICIENCY | >90% | |
| IP RATING | IP 65 |
| Model No. | Power | Lumens | CCT | CRI | Beam Angle | Dimensions (MM) | |||
| PCB-10-K30 | 10 | 1000 lms ± 10 % | 3000K | >80 | 45°,60° | D:110,H:62,C:97 mm | |||
| PCB-10-K40 | 10 | 1000 lms ± 10 % | 4000K | >80 | 45°,60° | D:110,H:62,C:97 mm | |||
| PCB-10-K65 | 10 | 1000 lms ± 10 % | 6500K | >80 | 45°,60° | D:110,H:62,C:97 mm | |||
| PCB-15-K30 | 15 | 1500 lms ± 10 % | 3000K | >80 | 45°,60° | D:135,H:75,C:113 mm | |||
| PCB-15-K40 | 15 | 1500 lms ± 10 % | 4000K | >80 | 45°,60° | D:135,H:75,C:113 mm | |||
| PCB-15-K65 | 15 | 1500 lms ± 10 % | 6500K | >80 | 45°,60° | D:135,H:75,C:113 mm | |||
| PCB-25-K30 | 25 | 2500 lms ± 10 % | 3000K | >80 | 45°,60° | D:160,H:80,C:135 mm | |||
| PCB-25-K40 | 25 | 2500 lms ± 10 % | 4000K | >80 | 45°,60° | D:160,H:80,C:135 mm | |||
| PCB-25-K65 | 25 | 2500 lms ± 10 % | 6500K | >80 | 45°,60° | D:160,H:80,C:135 mm | |||
| PCB-40-K30 | 40 | 4000 lms ± 10 % | 3000K | >80 | 45°,60° | D:185,H:105,C:160 mm | |||
| PCB-40-K40 | 40 | 4000 lms ± 10 % | 4000K | >80 | 45°,60° | D:185,H:105,C:160 mm | |||
| PCB-40-K65 | 40 | 4000 lms ± 10 % | 6500K | >80 | 45°,60° | D:185,H:105,C:160 mm | |||
| PCB-55-K30 | 55 | 5500 lms ± 10 % | 3000K | >80 | 45°,60° | D:240,H:120,C:200 mm | |||
| PCB-55-K40 | 55 | 5500 lms ± 10 % | 4000K | >80 | 45°,60° | D:240,H:120,C:200 mm | |||
| PCB-5-K65 | 55 | 5500 lms ± 10 % | 6500K | >80 | 45°,60° | D:240,H:120,C:200 mm |
*D=Diameter; H=Height; C=Cut-out
