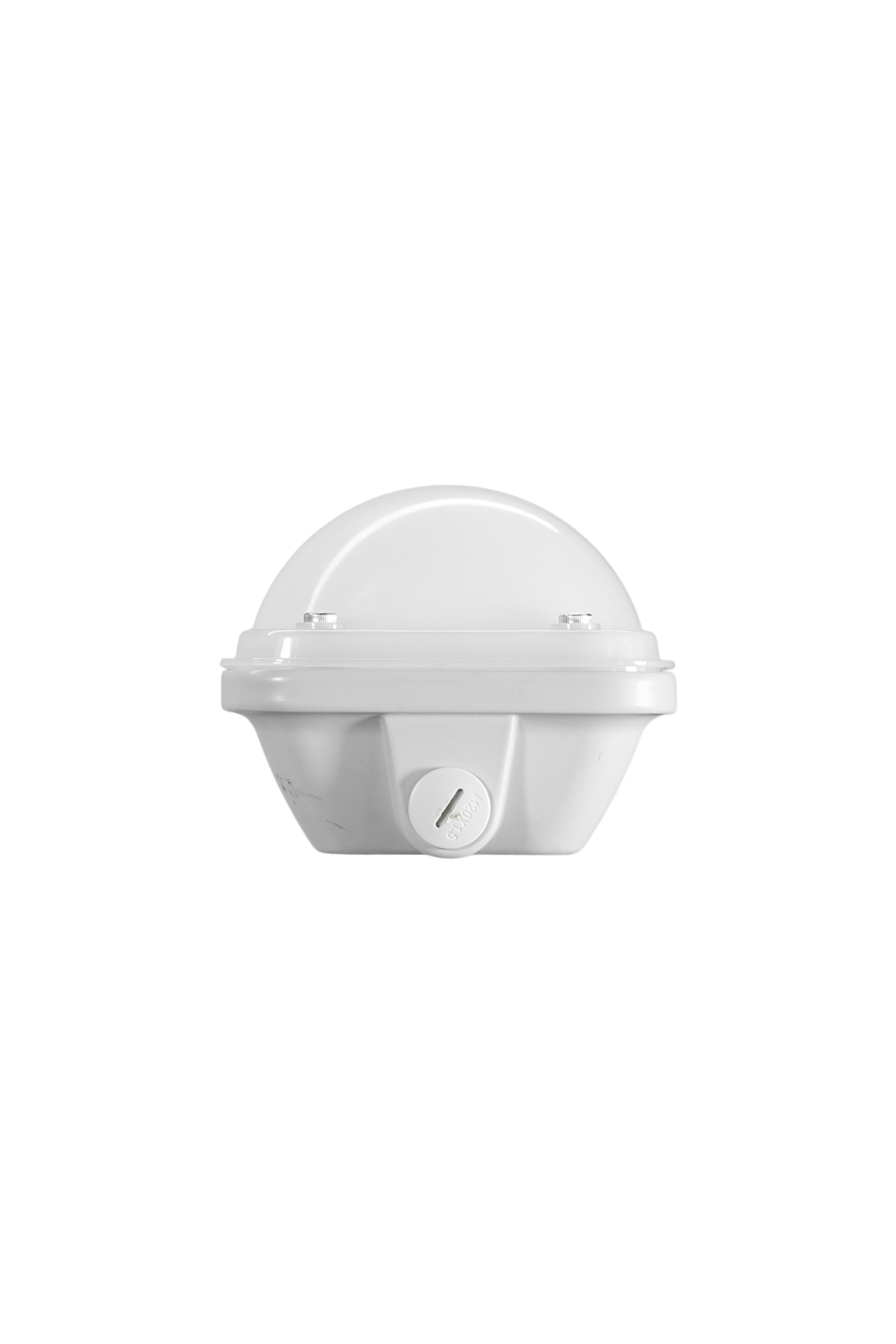

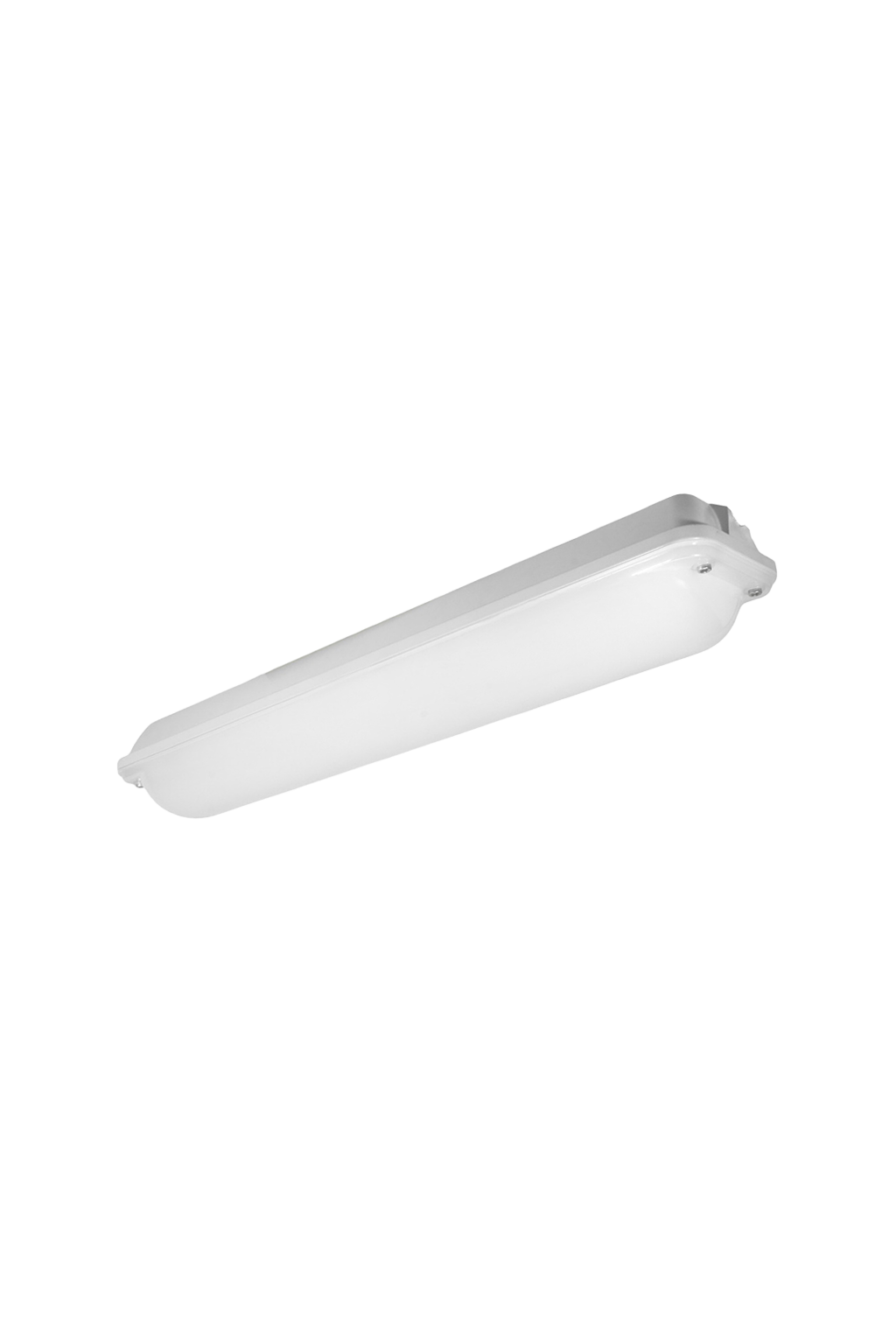

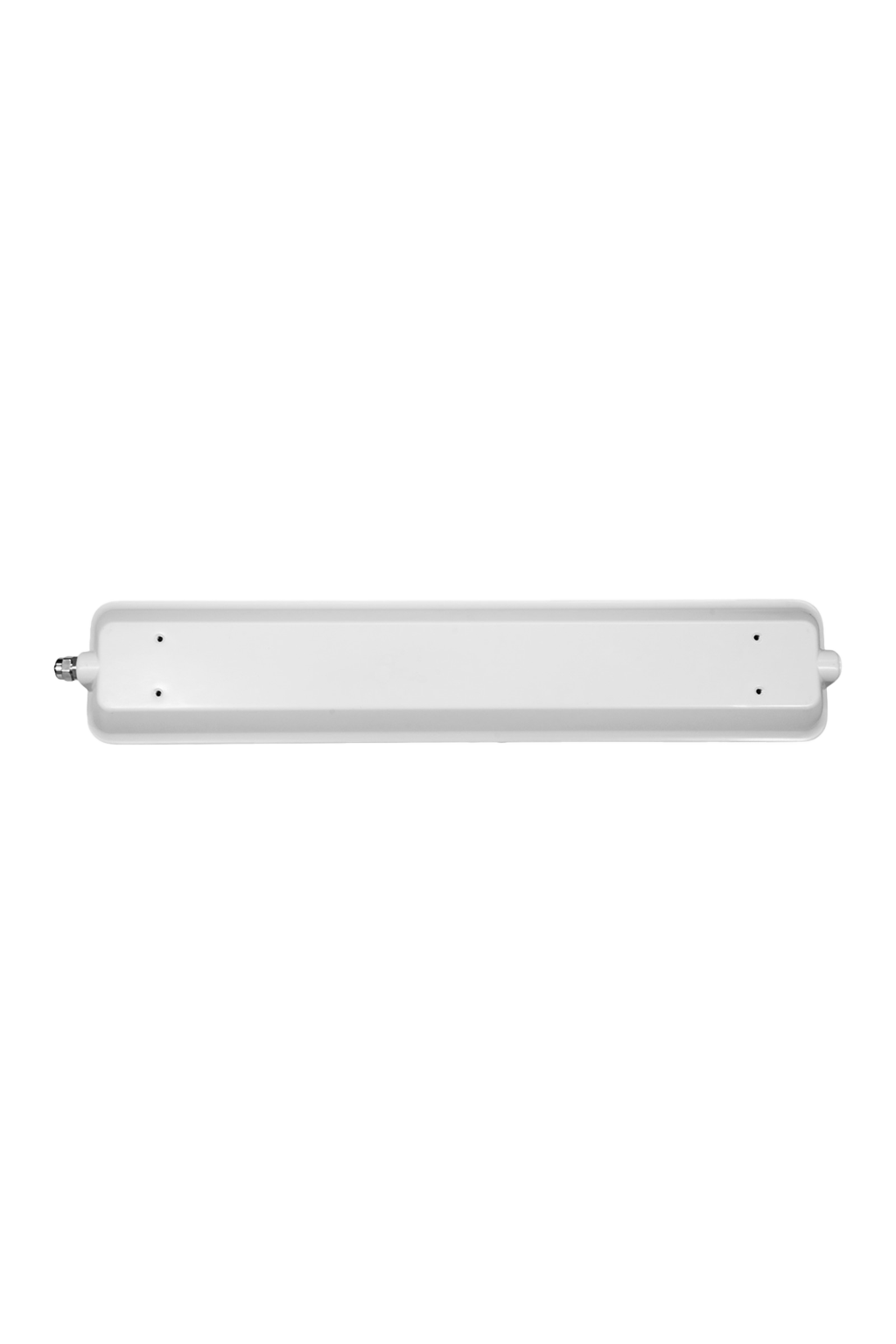

Lumibrook VP
40W, 60W
Our Industrial Range Vandal-Proof Luminaires are engineered to deliver reliable, high-performance lighting in the most challenging industrial, commercial, and public-access locations. Featuring a heavy-duty, impact-resistant design, these fixtures are the ultimate solution for areas prone to vandalism, moisture, dust, and extreme temperatures.
| CCT | 3000K, 4000K, 6500K |
|---|---|
| Wattage | 40W, 60W |
Suitable for :
- Parking Areas
- Industrial & Infrastructure
- Transportation Areas
- Pedestrian underpasses
-
Features
-
Specifications
-
Technical Data
-
Downloads
- High Luminous efficacy - More light output
- Long life: 50,000+ hrs - Minimal maintenance
- Tamper-Proof Design – Ideal for public or high-risk areas
- Consistent Performance & Quality - Delivers stable brightness
- Impact-resistant diffuser – Ensures durability and safety
| Housing | Aluminium Die Cast Body With PC Diffuser | |
| Body Colour | Grey | |
| Light Source | Bridgelux | |
| Control Gear | Tridonic/Philips | |
| Control Options | ON/OFF, PHASE DIMMING, 1-10V, DALI | |
| Rated Luminous Efficacy | 120 lm/W | |
| Lifetime | >50,000 hours | |
| Input Voltage | 220-240 VAC | |
| Input Frequency | 50-60 Hz | |
| Efficiency | >90% | |
| IP Rating | IP66 | |
| IK Rating | IK10 |
| Model No. | Power (W) | Lumens | CCT | CRI | Beam Angle | Dimensions (mm) | |||
| LBV-4F02-P40 | 40 | 4800 | 3000K/4000K/6500K | ≥80 | 123.7° | L/D: 1305,W:138,H:120 mm | |||
| LBV-4F02-P60 | 60 | 7200 | 3000K/4000K/6500K | ≥80 | 123.7° | L/D: 1305,W:138,H:120 mm |
*D=Diameter; H=Height
