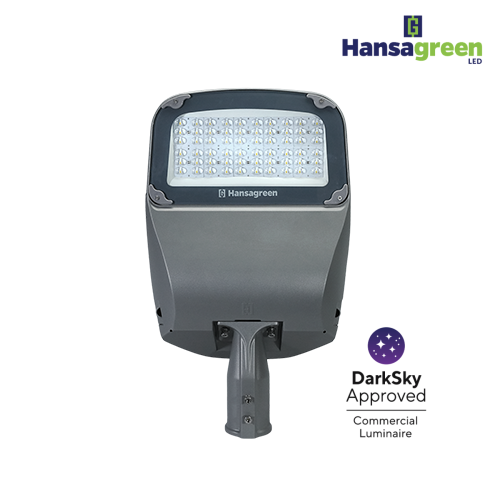

PELICAN D
UPTO 150W
Pelican D is a high-performance, energy-efficient street lighting solution designed to deliver uniform illumination for urban and industrial environments. With advanced optics and multiple configuration options, it ensures optimal lighting for applications such as roads, highways, parking areas, residential communities, and commercial spaces, while offering reliable performance and low maintenance.
| CCT | 2700K/ 3000K |
|---|---|
| Wattage | UPTO 150W |
| Note | DarkSky Approved when mounted in the downward position only, Restricts adjustment above 5° (horizontal position): Luminaire should be mounted horizontal to be DarkSky Approved. |
Suitable for :
- Urban & Residential
- Open Car parks
- Fuel Stations
-
Features
-
Specifications
-
Technical Data
-
Downloads
- CORROSION-RESISTANT ALUMINIUM-DIE CAST BODY
- WEATHER RESISTANT CONSTRUCTION
- POWDER COATED FINISH
- HIGH-IMPACT TEMPERED GLASS
- VARIOUS MOUNTING OPTIONS AVAILABLE
| PRODUCT NAME | PELICAN D | |
| PRODUCT TYPE | LED STREET LIGHT | |
| PRODUCT CODE | Pelican D-150-KXX | |
| AVAILABLE CCT | 2700K - 3000K | |
| BODY MATERIAL | CORROSION-RESISTANT ALUMINIUM DIE-CAST | |
| LENS | UV-STABILIZED POLYCARBONATE (PC) LENS | |
| OPTICAL COVER TYPE | TOUGHENED GLASS | |
| BODY COLOR | GREY / WHITE / SPECIAL | |
| CONTROL OPTIONS | DALI, 1–10V DIMMING | |
| RATED LUMINOUS EFFICACY | 146.86 lm/W | |
| IP RATING | IP66 | |
| IK RATING | IK08 | |
| AMBIENT TEMPERATURE (TA) | -20°C to +50°C | |
| HUMIDITY | RH 10–95% |
| Model No. | Power (W) | Lumens (lm) | CCT (K) | CRI | ULOR(Upward Light Output Ratio) | Beam Angle (Deg°) | Dimensions (mm) | ||
| Pelican D-150-KXX | UPTO 150 | 21810 | 2700/3000 | ≥70 | 0% (U0 – Zero Uplight) | 116.3° | L: 585, W: 350, H: 112, PD: 63 |
*L=Length; W=Width; H=Height; PD=Pole Dia;
